EVO 2.4 FIXED RIB-B VW SWB VAN

£ 1,095.00 inc vat

VW T5 T6 short wheel base van flat pack

Includes full side unit, table system, over bed locker, front and back bed boards, all the wood work necessary to build a full camper van interior,

Works with low roof & elevating roof vans.

The front cupboard door unclips to fit a selection of 50L fridges.

The worktop is cut as standard for a SMEV 9722 sink hob ( righthand sink )

Uses   10 Liter – B  water bottle.

Designed specifically for the Scopema Rib Altair 112cm x 186cm seat bed Fixed seat

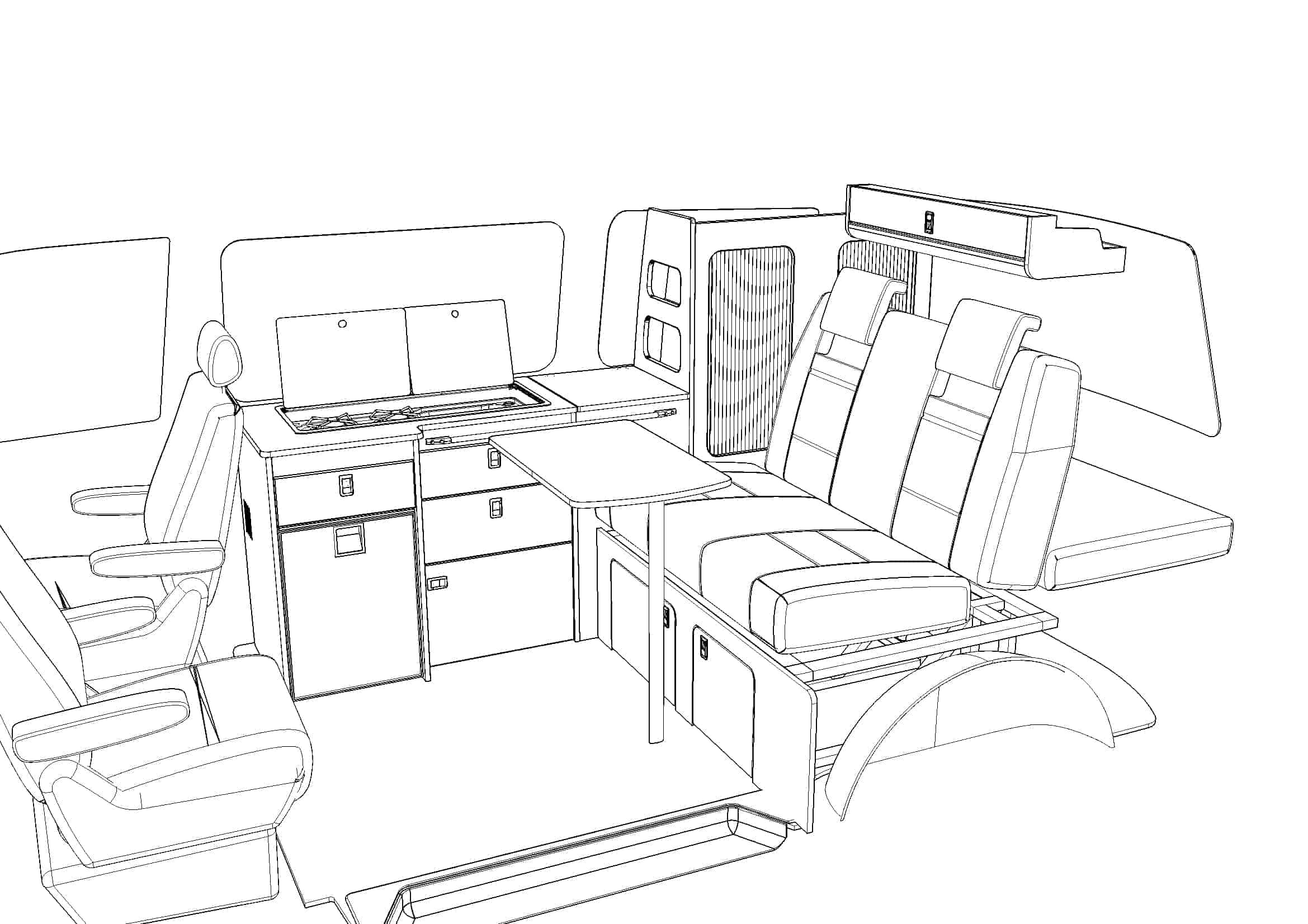

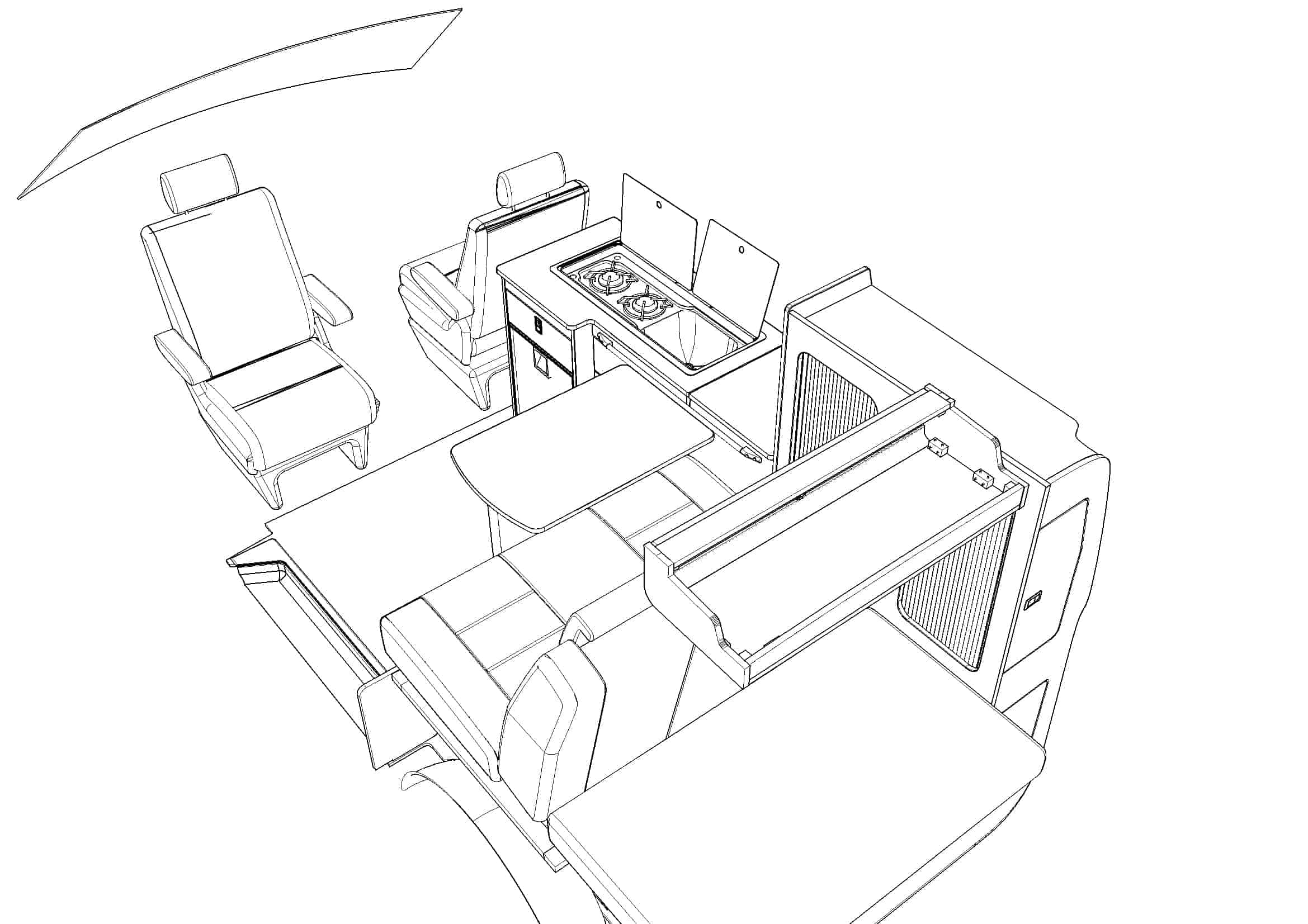

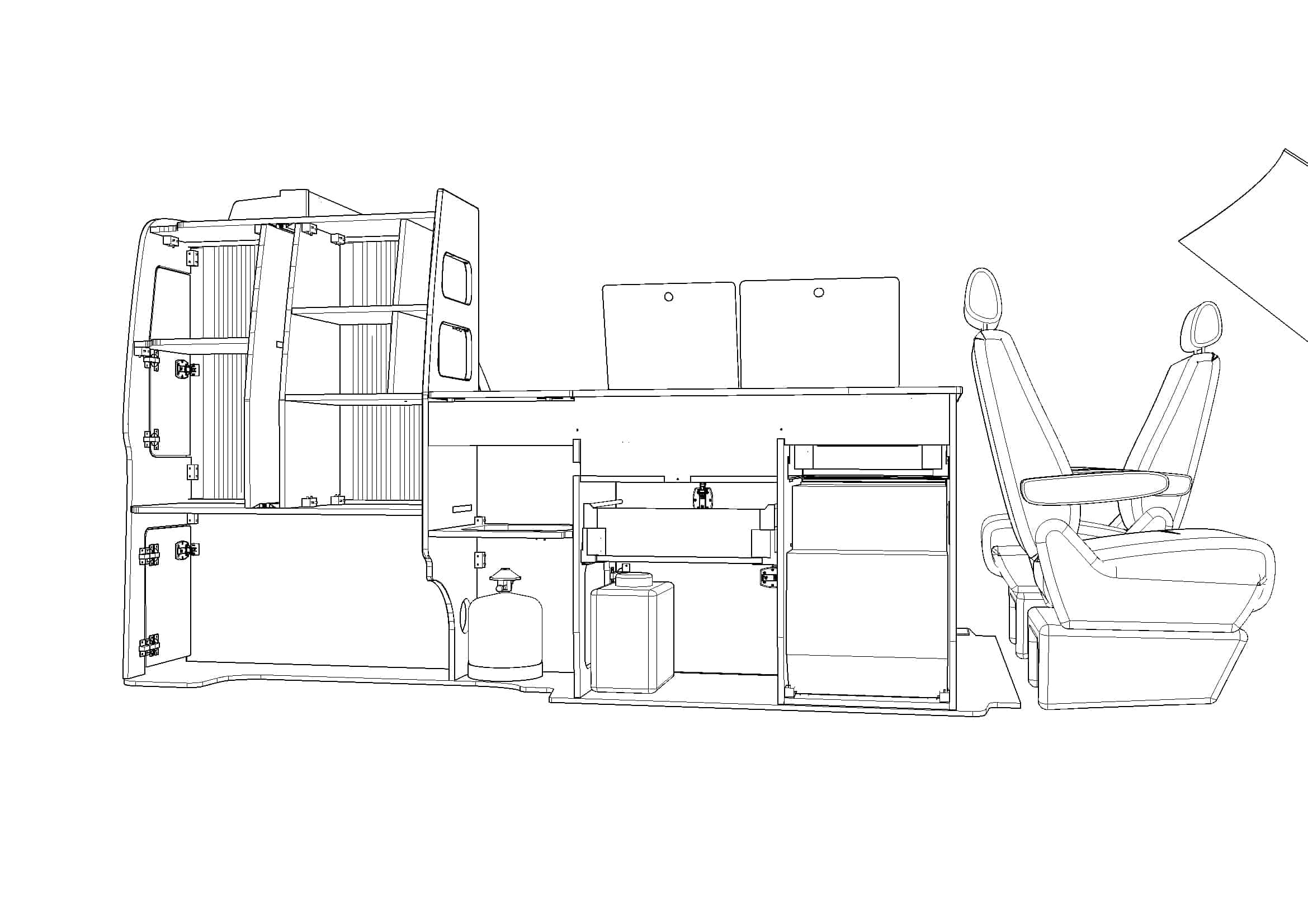

Optional extras shown on the illustrations are:

  • Led shelf + Doors
  • Twin light recesses
  • Evomatic catches

See full specifications and options below.

SaveSave

SaveSave

SaveSave

SaveSave

SaveSave

SaveSave

SaveSave

SaveSave

SaveSave

Van Model *

VW T5/6’s require 44″ WIDTH BEDS or narrower
VW T4’s require 42″ WIDTH BEDS or narrower
– T4/5/6 require 15mm total floor thickness – Add notes if thicker or using rails
– T4/5/6 Fits a standard van configuration – Add notes for twin sliding doors, rear Aircon unit or non standard features.
Do not use large one piece ply lining.

LEFT or RIGHT hand drive vehicle? *

Unit Finish *

View finishes

Worktop & Table Finish *

Colour Reference

If you have selected an laminate finish from above please add details here, For Altofina finishes note this will add 2-3 weeks on top of the standard lead-time.
The STYLAM by GEAVES range will be normal lead time. Please enter the finish FULL title and number, including the texture codes SD, TK, CC etc. Eg Dove Grey 8105 SD

EDGE TRIM COLOUR *

Roof Type *

Which over bed Locker do you require with your Furniture? This is included as standard
View Over bed locker types

Bed boards *

These are panels for the front and back of your seat / bed. Please note the Rib bed is available in 2 different frame heights 340 or 330 mm contact your supplier for this info or measure yourself.
View Bed Board Types

Door catch *

View Catch Options

Drawer Type *

Window Surround panel

3mm thick Aluminium composite window surround panel which can be drilled and cut to accept switches and control panels
Which over bed Locker do you require with your Furniture? This is included as standard View window surrounds

Optional extras

Add products to compliment your furniture kit. Please note some kits come with some of the items below
** SAVE £100 WITH OUR FRIDGE BUNDLE DEAL

ORDER NOTES

Please add any additional information that you have discussed with us.

SKU: ( A2.4RB ) Category: Tag:

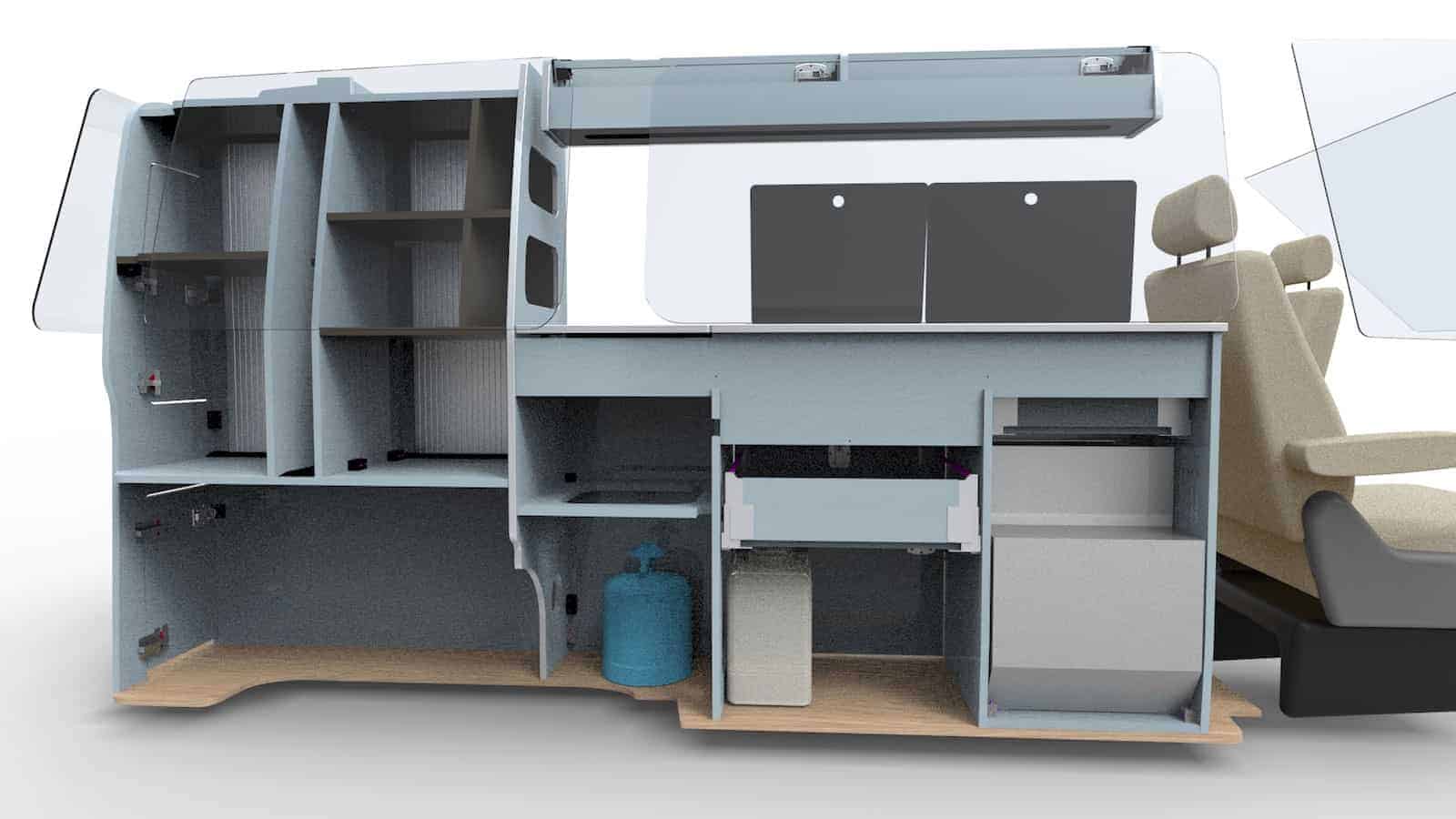

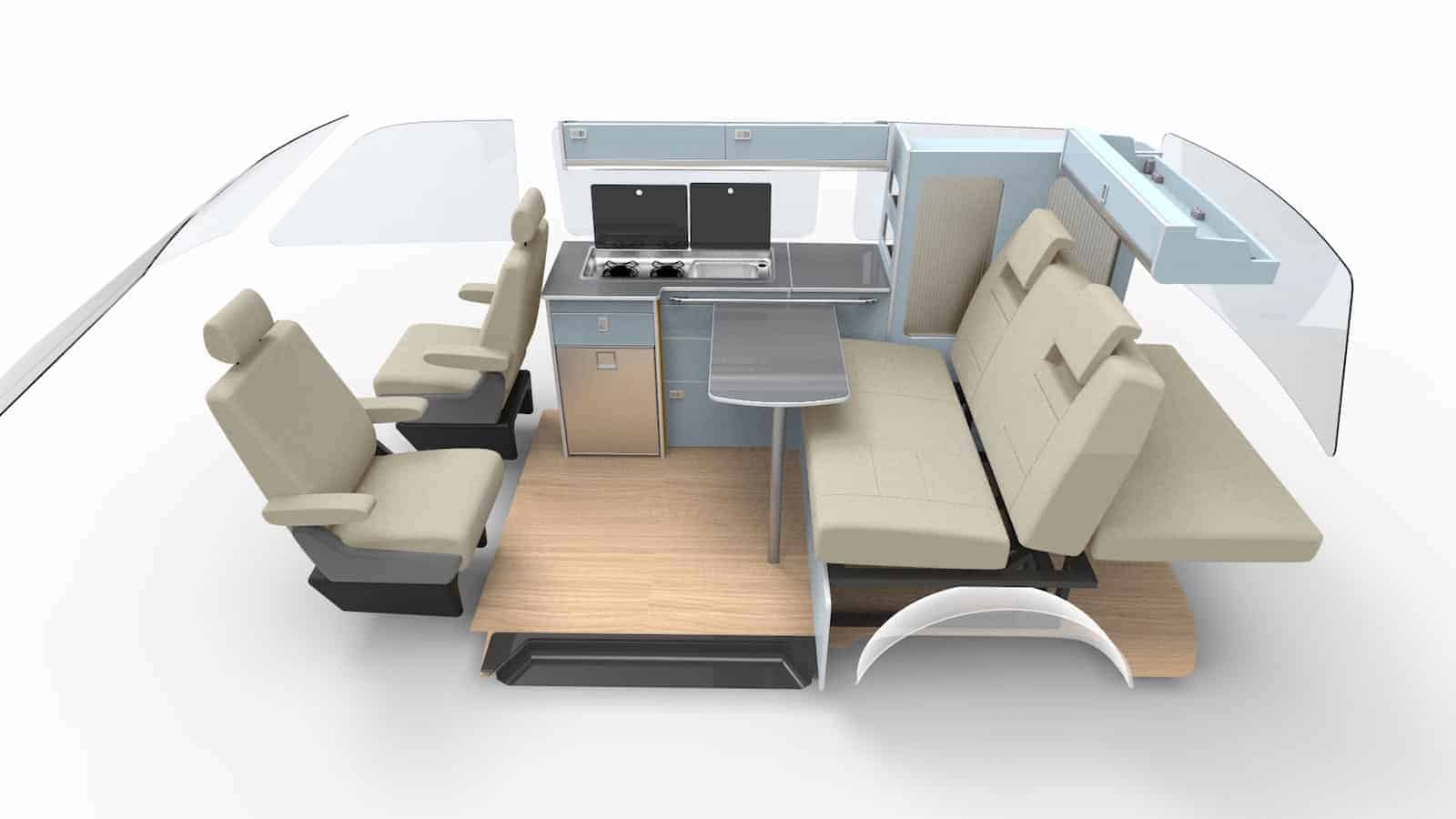

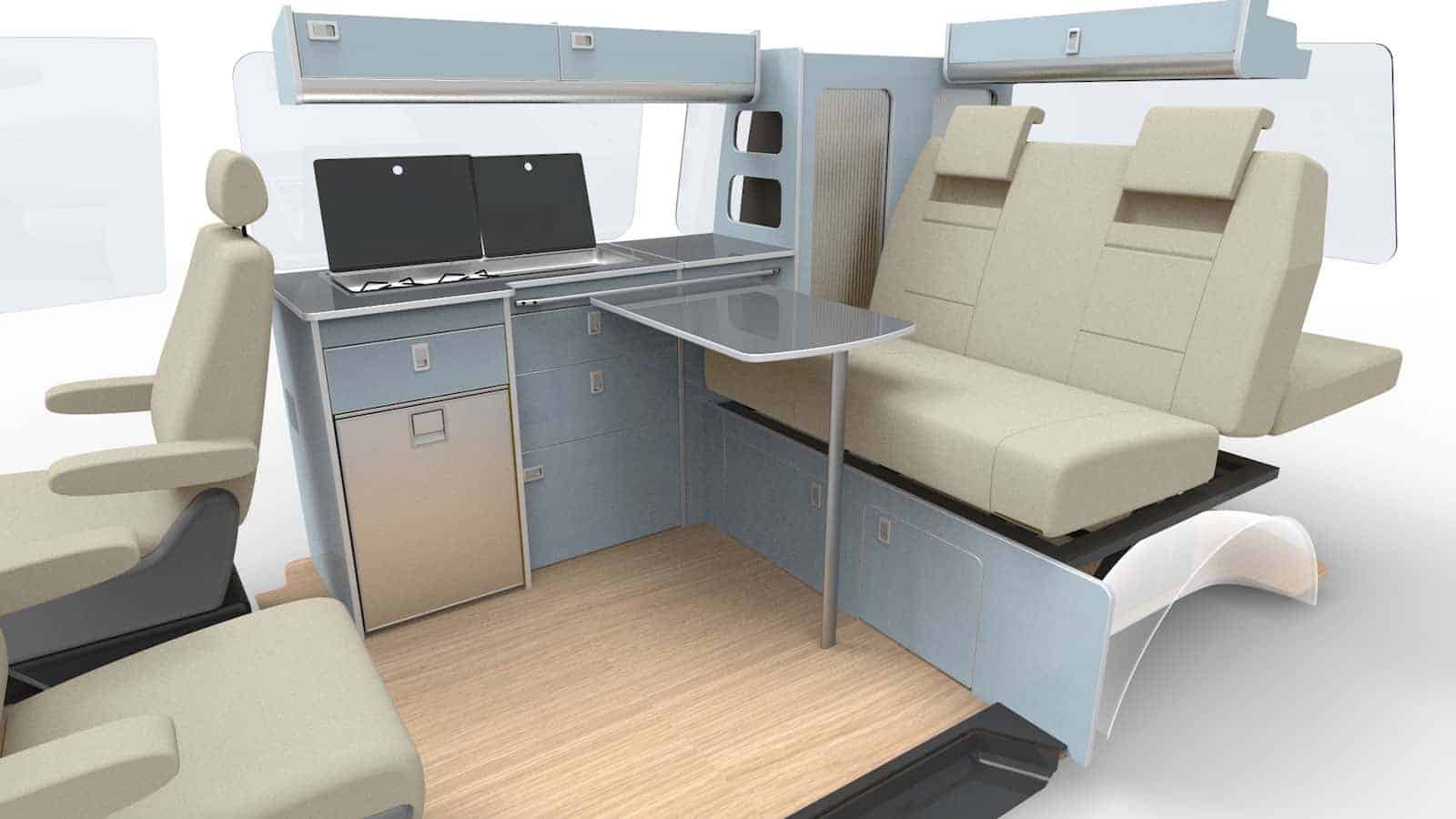

3D Image click and drag to rotate

(Image shows LED light shelf + doors, this is not included as standard and is an optional extra)

Appliances to fit this unit:

+
 Quick View

50L kit fridges

BLACK VITRIFRIGO FRIDGE C51i

£ 559.00 inc vat
Sale!
+
 Quick View

50L kit fridges

Dometic CRE 50

£ 540.00 £ 485.00 inc vat
BUNDLE DEAL
+
 Quick View

50L kit fridges

Waeco Coolmatic Dometic Crx 50 Fridge (BUNDLE DEAL)

£ 520.00 inc vat
BUNDLE DEAL
+
 Quick View

50L kit fridges

BLACK VITRIFRIGO FRIDGE C51i (BUNDLE DEAL)

£ 439.00 inc vat
BUNDLE DEAL
+
 Quick View

50L kit fridges

SILVER VITRIFRIGO FRIDGE C51i (BUNDLE DEAL)

£ 439.00 inc vat
+
 Quick View

50L kit fridges

Webasto Cruise 49 liters Fridge

£ 495.00 inc vat
+
 Quick View

Gas Hobs + Sinks + Taps

Smev 9722 right hand sink hob

£ 236.00 inc vat
+
 Quick View

9222

Comet Florenz Tap (SWITCH)

£ 39.95 inc vat

EVO  2.4 RIB  – B – key features :

Modified for the  Fixed Rib  112cm x 186cm seat bed.

  • Side unit with 8 doors & 2 drawers
  • 2 X Sliding tambour door
  • Over bed locker for low roof and elevating roof vans
  • Front bed panel with door and rear bed panel
  • 2 drawers one for cutlery and the other extra deep 150mm high
  • Concealed self close hinges with flush fitting doors
  • Table with folding aluminium leg and  stainless steel sliding rail system
  • All connecting blocks, hinges, grey , black or silver edging, push catches and screws
  • The front cupboard door unclips to fit a Webasto Cruise 49 ( optimised for this fridge ), Waeco CR50  or CR40 fridge if you wish to install one later.
  • Knock on edging for all exposed edges, the edges are pre slot cut for you to apply
  • Designed to be easy to construct with easy  mount hinges, slots for aligning the panels and pre drilled hole for the connector blocks
  • The worktop cut for a SMEV 9722 sink hob ( righthand sink )
  • Available in a range of own light weight ply finishes
  • Worktop and Table can be a different finish to the unit.
  • Edging: Silver or Dark Grey or black
  • Works with Scopema RIB seat 1120mm wide sliding version, Smart beds Evolution and various rock n roll beds 44” wide or less. EVO 2.4  maximum bed length is 1940mm measured from the back doors.
  • Works with both low roof and elevating roof conversions.

Does not include:

  • Led light shelf
  • Led shelf + Door
  • Twin light recess

These are optional extras below
