Appliances to fit this unit:

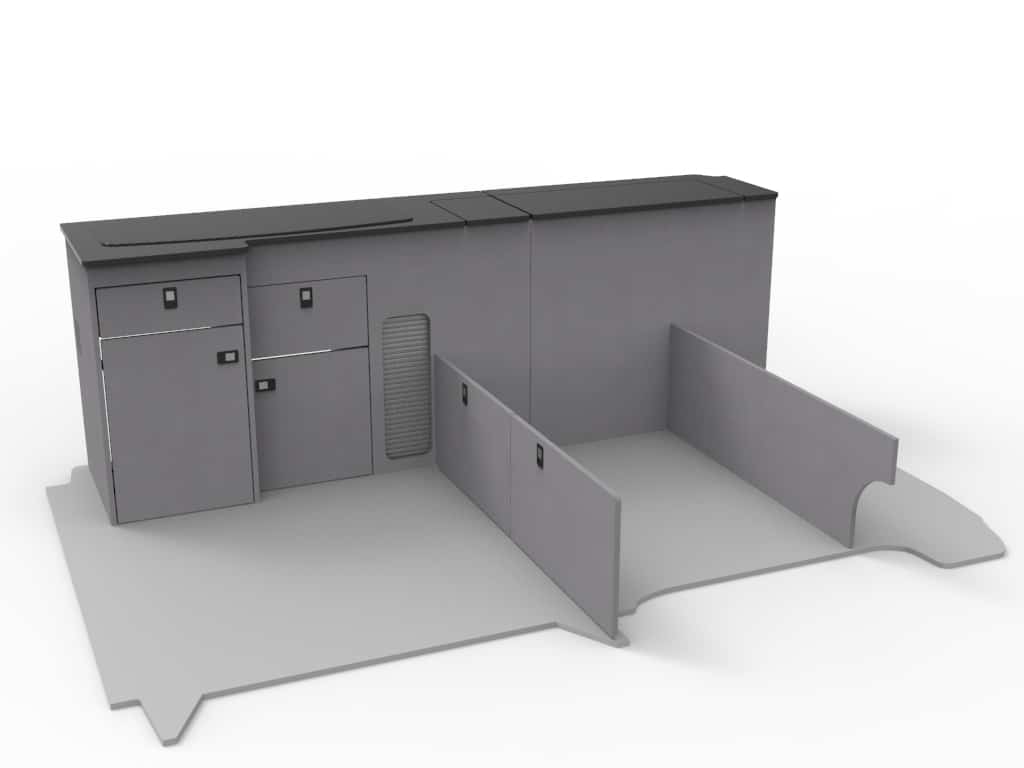

EVO 2.3 FIXED RIB (A)key features :
- Side unit with low front & back
- Over bed locker for low roof and elevating roof vans
- Front bed panel with door and rear bed panel
- 2 drawers one for cutlery and the other extra deep 150mm high
- Concealed self close hinges with flush fitting doors
- Table with folding aluminium leg and stainless steel sliding rail system
- All connecting blocks, hinges, grey , black or silver edging, push catches and screws
- The front cupboard door unclips to fit a Webasto Cruise 49 ( optimised for this fridge ), Waeco CR50 or CR40 fridge if you wish to install one later.
- Knock on edging for all exposed edges, the edges are pre slot cut for you to apply
- Designed to be easy to construct with easy mount hinges, slots for aligning the panels and pre drilled hole for the connector blocks
- The worktop cut for a SMEV 9222 sink hob ( righthand sink )
- Available in a range of own light weight ply finishes
- Worktop and Table can be a different finish.
- Edging: Silver or Dark Grey or black
- Works with Scopema RIB seat 1120mm wide 44” wide or less.
- EVO 2 maximum bed length is 1925mm measured from the back doors.
- Works with both low roof and elevating roof conversions
- Does not include LED light shelf
