Version 1 Twin slider with table
Twin Slider Kitchen Pod with Mito rail 1
Twin Slider Kitchen Pod with Mito rail 2
Twin Slider Kitchen Pod with Mito rail 3
Twin Slider Kitchen Pod with Mito rail 4
Twin Slider Pod 2 versions
Twin slider pod version 1 dimensions
The gap in the door of the twin slider left over from the kitchen pod (drivers side)
Twin slider pod version 2 dimensions
The gap in the door of the twin slider left over from the kitchen pod (drivers side)

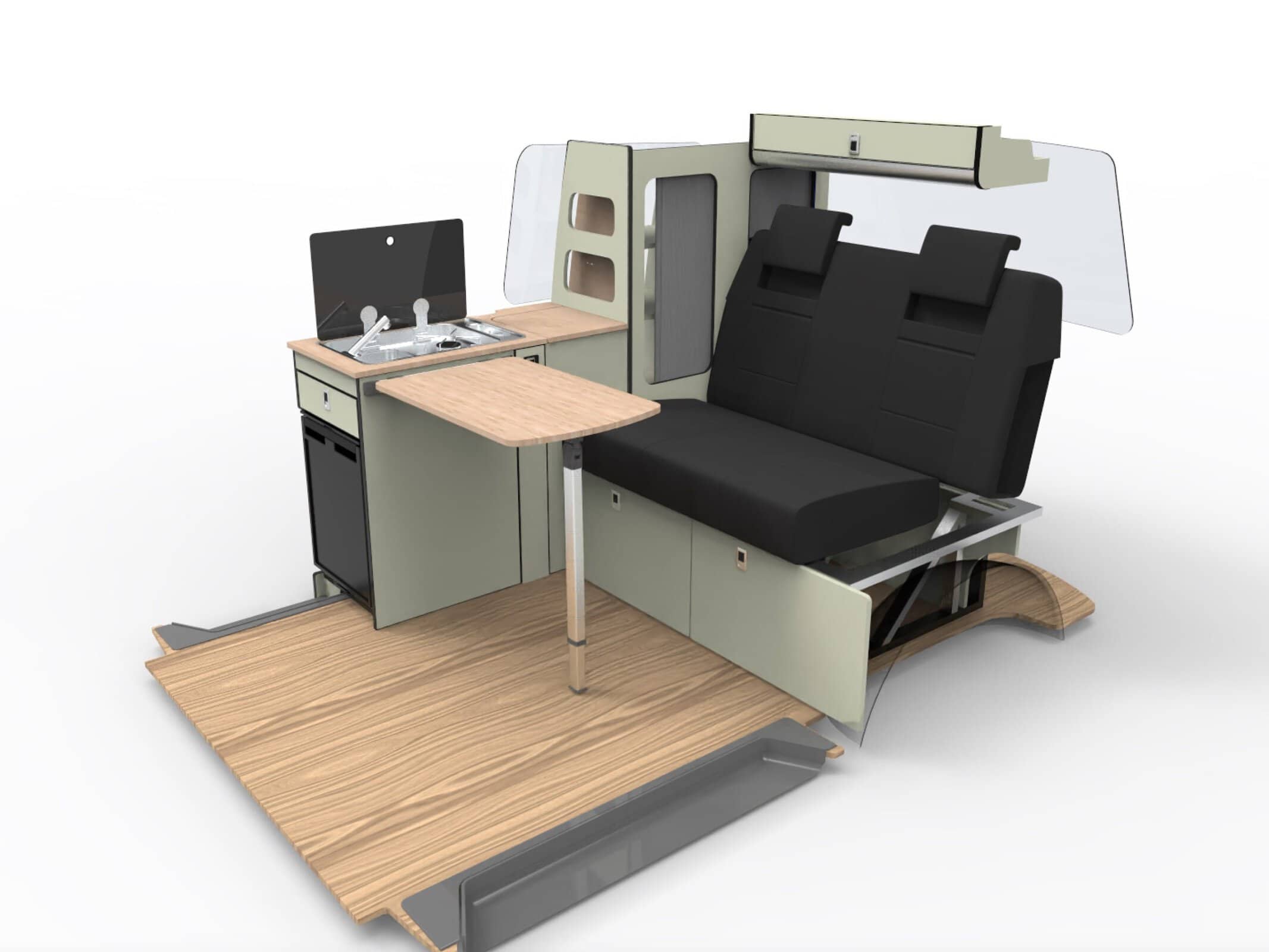

EVO Twin Slider Kitchen With .4 Double Opening Wardrobe

£ 1,329.00 inc vat

VW T5 T6 T6.1 short wheel base Twin Slider van flat pack interior.

Includes .4 rear wardrobe, over bed locker, front and back bed boards, all the wood work necessary to build a full camper van interior.

There are 2 Options on the kitchen :

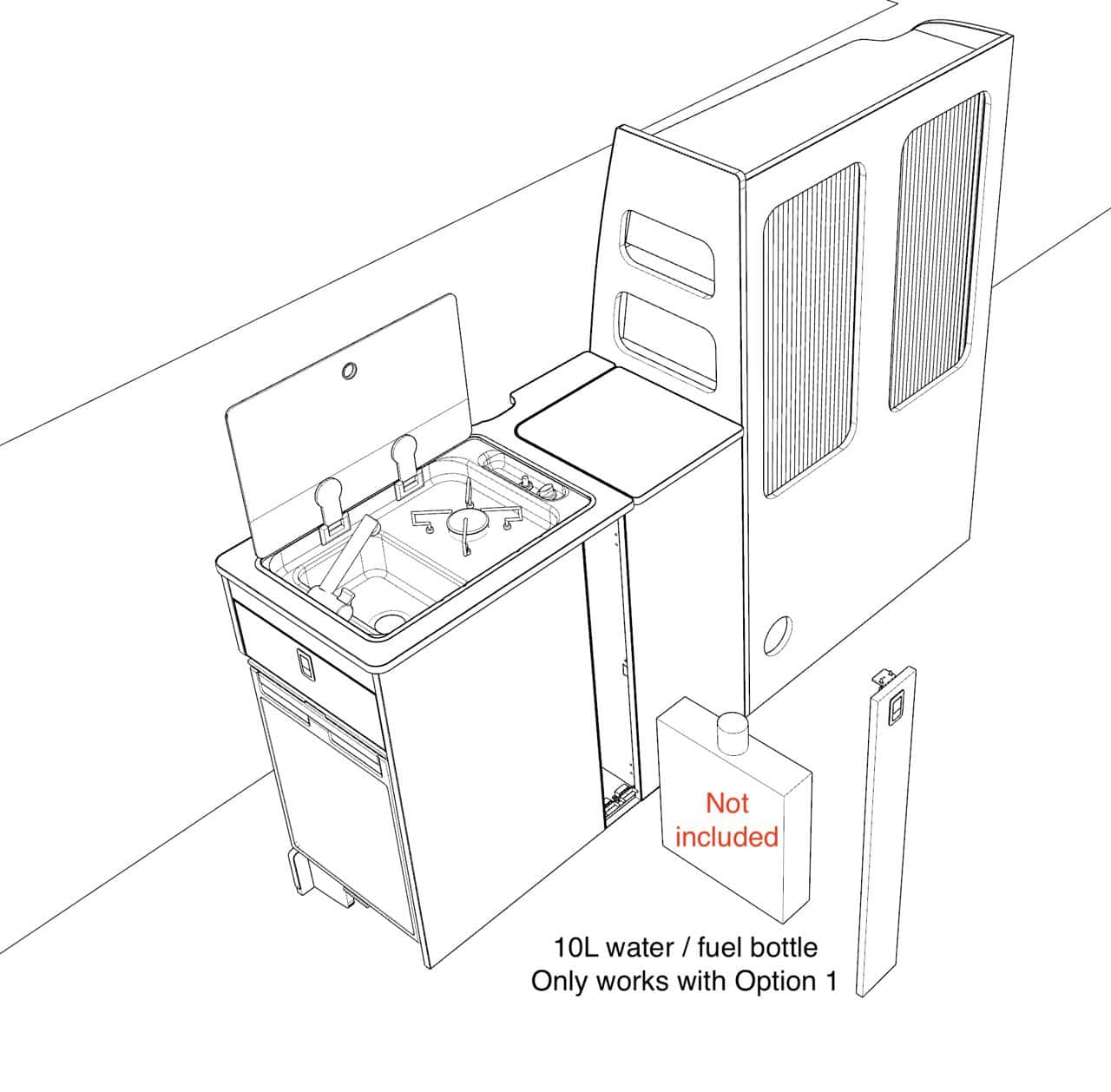

1. Version 1 is ideal for sliding beds. The kitchen pod can have a slim in built water container sitting behind the fridge, this suitable for vans with sliding seats. It uses a 320mm x 80mm x 350mm (7L) water bottle.

2. Version 2 is ideal for fixed beds. The kitchen pod water supply comes from a bottle under the bed and is suitable for fixed seats. It uses a 12L water bottle beneath the bed. Only suitable for fixed beds.

PLEASE NOTE THESE WATER BOTTLES ARE NOT INCLUDED

Works with low roof & elevating roof vans.

See full specifications and options below.

Van Model *

VW T5/6’s require 44″ 112cm WIDTH BEDS or narrower
VW T4’s require 42″ 107cm WIDTH BEDS or narrower
– T4/5/6 require 15mm total floor thickness – Add notes if thicker and state total floor thickness.
– T4/5/6 Fits a standard van configuration – Add notes for twin sliding doors, rear Aircon unit or non standard features.
Do not use large one piece ply lining.

LEFT or RIGHT hand drive vehicle? *

Unit Finish *

View finishes

View Discontinued Finishes

EVO STOCK RANGE
CPL – Continuous Pressure Laminate
HPL – High Pressure Laminate ( More wear resistant 0.8mm thick )
*Being discontinued once stock is depleted

Worktop & Table Finish *

EDGE TRIM COLOUR *

Roof Type *

Which over bed Locker do you require with your Furniture? This is included as standard
View Over bed locker types

Bed boards *

These are panels for the front and back of your seat / bed. Please note the Rib bed is available in 2 different frame heights 340 or 330 mm contact your supplier for this info or measure yourself.
View Bed Board Types

Door catch *

View Catch Options

Kitchen water supply position *

Optional extras

Add products to compliment your furniture kit. Please note some kits come with some of the items below
** SAVE £100 WITH OUR FRIDGE BUNDLE DEAL

ORDER NOTES

Please add any additional information that you have discussed with us.

Key features:

  • 2 x Sliding tambour door
  • Over bed locker for low roof and elevating roof vans
  • Front bed panel with door and rear bed panel
  • 1 drawer for cutlery 280mm deep and 300mm wide
  • Concealed self close hinges with flush fitting doors
  • All connecting blocks, hinges, grey, black or silver edging, push catches and screws
  • The Kitchen feature space for a 50L fridge
  • Knock on edging for all exposed edges, the edges are pre slot cut for you to apply
  • Designed to be easy to construct with easy mount hinges, slots for aligning the panels and pre drilled hole for the connector blocks
  • The worktop is cut as standard for a Can FL1323
  • Available in a range of own light weight ply finishes
  • Worktop and Table can be a different finish
  • Edging: Silver or Dark Grey or Black
  • Works with Scopema RIB seat 1120mm wide sliding version, BEBB seat, Smart beds Evolution and various rock n roll beds 44” wide or less. EVO 2.4 maximum bed length is 1940mm measured from the back doors
  • Works with both low roof and elevating roof conversions
  • This unit is suitable to be installed with a rear wardrobe with or without twin light recesses (as seen in photo)
Version 1 is ideal for sliding beds. It uses a 320mm x 80mm x 350mm (7L) water bottle beneath the sink (other bottles within these dimensions are also suitable).
Version 2 is ideal for fixed beds. It uses a 12L water bottle beneath the bed. Only suitable for Fixed Beds.
A Mito table and rail can only be used on Version 2.
Does not include:
Twin Light recess ( two cut outs facing forward on the tall unit )
7L Thin camper water bottle
Weight 80 kg
Dimensions 1200 × 1000 × 1600 cm
Country of Origin

UK
HS Code

9403609000
