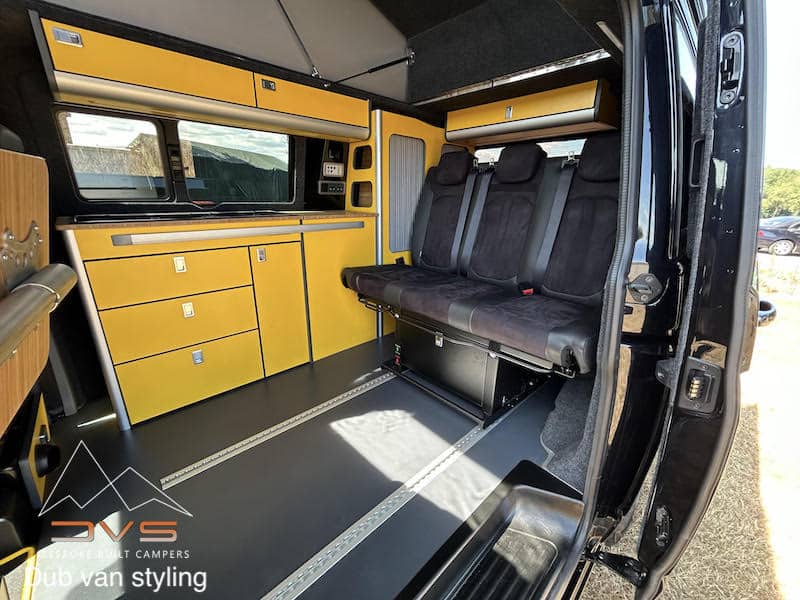

EVO7.4 PRO-1200 – KIT – SHORT WHEEL BASE VAN T5 / T6

Designed to work with any bed around 120cm wide such as the Rib 120cm, Reimo Variotech sliding seat and other. The unit is only 34cm wide

(If using Variotech 3000 1205mm, the bed may need adjusting using the U shape bolts, moving the frame to the nearside of the van roughly 20mm)

Includes the following:

• 3x soft close twin wall metal drawers pre-edge banded ( drawers only )
• Narrow door for gas and water storage ( R904 Gas bottle and 10L B water bottle recommended )
• EVOmatic door catches as standard, please select colour options from drop down ( push buttons are not available on the kit )
• Aluminium extrusions on main corners
• 2 x Sliding tambour doors to rear unit ( optional Black finish available )
• Over bed locker for low roof and elevating roof vans
• Front bed panel with door/s and rear bed panel ( Rib bed has 2 doors on the front and one on the rear panel )
• The worktop cut for the SMEV 9722  – 2 burner hob and right handed sink (DOES NOT FIT NEW 9722 ELECTRONIC IGNITION VERSION)
• Concealed self-close hinges with flush fitting doors
• Table with folding aluminium leg and stainless steel sliding rail system
• All connecting blocks, hinges, grey, black or silver edging, evomatic catches and screws
• Designed for the Vitrifrigo 20 L top loading fridge offering excellent efficiency ( 36L fridge is too tall to fit due to the wheel arch on SW )
• Knock on edging for all exposed edges, the edges are pre-slot cut for YOU to apply. A lot of this kit is pre-edge banded
• Designed to be easy to construct with easy mount hinges, slots for aligning the panels and pre-drilled hole for the connector blocks
• Available in a range of professional grade light weight ply finishes
• Worktop and Table can be a different finish
• Edging: Silver, Black, Light Grey or Dark Grey
• Works with Reimo Variotech 3000 1205mm sliding seat, Scopema RIB seat 120cm and other sliding seats or fixed seats
• Works with both low roof and elevating roof conversion

Does not include the following options as standard:

• Twin light recess ( Twin cut outs in tall unit facing forward, not an option on kits ending in .3 or .5 )
• LED light shelf

*Water and gas can be positioned in various locations.

Please note the door under the fridge can be removed if you have a fixed seat which obscures it, this unit is particularly suited to sliding seat system.
