Works with various 112cm wide seat beds

• Side unit with 6 doors & 2 drawers
• 2 x sliding tambour door
• Kitchen splashback in available in a variety of finishes to sult.
• Led light shelf with touch sensitive dimmable switch

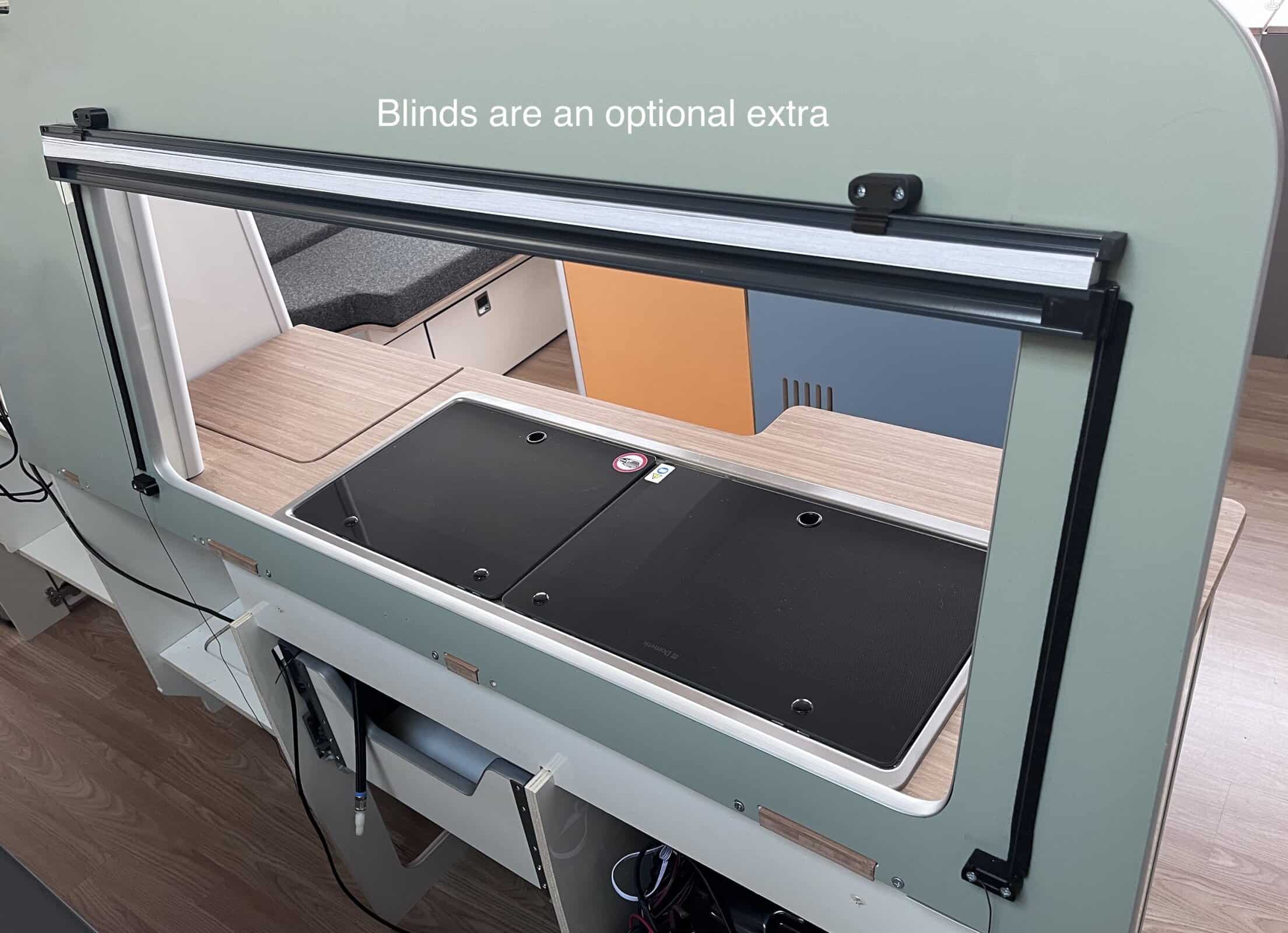

• Can be supplied with blinds as an optional extra.

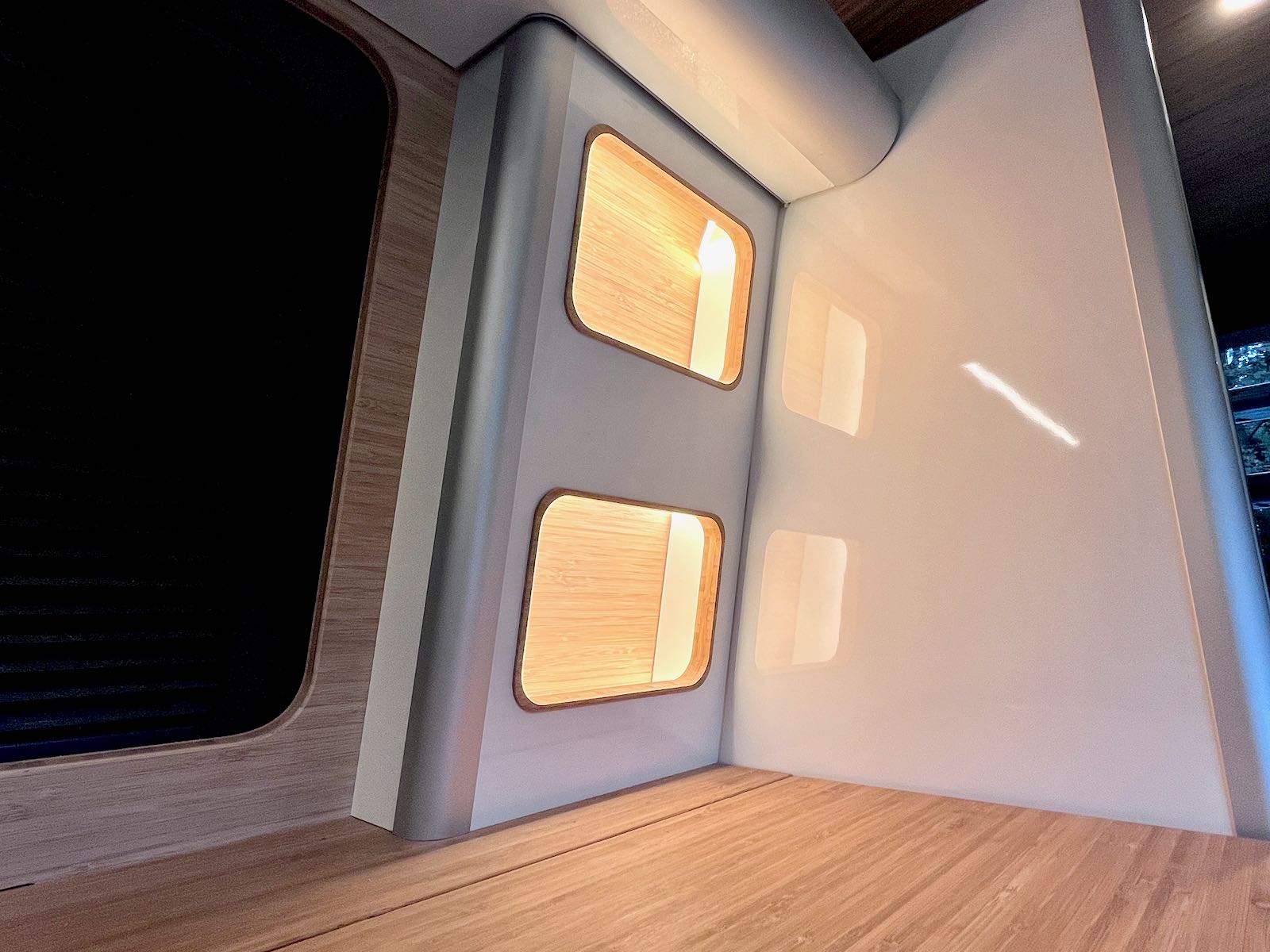

• Twin light shelves (Optional bamboo edges to inserts )
• Pre  edge banded on most  the exposed edges, speeding up construction time and looks , some edges are pre slot cut for you to apply
• Over bed locker for low roof and elevating roof vans
• Front bed panel with door and rear bed panel

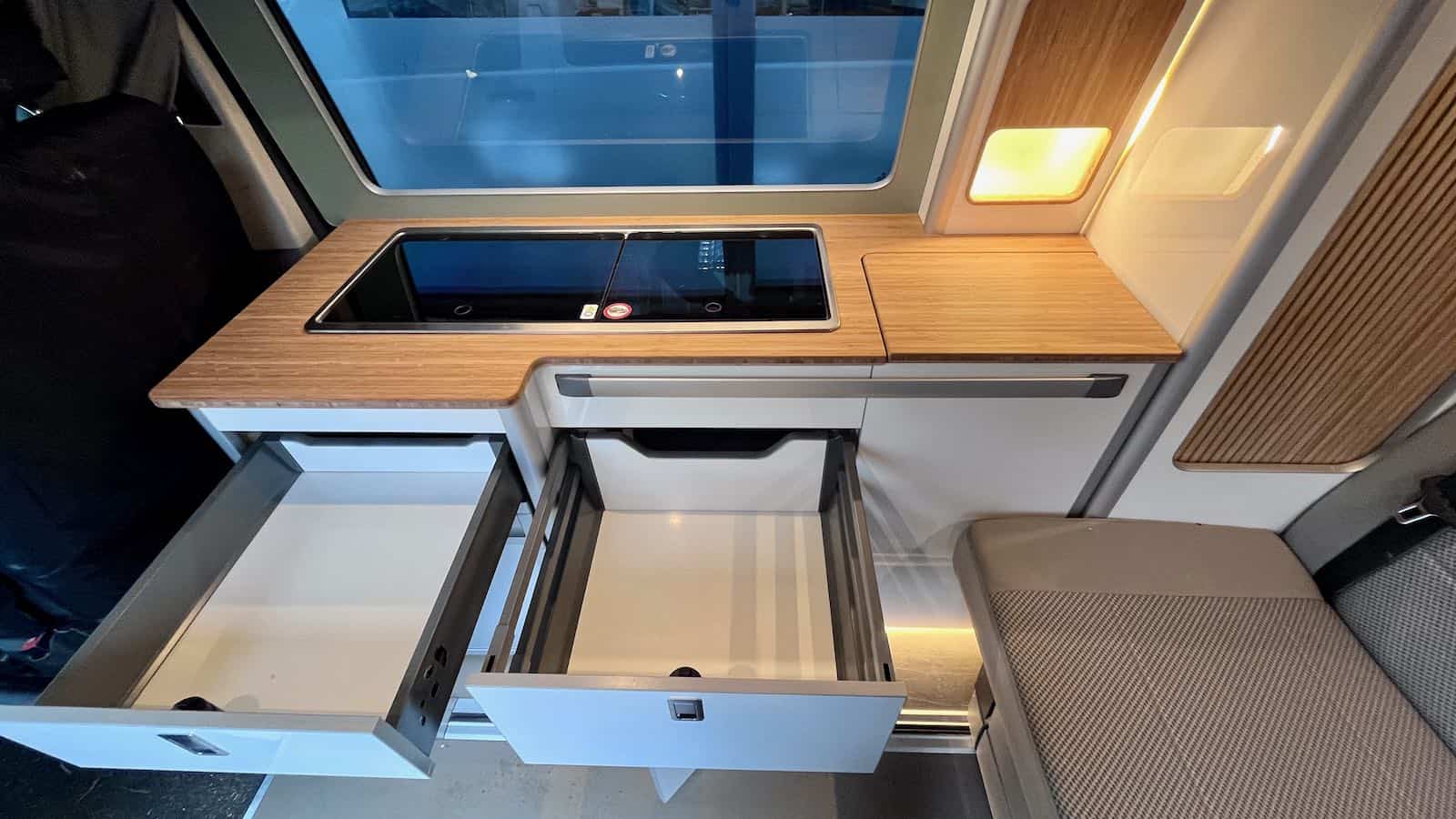

• 2 drawers one for cutlery and the other extra deep 150mm high
• Aluminium corner profiles
• Concealed self close hinges with flush fitting doors
• Table with folding aluminium leg and stainless steel sliding rail system
• All connecting blocks, hinges, grey, black or silver edging, evomatic catches and screws
• Space for Vitrifrigo C51I, dometic CR50 , Alpicool 5oL or similiar
• Designed to be easy to construct with easy mount hinges, slots for aligning the panels and pre drilled hole for the connector blocks

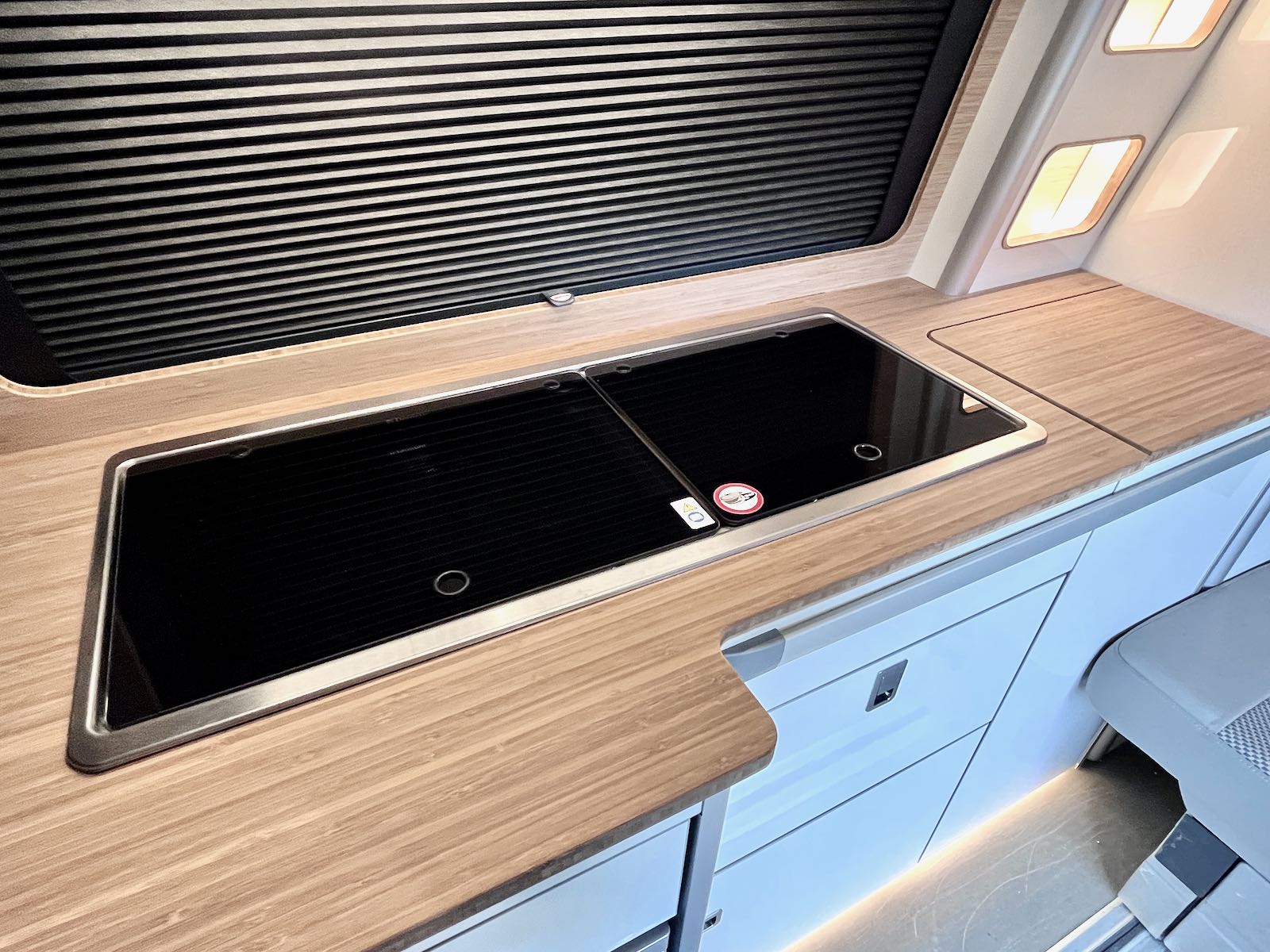

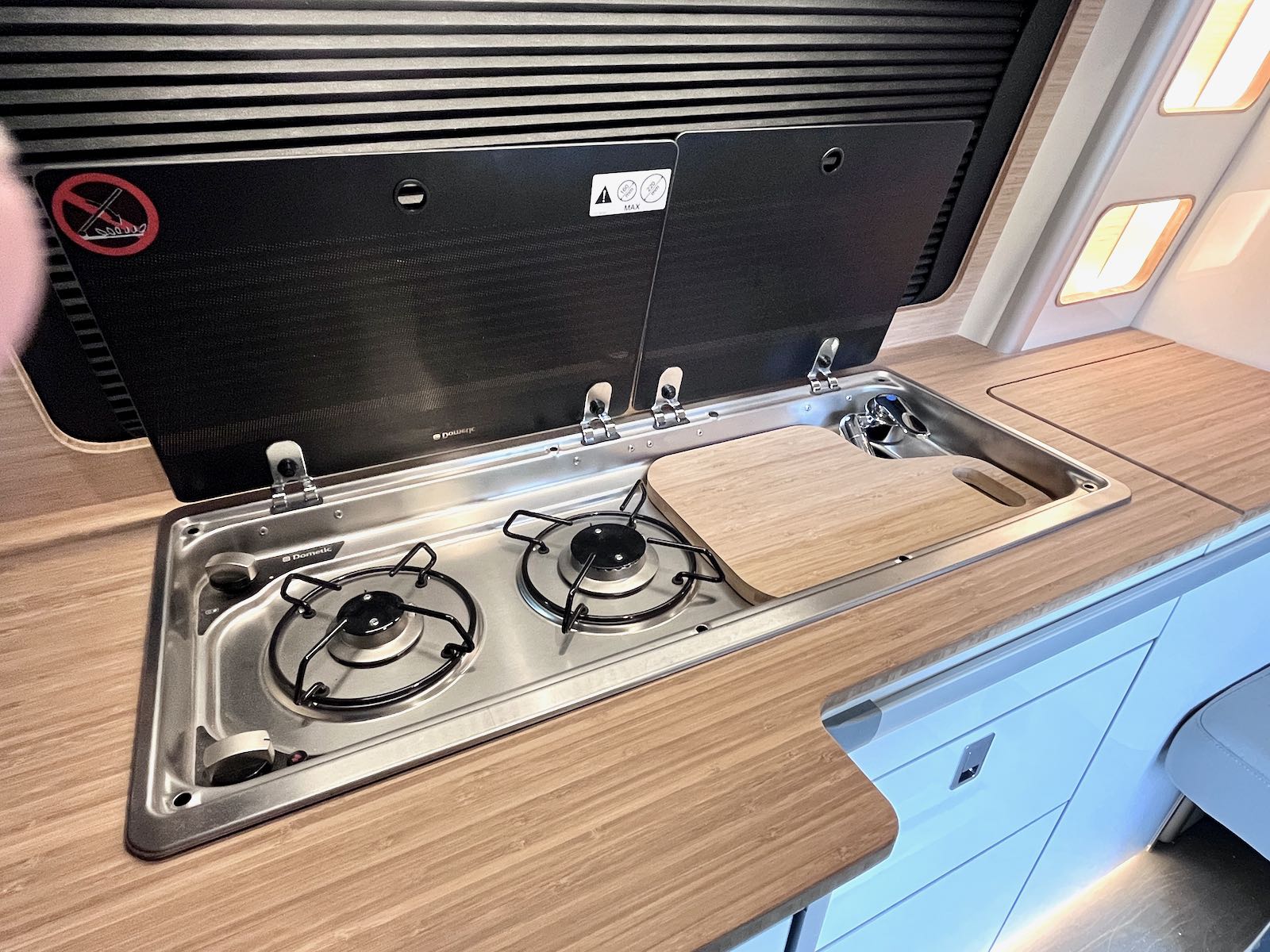

• The worktop cut for a SMEV 9722 sink hob ( righthand sink )
• Available in a range of own light weight ply finishes
• Worktop and Table can be a different finish to the unit
• Edging: Silver or Dark Grey or Black
• Works with Scopema RIB seat 1120mm wide sliding version, Smart beds Evolution and various rock n roll beds 44” wide or less. EVO 9.4 maximum bed length is 1940mm measured from the back doors
• Works with both low roof and elevating roof conversions

Does not include:

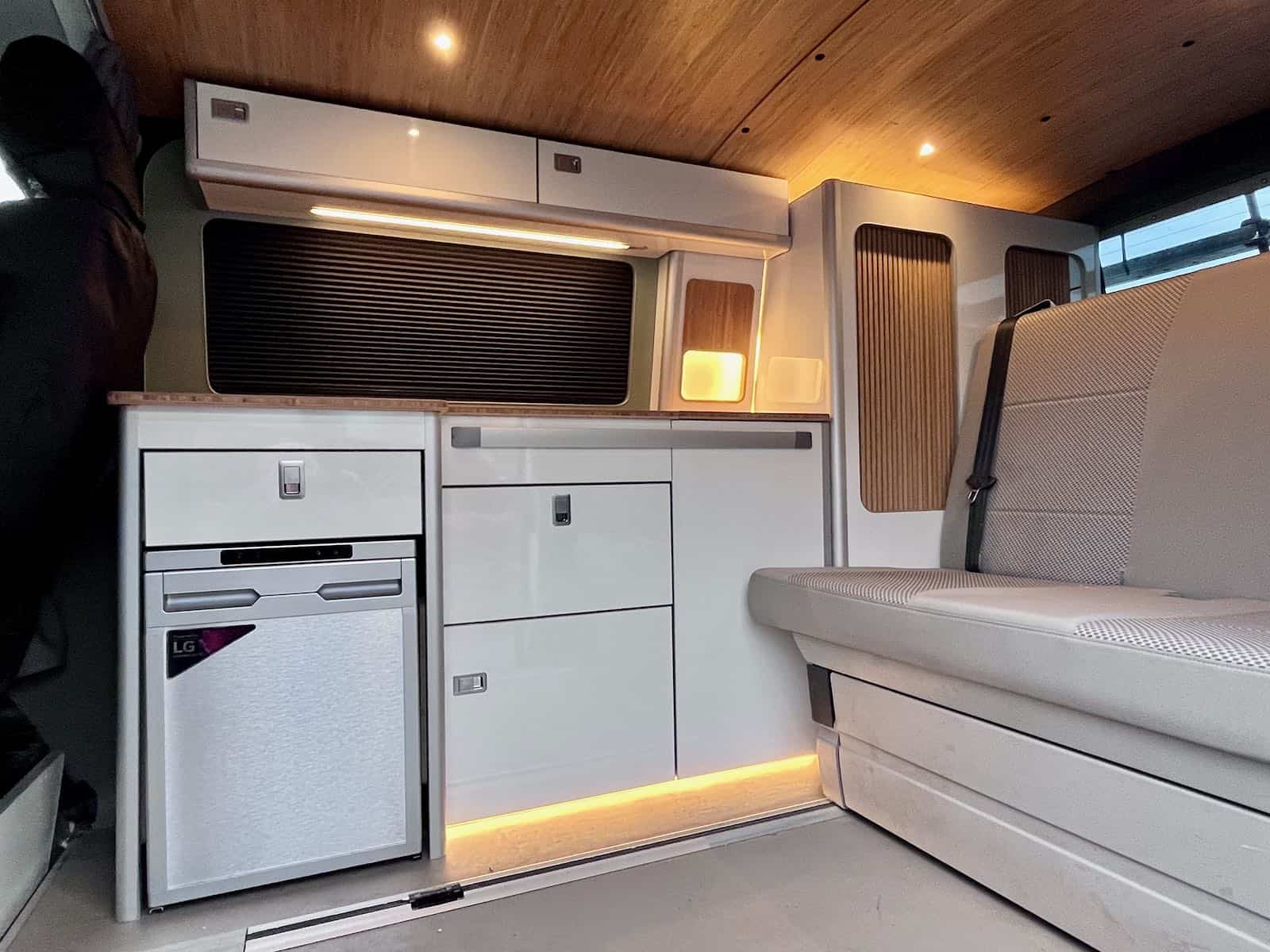

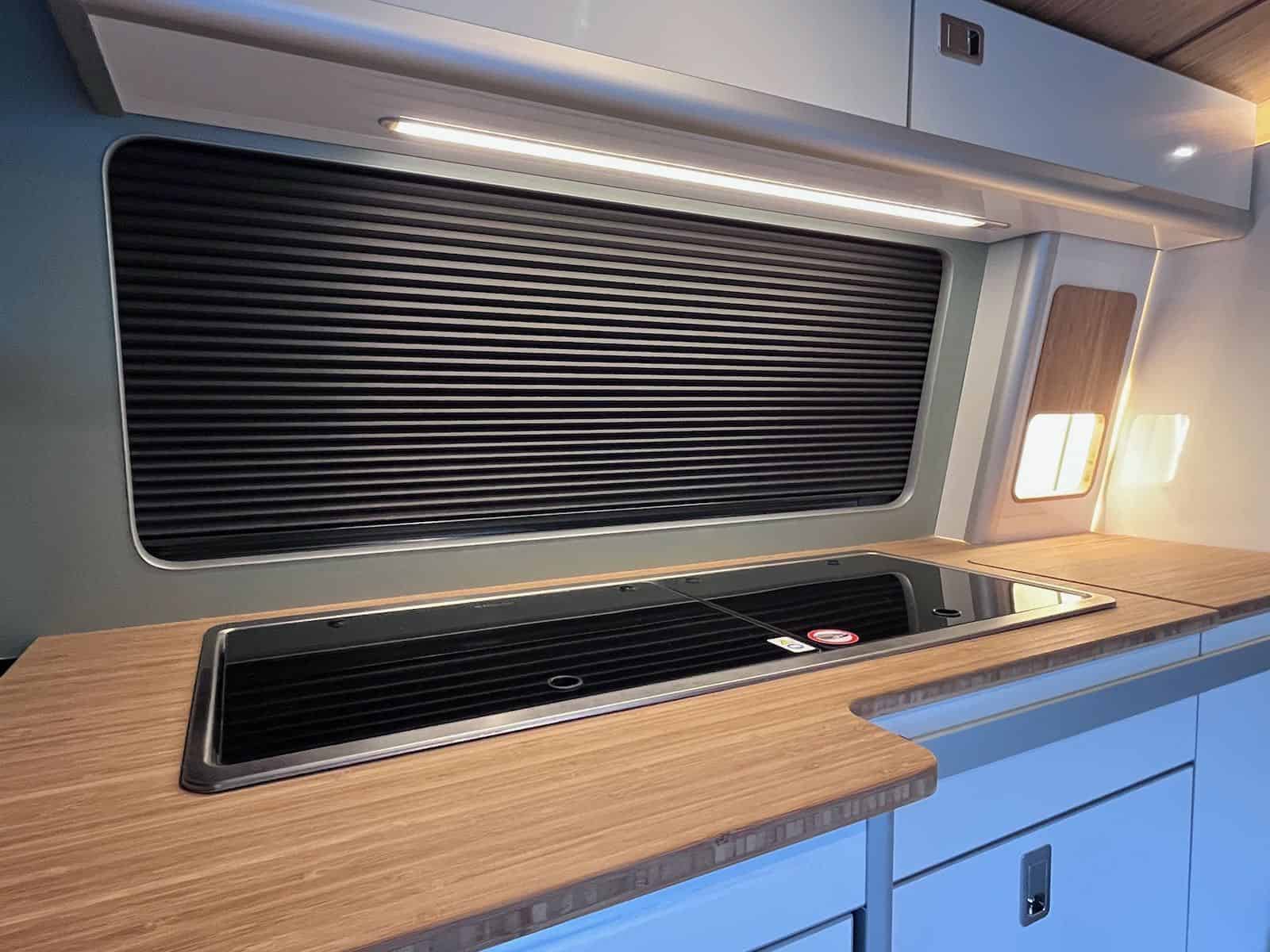

2 door locker over sink this is an option, supplied with Led shelf as standard .

HALO LED, We recommend any COB LED (4,5 or 6mm) or standard LED strip light lighting.

These are optional extras below
