EVO 9.4 VW SWB VAN

Works with various 112cm wide seat beds

Side unit with 6 doors & 2 drawers
2 x sliding tambour door
Kitchen splashback in availble in a variety of finishes to sult.
Led light shelf with touch sensitive dimmable switch
HALO Led under unit light strip
Can be supplied with blinds as an optional extra.

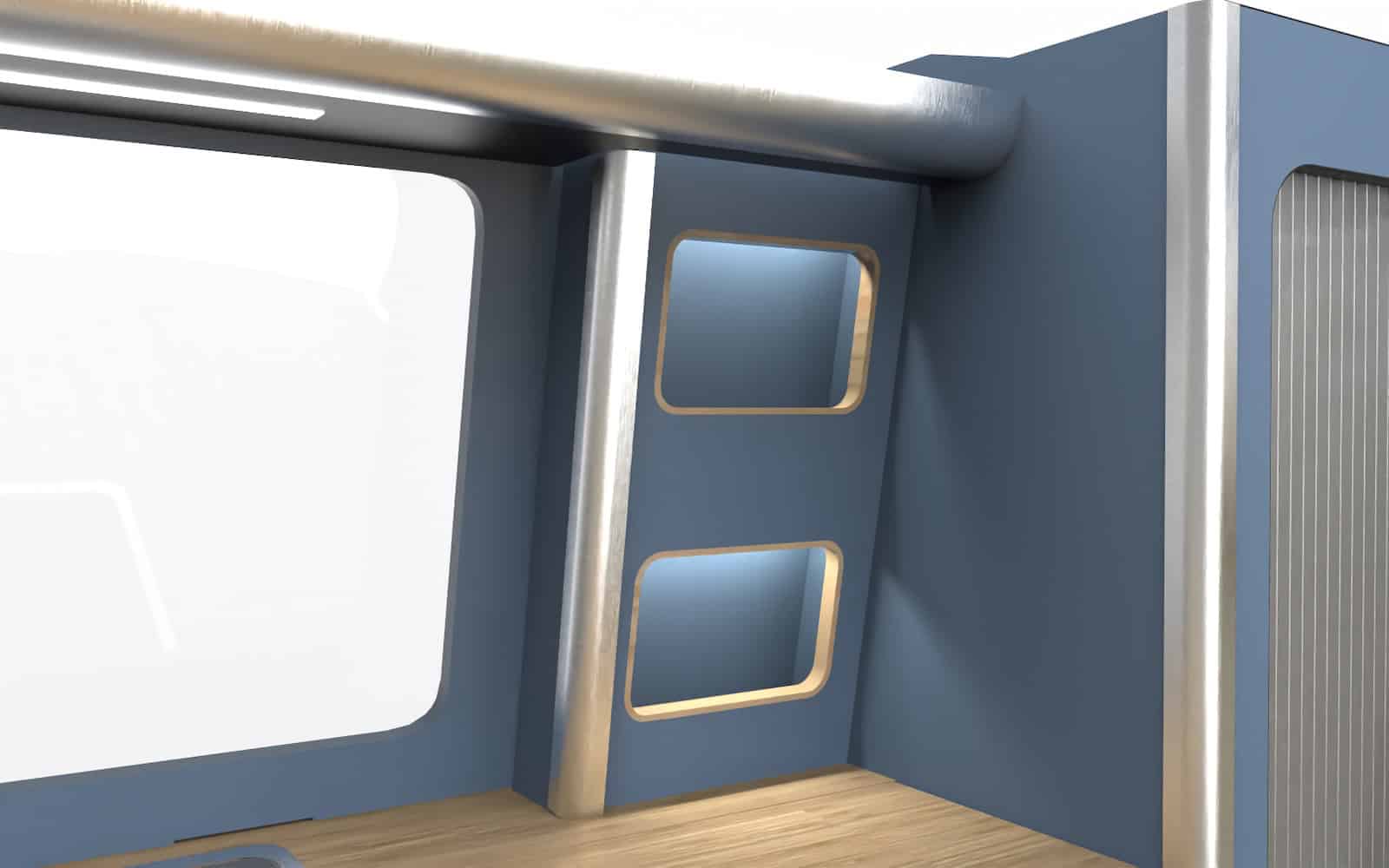

Twin light shelves (Optional bamboo edges to inserts )
Pre edge banded on most the exposed edges, speeding up construction time and looks , some edges are pre slot cut for you to apply
Over bed locker for low roof and elevating roof vans
Front bed panel with door and rear bed panel
2 drawers one for cutlery and the other extra deep 150mm high
Aluminium corner profiles
Concealed self close hinges with flush fitting doors
Table with folding aluminium leg and stainless steel sliding rail system
All connecting blocks, hinges, grey, black or silver edging, evomatic catches and screws
Space for Vitrifrigo C51I, dometic CR50 , Alpicool 5oL or similiar
Designed to be easy to construct with easy mount hinges, slots for aligning the panels and pre drilled hole for the connector blocks
The worktop cut for a SMEV 9722 sink hob ( righthand sink )
Available in a range of own light weight ply finishes
Worktop and Table can be a different finish to the unit
Edging: Silver or Dark Grey or Black
Works with Scopema RIB seat 1120mm wide sliding version, Smart beds Evolution and various rock n roll beds 44” wide or less. EVO 9.4 maximum bed length is 1940mm measured from the back doors
Works with both low roof and elevating roof conversions
