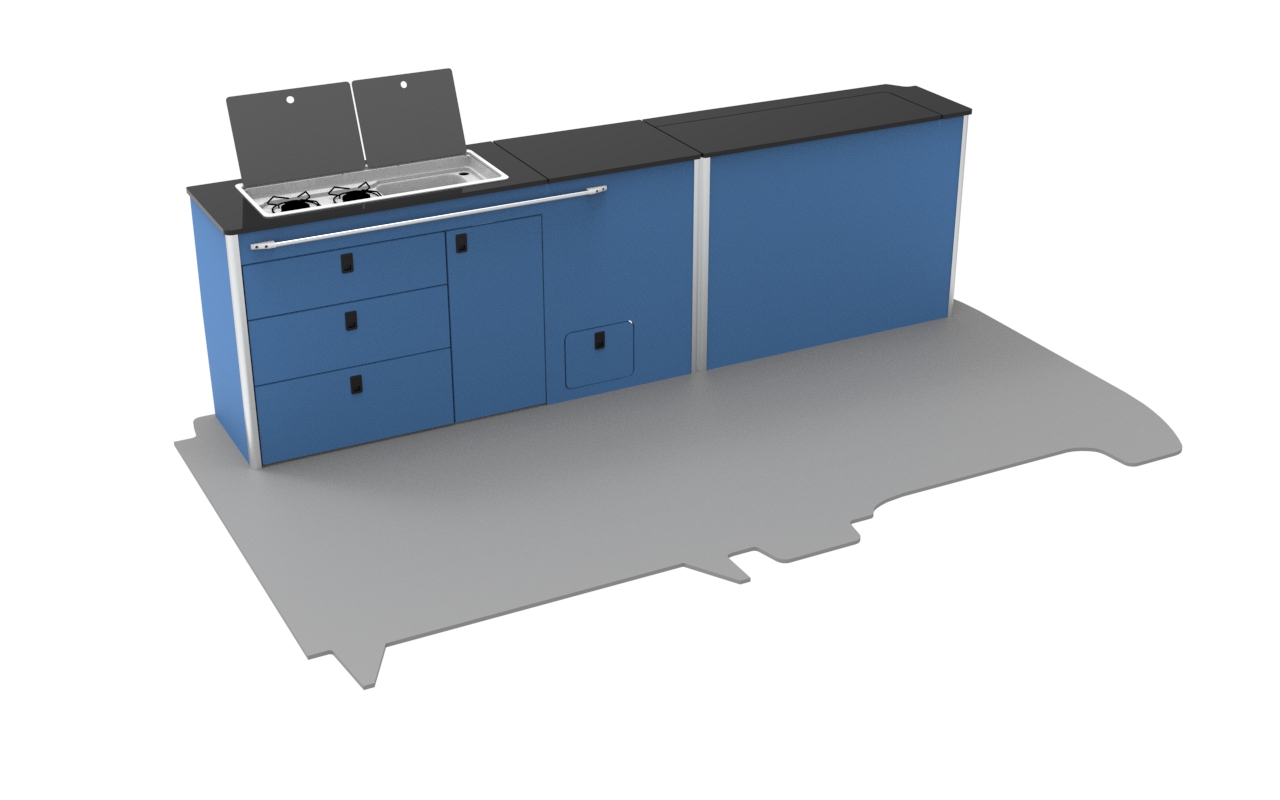

B7.3P Long wheel base T5 T6 FURNITURE LOW LEVEL AZUL MINERAL GLOSS BLACK TOP.53

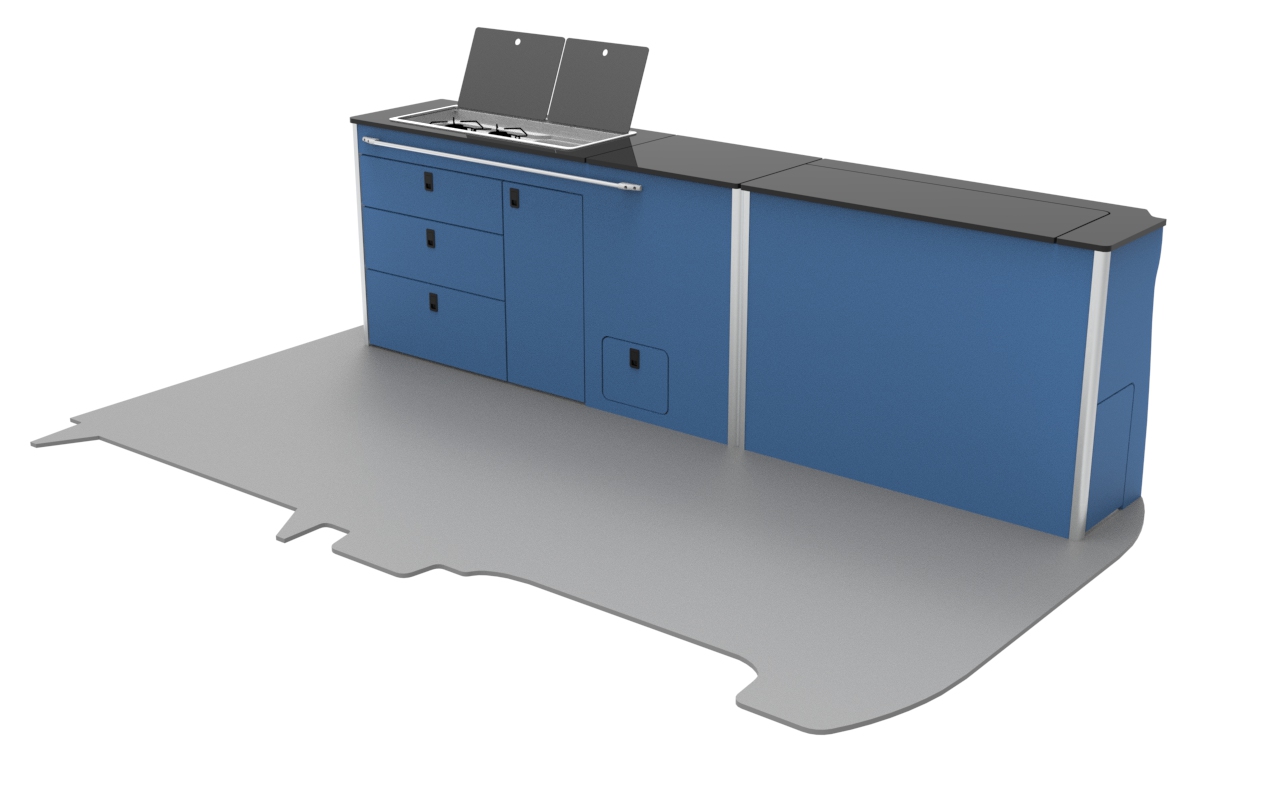

EVO 7.3 PRO LWB VAN T4 / T5 / T6 - Image 2

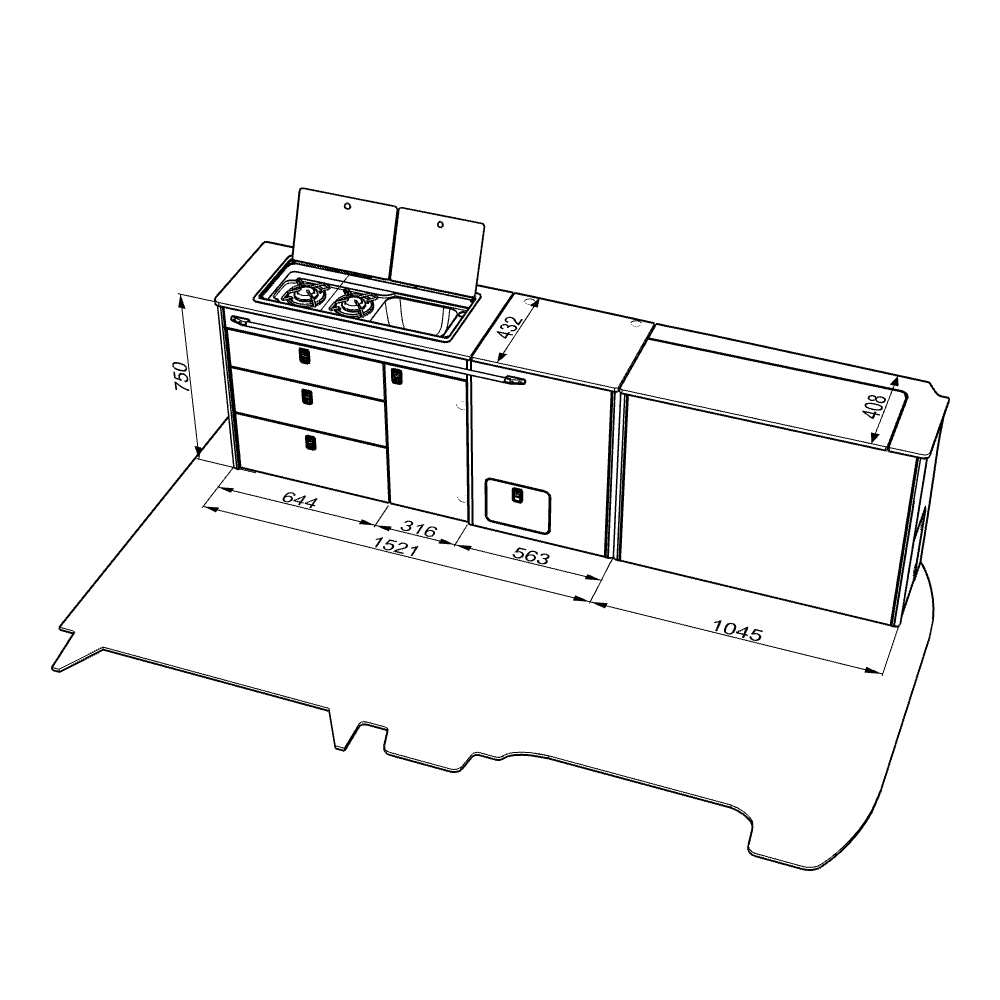

B7.3P Long wheel base T5 T6 FURNITURE LOW LEVEL AZUL MINERAL GLOSS BLACK TOP DIMENSIONS

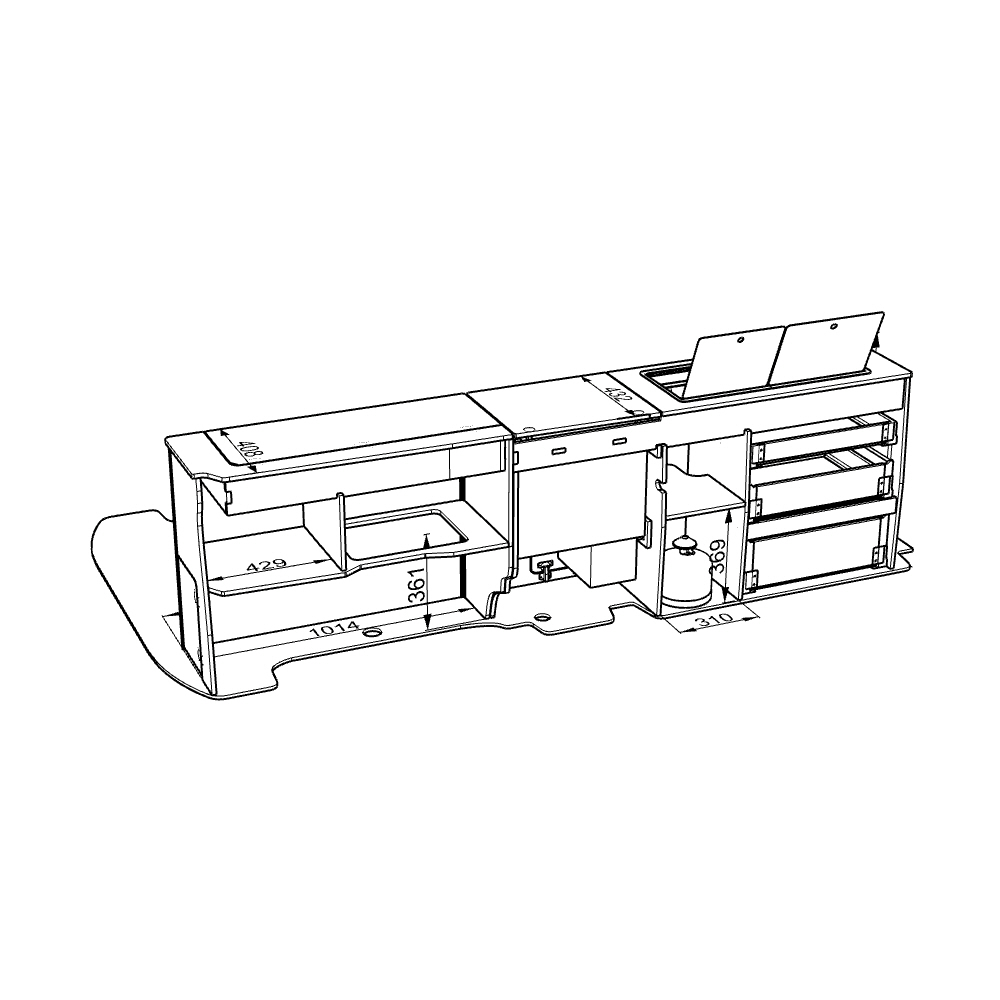

EVO 7.3 PRO LWB VAN T4 / T5 / T6 - Image 4

EVO 7.3 PRO LWB VAN T4 / T5 / T6

£ 1,450.00 inc vat

EVO 7.3 PRO KIT – LONG WHEEL BASE VAN T5 / T6

A slightly more challenging construction than our other designs this kit is suitable for converters and skilled Diy er’s. Designed to work with the Scopema Rib 112cm seat / bed ( fixed frame recommended ) or any 3/4 with seat / bed

Includes the following:

  • 3x soft close twin wall metal drawers pre-edge banded ( Drawers only )
  • Narrow door for gas and water storage ( R904 or R907 Gas bottle recommended )
  • EVOmatic door catches as standard, please select colour options from drop down ( Push buttons are not available on the kit )
  • Aluminium extrusions on main corners
  • INCLUDES Over bed locker for low roof and elevating roof vans
  • INCLUDES Front bed panel with door/s and rear bed panel ( Rib bed has 2 doors on the front and one on the rear panel )
  • The worktop cut for the SMEV 9722  – 2 burner hob and right handed sink
  • Concealed self-close hinges with flush fitting doors
  • INCLUDES Table with folding aluminium leg and  stainless steel sliding rail system
  • All connecting blocks, hinges, grey, black or silver edging, evomatic catches and screws
  • Designed for the Indel B or Webasto BL41or Vitrifrigo TL 43 top loading fridge offering excellent efficiency
  • Knock on edging for all exposed edges, the edges are pre-slot cut for YOU to apply
  • Designed to be easy to construct with easy  mount hinges, slots for aligning the panels and pre-drilled hole for the connector blocks
  • Available in a range  of professional grade light weight ply finishes
  • Worktop and Table can be a different finish.
  • Edging: Silver, black, light grey or Dark Grey
  • Works with Scopema RIB seat 112mm wide fixed or  sliding  seat or 3/4 rock n roll bed
  • Works with both low roof and elevating roof conversions

Does not include the following options as standard:

  • LED light shelf

*Water and gas ( R904 ) can be positioned in various locations.

Fits the 10 Litre B water bottle (centre cap, Height: 29cm / Width: 19cm / Depth: 28cm)IMG_6155 IMG_6154

SaveSave

SaveSave

SaveSaveSaveSave

SaveSave

SaveSave

SaveSave

SaveSave

Lead Time for this product: 5-6 weeks?Any lead time quoted is an estimate only
and should not be relied upon as a guarantee

Lead time for multiple products is sent with the product that has the longest lead time. If products are added together, the grouped lead time for the whole order is calculated and may be the longer lead time. See the checkout for the overall basket lead time.

VW T5/6’s require 44″ 112cm WIDTH BEDS or narrower
VW T4’s require 42″ 107cm WIDTH BEDS or narrower
– T4/5/6 require 15mm total floor thickness – Add notes if thicker and state total floor thickness.
– T4/5/6 Fits a standard van configuration – Add notes for twin sliding doors, rear Aircon unit or non standard features.
Do not use large one piece ply lining.

View finishes

View Discontinued Finishes

EVO STOCK RANGE
CPL – Continuous Pressure Laminate
HPL – High Pressure Laminate ( More wear resistant 0.8mm thick )
*Being discontinued once stock is depleted

Please add a customer note at checkout if you require a solid worktop

Please ignore brackets ( R40 =840 B ) etc…after roof type. ONLY SELECT A FULL WIDTH LOCKER FOR A SLIM KIT (eg. 1300) OR A KIT WITH A LOW BACK (eg. 2.3 5.3)
View Over bed locker types

These are panels for the front and back of your seat / bed. Please note the Rib bed is available in 2 different frame heights 340 or 330 mm contact your supplier for this info or measure yourself. Ignore brackets ( A ) etc.. after description.
View Bed Board Types

3mm thick Aluminium composite window surround panel which can be drilled and cut to accept switches and control panels

Optional extras

Add products to compliment your furniture kit. Please note some kits come with some of the items below

Please add any additional information that you have discussed with us.

Appliances to fit this unit:

New
Bamboo chopping board cut for SMEV hobs/sinks (9722 / 9222)
+

9222

Bamboo chopping board cut for SMEV hobs/sinks (9722 / 9222)

£ 20.00 inc vat
Smev 9722 right hand sink hob
+

Hob and sink combinations

Smev 9722 right hand sink hob

£ 298.00 inc vat
Weight 80 kg
Country of Origin

UK
HS Code

9403609000
