super efficient top loading camper fridge

NEW Vitrifrigo TL 43 TOP loading fridge

Name: NEW Vitrifrigo TL 43 TOP loading fridge
SKU: TL43
Price: 640.00 GBP
Availability: InStock

£ 640.00 inc vat

New toploading fridge from Virtrifrigo suits our kits designs, direct replacement for the indel / Webasto BL41

Modern design with Led Lighting and touch control panel.

Super efficient

With Vitrifrigo’s market leading power consumption the new TL43 top opening 12 volt fridge will run for 3 days plus on a standard 100a/h leisure battery. Ideal for wild camping able to run from 100W solar panel 24/7 in UK summer time.

Key features:

Able to run as fridge or freezer
Digital thermostat with temperature control from +10°C to -10°C
Turbo mode for fast chill to achieve temperature set point quicker
Night mode for minimum noise level and reduced power consumption
Internal LED light

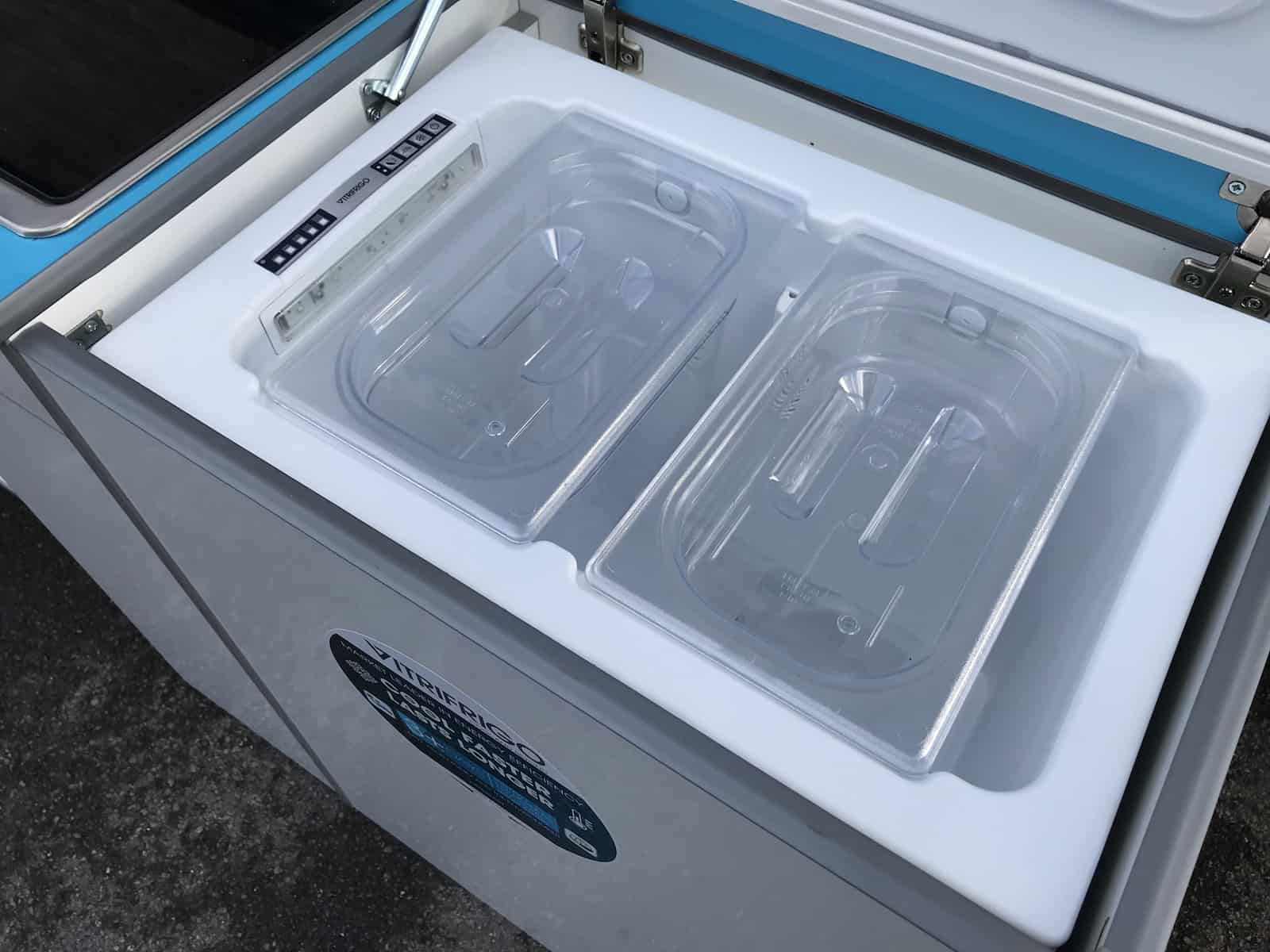

Smart storage for large and small bottles with FDA approved food storage containers
Inside out fixings and concealed lid fixings for easy installation
Removable lid seal
External drain

– We advise fitting a vent through the floor of the van directly under the fridge compressor. This will allow fresh air from outside to help the fridge compressor more efficiently.

Designed for the campervan market the TL43 top opening fridge is perfect for camper kitchens with 380-400mm depth work tops. The compressor is sited at one end to allow it sit over the wheel arch on side kitchens. The TL43 also features Vitrifrigo’s aluminium finned cooling unit for market leading power consumption running for 3 plus days on a 100a/h battery. Packed with lots of great features including digital temperature control of +10°C to -10°C with Vitrifrigo’s innovative Membrane LED Thermostat; a fast cool turbo mode and a reduced power and super quiet night mode. Designed for storage of full height bottles there are also two FDA approved storage containers for salads and perishables to keep everything organised in the fridge.

SKU: TL43 Category: Fridges Tags: CAMPERVAN FRIDGE, TOP LOADING FRIDGE

Description
Additional information

3+DAYS

Runs for 3 or more days on a 100 A/h leisure battery

3+DAYS

Smart Storage

Large and small bottles + FDA approved food containers

Smart Storage

Thermostat

Temperature control with Innovative Membrane LED Digital Thermostat

Thermostat

Turbo mode

fast chill set point temperature

Turbo mode

Night mode

low noise level and reduced consumption during night time

Night mode

LED light

better internal visibility and reduced consumption

LED light

Ultra light

Great performances in only 14,5 Kg.

Ultra light

Vitrifrigo Digital Thermostat User Guide

TURNING ON AND OFF

• P_ON ( P1 ON-OFF) : Switches the unit on and off. Delay of circa 2 seconds.

SETTING THE TEMPERATURE

P_SET ( P2 SET) : temperature set button: adjusts the temperature and sets 5 temperature settings (from LD1/LD5)

	SET TL43 (WITHOUT TURBO AND NIGHT MODE)

	TEMP.	RPM
XOOOO	+10	2500	LED1
OXOOO	+7	2500	LED2
OOXOO	+5	2500	LED3
OOOXO	+2	2500	LED4
OOOOX	-10	3500	LED5

NIGHT MODE

• P_NIGHT (P4 NIGHT MODE) : keep pressed (2”), it activates the NIGHT MODE function (or if pressed again it restores the normal mode) and switches on/off the LD NIGHT (LED7) and turns off all set LED (LD1/LD5)
FUNTION
Activates the related set programs (only active on LED SET 1/2/3/4 see table below). The set lasts for 6 hours then it reverts back to previous/original set.

	SET NIGHT MODE
	TEMP.		RPM
XOOOO	+10		2000	LED1
OXOOO	+7		2000	LED2
OOXOO	+5		2000	LED3
OOOXO	+2		2000	LED4
OOOOX	-10	OFF		LED5

TURBO MODE

• P_TURBO (P3 TURBO MODE) keep pressed (2”), it activates TURBO MODE function (or if pressed again it restores the normal mode). The related LED set will flash.

FUNCTION
activates the related set programs (active on all LED SET 1/2/3/4/5). This setting stays on until the set temperature is reached, then it switches back to previous setting.

	SET TURBO MODE
	TEMP.	RPM
XOOOO	+10	3500	LED1
OXOOO	+7		LED2
OOXOO	+5		LED3
OOOXO	+2		LED4
OOOOX	-10	3500	LED5

• NOTE: the Turbo function disables the NIGHT fiunction (if it’s already on) and VICEVERSA

• ERR (LED 6): flashes if an error/fault is detected on the compressor control unit (the LED flashes from 1 to 5 times, depending on FAULT). After the flashes there will be a pause. Every fault is flashed with a 4 seconds interval.

Flashes	Error type
5	Thermal cut-out of electronic unit	If the refrigeration system has been too heavily loaded, or if the ambient temperature is high, the electronic unit will run too hot
4	Minimum motor speed error	If the refrigeration system is too heavily loaded, the motor cannot maintain minimum speed 1,850 rpm
3	Motor start error	The rotor is blocked or the differential pressure in the refrigeration system is too high (>5 bar)
2	Fan over-current cut-out	The fan loads the electronic unit with more than 1A peak
1	Battery protection cut-out	The voltage is outside the cut-out setting

Weight	15 kg
Dimensions	50 × 45 × 55 cm
Country of Origin	Italy
HS Code	8418219110
