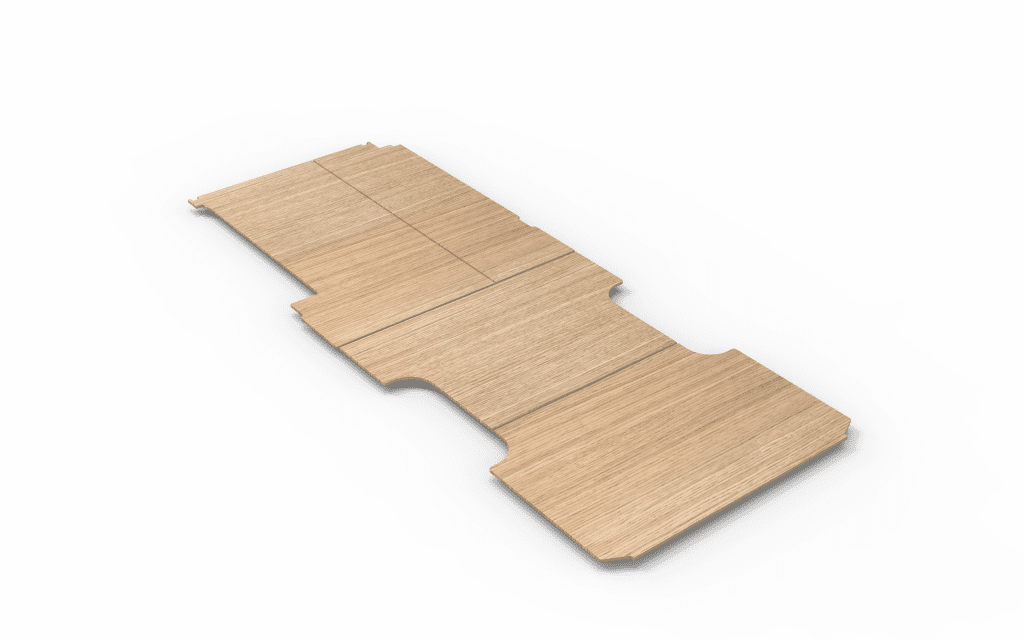

WAREHOUSE COLLECTION ONLY OR PALLET DELIVERY Note - will not the the front wheel driver 2018 Sprinter onwards. 4 piece extended floor which goes all the way up to the passenger and driver seat base box. The floor is made from an Ultralight sandwich panel with an insulating XPS (extruded polystyrene) core combined with plywood that is made of 100% European poplar ply with lap joints. Due to size this a collection only product. Please note this floor is longer than the factory floor supplied with your van and is designed to be used with our crafter / sprinter kit. Ensure the floor is well bonded ( we have used and can recommend SOUDAFLEX 40FC, other polyurethane adhesives are available ) and the joints are set level before covering with vinyl. Leave a weight over lap joints while the adhesive is setting. Fill and sand joints flat if required.

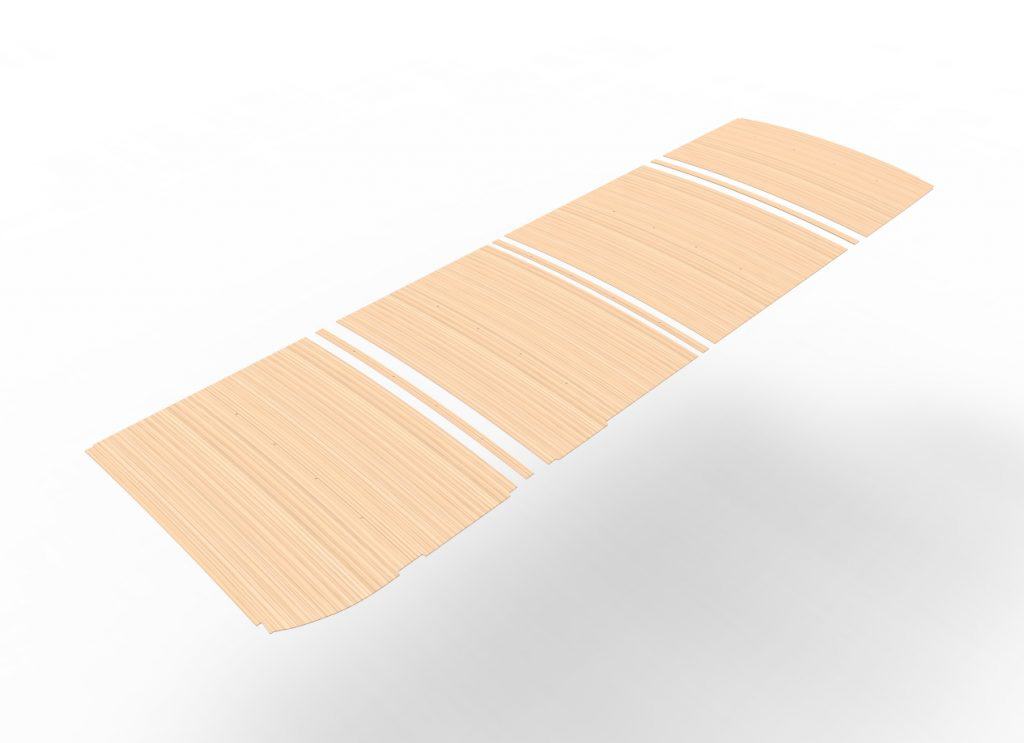

LWB HIGH ROOF PANELS - SPRINTER / Crafter PRE 2017 Designed to work with existing holes in your van for easy installation. Suitable for wrapping in head lining fabric. PRE DRILLED HOLE FOR PANEL CLIPS (NOT SUPPLIED) Only works with 22mm or longer panel clips available as an option.  BB/BB Grade European Birch Plywood, Exterior Class 3 Glue  Long Grain 4mm 2440x1220

2017 model onwards ONLY - VW Crafter roof panels. Designed to be glued together using PVA glue using a large hard flat surface ( 8 x 4 sheet of plywood ). Then installed in one piece. Steps to assemble. Glue the panels together using PVA adhesive and apply weight over night on a clean hard flat surface ( 8 x 4 sheet of plywood on the floor. ) Ensure the parts are together with no gaps. Use masking tape to hold the panels together on the birch side until the glue sets. Make sure the jointing strips are not going to interfere with the metal ribs of the van. Using the supplied black marker pens slowly drag the marker pens in one direction in the pre cut grooves. Scrubbing the pen back and forth results in the disintegration of the pen tip which makes a mess, it is better to dwell on an area that needs filling and drag the pens in one direction slowly. Take care not to rush this part and allow the ink to flow from the pens and move slowly. Once the pen dries up, swap pens and store them with the tips down, lids on to allow the ink to move towards the tip. This is a slow process and it will take about an hour to use the supplied black marker pens to get a good finish.  Apply a quick drying water based varnish with a mini foam roller on both sides, apply several coats to the bamboo side and very lightly sand between coats. Install the roof in one large piece, two people will be needed for this process to ensure the roof is not damaged. Use two plaster board props or timber cut to length to hold the roof in place. Carefully locate the roof centrally in the van. When the roof is held up with props it is easy to move the roof. Once the position is good drive in the supplied black screws directly into the metal ribs using firm pressure, do not over tighten.   Two people will be required to install this and use plaster board props or timber cut to your ceiling height to hold this in place temporally while until screws are installed. Supplied with Black 3.5 x 15mm screws and 8 black marker pens. Designed to be screwed directly in to the metal roof ribs. Firm pressure needed to start off the screws, be careful not to over tighten and strip the threads. This will need varnishing on both sides of the board. This is a natural product and needs to be stored in a dry, warm location until it can be varnished. These roof panels are not cut to go around the factory fitted pillar covers.

  EVO 5 Side door kitchen pod for large vans. This pod sits on the side loading door and is designed to fit with any large van Grill/Oven not included. CAN U5010 4 soft close draws, 1 Cupboard space, 1 push to open slide out worktop extension Designed to work with the CAN CU5010 Grill/Oven shallow depth unit (NOT included) Can accommodate Smev 9222 ** LEFT HAND SINK ** hob or others NOT included (Smev 9722 WILL NOT FIT as the sink is too deep to sit above the oven, and additionally the hob ignition points are to deep to work with the pull out extra worktop) Can be cut to accommodate under mount sink as show in our images Evomatic XL catches The majority of the panels are pre edge banded Flat pack design for you to assemble Can be cut for Left hand or Right hand drive vehicles Back of unit is part panelled to allow you to position the unit in a variety of positions across the side loading door Work top is cut solid by default allowing you to fit a variety of appliances Unit has a flat base and does not sit into the side door step recess SaveSave SaveSave SaveSave SaveSave SaveSave SaveSave SaveSave

  EVO 5.1 Side door kitchen pod for large vans. This pod sits on the side loading door and is designed to fit with any large van. Grill/Oven not included. CAN CU5010 In the Sprinter LWB Design 4 you can optionally choose the longer EVO 5 pod with more storage. 4 soft close draws, 1 push to open slide out worktop extension Designed to work with the CAN CU5010 Grill/Oven shallow depth unit ( NOT included ) Can accommodate Smev 9222 LEFT HAND sink hob or others NOT included ( Smev 9722 WILL NOT FIT as the sink is too deep to sit above the oven, and additionally the hob ignition points are to deep to work with the pull out extra worktop ) Can be cut to accommodate under mount sink as show in our images and THETFORD 922 twin burner Evomatic XL catches The majority of the panels are pre edge banded Flat pack design for you to assemble Can be cut for Left hand or Right hand drive vehicles Back of unit is part panelled to allow you to position the unit in a variety of positions across the side loading door Work top is cut solid by default allowing you to fit a variety of appliances Unit has a flat base and does not sit into the side door step recess SaveSave SaveSave SaveSave SaveSave SaveSave SaveSave SaveSave

  EVO 5.2 Side door kitchen pod for large vans. This pod sits on the side loading door and is designed to fit with any large van.  In the Sprinter LWB Design 4 you can optionally choose the longer EVO 5 pod with more storage. 6 soft close draws, 1 push to open slide out worktop extension Can accommodate Smev 9222 sink hob or others NOT included ( Smev 9722 WILL NOT FIT  the hob ignition points are to deep to work with the pull out extra worktop ) Can be cut to accommodate under mount sink as show in our images and THETFORD 922 twin burner Evomatic XL catches The majority of the panels are pre edge banded Flat pack design for you to assemble Can be cut for Left hand or Right hand drive vehicles Back of unit is part panelled to allow you to position the unit in a variety of positions across the side loading door Work top is cut solid by default allowing you to fit a variety of appliances Unit has a flat base and does not sit into the side door step recess SaveSave SaveSave SaveSave SaveSave SaveSave SaveSave SaveSave

  Tall cupboard designed to fit either a Dometic 10.4 70 or Thetford T2090 Fridge.  Due to it's size, collection is recommended or pallet delivery Designed to fit with a 20mm total thickness floor. ( 18mm ply plus 2mm vinyl flooring ) DOES NOT INCLUDE FRIDGE

Works with Thetford T2138. Due to it's size, collection is recommended or pallet delivery. Designed to fit with a 20mm total thickness floor (18mm ply plus 2mm vinyl flooring). DOES NOT INCLUDE FRIDGE T2138: Due to the increased demand for bigger refrigerators in the campervan market, the new T2138 has been developed in the Thetford 12V line. This model is an extended version of the T2090 which has a wider climate class (10 – 43⁰ C) and a gross volume of 138 liters.

This unit is designed to be compatible with the EVO V9 Compact Kitchen Unit, available here Can be scribed to fit any Sprinter or Crafter from 2006 to present, or can be left with a square back to scribe into other vans yourself. Tall cupboard designed to fit the Thetford 90L Fridge and Thetford 420 Oven Although the Alpicool CR90 90L will fit it will need to be installed 40mm proud to hinge correctly. Designed to fit with a 20mm total thickness floor. ( 18mm ply plus 2mm vinyl flooring ) DOES NOT INCLUDE FRIDGE OR OVEN

Thetford T1090E 12v Compressor fridge (Replaces T2090) Works with our EVO V8 kitchen. Please note the decor panel option is not supplied as standard and is an option. Option decor panel 0.8mm HPL laminate fridge decor panel cut for thetford T2090 satin black. ( Will need backing in cardboard to make thicker. Cardboard backing not supplied. ) How to install - https://www.thetford.com/app/uploads/2025/05/IM_T1000E_EN_693096-0425-V03.pdf?utm_source=chatgpt.com No external vent required Unique shape allows for the curve on the wall of your van Ultra efficient power use Day & night mode makes it super efficient Low noise operation Freezer to minus 9 degrees Main dimensions (h x w x d)975 x 418 x 486 mm Partnumber – 692545 Recommended built-in depth – 506 mm Total volume incl. freezer – 84L Delivery is not included in the price. Does not include screws. ( Use 4 x 4x25mm Screws to install. ) Our current stock of fridges are all unboxed. If you are collecting the fridge will not be boxed. If the fridge is to be sent on a pallet, we will box it in a blank box.  https://www.youtube.com/watch?v=dhljzE1pRI0

Suitable for use in our Sprinter and Crafter kitchen pods . Designed for use in camper vans with no loose rings and bolted into the work top for security. Electric ignition High-quality materials and components Contemporary, home-like design Optimal use of space Superior cooking performance Features 2 burner Black glass contemporary design Matt nickel knobs Good sized 40mm matt nickel knobs; about the same size as you’d find on domestic appliances Suitable for 120-200mm pans, so there’s quite a lot of scope when it comes to choosing pots Fixes with invisible foam seal for a fully integrated appearance Product Specification Nickel knobs: 40mm Gas burners: 2 x semi rapid 1.5kW Ignition: 12v Total heat input: 3.0kW Weight: 5.0kg Worktop cut-out dimensions: 285mm (W) x 485mm (D) Overall dimensions: 95 (H) x 305 (W) x 500 mm (D)

CAN FO5010 Campervan Oven and Grill Must be sent on a pallet to avoid damage, we find sending via courier the glass gets broken in transit. As used in our EVO 5 kitchen pod  and Evo V8 + Oven pod This gas oven and grill features electronic ignition and thermostatic control. It has been designed by CAN in Italy with a shallow depth - ideal for campervan installations. General dimensions are: W432 mm x H400 mm x D371 mm - although please refer to the diagram images. Capacity: 23 Litres Weight: 22 kg 3.7KW   Please see link for instruction. No printed instruction are included in the box. CLICK HERE  https://airxcel.eu/wp-content/uploads/2022/08/MI_FO50XX_EN-1.pdf

Latest control interface allows you to connect your phone to control your Truma D4E heater , second gen round flue. Electric version of Combi D4E with integrated electrical heating elements for diesel, electrical or mixed mode This is the perfect solution for sprinter / crafter sized vans Mwb or Lwb van , ideally can be install under the front seating area or under the bed area. The Truma Combi D4E complete kit includes: Truma Combi D4E diesel and electric heater unit Truma I-net X digital control panel John Guest water kit 6 metres control panel cable Truma Combi diesel exhaust kit Japan Solderless Terminal electrical ends Truma operation instructions Includes every you need for a new installation except : Ducting , vent outlets and an appropriate connection into you diesel tank ( fuel line is included )

Over cab locker designed to fit perfectly in the heading lining contours of your Mercedes Sprinter or Crafter to 2017. Sprinter / Crafter 2006 - 2017 The locker will need fixing at serval points into the van structure around the perimeter of the locker and the centre of the locker via strap metal strap bonded to the skin of the van. Only a horizontal grain direction is possible due to sheet size. DESIGN CHANGED TO SINGLE DOOR VERSION ONLY, 2 DOOR VERSION DISCONTINUED Aluminium overhang will need filing down a few mm to fit curve of locker.

Designed for the vw crafter or Merc Sprinter 2006 til 2017 LWB in Design 4 layout This cover has an in built light dimmable touch sensitive led light and is designed to hide the electrical cable bundle over the side loading door. Designed to be used in conjunction with our  Over cab locker.

Lieghtweight ply Locker for the LWB Sprinter/crafter van designed to sit over the dinning area. Grain direction may change.

Great little locker for additional storage above the kitchen area, next to the side loading door. For use within the full Design 4 LWB sprinter layout. Made from Lightweight Ply. Aluminium front corner extrusion. Single opening door with lid stay and choice of self locking Large EVOmatic Catch to keep the door shut in transit.

Sprinter 2006 to present 1800mm long 3 doors Wood grain direction may change

Sprinter 2006 to present 1800mm long 3 doors Wood grain direction may change

705 x 975 mm shower toilet cubicle, height varies depending on model chosen (check against your own vehicle before purchasing). IMPORTANT : Cassette removal hole ONLY works with OUR SHOWER TRAYS DEPTH (75mm) - If purchasing third party tray to use with our shower A CONTACT US BEFORE PURCHASING otherwise cassette hole will not line up. Can be cut for both Sprinter / Crafter PRE -2017, New Crafter 2017 onwards or left squared at the back for scribing into other vehicles. Roof panel can be cut to allow roof light & motion sensitive light. ( PIR ) Interior walls are water proof HPL available in gloss white as standard. WORKS WITH THETFORD, 223 CS TOILET   use this tray:  All panels will need silicone sealant at junctions (not supplied). Back interior curved wall panel is gloss white hygiene board which will need to be bonded to a curved 6mm ply panel. Can be cut so the toilet cassette is on the Left hand side of the door opening, but if going for this option you will need to source the shower tray from Magnums motor homes as our tray are only for the right hand. Includes: Laminated poplar ply with white gloss interior, exterior colour can be different finishes from the Stylam or Gentas range Aluminium corner extrusions Latching door handle or optional tambour door Roof panel can be left solid or with rectangular cut out Internal toilet cassette removal door Optional extras Led light with PIR sensor which comes on automatically when you enter the cubicle Tambour door (this will need to cut to length as the height between the shower tray and roof panel can vary depending on the thickness of your floor. Use a fine tooth blade) We Recommend watching this excellent video if installing a tambour door here.   Due to the panel sizes we recommend collection or it can be sent on a pallet. Does not include THETFORD TOILET,  FLAP DOWN CONTESSA SINK UNIT OR SHOWER TRAY. These can be purchased separately.

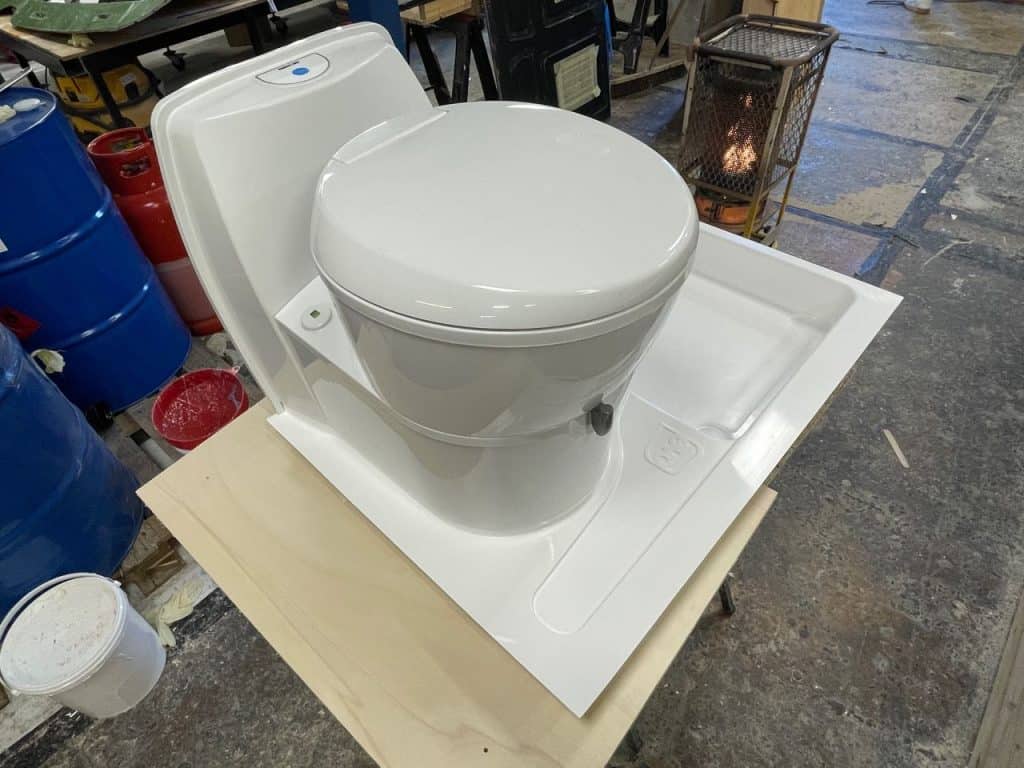

Toilet not included Shower tray suitable for our Shower A design moulded in tough fibre glass to avoid the splinting and cracking associated with flimsy vacuum formed plastic ones. This shower tray is designed to accept the: THETFORD 220 ( 223 ) & 260 ( 263 ) series The tray is a deeper design allowing for heating duct work to travel under the back edge of the shower so you can direct hot air to both the front and back of the van. Trimmed to suit SHOWER A  670 x 940 mm. ( Finished tray size ) Bamboo foot board is not included but is available as an optional extra Works with this sink waste from Screwfix - MCALPINE CENTRE PIN BASIN WASTE POLISHED STAINLESS STEEL 60MM (894JJ)

Rotating table leg + twin worktops tops + mito table rail main table is 830 x 536mm small table rotates and can be set at different positions allows 4 people to comfortably eat table leg splits lower height: 313mm (approx) upper height: 701mm (approx)   Note, if using a plinth the table rail mounting point will be about the windowsill level. A plywood board would be need to mount this onto the back wall to mount the rail too.

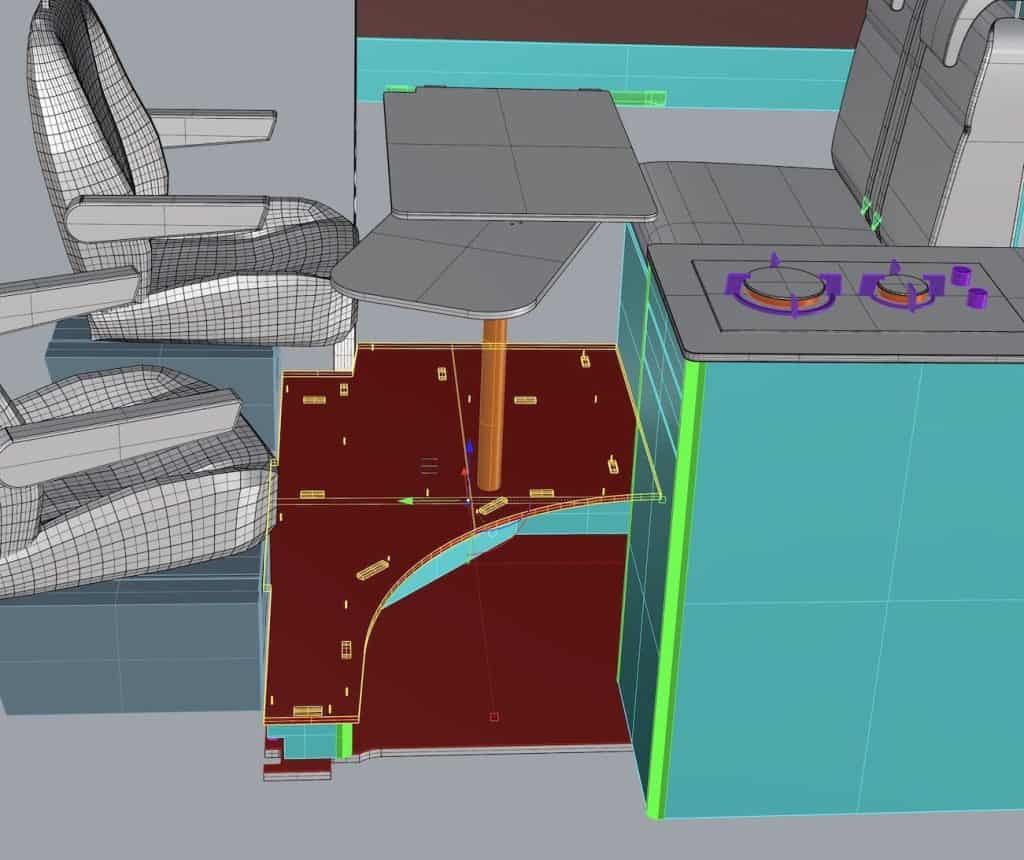

Plinth 100mm high for standard  used in Design4 Come with aluminium trim for curved from edge.

Double seat frame with seat belts designed to be fitted in the rear of the van with fitting kit which ties the seat frame to the chassis. To be used behind the drivers seat for RHD This seat model will work with the mercedes Sprinter and crafter van. It can also be used in the Fiat Ducato but you will need to purchase the 100mm offset bracket to fix the frame to the longitudinal chassis member. This model is also designed to accommodate the Truma Combi 4E heating and hot water system. Bare frame only with seat belts requires a base and upholstery. Homologated according to R14 for Fiat and Citroen vans. You can see this certificate here This is a great solution for those looking to add a rear double seat to your camper. Frame is suitable for a seat around 800mm wide. *Double head rest set not included. £180 extra in the drop down menu. PLEASE NOTE THE UNDER CHASSIS FITTING KIT IS DESIGNED TO FIT AROUND THE LONGITUDINAL CHASSIS MEMBER, PLEASE CHECK THE POSITION AGAINST WHERE YOU WANT TO POSITION THE SEAT. https://www.youtube.com/watch?v=WFe3uZsF5bw&t=430s

Designed to fit around our seat frame with a lift up hinged lid for easy access. Seat box only does not include metal seat frame or cushions, designed to used with a plinth around 100mm in height. Does not fit with seat frame ISOfix option Made from lightweight plywood.

Garage Door Bed Step helps with access to the bed and divides the garage area. When the step is in the down positions the large opening gives you some access to the garage area. Designed to work with our kitchens and shower unit and fixed bed platforms. Please note a 700mm x 25mm notch will need to be made in the fixed bed platform as per the images. Please note the Garage Door Step sits 16mm behind the shower and kitchen unit. Please check if your under bed units will be compatible with this as some doors may not open fully and hit this step. Made in 2 sections to be easier to remove. Secured in place with Keku clips which allow this panel to be lifted vertically to be removed. Check dimensions before purchasing. https://youtu.be/GzaNR4guMJc?si=W3HJIwXpBTRaTJxi

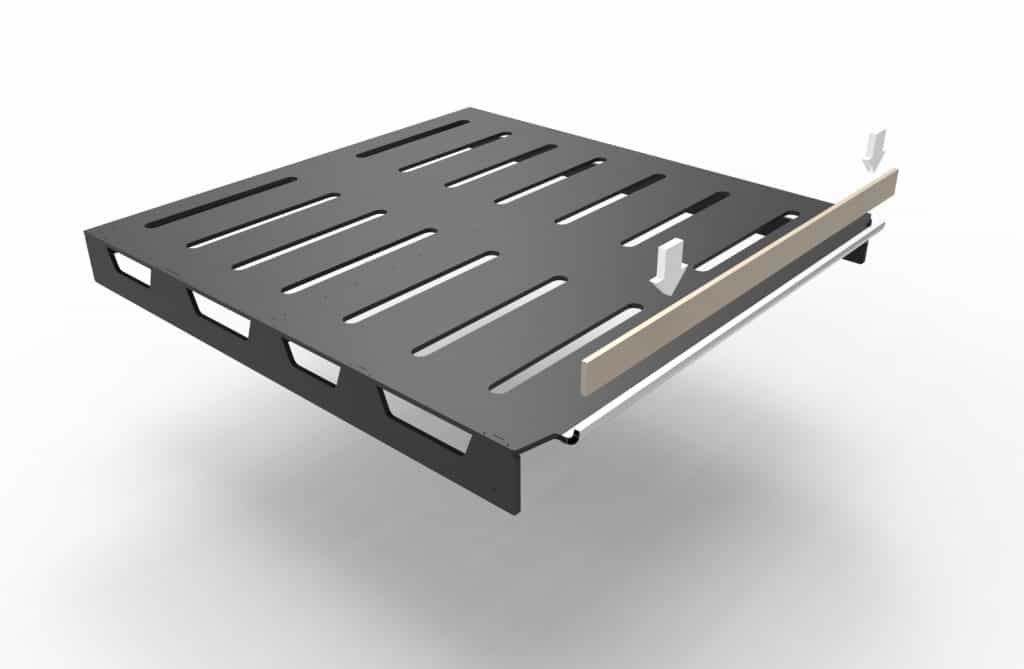

Flat pack rear bed system to fit the LWB sprinter 2006 onwards or the Crafter 2006 - 2017. This is for the LONG WHEEL BASE VAN.  BIRCH PLY WITH TOUGH 15mm BLACK RESIN FINISH. Includes aluminium profiles back of the bed for added strength. Fixed with hex head TEC screws ( supplied ) Rear aluminium section can have an additional extra piece of wood to match the colour of your units pre edge banded, this is an optional extra available at the time of purchasing other furniture elements only.

2 storage units designed to fit under our plywood bed platform for the Sprinter 2006 onwards LONG WHEEL BASE The slimmer unit is designed to house a water tank of around 80 L with space for a water pump and expansion vessel The deeper unit is designed to accommodate a 15kg gas bottle ( optional metal gas locker box) , 1 or 2 110ah leisure batteries, fuse board electrics and a Whale expanse water heater Water tank and battery spaces are accessible via a clip of panels 2 large lockers with shelf for storage Recommended water tank size is 1100 x 200 x 400  ( Supplied by GFG Plastics )
