EVO 6 Curved kit – Triple seat – Long wheel base T5 T6

£ 1,239.00 inc vat

IMG_6155 IMG_6154

EVO 6 Curved kit- Triple seat – Long wheel base T5 T6

New curved kit,  a slightly more challenging construction than our other designs this this kit is suitable for people who are handy Diyer’s .

  • Side unit with lift up work top flap and storage
  • 3 x Sliding tambour door
  • Aluminium extrusion to all corners
  • Over bed locker for low roof and elevating roof vans
  • Front bed panel with door and rear bed panel
  • The worktop cut for smell 9722 – 2 burner hob and sink
  • Concealed self close hinges with flush fitting doors
  • Table with folding aluminium leg and  stainless steel sliding rail system
  • All connecting blocks, hinges, grey , black or silver edging, push catches and screws
  • Designed for the Webasto Cruise 49 ( trimming of van metal floor lip required ) or Waeco cr 40 ( compressor will need to be positioned in the next cupboard)
  • Knock on edging for all exposed edges, the edges are pre slot cut for you to apply
  • Designed to be easy to construct with easy  mount hinges, slots for aligning the panels and pre drilled hole for the connector blocks
  • Available in a range of own light weight ply finishes
  • Worktop and Table can be a different finish.
  • Edging: Silver , black or Dark Grey
  • Works with Scopema RIB seat 1300mm
  • Works with both low roof and elevating roof conversions
  • Front loading fridge, with storage flap above.

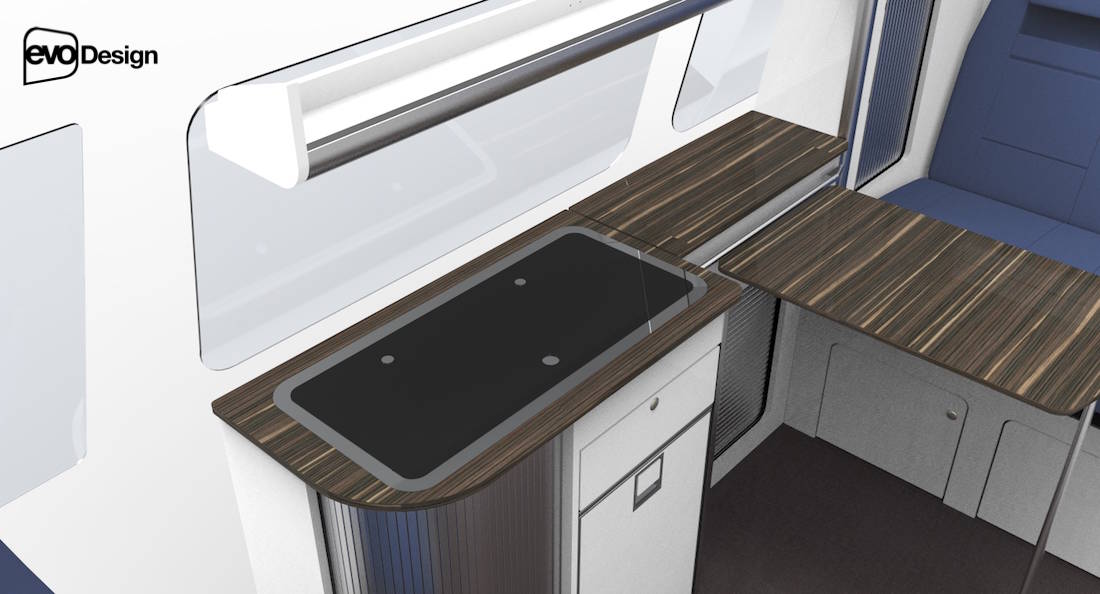

  • Narrow part of worktop lifts up to provide easy access, at only 270mm deep it allows space for a 1300mm wide bed.

**Does not include

  • smaller swing out table
  • LED light shelf
  • under bed electrical box



NOTE: The fridge sits further back in this unit (see images) which requirers the internal metal work of the van to be cut.

SaveSave

SaveSave

SaveSave

SaveSave

SaveSave

SaveSave

SaveSave

SaveSave

Unit Finish *

Worktop & Table Finish *

Altofina colour reference

If you have selected an Altofina laminate finish from above please add details here, note this will add 2-3 weeks on top of the standard lead-time.

EDGE TRIM COLOUR *

Bed boards *

These are panels for the front and back of your seat / bed. Please note the Rib bed is available in 2 different frame heights 340 or 330 mm contact your supplier for this info or measure yourself. Ignore brackets ( A ) etc.. after description.
View Bed Board Types

Roof Type *

Please ignore brackets ( R40 =840 B ) etc…after roof type. ONLY SELECT A FULL WIDTH LOCKER FOR A SLIM KIT (eg. 1300) OR A KIT WITH A LOW BACK (eg. 2.3 5.3)
View Over bed locker types

Door catch *

Window Surround panel

3mm thick Aluminium composite window surround panel which can be drilled and cut to accept switches and control panels

Optional extras

Add products to compliment your furniture kit. Please note some kits come with some of the items below

ORDER NOTES

Please add any additional information that you have discussed with us.
