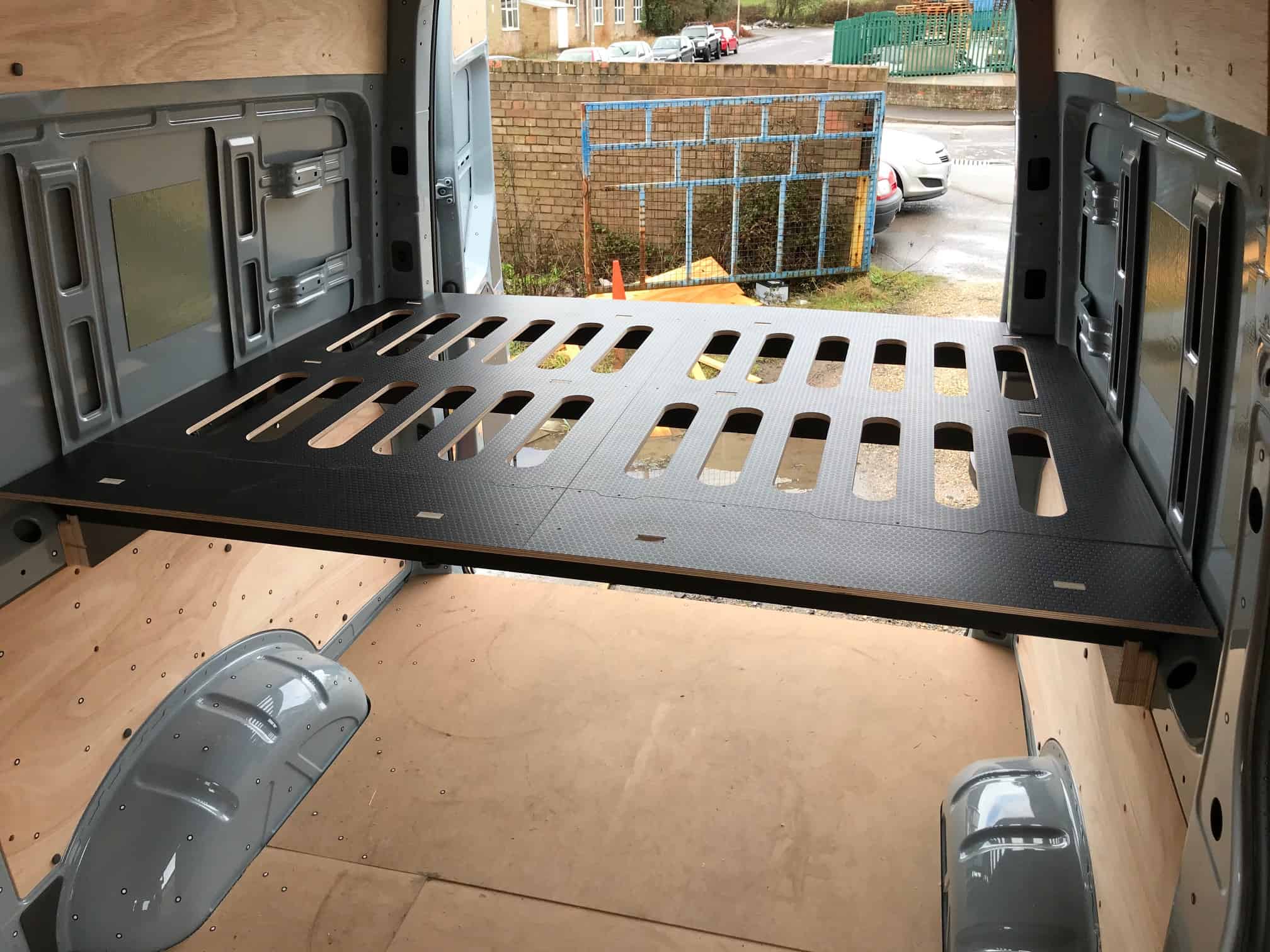

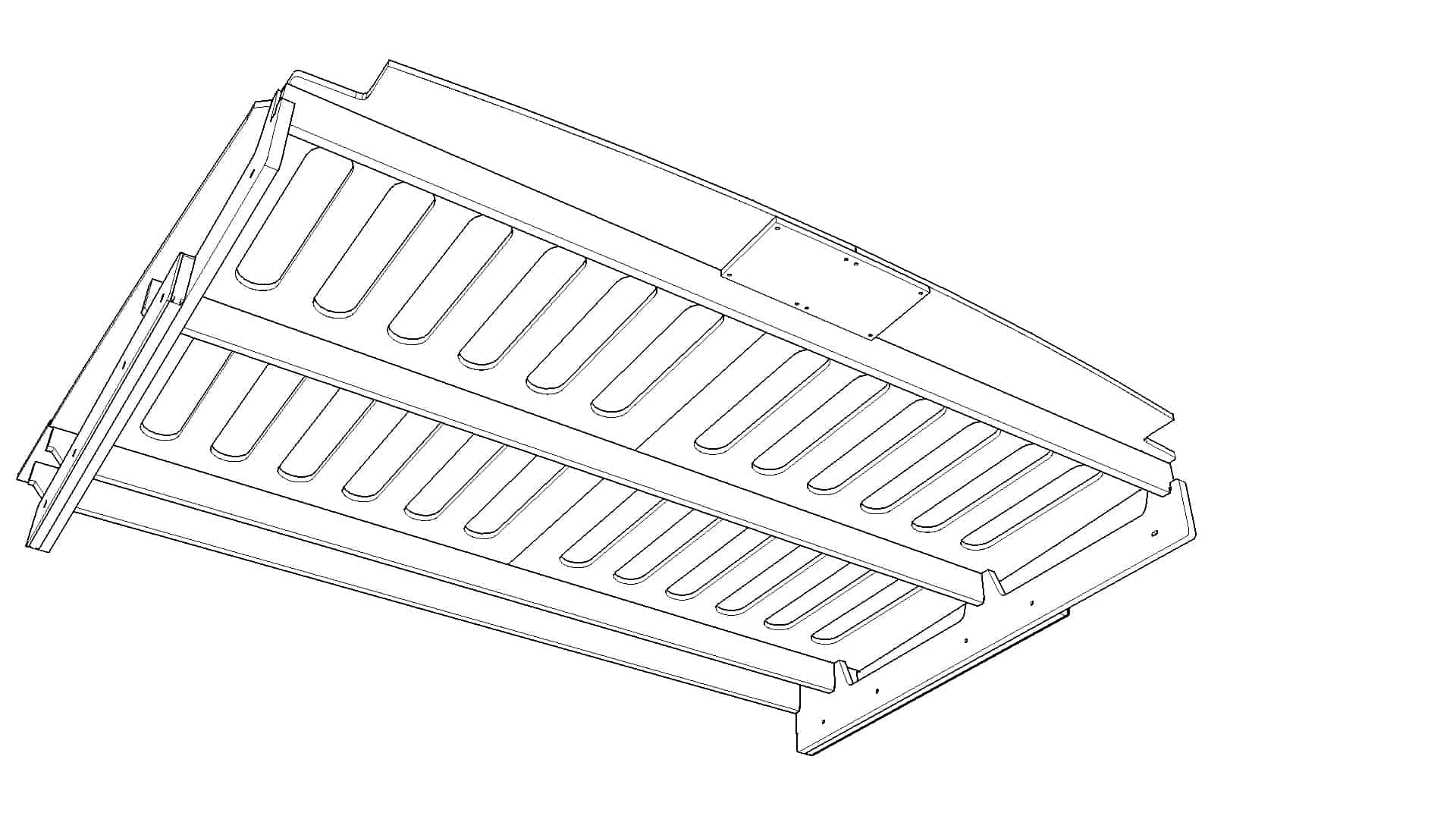

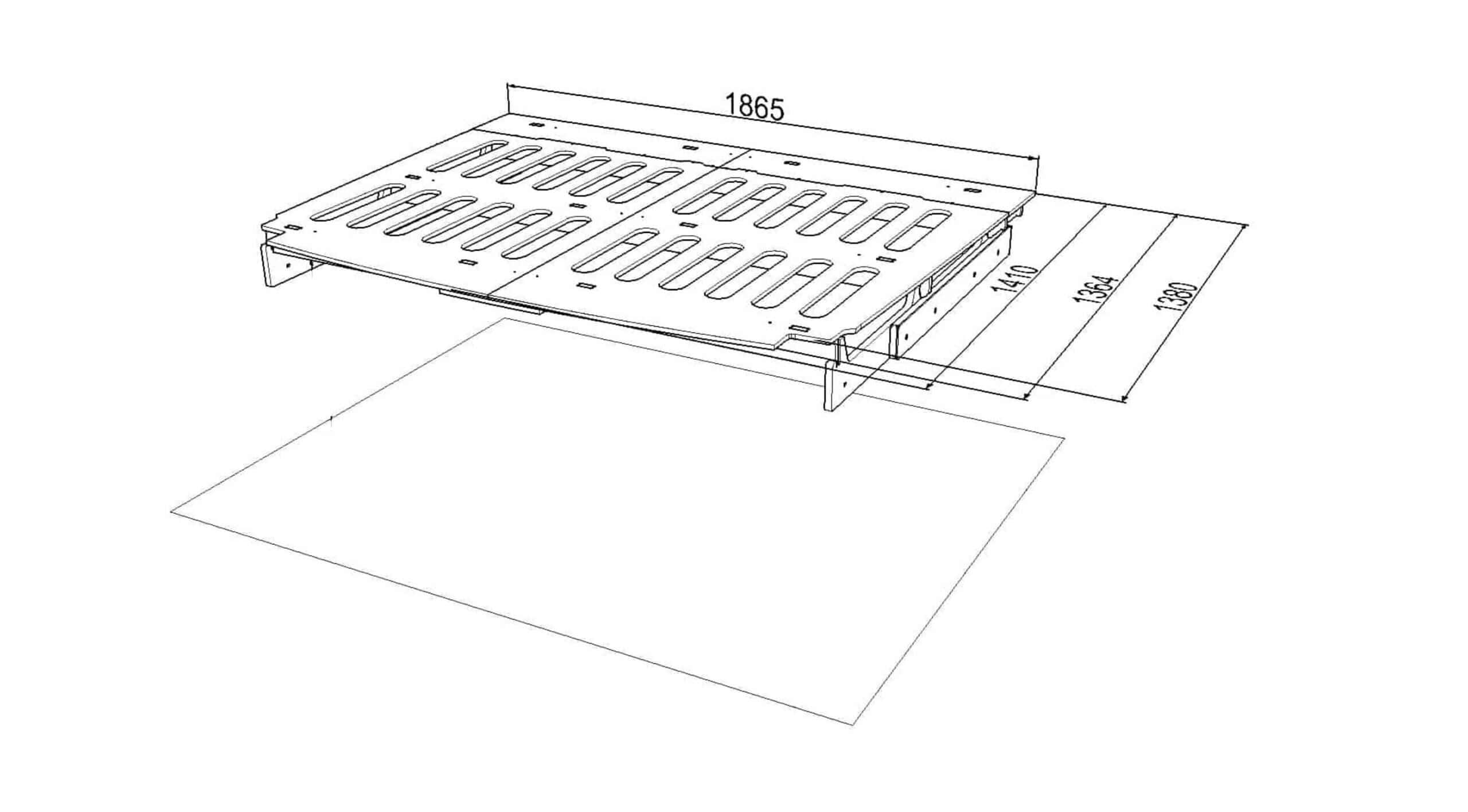

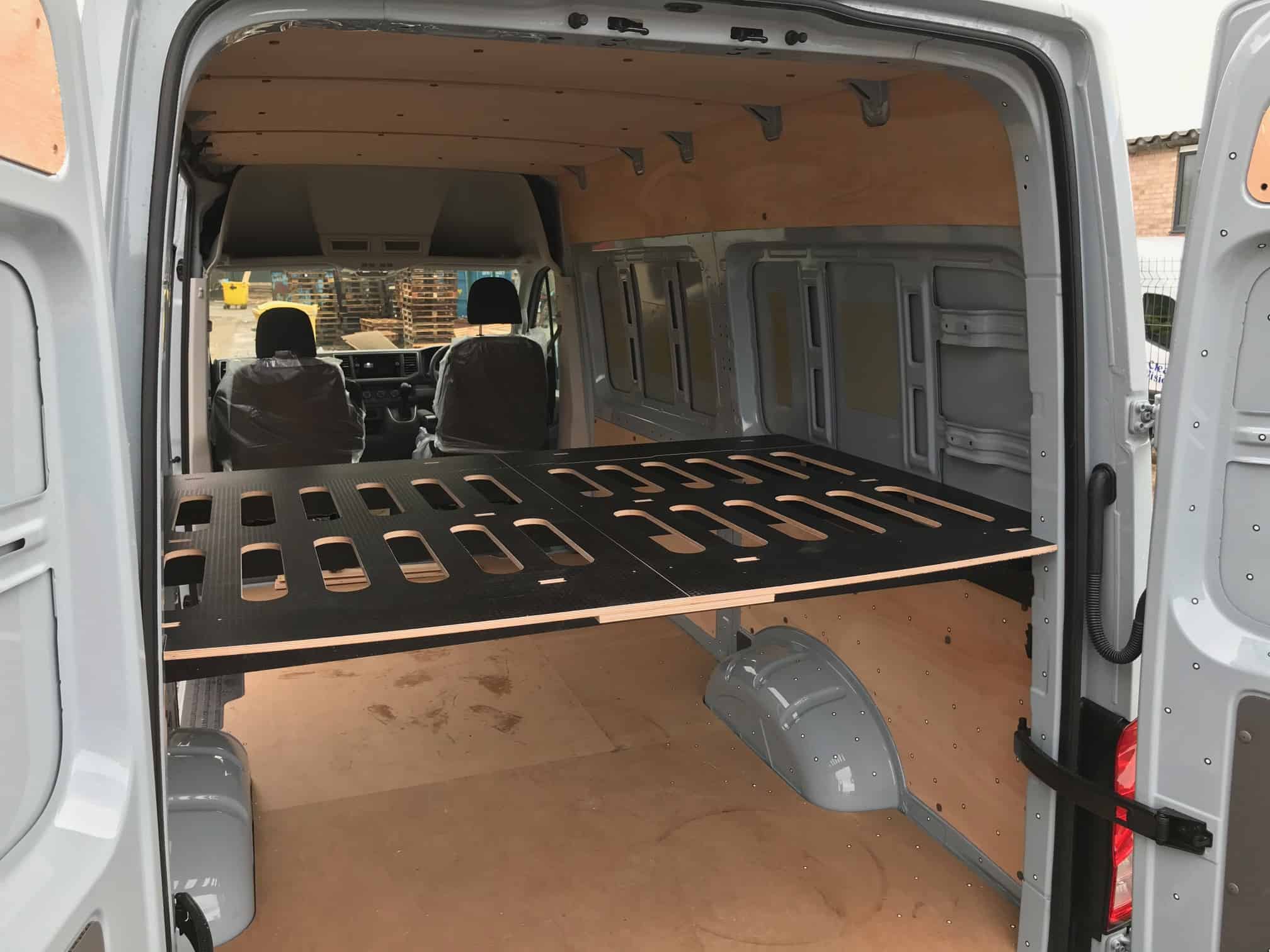

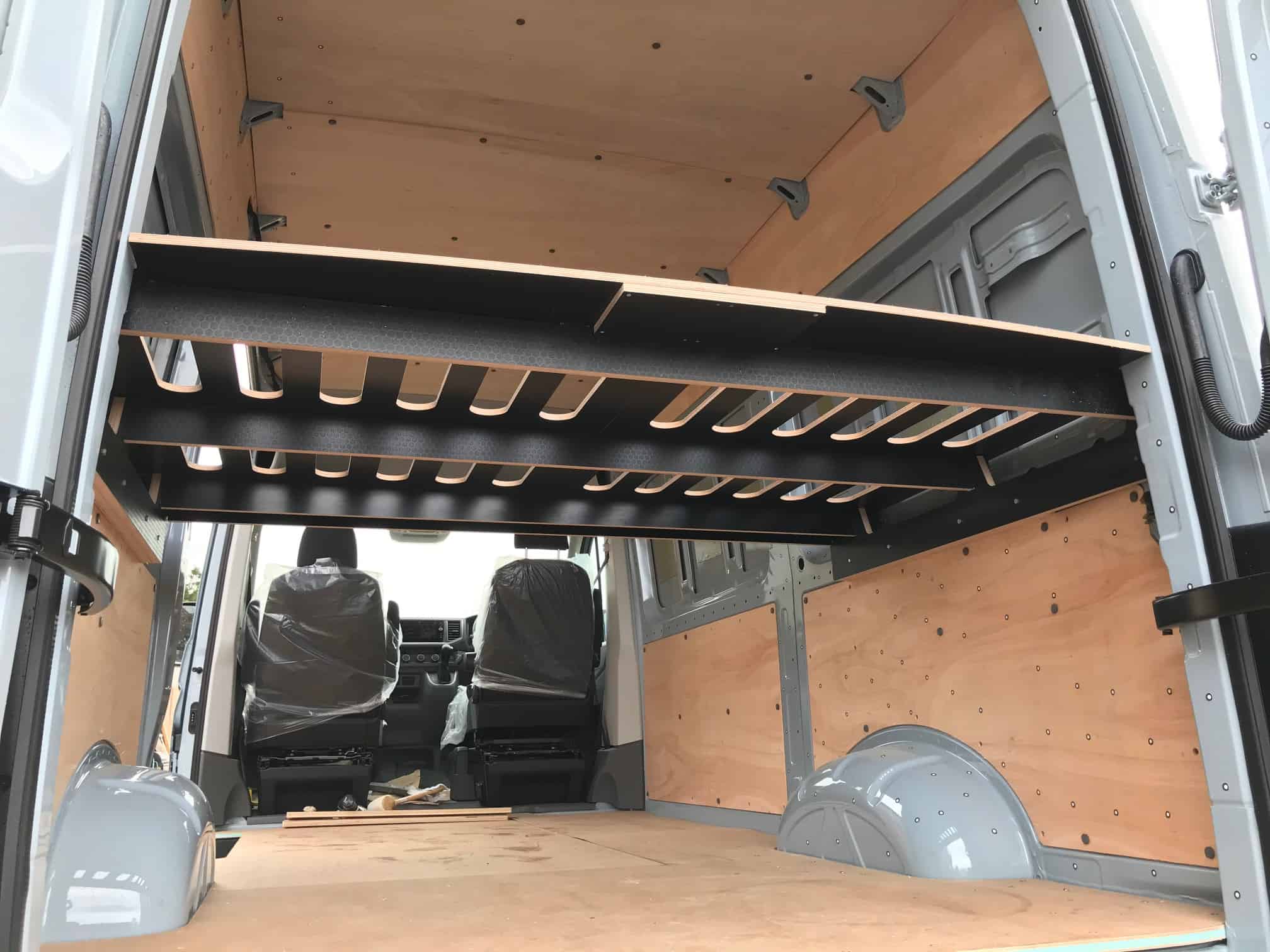

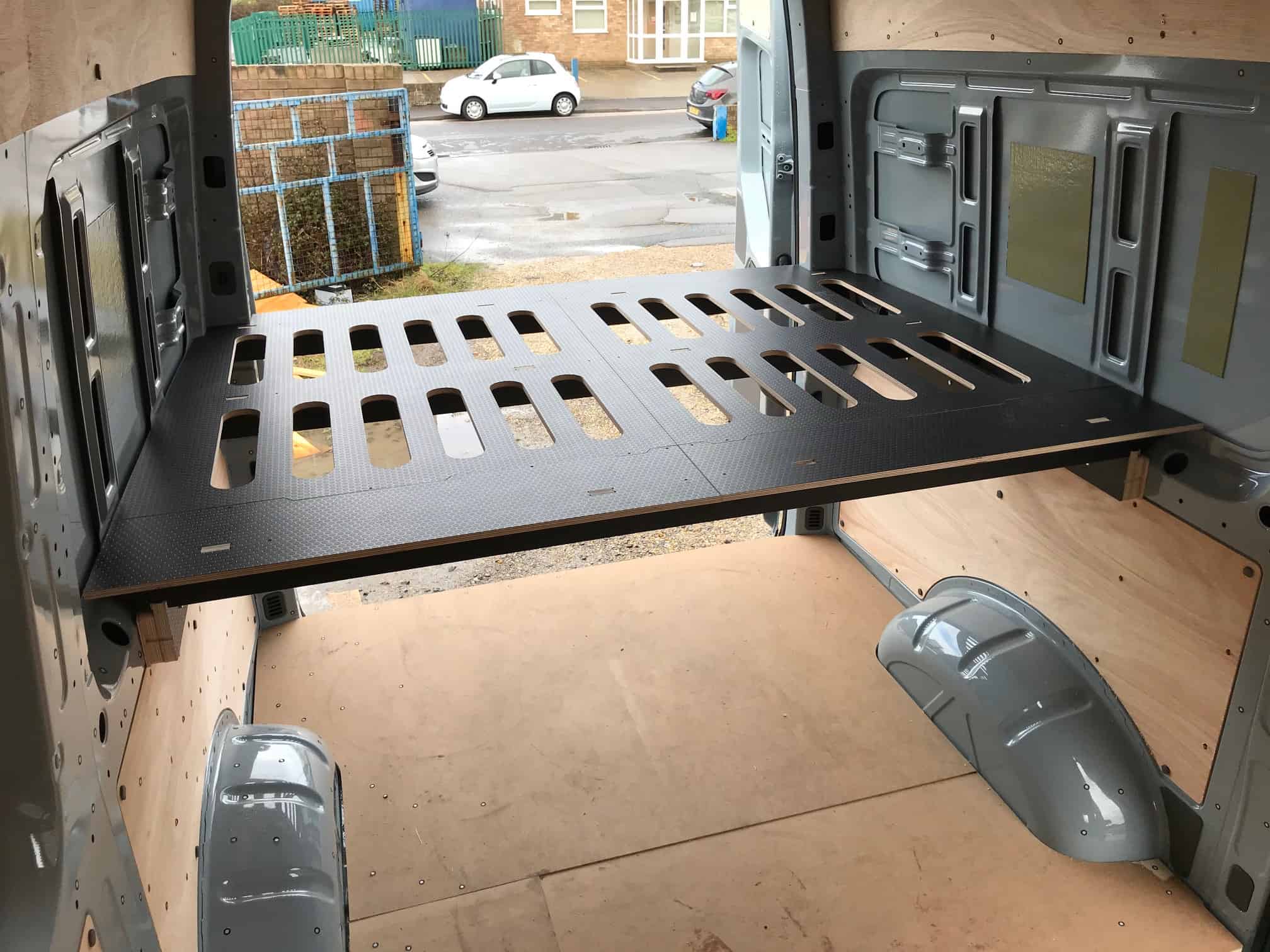

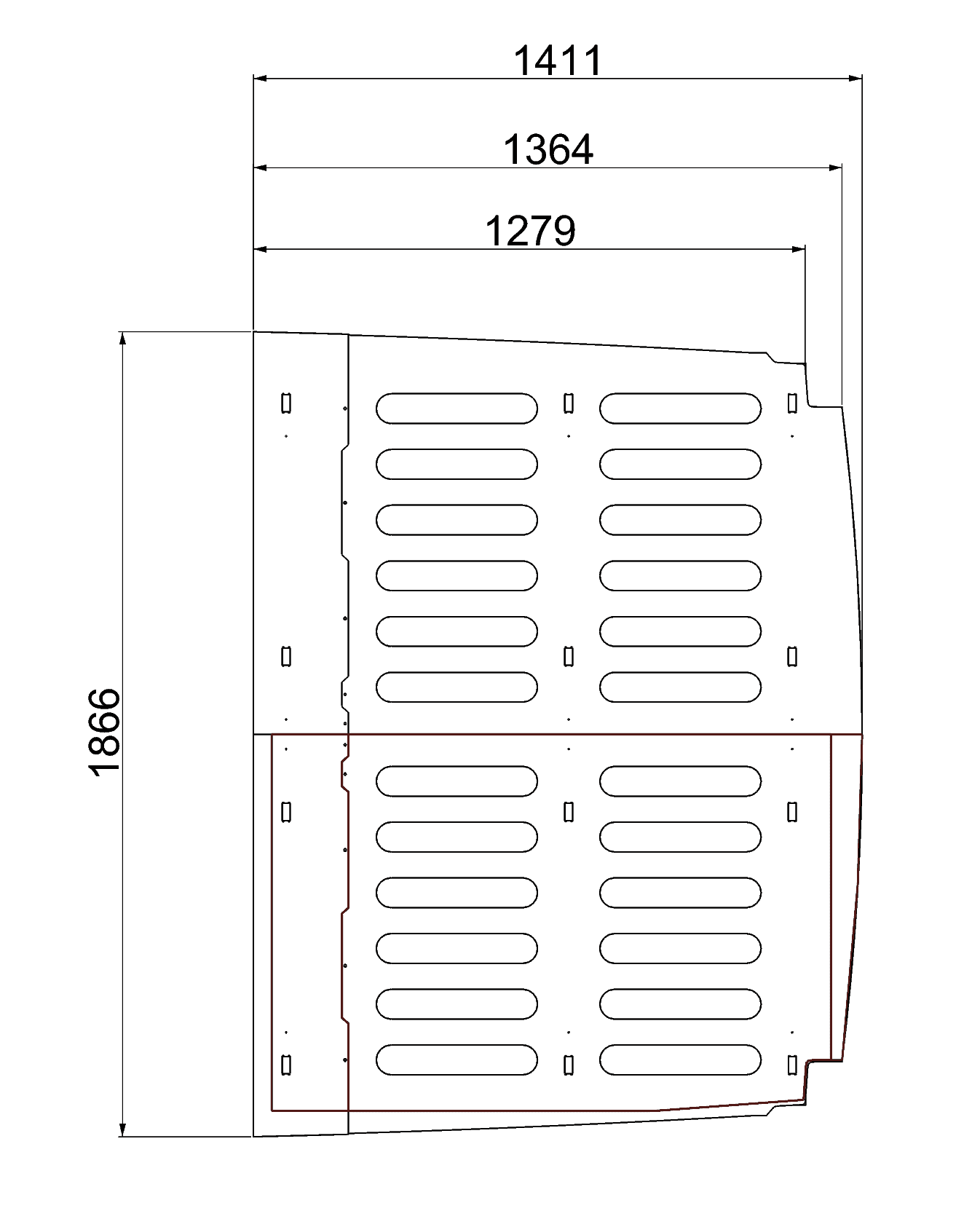

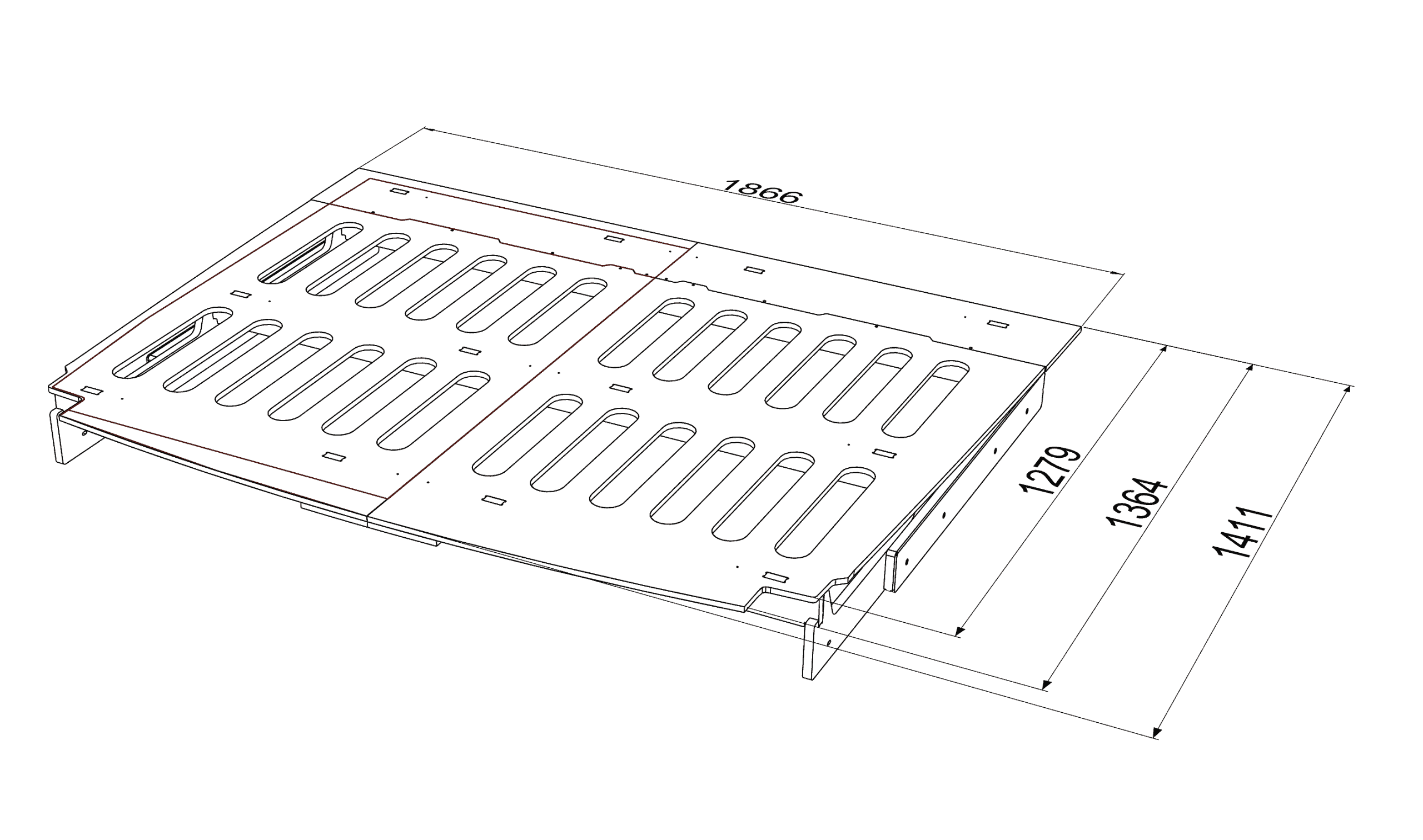

Crafter Flat pack rear bed system. This is for the MEDIUM WHEEL BASE VAN

BIRCH PLY WITH TOUGH BLACK RESIN FINISH

FIXED WITH 10 HEX HEAD NUT RIVITS (REQUIRES NUT RIVIT GUN) OR CAN OPTIONALLY BE SECURED USING LONG HEX HEAD SCREWS (supplied)

FLATPACK QUICK INSTALL

Note – this can fit the LWB but please note if installing a shower adjacent to the bed 376mm more of the wheel arch will be on show in the shower.

Can be cut for the trim rings here

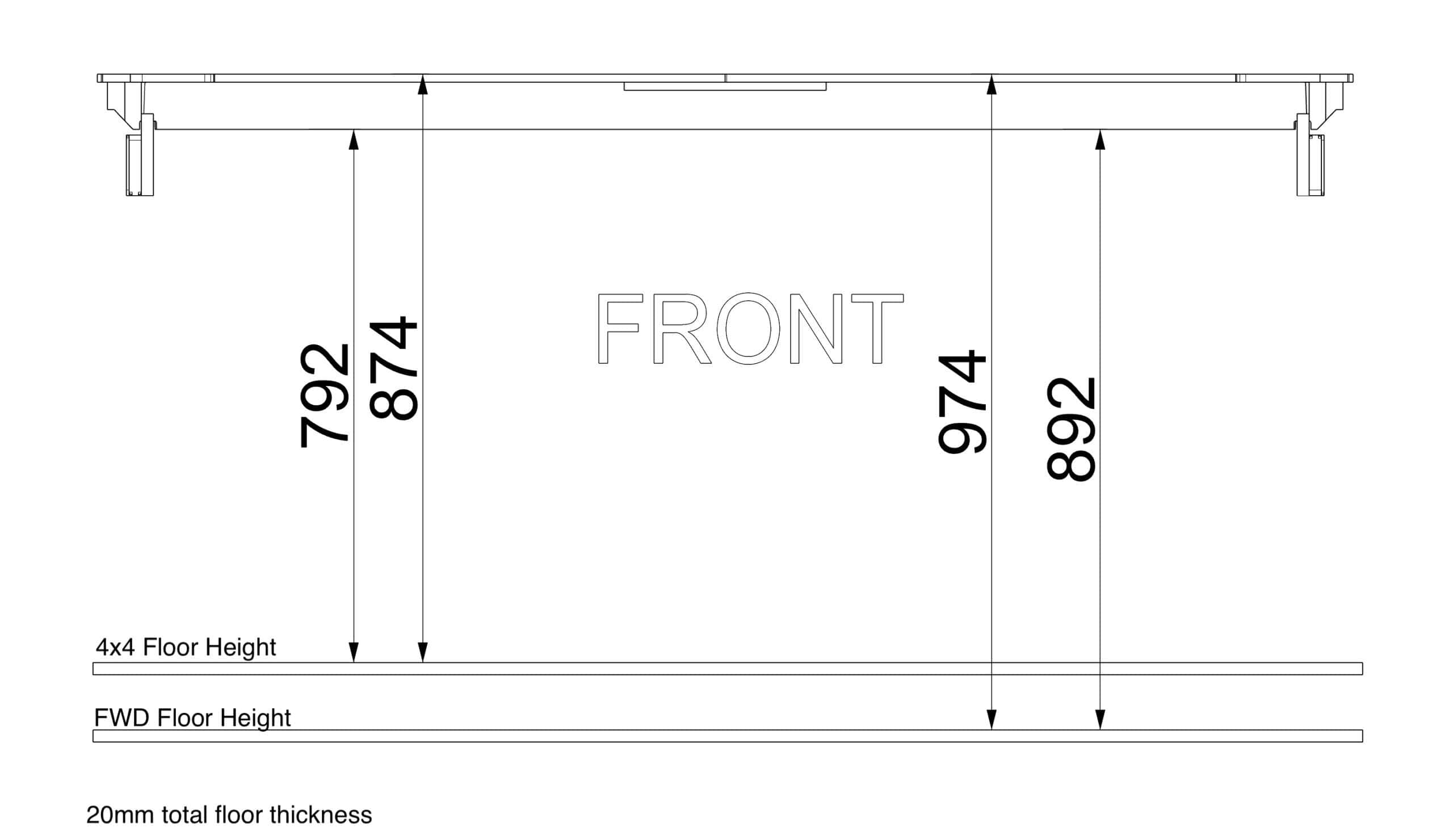

Please note there is a 100mm height difference between the floor heights of the FWD and a 4×4 Crafter.

4×4 – 792mm clearance under the bed frame

FWD –  892mm clearance under the bed frame ( Front Wheel Drive floor is 100mm lower )
