EVO V11.1 LARGE VANS Side door kitchen pod

Designed to accept a 50 litre fridge such as  LG 50L , Dometic crx50 or Vitrifrigo C51i

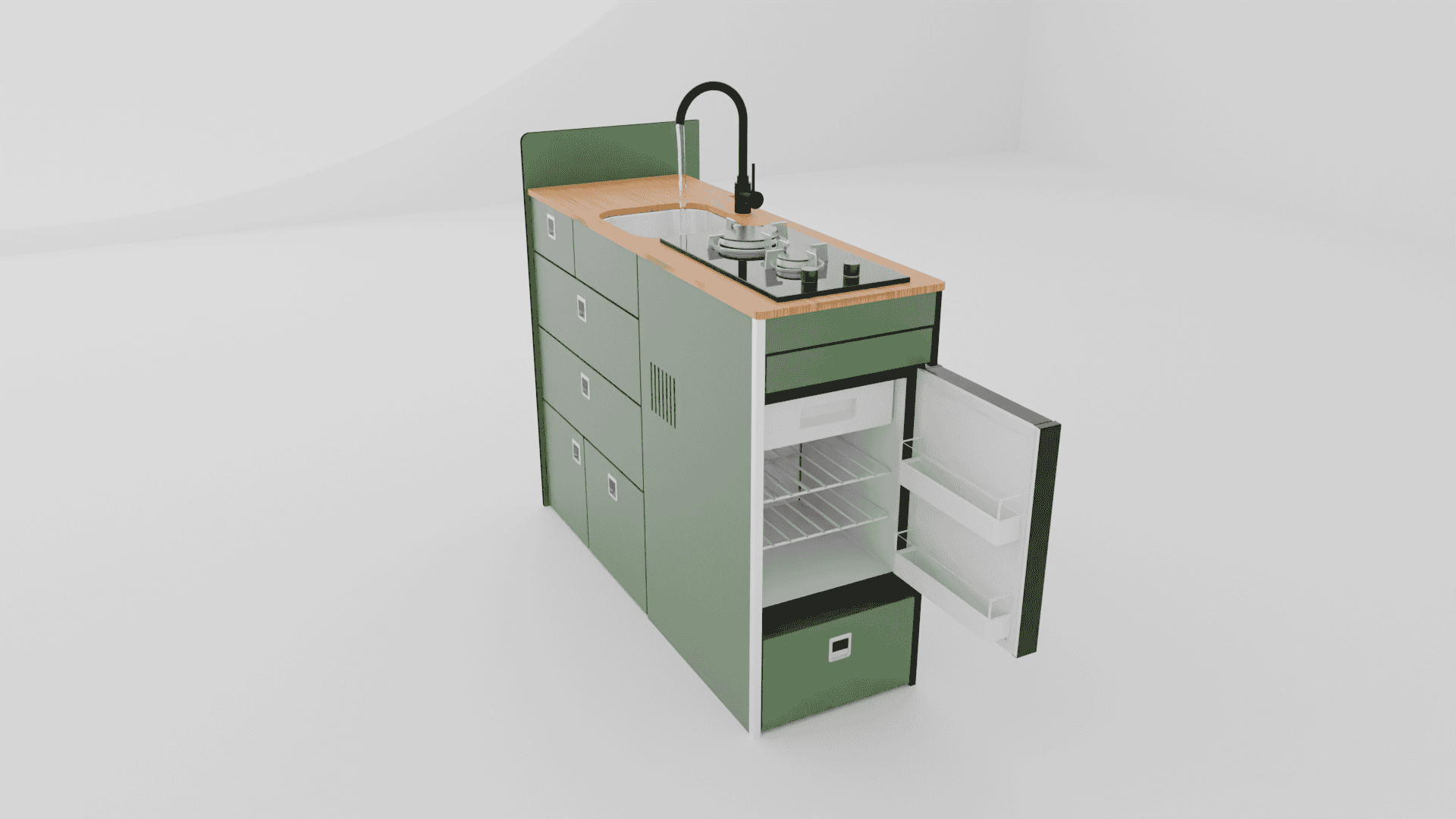

EVO V11.1 Side door kitchen pod for the large VW Crafter, Mercedes Sprinter & Man TGE or any similar sized vehicle.

Unit is:  426 wide x 1264 long x 936 mm  high

• 5 soft close draws, 1 hinged door, shelf and space behind door for bin
• Slide out worktop extension
• Evomatic XL catches
• The majority of the panels are pre edge banded
• Designed for the LG 50L Fridge, Dometic CRX50 or Vitrifrigo C51i
• Suits a wide variety of hobs & sinks, the recommended hob is Thetford Topline 922
• Additional bin and bracket can be purchased here to go on the backside of the hinged door – will need spacers (**see pictures)
• Fridge is accessible from inside and outside the van with a hinged door that can open fully, and sits flush in the unit
• Universal model with worktop unscribed, no side step storage and an unshaped back allowing it to fit into a wide variety of vehicles
• Flat pack design for you to assemble
• Can be cut for Left hand or Right hand drive vehicles

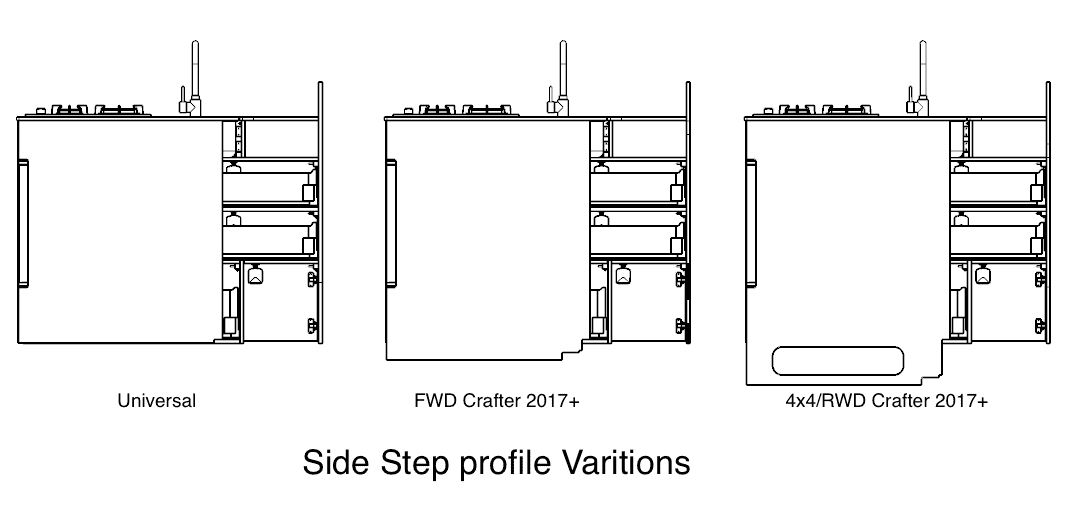

• Universal model has no notch in the worktop, back panel is not shaped to pillar or step and end panel is squared to fit a wide variety of vans

**Images show under mount sink with bamboo top

**Designed for our 18mm floor thickness, if you have a different thickness floor this will affect how the shaped panel sits against the C pillar and doorstep, in this case, we recommend the universal version
