LOW UNIT

EVO 2.3 SWB FIXED RIB (B) VAN flat pack - Image 2

EVO 2.3 SWB FIXED RIB (B) VAN flat pack

Name: EVO 2.3 SWB FIXED RIB (B) VAN flat pack
SKU: A2.3RB
Availability: InStock

£ 1,185.00 inc vat

DESIGNED TO WORK WITH A FIXED RIB.

VW T5 T6 short wheel base van flat pack interior, includes full low side unit ,table system, over bed locker, front and back bed boards, all the wood work necessary to build a full camper van interior, works with low roof & elevating roof vans. See full specifications and finishes below.

SaveSave

LEFT or RIGHT hand drive vehicle?

Unit Finish

View finishes

View Discontinued Finishes

EVO STOCK RANGE
CPL – Continuous Pressure Laminate
HPL – High Pressure Laminate ( More wear resistant 0.8mm thick )
*Being discontinued once stock is depleted

Worktop & Table Finish

Please add a customer note at checkout if you require a solid worktop

EDGE TRIM COLOUR

Roof Type

Which over bed Locker do you require with your Furniture? This is included as standard with your furniture
View Over bed locker types

Bed boards

These are panels for the front and back of your seat / bed. Please note the Rib bed is available in 2 different frame heights 340 or 330 mm contact your supplier for this info or measure yourself.
View Bed Board Types

Door catch

View Catch Options

Drawer Type

Window Surround panel- FULL LENGTH -COLLECTION ONLY T5/T6

3mm thick Aluminium composite window surround panel. Please note this is full length with 2 window cuts due to its size we cannot deliver this item.

Optional extras

Add products to compliment your furniture kit. Please note some kits come with some of the items below

LED LIGHT SHELF double end ( V3 ) (+£ 140.00)

LED LIGHT SHELF + DOORS ( V1 ) (+£ 190.00)

RECESSED LED LIGHT 710MM LONG IN OVER BED LOCKER (+£ 35.00)

DRIVER SINGLE SEAT BACK PANEL (+£ 10.00)

PASSENGER SINGLE SEAT BACK PANEL (+£ 10.00)

10L (B) WATER BOTTLE KIT (+£ 46.80)

SWING OUT PASSENGER SEAT TABLE WITH TOP TO MATCH KIT (+£ 95.00)

EVO BAMBOO CHOPPING BOARD (Fits in our cutlery drawers) (+£ 10.00)

ORDER NOTES

Please add any additional information that you have discussed with us.

Note

Appliances to fit this unit:

Quick View

50L kit fridges

BLACK VITRIFRIGO FRIDGE C51i

£ 559.00 inc vat

Quick View

50L kit fridges

SILVER GREY VITRIFRIGO FRIDGE C51i

£ 559.00 inc vat

New

Quick View

9222

Bamboo chopping board cut for SMEV hobs/sinks (9722 / 9222)

£ 20.00 inc vat

Quick View

Hob and sink combinations

Smev 9722 right hand sink hob

£ 298.00 inc vat

EVO 2.3 FIXED RIB (B)key features :

Side unit with low front & back
Over bed locker for low roof and elevating roof vans
Front bed panel with door and rear bed panel
2 drawers one for cutlery and the other extra deep 150mm high
Concealed self close hinges with flush fitting doors
Table with folding aluminium leg and stainless steel sliding rail system
All connecting blocks, hinges, grey , black or silver edging, push catches and screws
The front cupboard door unclips to fit a Vitrifrigo C51I, Waeco CR50 or CR40 fridge if you wish to install one later.
Knock on edging for all exposed edges, the edges are pre slot cut for you to apply
Designed to be easy to construct with easy mount hinges, slots for aligning the panels and pre drilled hole for the connector blocks
The worktop cut for a SMEV 9722 sink hob ( righthand sink )
Available in a range of own light weight ply finishes
Worktop and Table can be a different finish.
Edging: Silver or Dark Grey or black
Works with Scopema RIB seat 1120mm wide 44” wide or less.

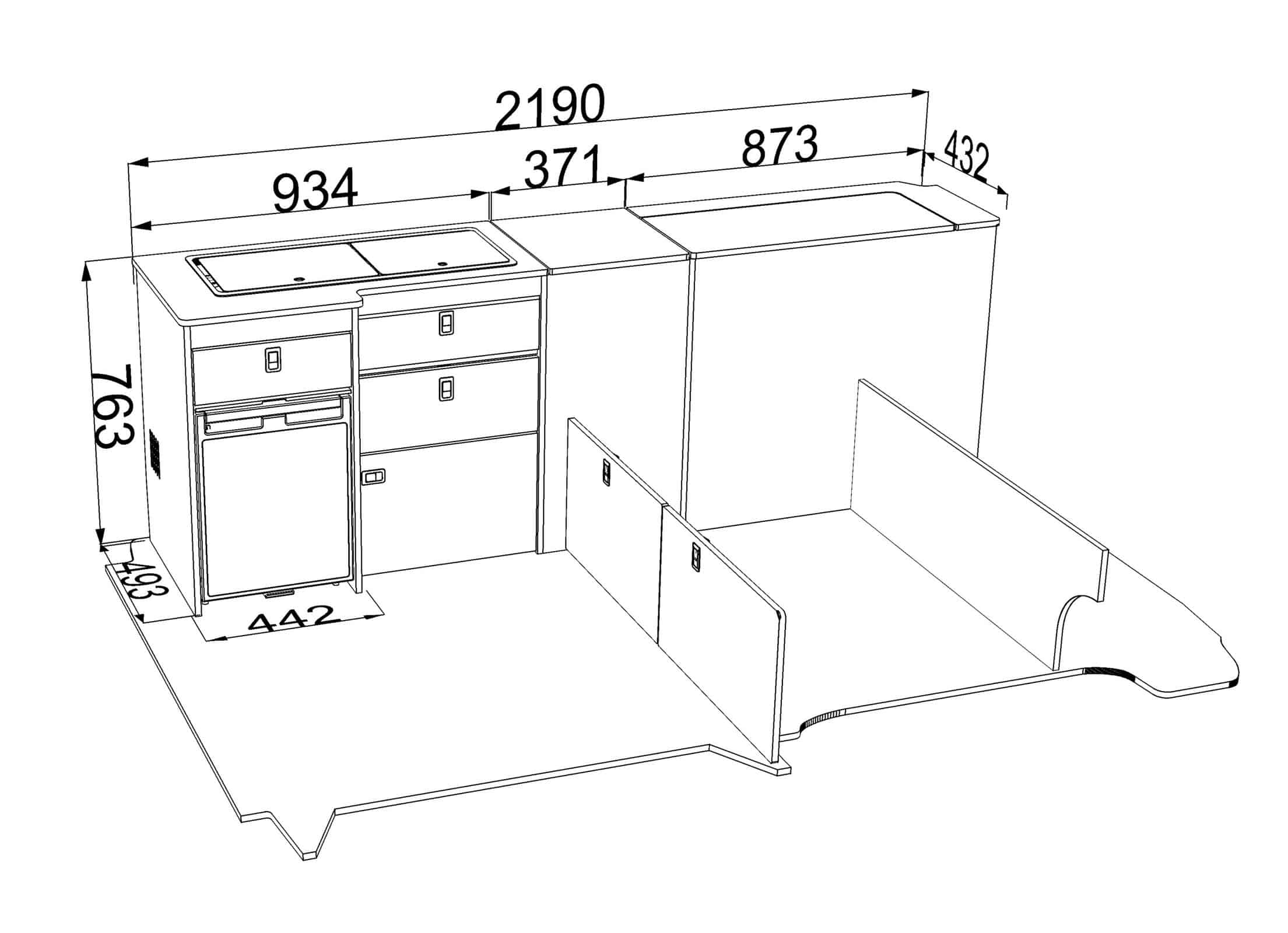

EVO 2 maximum bed length is 1925mm measured from the back doors.
Works with both low roof and elevating roof conversions
Does not include LED light shelf

Country of Origin	UK
HS Code	9403609000
