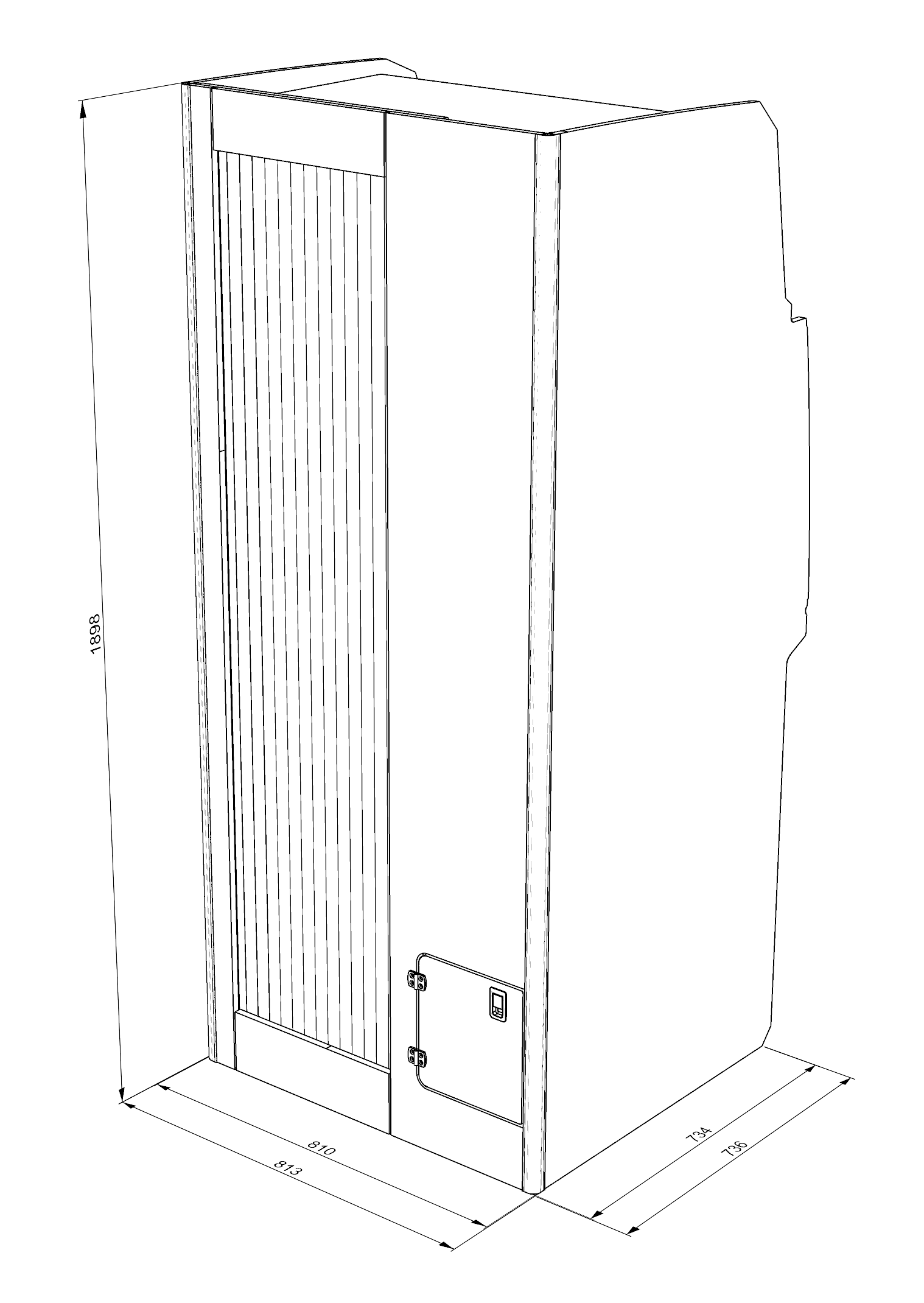

SHOWER C – EXTERNAL DIMENSIONS – 734mm deep x 810mm wide – height 1898mm

Shower is designed for a specific location in our Design 11 layout based on using our 18mm Ultra light sandwich floor (check your floor to ceiling height before purchasing).

Roof panel can be cut to allow roof light & motion sensitive light.

Interior walls are water proof HPL available in gloss white as standard.

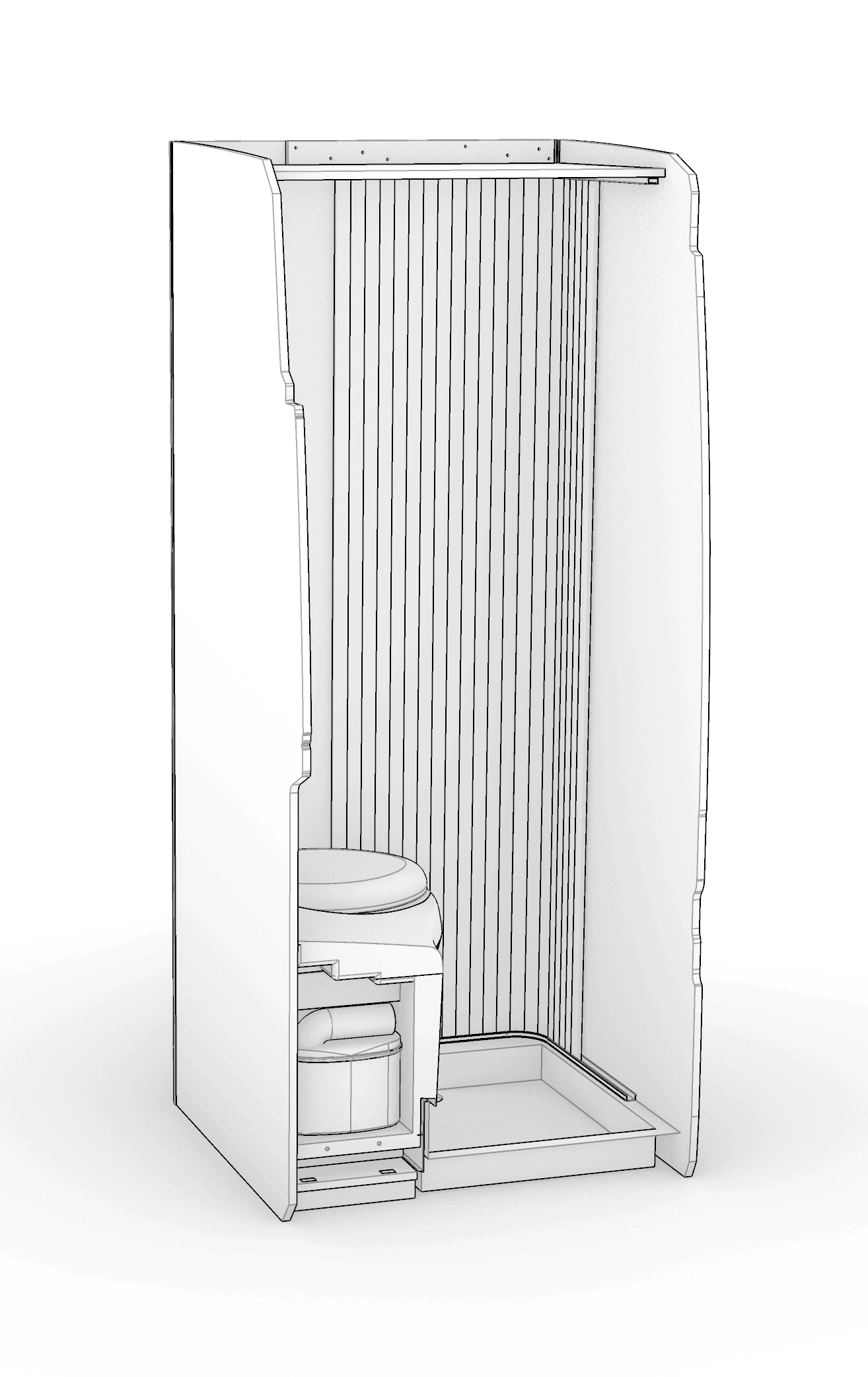

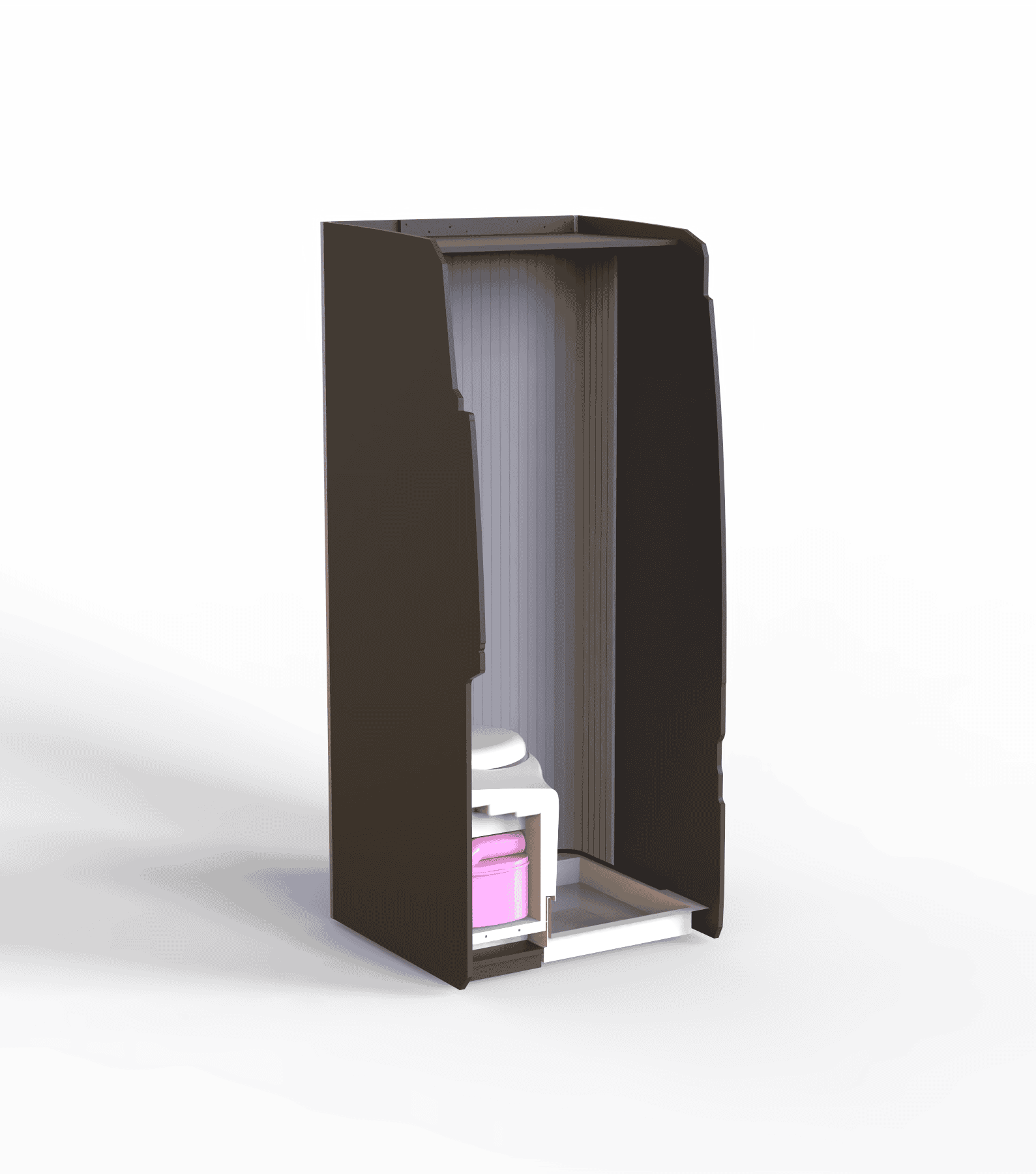

Works with Thetford 403 series toilet with WALL SEAL. HERE

This toilet takes water from your fresh tank.

• Right handed model: If sat on the toilet the waste tank slides out to the Right
• Left handed model: If sat on the toilet the waste tank slides out to the Left

Designed to allow 65mm hot air duct to travel under front edge of shower tray G

All panels will need silicone sealant at junctions (not supplied)

Back interior curved wall panel is gloss white hygiene board which will need to be bonded to a curved 5.5mm ply panel (supplied)

Can only be cut with the toilet cassette on the right hand side of the main door opening with the design 11 layout (this is due to the position of the C pillar in the van)

2 options are available for cassette removable:

1. Removable from the outside the van which requires cutting a door into the van body (no interior door will be cut)
2. Removable from inside the van a door will be cut into the shower side this requires 550mm of clear space in front of the shower to remove the cassette

Alternatively our universal shower tray C can be used with a portable toilet or composting toilet for a simpler installation. Please note the door opening is 393mm so please check your portable toilet or composting toilet will fit through the opening.

Includes:

• Laminated poplar ply with white gloss interior, exterior colour can be different finishes from the Stylam range
• Back wall panel 5.5mm ply and 2.5mm gloss white PVC
• Aluminium corner extrusions
• Roof panel can be left solid or with rectangular cut out

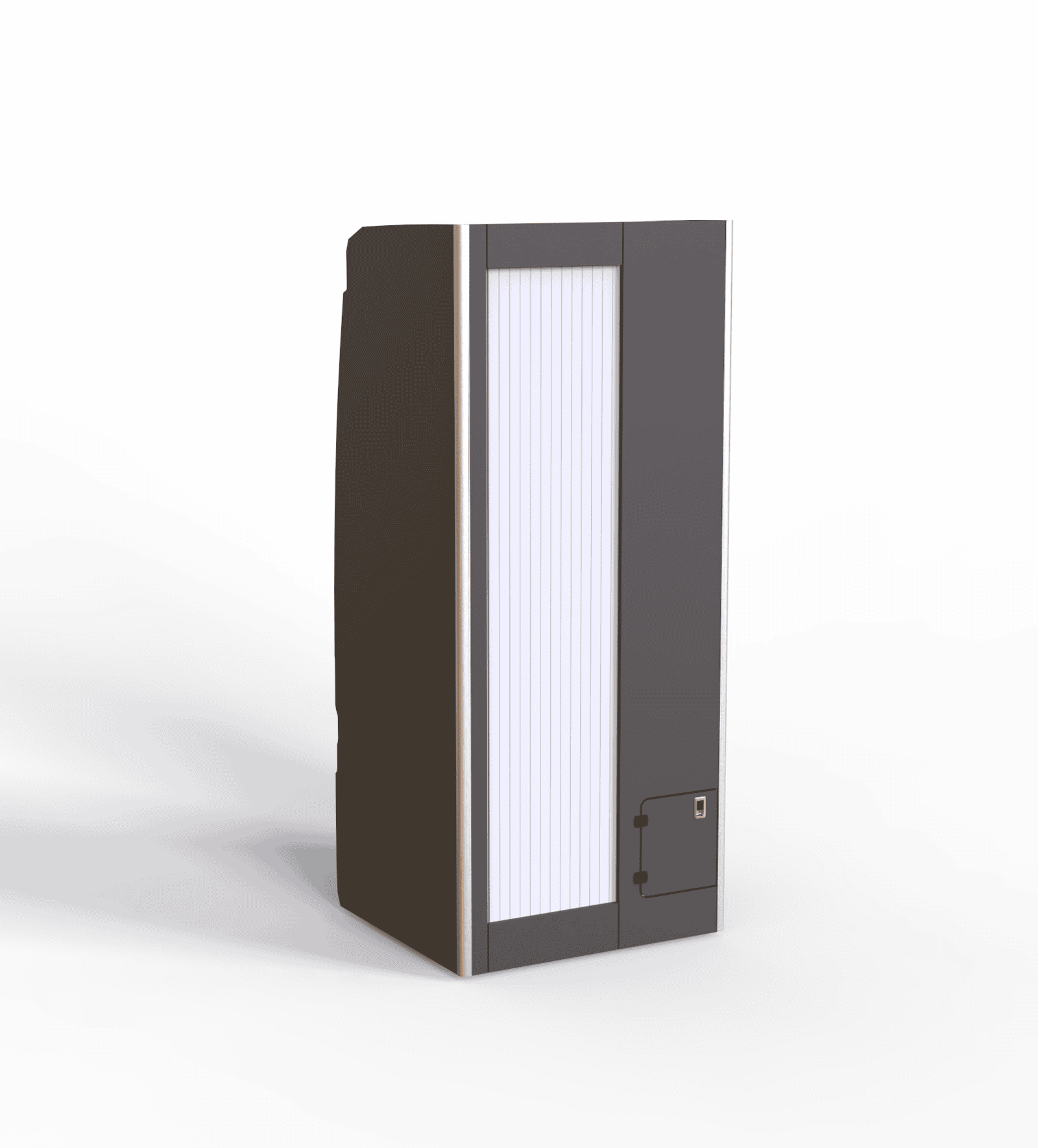

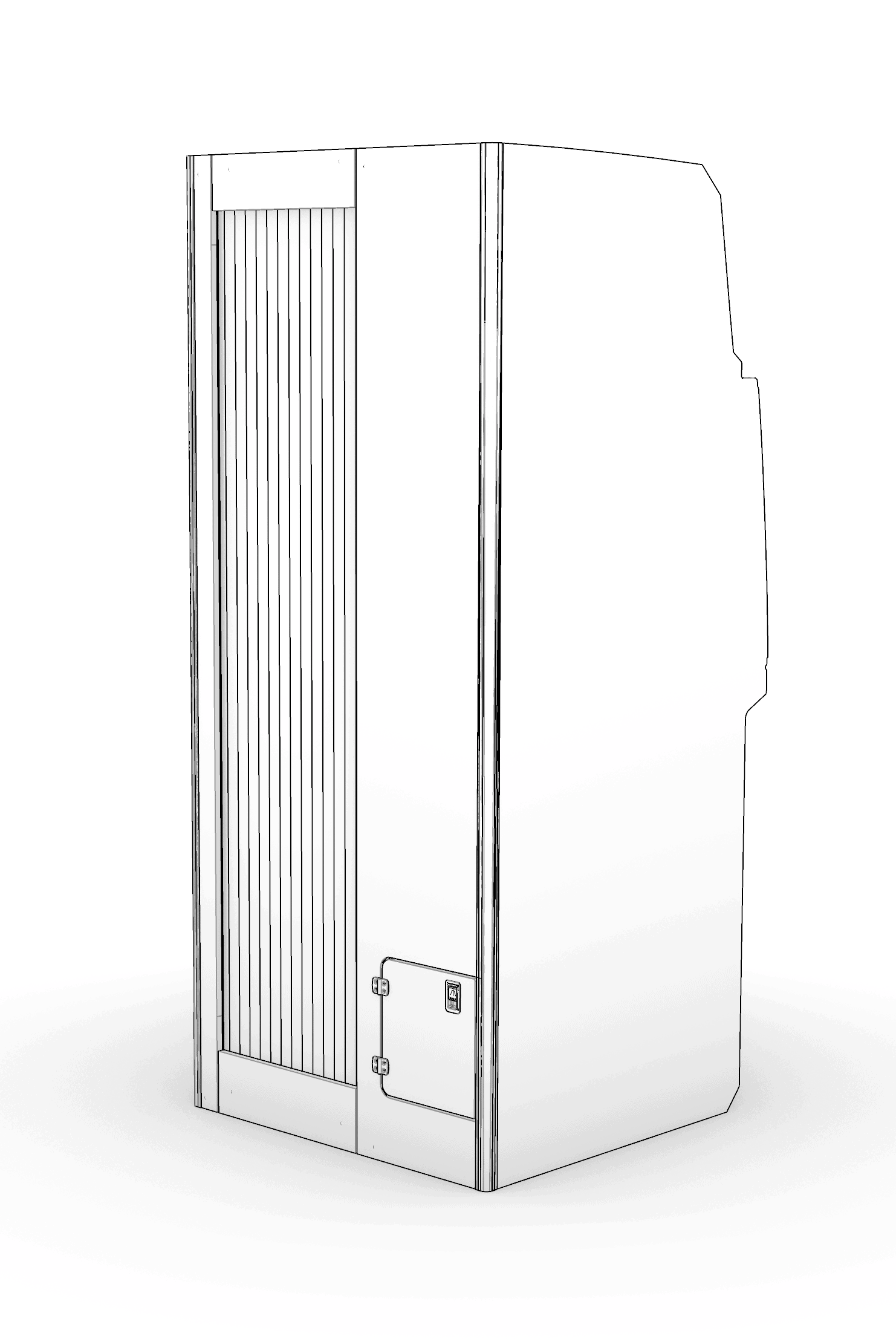

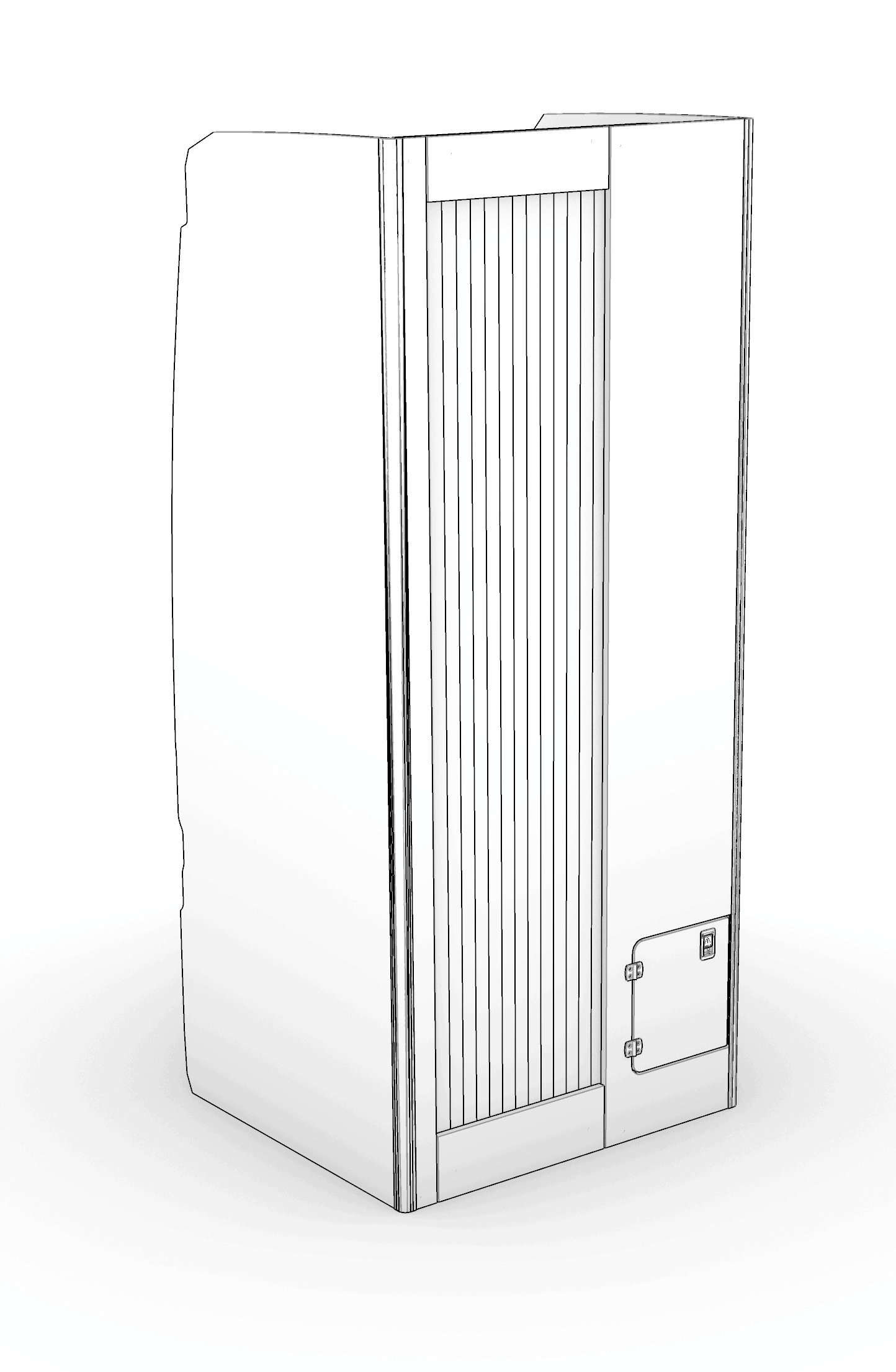

• Solid door or optional Tambour door

Does not include THETFORD C403 TOILET OR SHOWER TRAY. These can be purchased separately

PLEASE NOTE – THETFORD C400 SINK is too wide to fit above this toilet.

We Recommend watching this excellent video if installing a tambour door here

Due to the panel sizes we recommend collection or it can be sent on a pallet
