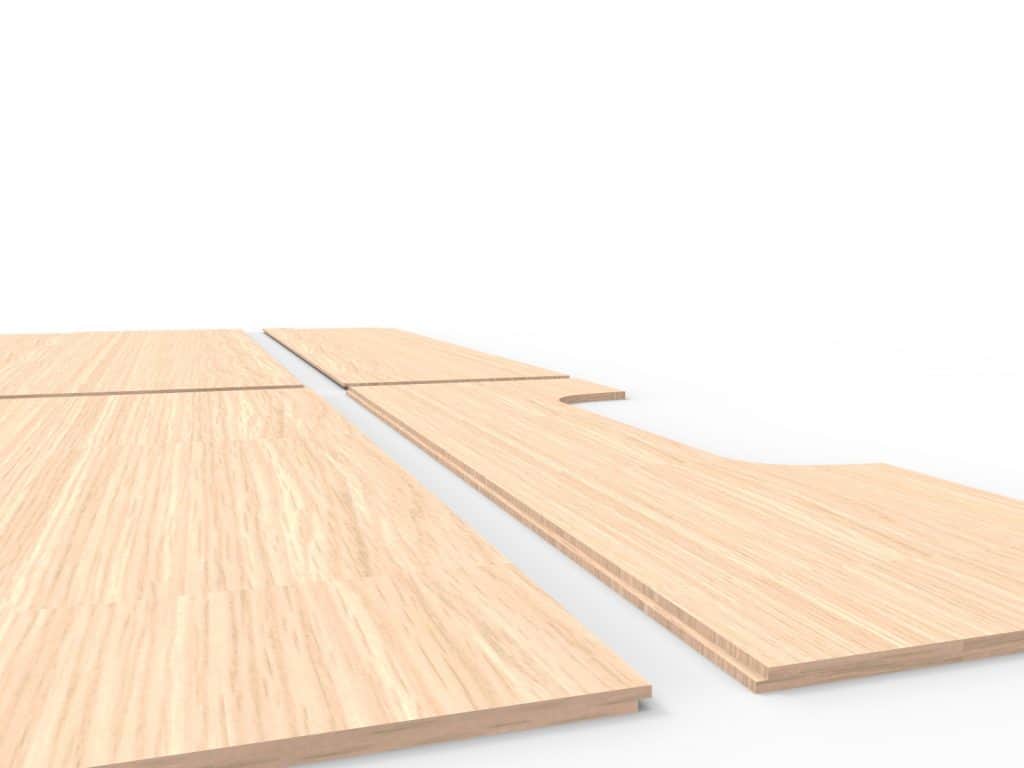

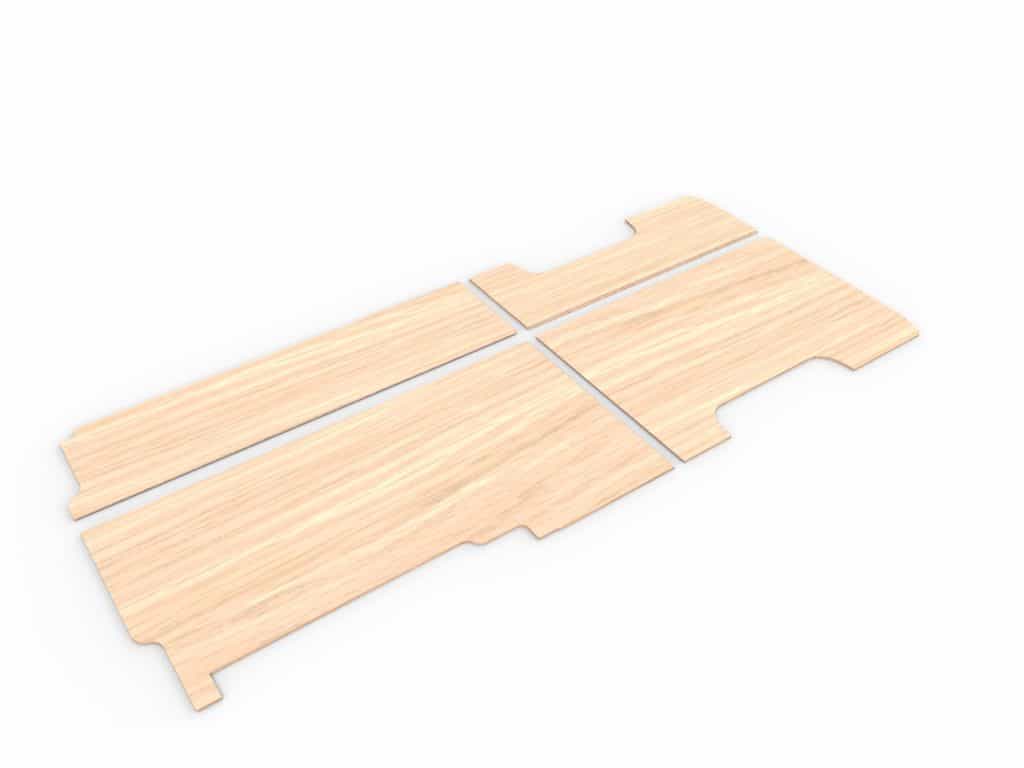

WAREHOUSE COLLECTION or delivery is possible if 'pallet cut' option is selected. 4 piece extended floor which goes all the way up to the passenger and driver seat base box. The floor is made from an Ultralight sandwich panel with an insulating XPS (extruded polystyrene) core combined with plywood that is made of 100% European poplar ply with lap joints. Due to size this a collection only product. Please note this floor is longer than the factory floor supplied with your van and is designed to be used with our crafter / sprinter kit. Both 4x4 and standard van. Ensure the floor is well bonded ( we have used and can recommend SOUDAFLEX 40FC, other polyurethane adhesives are available ) and the joints are set level before covering with vinyl. Leave a weight over lap joints while the adhesive is setting. Fill and sand joints flat if required.Use commercial grade vinyl, eg. Altro flooring. Avoid domestic foam backed Lino as this will not last.

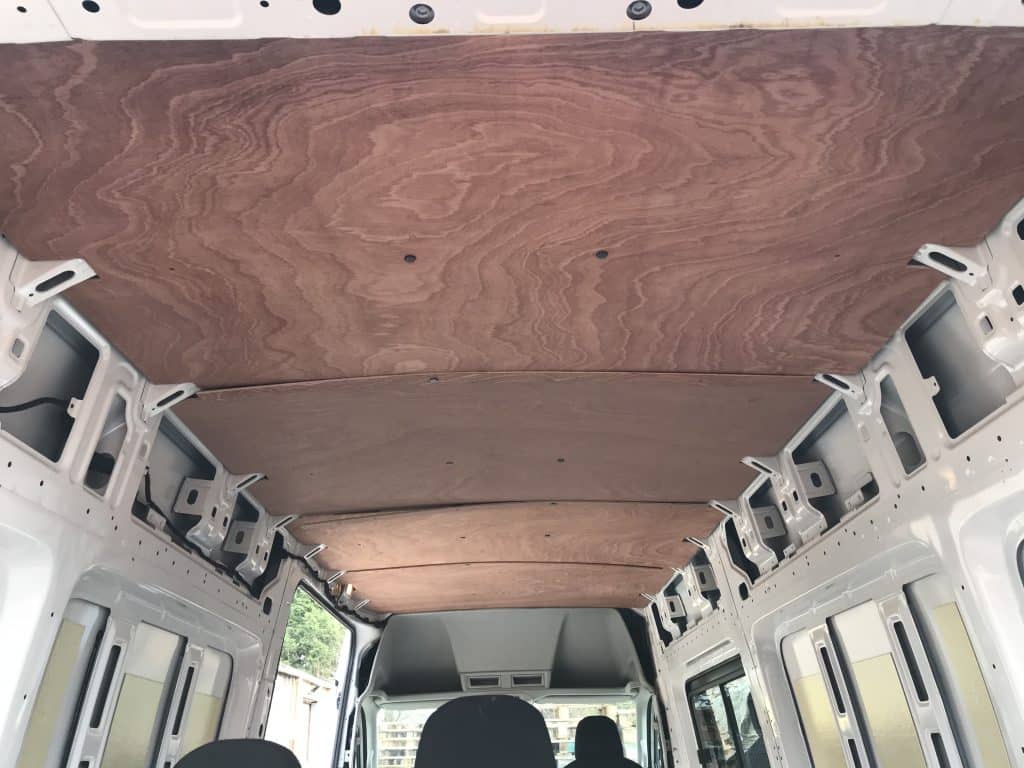

2017 Crafter onwards ONLY ( Newest shape ) VW Crafter roof panelslong wheel base van designed to work with existing holes in your van for easy installation. Suitable for wrapping in headlining fabric. PRE-DRILLED HOLE FOR PANEL CLIPS ( NOT SUPPLIED ) These roof panels are not cut to fit around the factory-fitted pillar covers

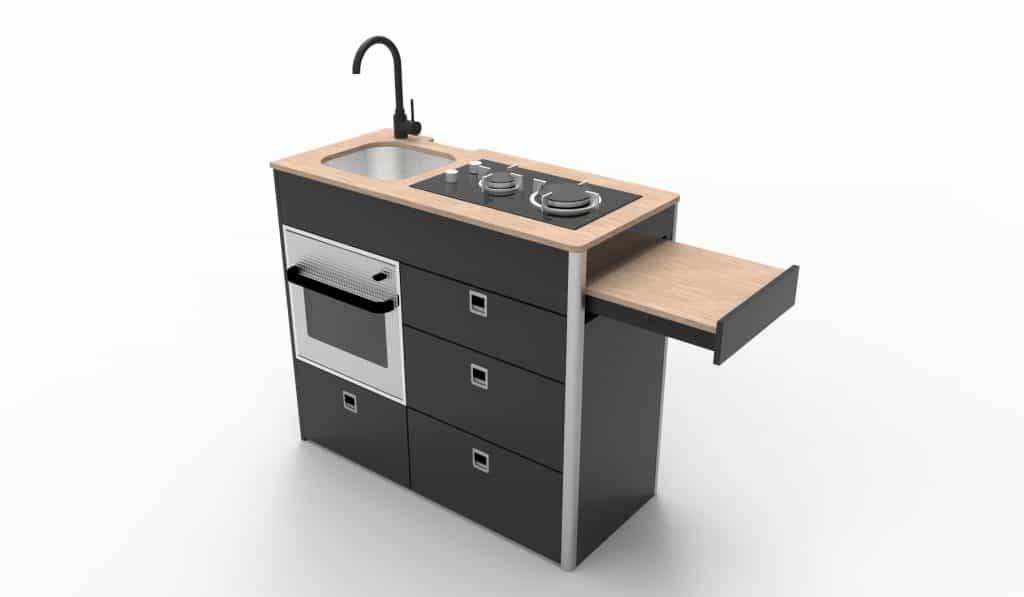

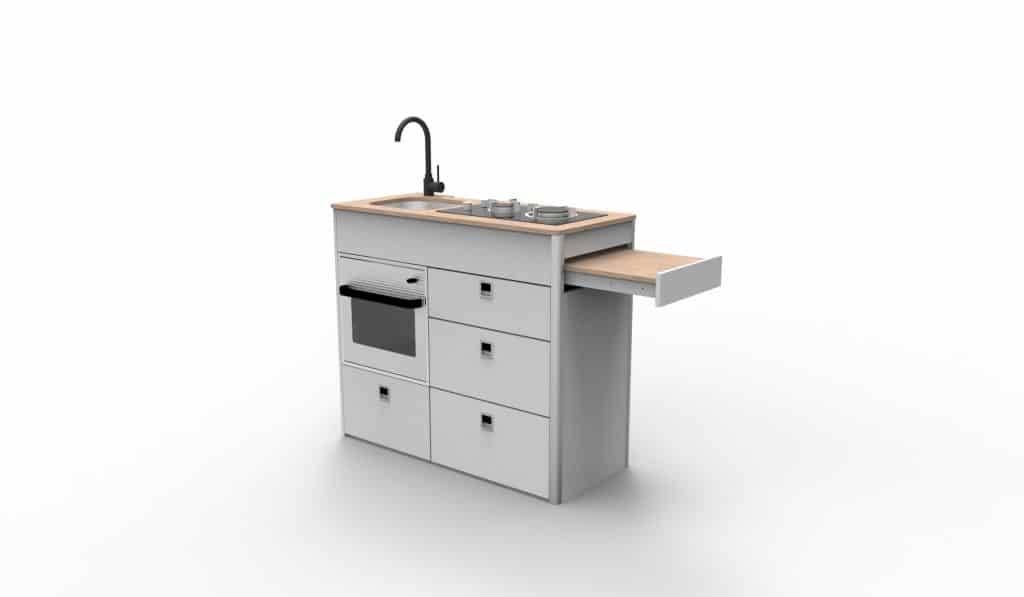

  EVO 5.1 Side door kitchen pod for large vans. This pod sits on the side loading door and is designed to fit with any large van. Grill/Oven not included. CAN CU5010 In the Sprinter LWB Design 4 you can optionally choose the longer EVO 5 pod with more storage. 4 soft close draws, 1 push to open slide out worktop extension Designed to work with the CAN CU5010 Grill/Oven shallow depth unit ( NOT included ) Can accommodate Smev 9222 LEFT HAND sink hob or others NOT included ( Smev 9722 WILL NOT FIT as the sink is too deep to sit above the oven, and additionally the hob ignition points are to deep to work with the pull out extra worktop ) Can be cut to accommodate under mount sink as show in our images and THETFORD 922 twin burner Evomatic XL catches The majority of the panels are pre edge banded Flat pack design for you to assemble Can be cut for Left hand or Right hand drive vehicles Back of unit is part panelled to allow you to position the unit in a variety of positions across the side loading door Work top is cut solid by default allowing you to fit a variety of appliances Unit has a flat base and does not sit into the side door step recess SaveSave SaveSave SaveSave SaveSave SaveSave SaveSave SaveSave

  EVO 5.2 Side door kitchen pod for large vans. This pod sits on the side loading door and is designed to fit with any large van.  In the Sprinter LWB Design 4 you can optionally choose the longer EVO 5 pod with more storage. 6 soft close draws, 1 push to open slide out worktop extension Can accommodate Smev 9222 sink hob or others NOT included ( Smev 9722 WILL NOT FIT  the hob ignition points are to deep to work with the pull out extra worktop ) Can be cut to accommodate under mount sink as show in our images and THETFORD 922 twin burner Evomatic XL catches The majority of the panels are pre edge banded Flat pack design for you to assemble Can be cut for Left hand or Right hand drive vehicles Back of unit is part panelled to allow you to position the unit in a variety of positions across the side loading door Work top is cut solid by default allowing you to fit a variety of appliances Unit has a flat base and does not sit into the side door step recess SaveSave SaveSave SaveSave SaveSave SaveSave SaveSave SaveSave

  Tall cupboard designed to fit either a Dometic 10.4 70 or Thetford T2090 Fridge.  Due to it's size, collection is recommended or pallet delivery Designed to fit with a 20mm total thickness floor. ( 18mm ply plus 2mm vinyl flooring ) DOES NOT INCLUDE FRIDGE

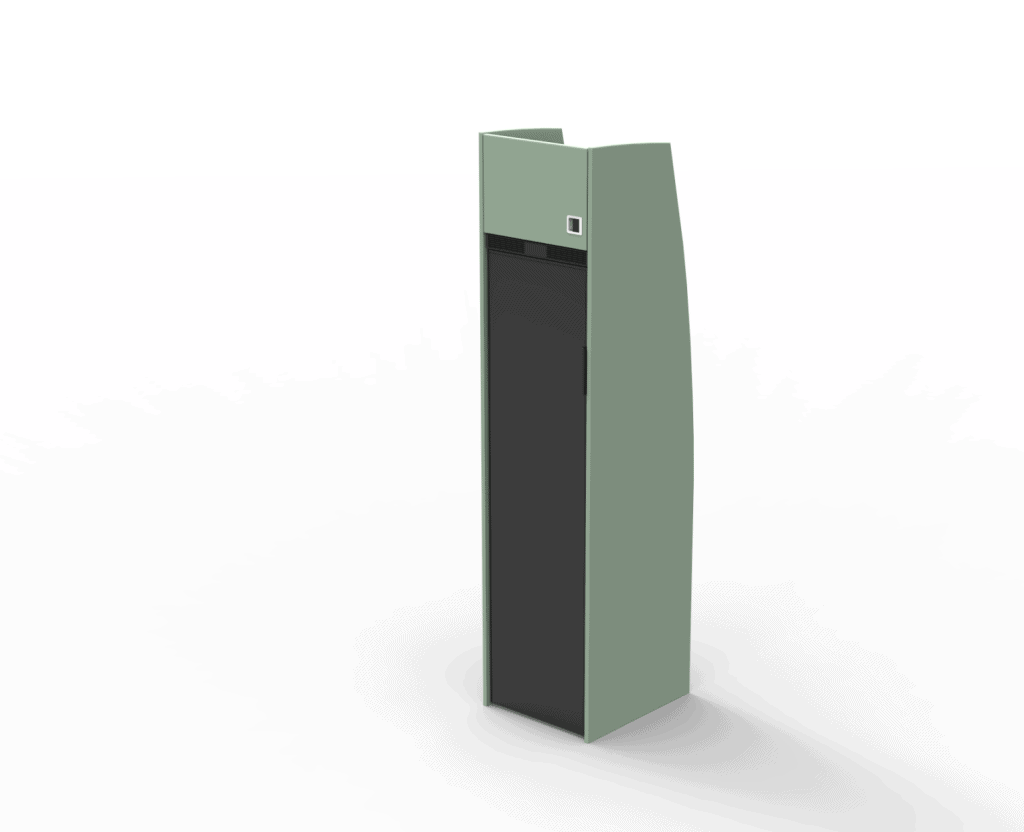

Works with Thetford T2138. Due to it's size, collection is recommended or pallet delivery. Designed to fit with a 20mm total thickness floor (18mm ply plus 2mm vinyl flooring). DOES NOT INCLUDE FRIDGE T2138: Due to the increased demand for bigger refrigerators in the campervan market, the new T2138 has been developed in the Thetford 12V line. This model is an extended version of the T2090 which has a wider climate class (10 – 43⁰ C) and a gross volume of 138 liters.

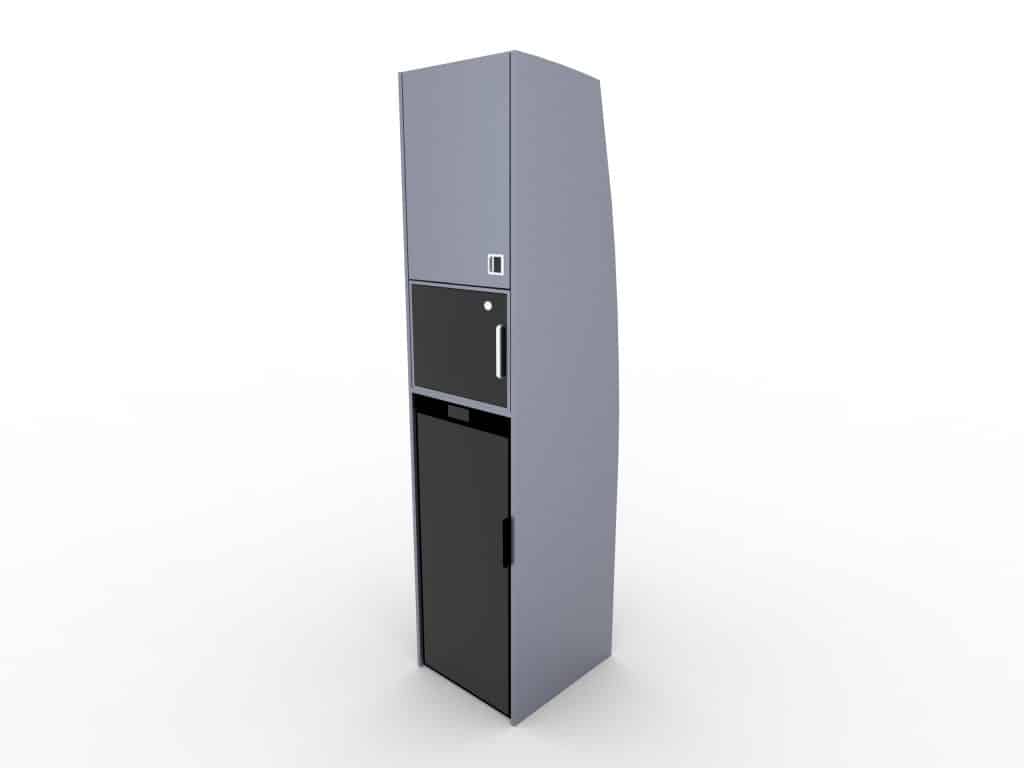

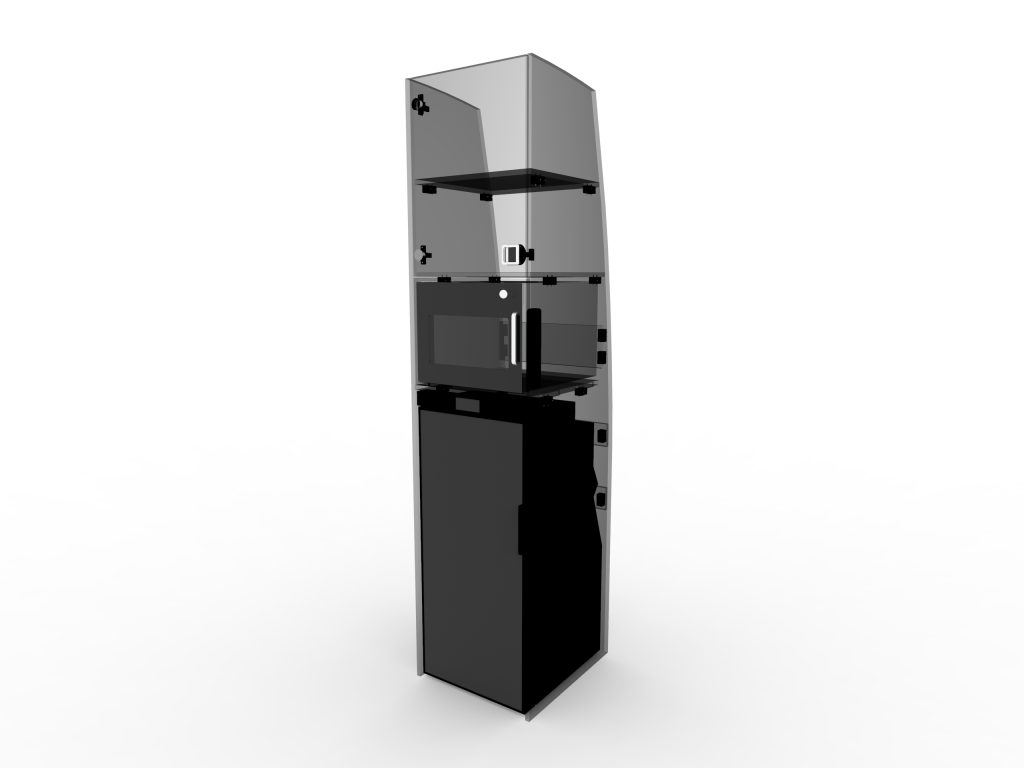

This unit is designed to be compatible with the EVO V9 Compact Kitchen Unit, available here Can be scribed to fit any Sprinter or Crafter from 2006 to present, or can be left with a square back to scribe into other vans yourself. Tall cupboard designed to fit the Thetford 90L Fridge and Thetford 420 Oven Although the Alpicool CR90 90L will fit it will need to be installed 40mm proud to hinge correctly. Designed to fit with a 20mm total thickness floor. ( 18mm ply plus 2mm vinyl flooring ) DOES NOT INCLUDE FRIDGE OR OVEN

CAN FO5010 Campervan Oven and Grill Must be sent on a pallet to avoid damage, we find sending via courier the glass gets broken in transit. As used in our EVO 5 kitchen pod  and Evo V8 + Oven pod This gas oven and grill features electronic ignition and thermostatic control. It has been designed by CAN in Italy with a shallow depth - ideal for campervan installations. General dimensions are: W432 mm x H400 mm x D371 mm - although please refer to the diagram images. Capacity: 23 Litres Weight: 22 kg 3.7KW   Please see link for instruction. No printed instruction are included in the box. CLICK HERE  https://airxcel.eu/wp-content/uploads/2022/08/MI_FO50XX_EN-1.pdf

Suitable for use in our Sprinter and Crafter kitchen pods . Designed for use in camper vans with no loose rings and bolted into the work top for security. Electric ignition High-quality materials and components Contemporary, home-like design Optimal use of space Superior cooking performance Features 2 burner Black glass contemporary design Matt nickel knobs Good sized 40mm matt nickel knobs; about the same size as you’d find on domestic appliances Suitable for 120-200mm pans, so there’s quite a lot of scope when it comes to choosing pots Fixes with invisible foam seal for a fully integrated appearance Product Specification Nickel knobs: 40mm Gas burners: 2 x semi rapid 1.5kW Ignition: 12v Total heat input: 3.0kW Weight: 5.0kg Worktop cut-out dimensions: 285mm (W) x 485mm (D) Overall dimensions: 95 (H) x 305 (W) x 500 mm (D)

Latest control interface allows you to connect your phone to control your Truma D4E heater , second gen round flue. Electric version of Combi D4E with integrated electrical heating elements for diesel, electrical or mixed mode This is the perfect solution for sprinter / crafter sized vans Mwb or Lwb van , ideally can be install under the front seating area or under the bed area. The Truma Combi D4E complete kit includes: Truma Combi D4E diesel and electric heater unit Truma I-net X digital control panel John Guest water kit 6 metres control panel cable Truma Combi diesel exhaust kit Japan Solderless Terminal electrical ends Truma operation instructions Includes every you need for a new installation except : Ducting , vent outlets and an appropriate connection into you diesel tank ( fuel line is included )

Thetford T1090E 12v Compressor fridge (Replaces T2090) Works with our EVO V8 kitchen. Please note the decor panel option is not supplied as standard and is an option. Option decor panel 0.8mm HPL laminate fridge decor panel cut for thetford T2090 satin black. ( Will need backing in cardboard to make thicker. Cardboard backing not supplied. ) How to install - https://www.thetford.com/app/uploads/2025/05/IM_T1000E_EN_693096-0425-V03.pdf?utm_source=chatgpt.com No external vent required Unique shape allows for the curve on the wall of your van Ultra efficient power use Day & night mode makes it super efficient Low noise operation Freezer to minus 9 degrees Main dimensions (h x w x d)975 x 418 x 486 mm Partnumber – 692545 Recommended built-in depth – 506 mm Total volume incl. freezer – 84L Delivery is not included in the price. Does not include screws. ( Use 4 x 4x25mm Screws to install. ) Our current stock of fridges are all unboxed. If you are collecting the fridge will not be boxed. If the fridge is to be sent on a pallet, we will box it in a blank box.  https://www.youtube.com/watch?v=dhljzE1pRI0

1 DOOR Over cab locker designed to fit perfectly in the heading lining contours of your CRAFTER / MAN TGE 2017 ONWARDS CRAFTER / MAN TGE 2017 ONWARDS The locker will need fixing at serval points into the van structure around the perimeter of the locker and the centre of the locker via 2 strap metal strap bonded to the skin of the van. Only works with the full height headlining cab as per the video. Please note if you have the 1/2 height head lining, this locker will not fit. 1 DOOR ALUMINIUM CORNER PROFILE LED STRIP LIGHT IS AN OPTIONAL EXTRA UNIT COMES IN ONE COLOUR AS STANDARD Only a horizontal grain direction is possible due to sheet size (front panel).

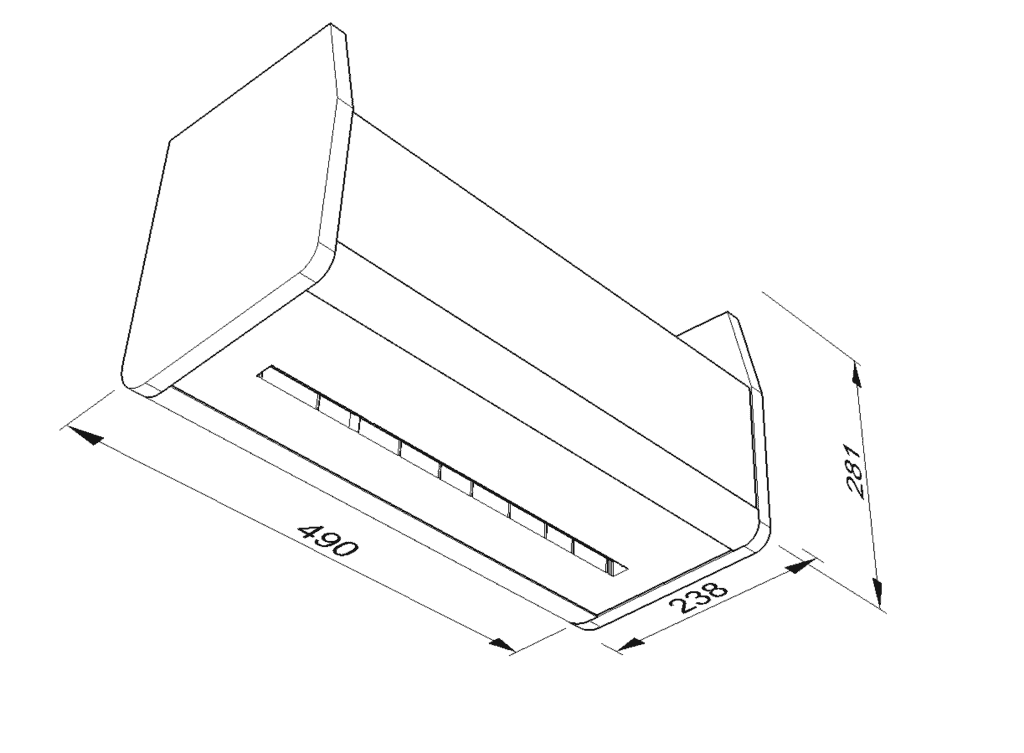

Designed to cover the sliding side door cable and provide a space for control panels with touch sensitive dimmable LED light. Cut with no holes for control panels, hole in image are for illustration only. DOES NOT WORK WITH DESIGN 3.1 Features: Touch sensitive dimmable LED strip Curved aluminium corner profile Designed to sit between our over cab locker and Locker Y Space for control panels and switches to be mounted on front face Hides main power cable running along the top of the door

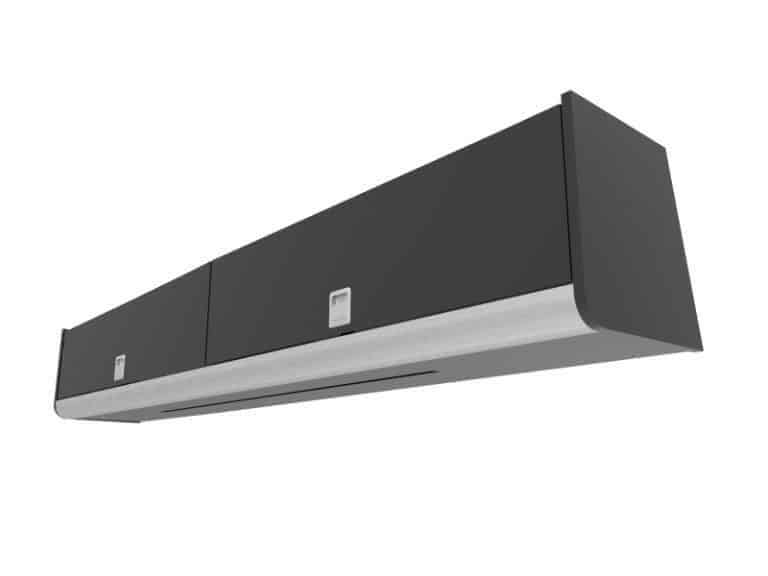

Locker Y over sink (D3) optional led

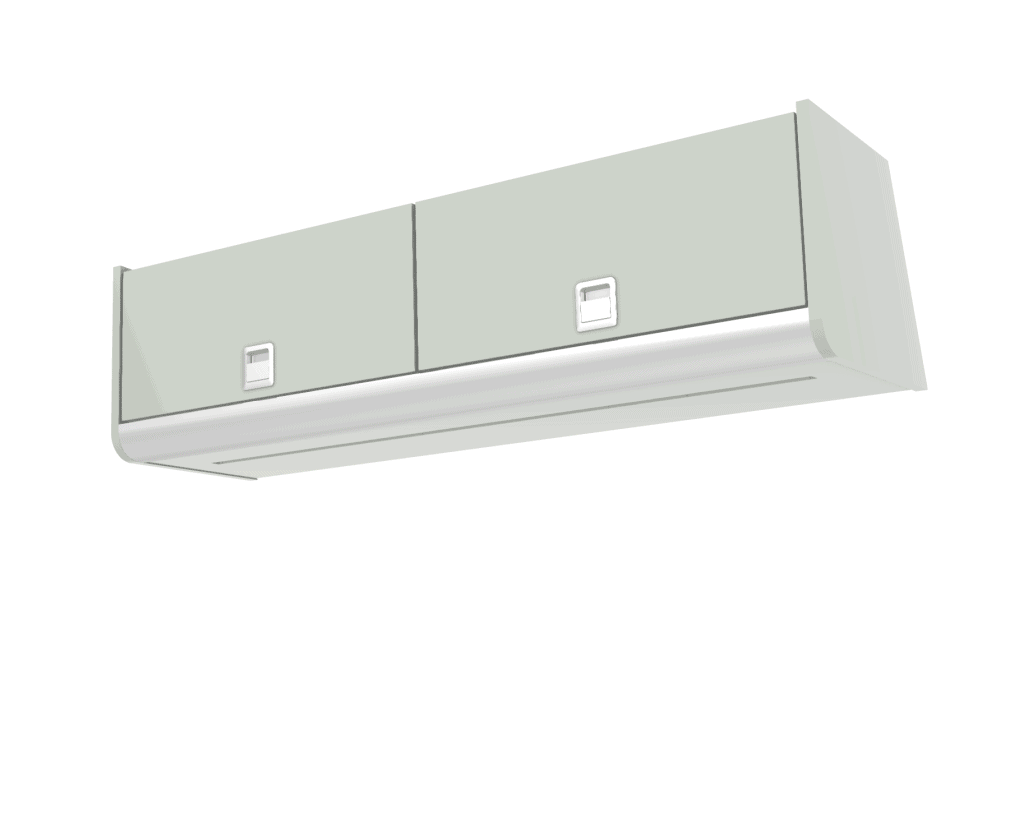

Locker  for the crafter Man TGE MWB van designed to sit over the dinning area. optional led Grain direction may change. Total width 1100mm

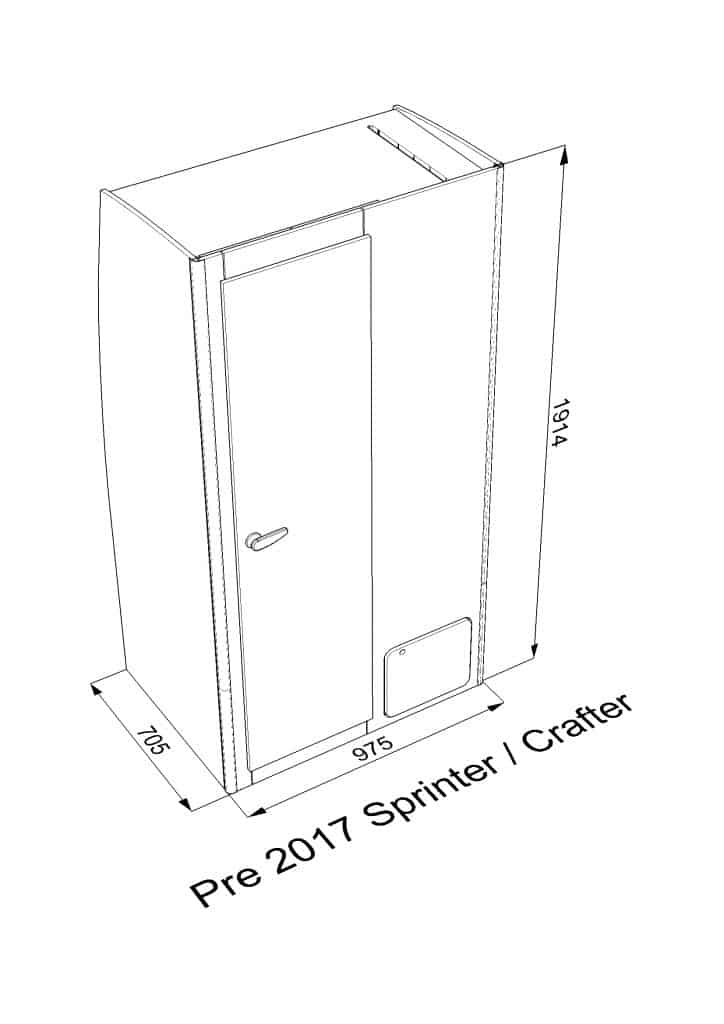

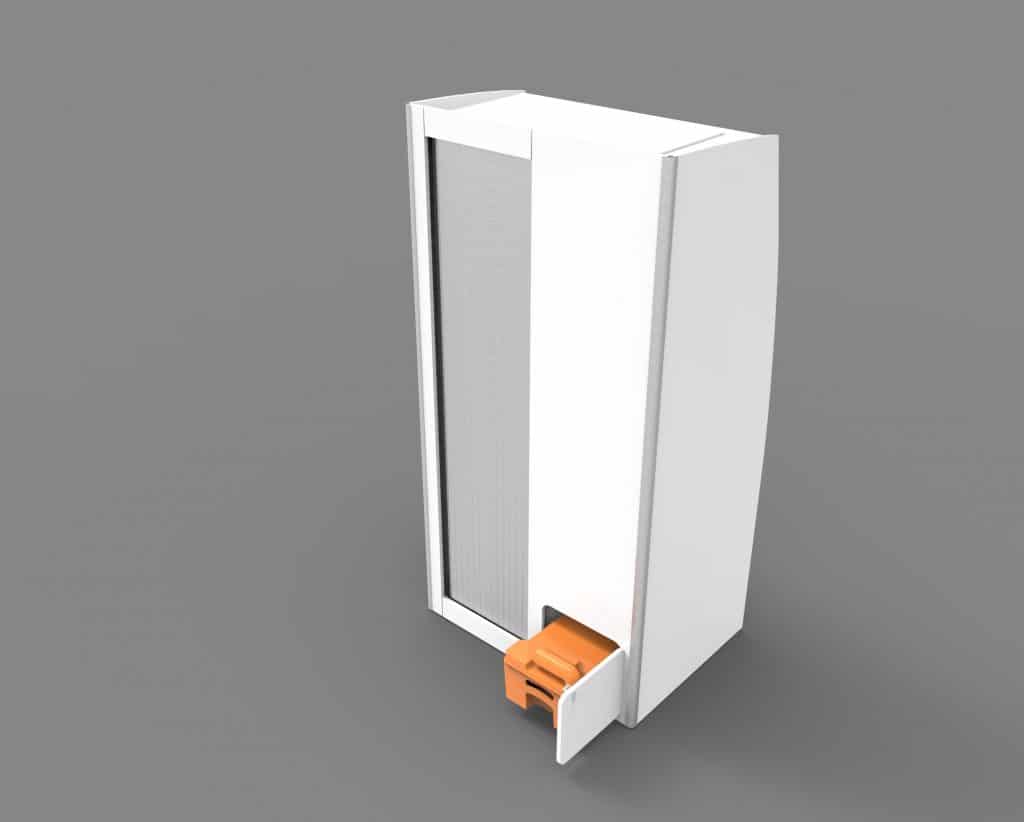

705 x 975 mm shower toilet cubicle, height varies depending on model chosen (check against your own vehicle before purchasing). IMPORTANT : Cassette removal hole ONLY works with OUR SHOWER TRAYS DEPTH (75mm) - If purchasing third party tray to use with our shower A CONTACT US BEFORE PURCHASING otherwise cassette hole will not line up. Can be cut for both Sprinter / Crafter PRE -2017, New Crafter 2017 onwards or left squared at the back for scribing into other vehicles. Roof panel can be cut to allow roof light & motion sensitive light. ( PIR ) Interior walls are water proof HPL available in gloss white as standard. WORKS WITH THETFORD, 223 CS TOILET   use this tray:  All panels will need silicone sealant at junctions (not supplied). Back interior curved wall panel is gloss white hygiene board which will need to be bonded to a curved 6mm ply panel. Can be cut so the toilet cassette is on the Left hand side of the door opening, but if going for this option you will need to source the shower tray from Magnums motor homes as our tray are only for the right hand. Includes: Laminated poplar ply with white gloss interior, exterior colour can be different finishes from the Stylam or Gentas range Aluminium corner extrusions Latching door handle or optional tambour door Roof panel can be left solid or with rectangular cut out Internal toilet cassette removal door Optional extras Led light with PIR sensor which comes on automatically when you enter the cubicle Tambour door (this will need to cut to length as the height between the shower tray and roof panel can vary depending on the thickness of your floor. Use a fine tooth blade) We Recommend watching this excellent video if installing a tambour door here.   Due to the panel sizes we recommend collection or it can be sent on a pallet. Does not include THETFORD TOILET,  FLAP DOWN CONTESSA SINK UNIT OR SHOWER TRAY. These can be purchased separately.

Rotating table leg + twin worktops tops + mito table rail main table is 830 x 536mm small table rotates and can be set at different positions allows 4 people to comfortably eat table leg splits lower height: 313mm (approx) upper height: 701mm (approx)   Note, if using a plinth the table rail mounting point will be about the windowsill level. A plywood board would be need to mount this onto the back wall to mount the rail too.

Plinth 130mm high for standard fwd crafter as used in Design 3. Come with aluminium trim for curved from edge. Plinth top is cut in plain plywood allowing a vinyl floor to be bonded to the top. Includes aluminium trim to front edge.

Panels to cover the base of the vw crafter front double seat (+ 2017onwards)  if you decided to use these in the rear of your van.This is an alternative to using the frame we sell. Available in 3 heights. Features Curved aluminium corner profiles Pre edge banded panels

Garage Door Bed Step helps with access to the bed and divides the garage area. When the step is in the down positions the large opening gives you some access to the garage area. Designed to work with our kitchens and shower unit and fixed bed platforms. Please note a 700mm x 25mm notch will need to be made in the fixed bed platform as per the images. Please note the Garage Door Step sits 16mm behind the shower and kitchen unit. Please check if your under bed units will be compatible with this as some doors may not open fully and hit this step. Made in 2 sections to be easier to remove. Secured in place with Keku clips which allow this panel to be lifted vertically to be removed. Check dimensions before purchasing. https://youtu.be/GzaNR4guMJc?si=W3HJIwXpBTRaTJxi

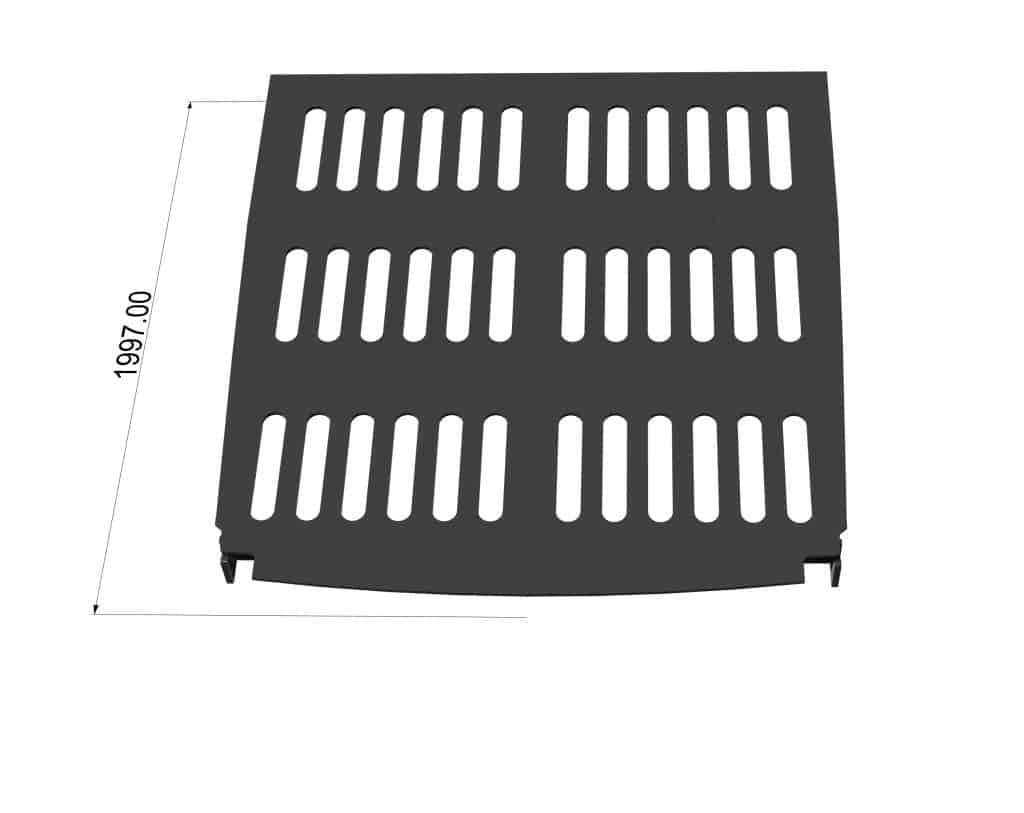

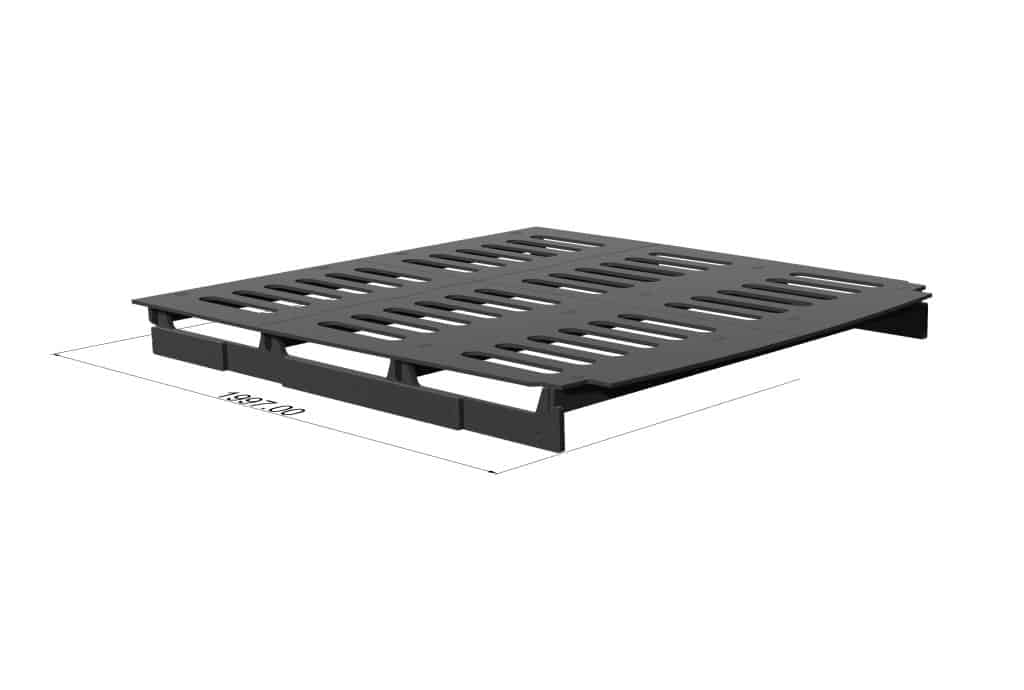

Lwb bed platform, fixes into existing holes using Rivnuts. Bed height is at the same level as the bottom of the rear window cut outs. This bed allows you to sleep length ways down the van. Black birch hex board 12 and 18mm. Rivnut gun required to install.

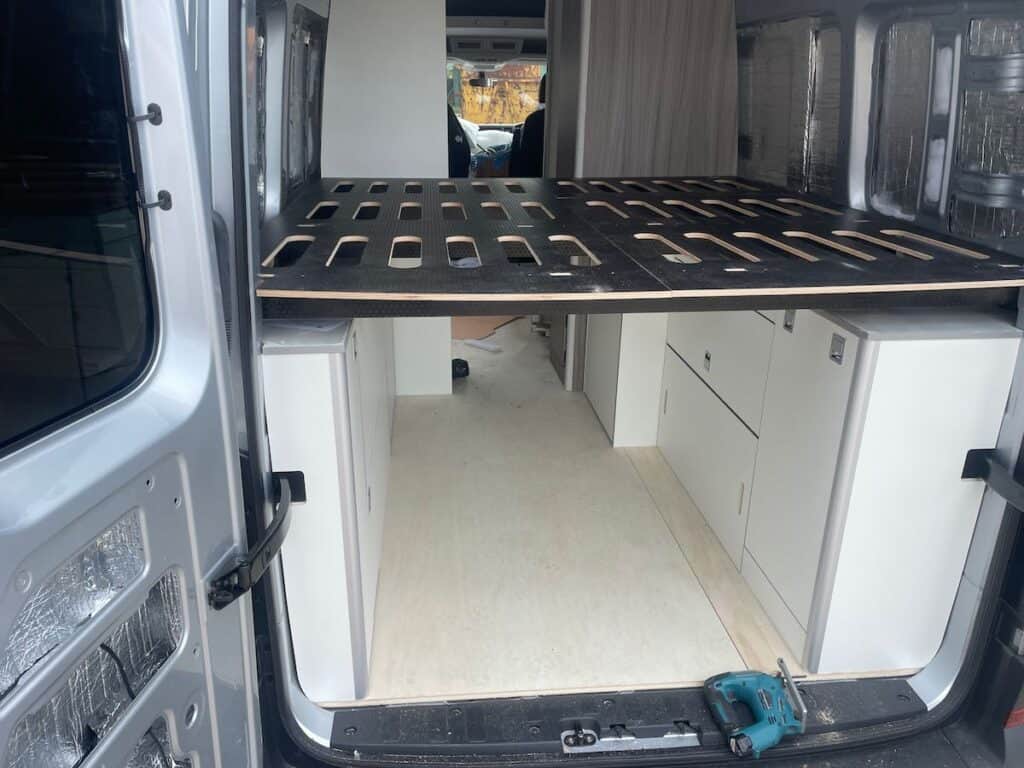

2 storage units designed to fit under our plywood bed platform for the VW Crafter  + 2017 LONG WHEEL BASE The slimmer unit is designed to house a water tank of around 80 L with space for a water pump and expansion vessel The deeper unit is designed to accommodate a 15kg gas bottle ( optional metal gas box ), 1 or 2 110ah leisure batteries , fuse board electrics  and a Whale expanse water heater. Water tank and battery spaces are accessible via a clip of panels 2 large lockers with shelf for storage. Recommended water tank size is 1100 x 200 x 400  ( Supplied by GFG Plastics )
