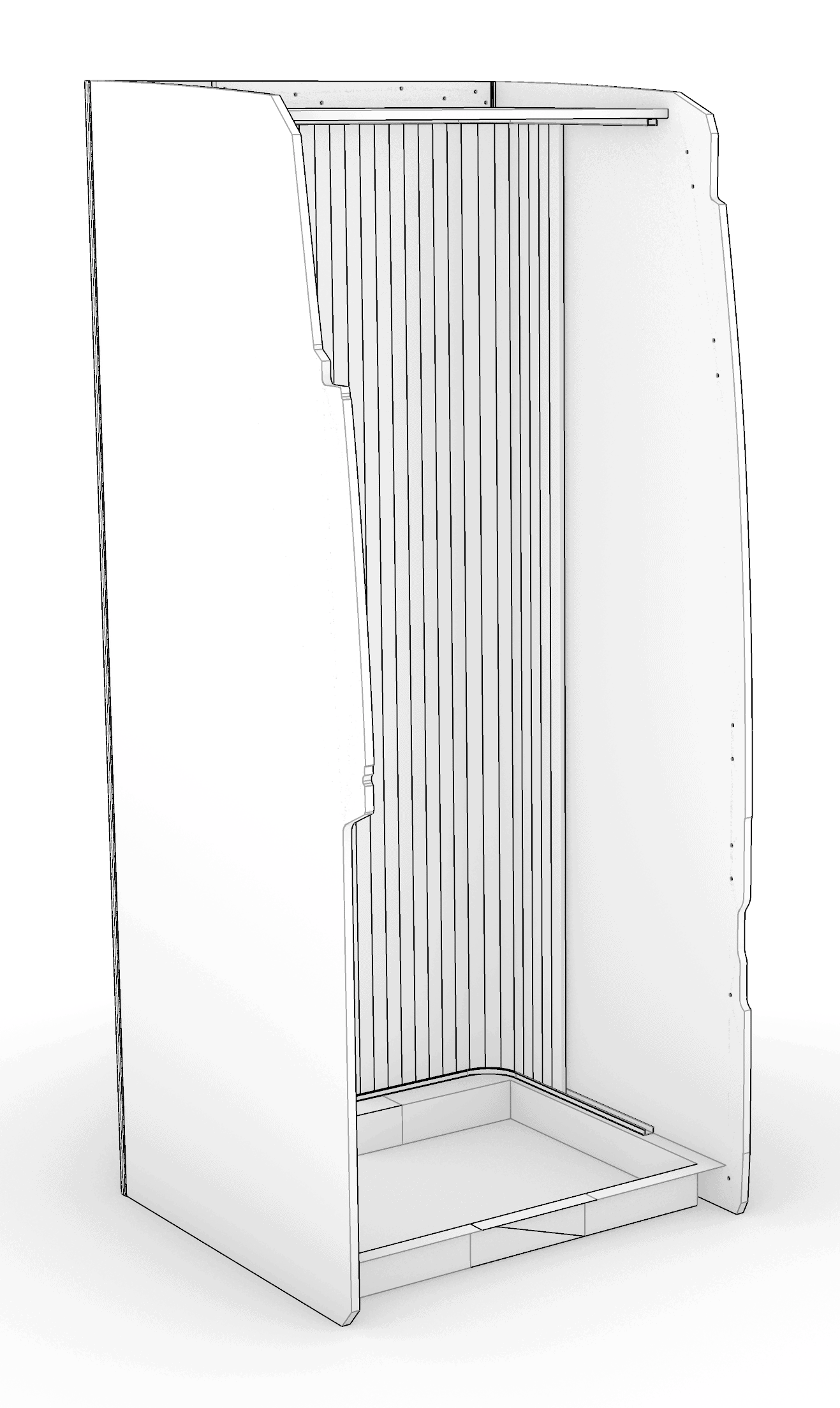

SHOWER C – EXTERNAL DIMENSIONS – 734mm deep x 810mm wide – height 1898mm

Shower is designed for a specific location in our Design 11 layout based on using our 18mm Ultra light sandwich floor (check your floor to ceiling height before purchasing).

Roof panel can be cut to allow roof light & motion sensitive light.

Interior walls are water proof HPL available in gloss white as standard.

The Shower Tray to work with a Thetford 403 series toilet is currently to be finalised.

All panels will need silicone sealant at junctions (not supplied)

Back interior curved wall panel is gloss white hygiene board which will need to be bonded to a curved 5.5mm ply panel (supplied)

Our universal shower tray C can be used with a portable toilet or composting toilet for a simpler installation. Please note the door opening is 393mm so please check your portable toilet or composting toilet will fit through the opening.

Includes:

• Laminated poplar ply with white gloss interior, exterior colour can be different finishes from the Stylam range
• Back wall panel 5.5mm ply and 2.5mm gloss white PVC
• Aluminium corner extrusions
• Roof panel can be left solid or with rectangular cut out

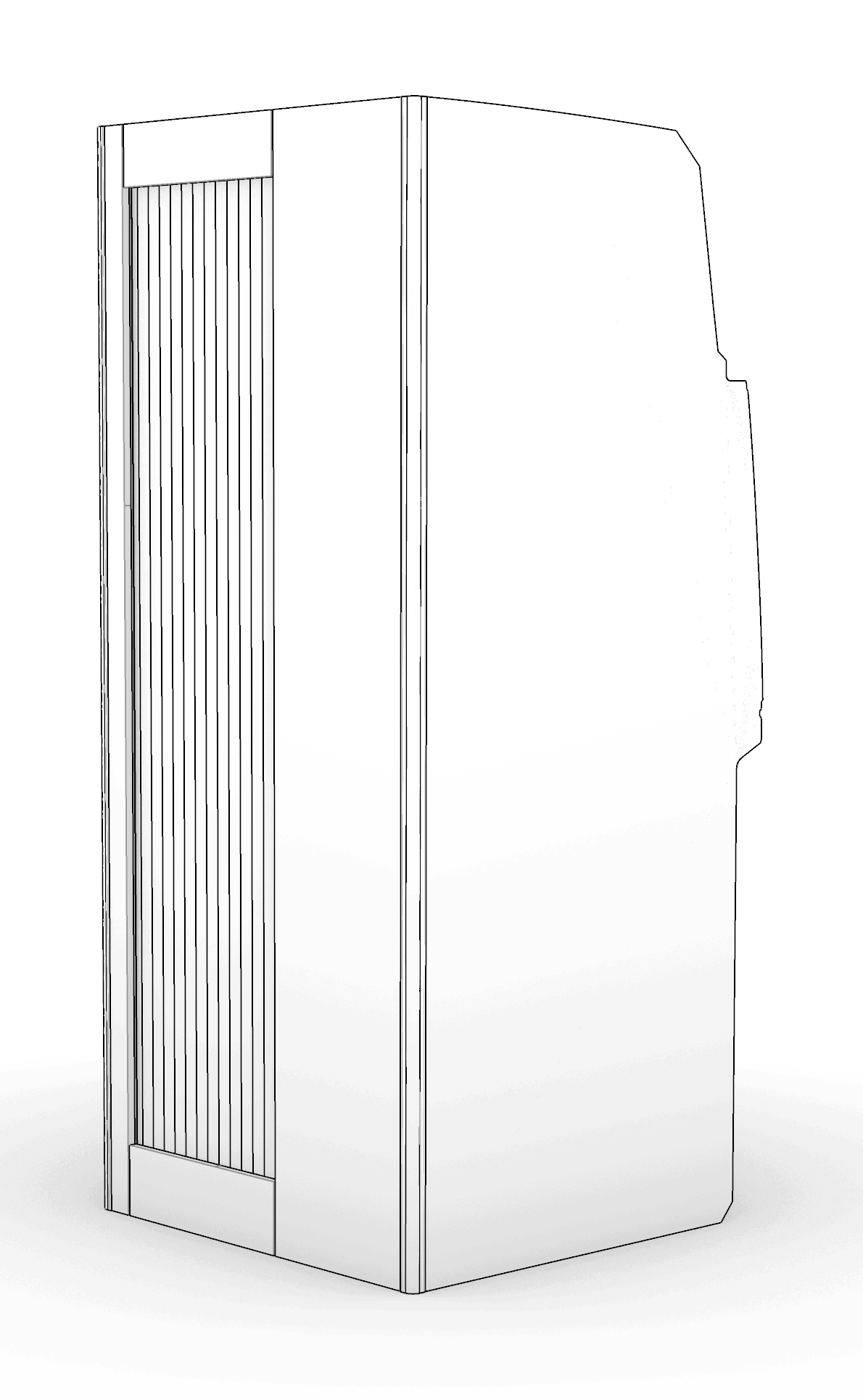

• Solid door or optional Tambour door

Does not include SHOWER TRAY. This can be purchased separately

PLEASE NOTE – THETFORD C400 SINK is too wide to fit above this toilet.

We Recommend watching this excellent video if installing a tambour door here

Due to the panel sizes we recommend collection or it can be sent on a pallet
