VW Crafter- 2017 MWB ONWARDS

Units are based on using an 18mm ultralight floor  + 2mm vinyl ( 20mm thickness in total ) This important as the check straps which hold the doors open are cut for this thickness floor, if you have a different thickness you will need to provide a dimension.

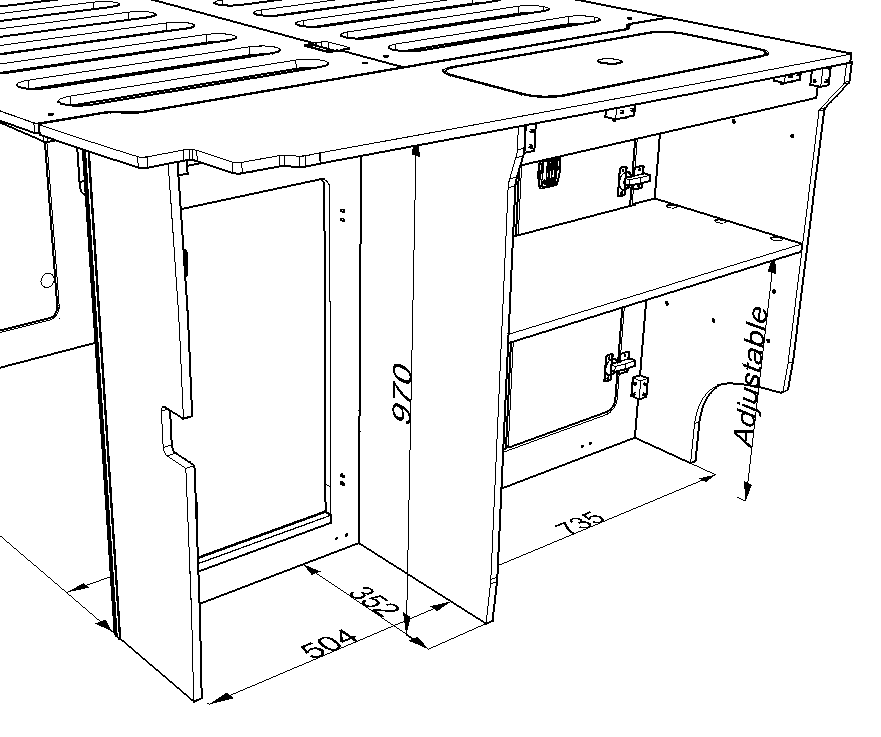

• Consists of 2 side supporting cupboards and a central removable section.
• Side cupboards with gas storage space constructed in light weight ply
• Central section is made from 15mm Birch with a Black hex resin finish
• Central section can be folded up to allow bicycles or large objects to use the space or completely removed if necessary
• Option to select which side gas storage is on . Driver or passenger side.
• Bed max width 1370mm Measured from middle of back doors forward.

Unit can be squared for other vans, please contact us about this before ordering.

Note- If using TRIM RINGS  the top and uprights will need cutting to size.
