EVO 1300 (A) SWB VAN (RIB seat)

£ 1,250.00 inc vat

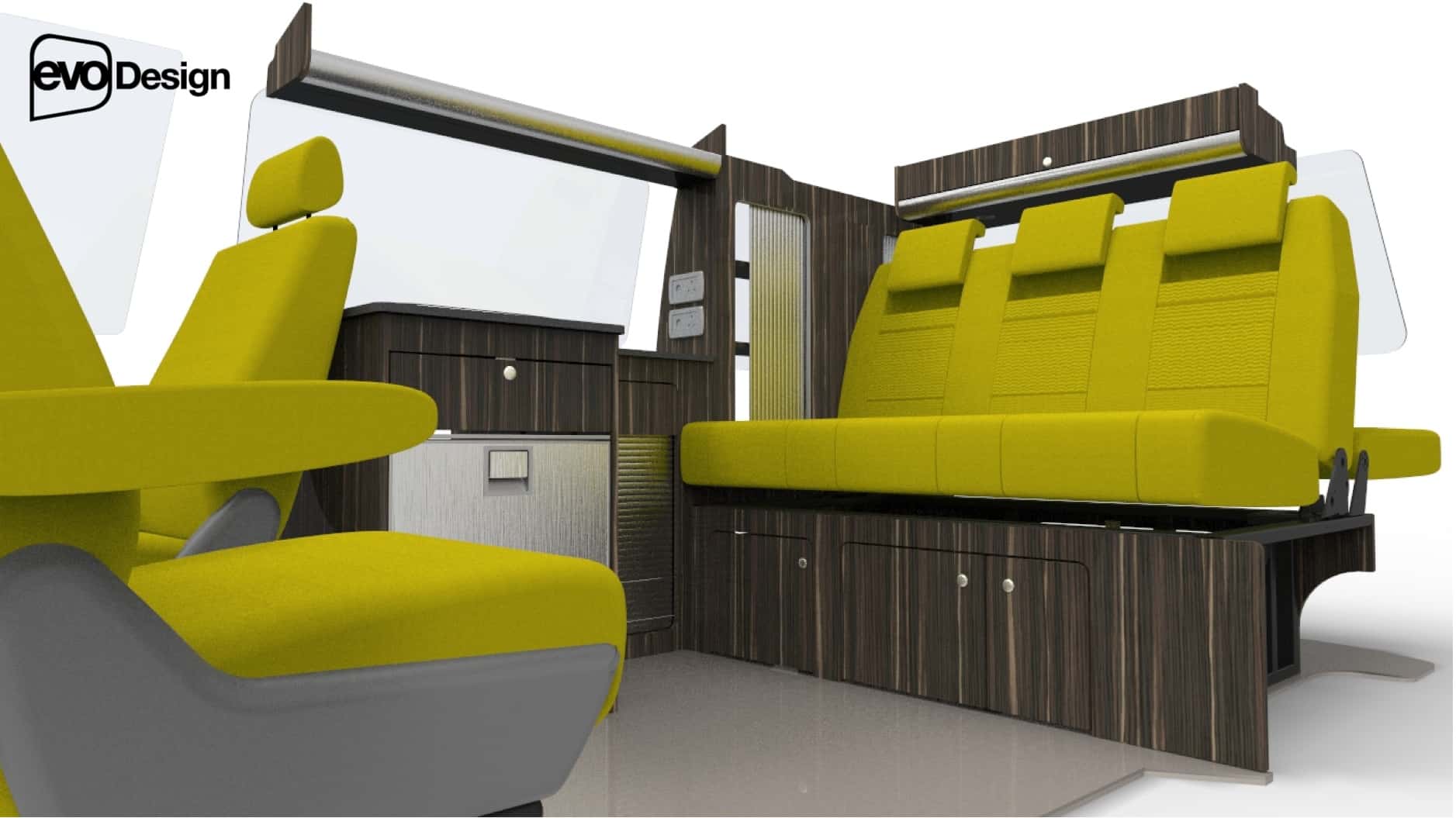

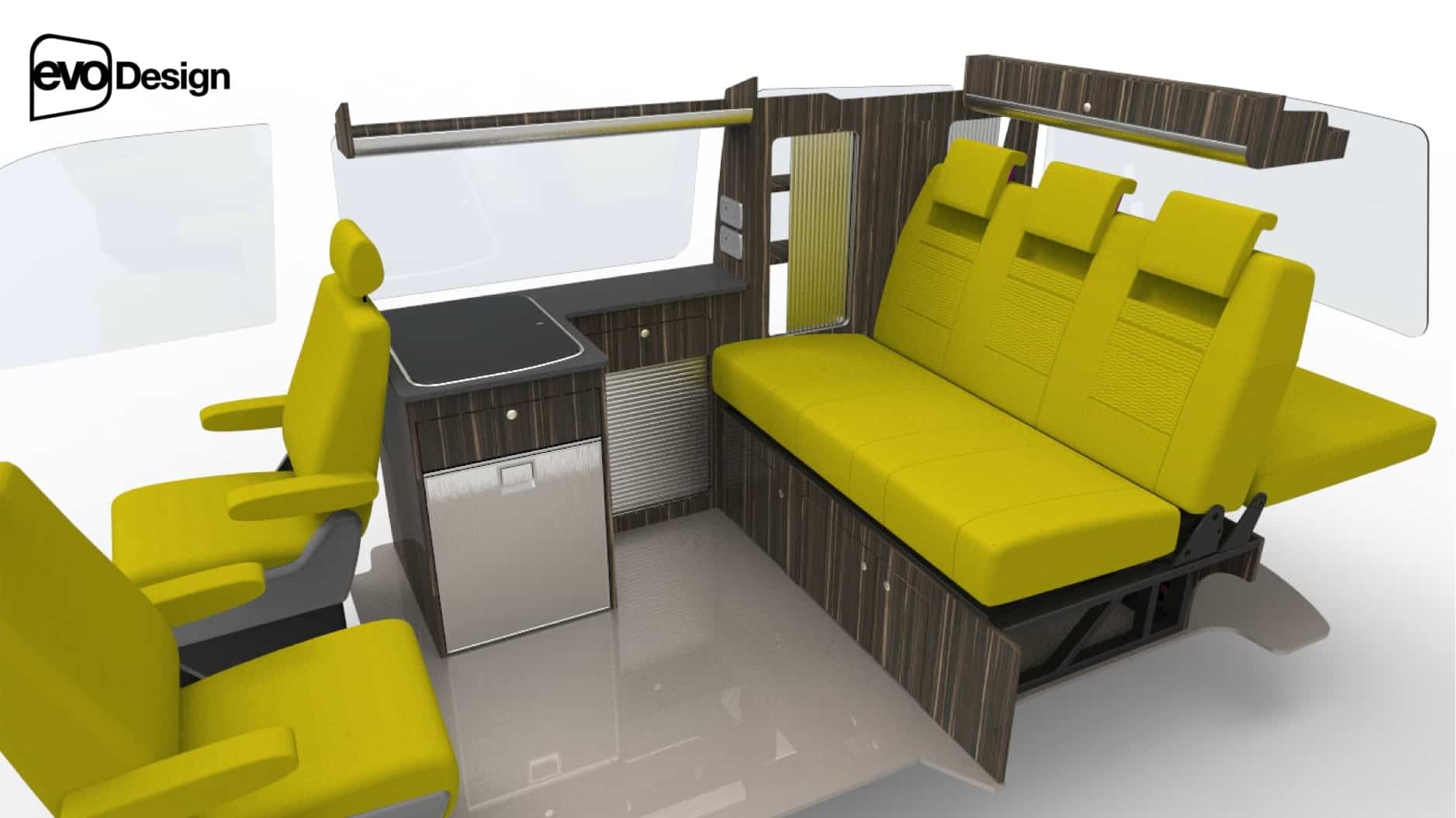

1300 mm RIB furniture kit for the Short Wheel Base van

Full side unit with draw, table, tambour door . Self assembley , designed for Webasto  Cruise 65L  and Dometic Cramer CE00-Mini-BO-HI27-I-G Camping Hob-Sink Combination.

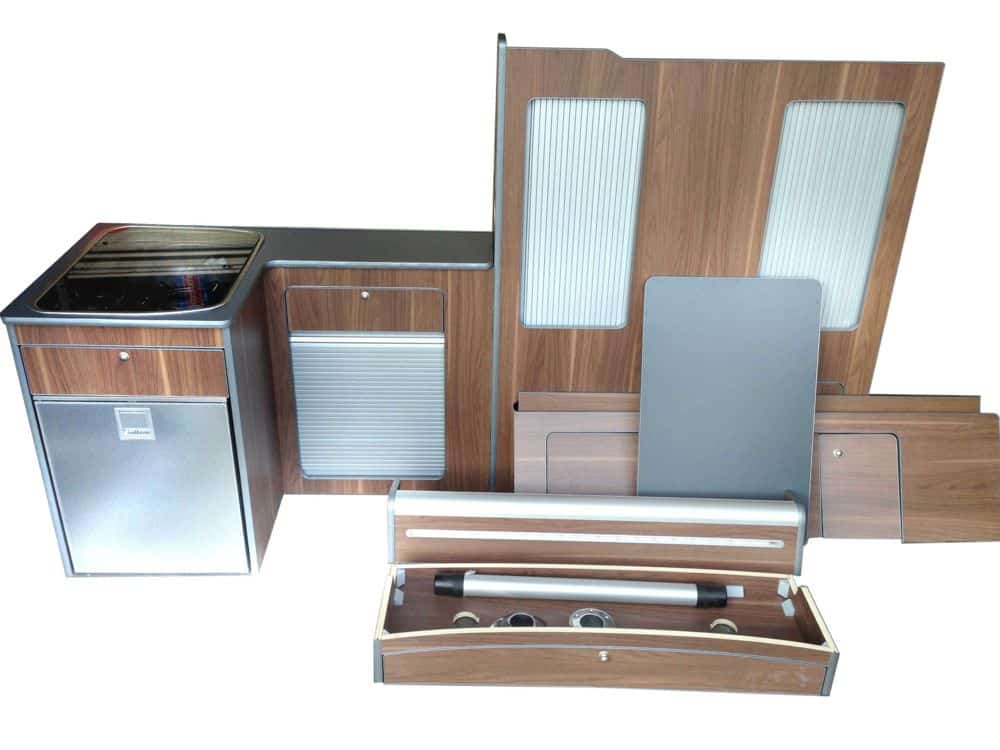

Includes:

  • Full side unit
  • Led Light shelf
  • Over bed locker (please select a full width locker)
  • Table and post leg
  • Front and back bed boards with doors
  • 3 tambour sliding doors
  • All fixings , hinges and catches
  • Designed for the Rib1860mm Fixed bed, sliding bed can be used but the frame cannot be positioned to far back in the van as to cover rear lower cupboard door

NOTE: LED + DOORS HAS BEEN MODIFIED TO BE COMPATIBLE WHEN FITTING A SINK/HOB. THE LED LOCKER NOW HAS R17 ALUMINIUM TO REDUCE THE HEIGHT TO CREATE CLEARANCE BETWEEN THE GLASS LID AND THE LOCKER.

Does not include:

  • Twin light recess – Not an option on this kit
  • Appliances
  • LED shelf – can be added as an option.

LEFT or RIGHT hand drive vehicle? *

Unit Finish *

View finishes
NEW 2021 STOCK RANGE
CPL – Continuous Pressure Laminate
HPL – High Pressure Laminate ( More wear resistant 0.8mm thick )
SD – Suede Finish

Worktop & Table Finish *

EDGE TRIM COLOUR *

Roof Type *

Please ignore brackets ( R40 =840 B ) etc…after roof type. ONLY SELECT A FULL WIDTH LOCKER FOR A SLIM KIT (eg. 1300) OR A KIT WITH A LOW BACK (eg. 2.3 5.3)
View Over bed locker types

Bed boards *

These are panels for the front and back of your seat / bed. Please note the Rib bed is available in 2 different frame heights 340 or 330 mm contact your supplier for this info or measure yourself. Ignore brackets ( A ) etc.. after description.
View Bed Board Types

Door catch *

Drawer Type *

Light Shelf options *

above sink LED shelf option

Optional extras

Add products to compliment your furniture kit. Please note some kits come with some of the items below

ORDER NOTES

Please add any additional information that you have discussed with us.

SKU: ( A13A ) Category: Tag:
