Appliances to fit this unit:
Ford transit Custom- Long Wheel Base :
THIS PRODUCT WILL NEED TRIMMING TO FIT
The Worktop has been cut oversized to allow the customer to trim into the van themselves.

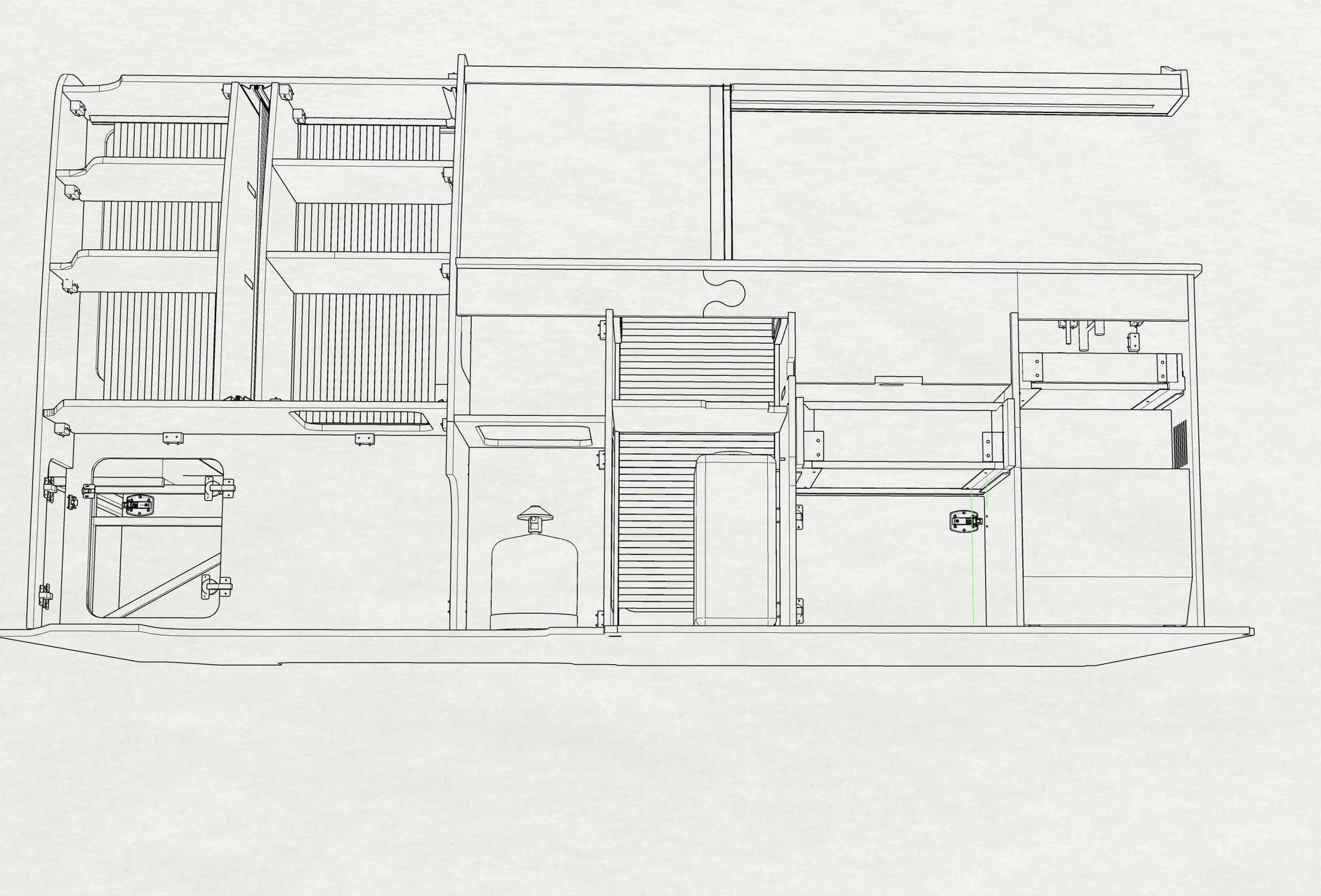

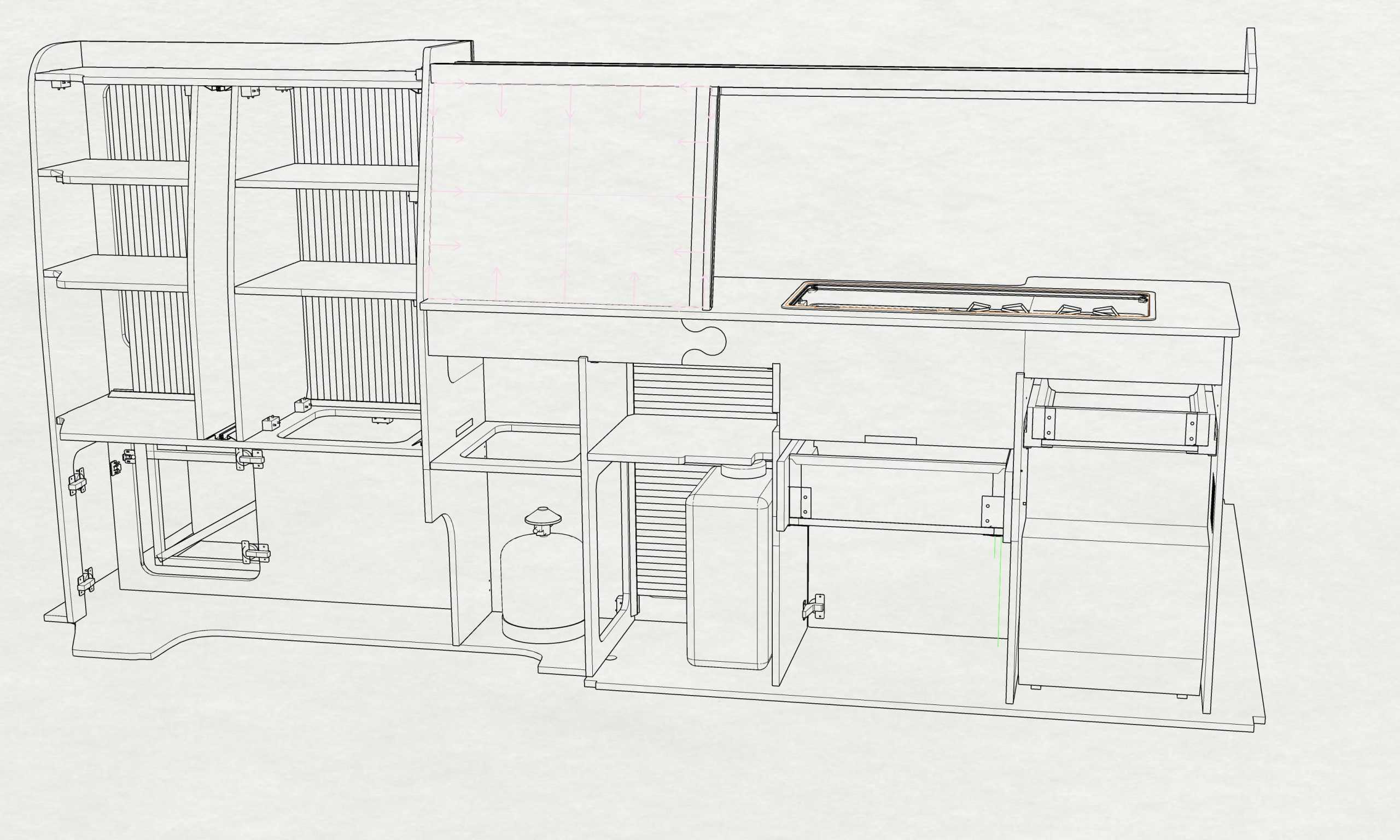

- Side unit with 4 doors ,2 drawers & 2 flaps
- Round push catches as standard
- 3 X Sliding tambour door
- Includes front rear bed boards with a door in each board, these can be trimmed down to suit.
- 2 soft close drawers one for cutlery and the other extra deep 150mm high
- Concealed self close hinges with flush fitting doors

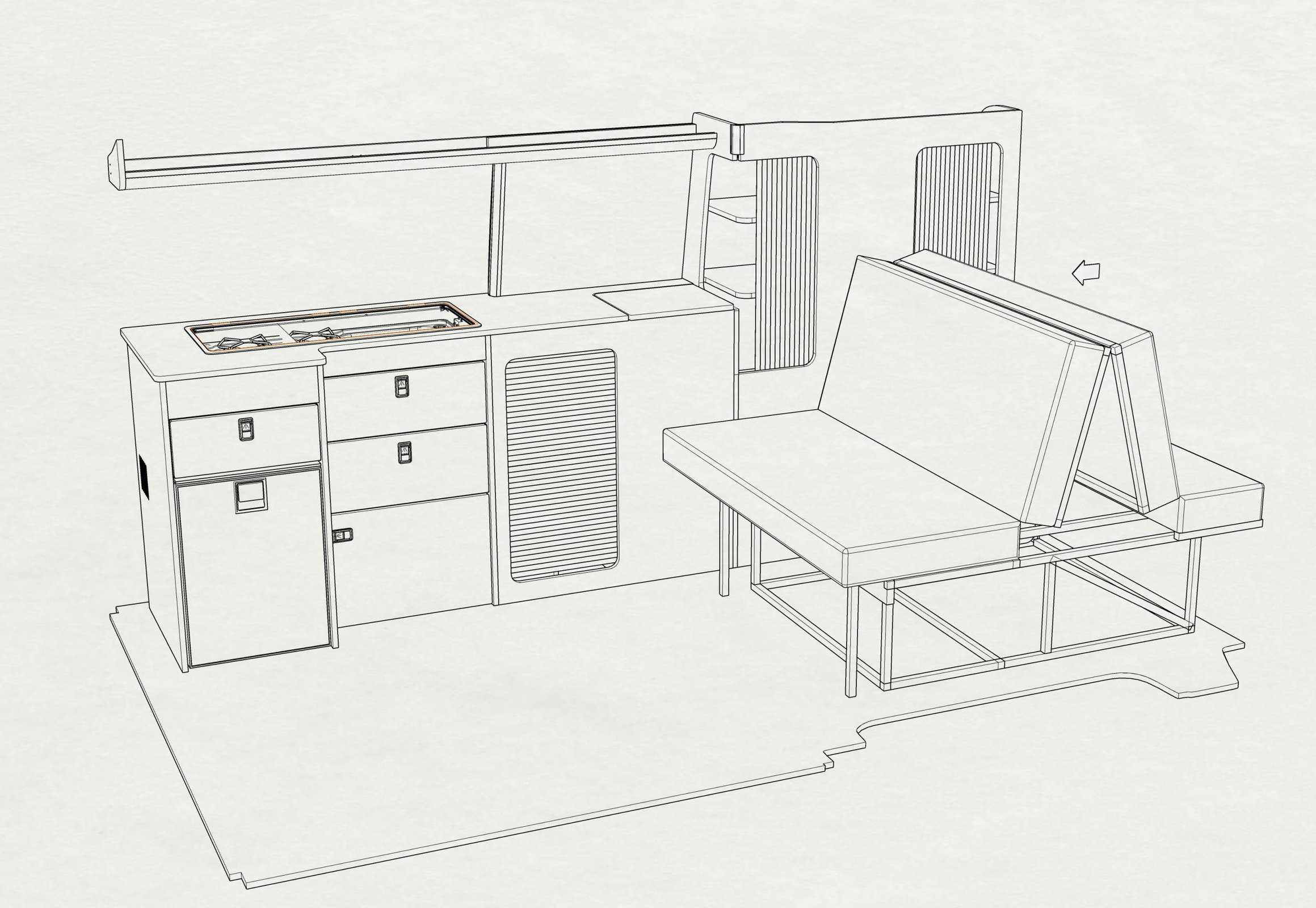

- Table with folding aluminium leg and stainless steel sliding rail system
- All connecting blocks, hinges, edging, push catches and screws
- Designed to accept Vitrifrigo C51I
- Knock on edging for all exposed edges, the edges are pre slot cut for you to apply
- Designed to be easy to construct with easy mount hinges, slots for aligning the panels and pre drilled hole for the connector blocks

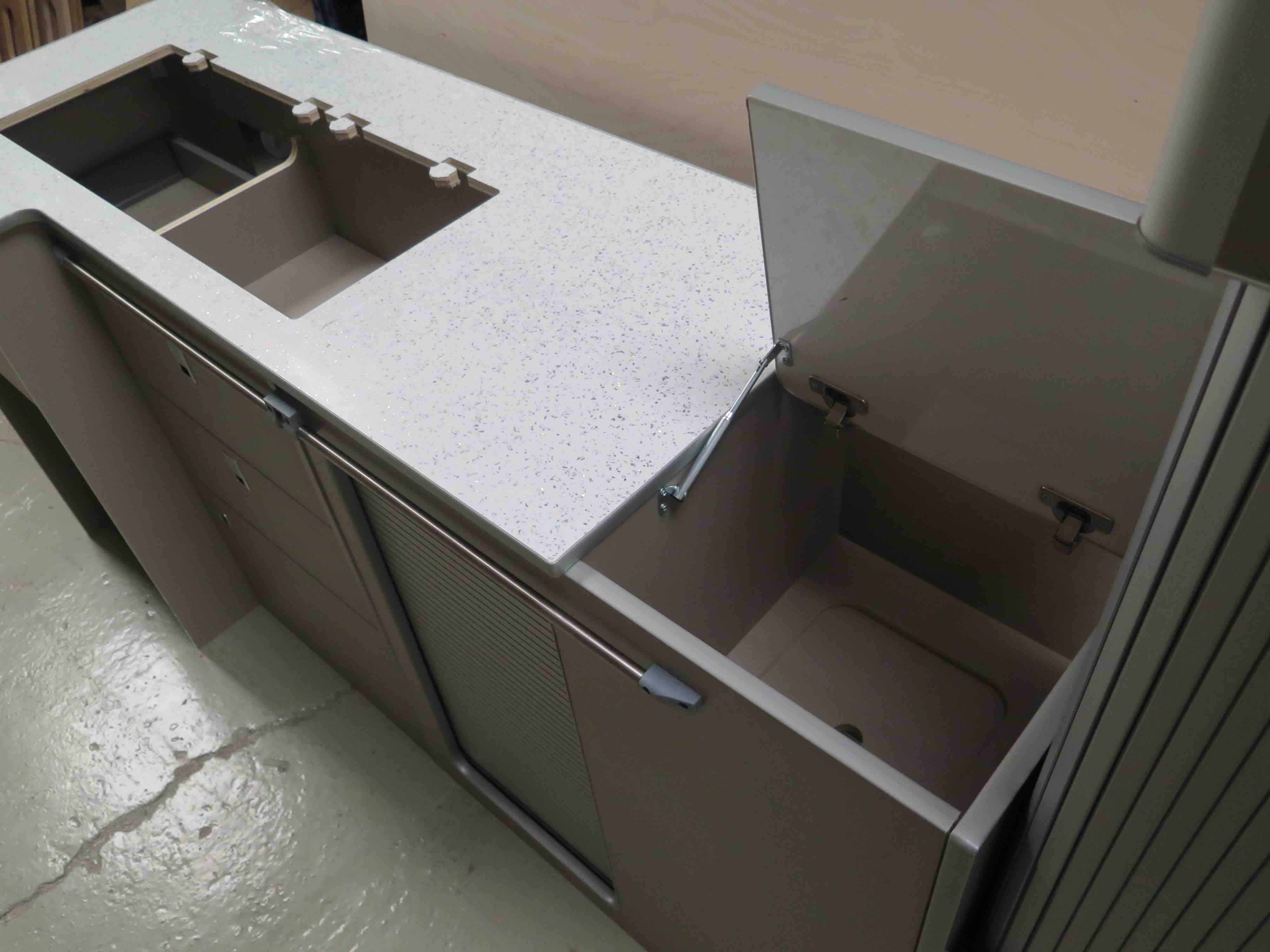

- The worktop cut for a SMEV 9722 RIGHT HAND SINK
- Available in a range of own light weight ply finishes
- Worktop and Table can be a different finish.
- Edging: Silver or Dark Grey or black
- Works with Scopema RIB seat 1200mm wide , or rock n roll beds ( the ford is 10cm wider than the VW T5 / T6)
- Works with both low roof and elevating roof conversions
- Fits the 10L water bottle with swing handle
- Does not include an over bed locker as standard.
- Does not include LED + control panel as standard.
- Does not include LED shelf.
