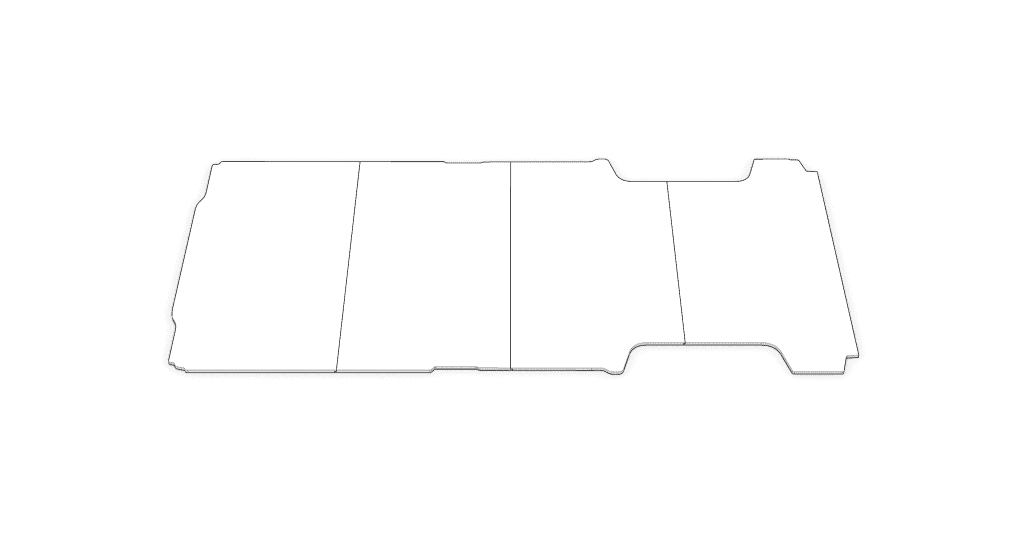

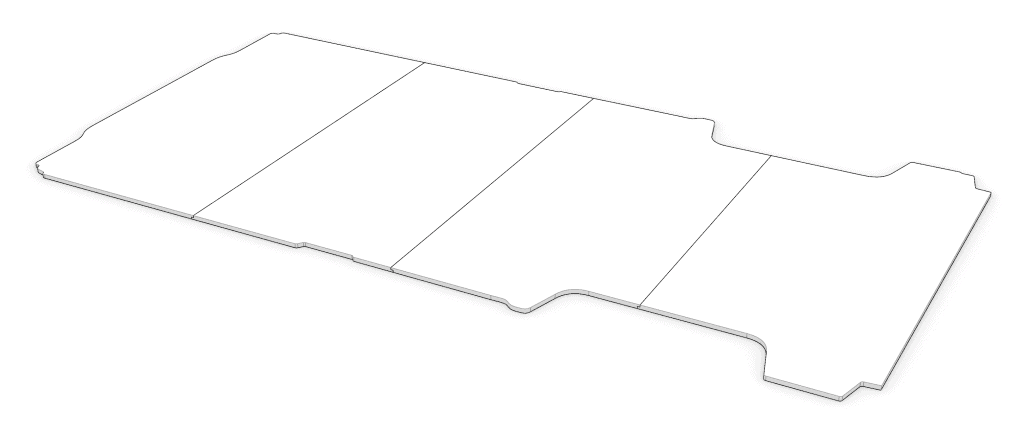

4 piece extended floor which goes all the way up to the passenger and driver seat base box. The floor is made from an Ultralight sandwich panel with an insulating XPS (extruded polystyrene) core combined with plywood that is made of 100% European poplar ply with lap joints. Please note this floor is longer than the factory floor supplied with your van and is designed to be used with our Citroen Relay kit. Ensure the floor is well bonded ( we have used and can recommend SOUDAFLEX 40FC, other polyurethane adhesives are available ) and the joints are set level before covering with vinyl. Leave a weight over lap joints while the adhesive is setting. Fill and sand joints flat if required. Use commercial grade vinyl, eg. Altro flooring. Avoid domestic foam backed Lino as this will not last.

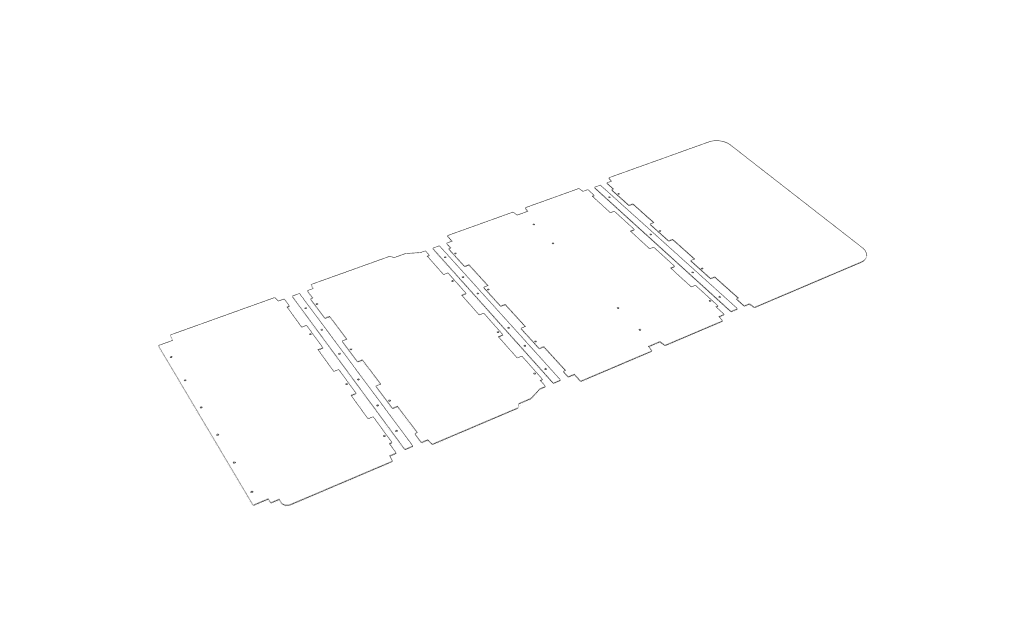

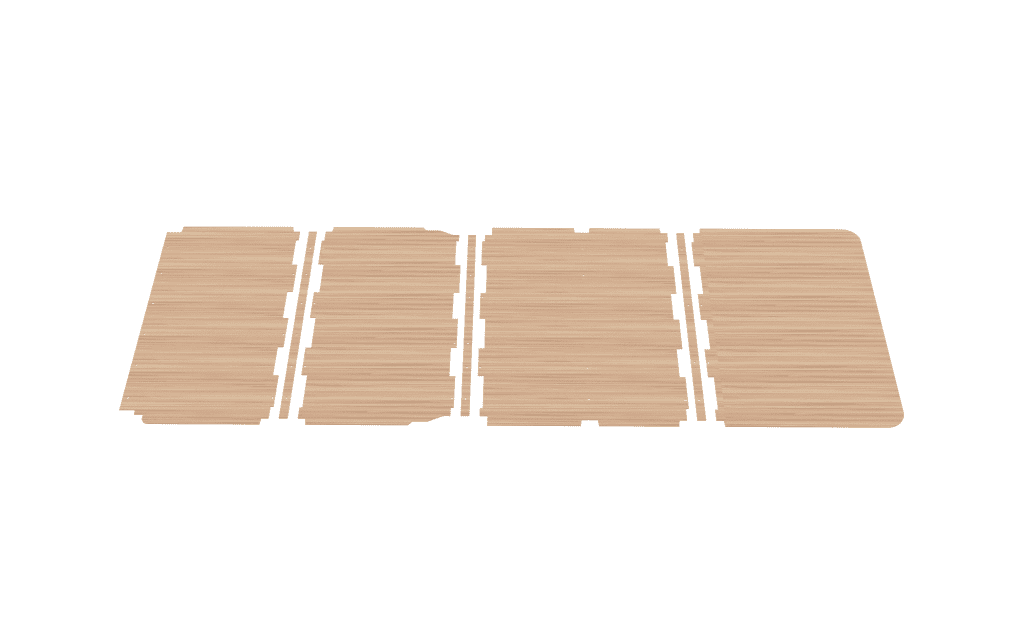

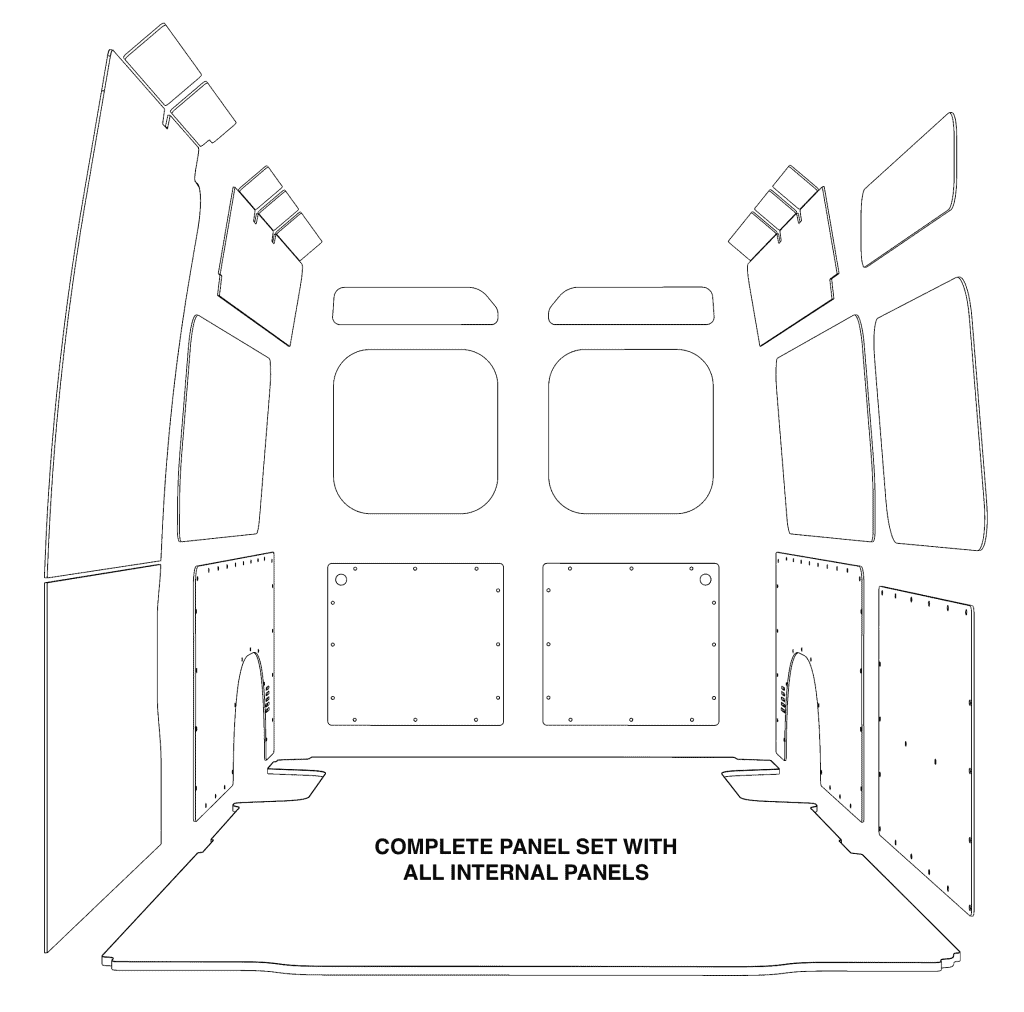

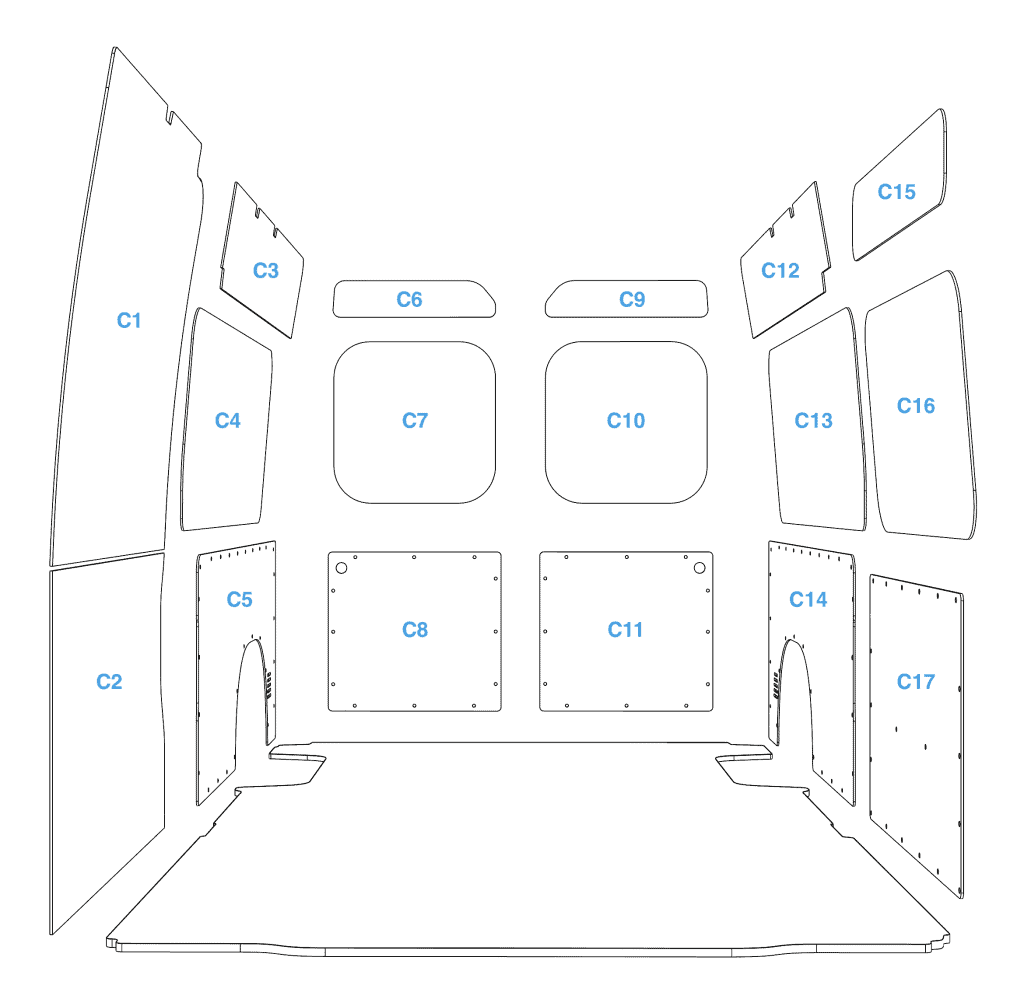

Citroen Relay Mk3 L3 H2 roof panels designed to work with existing holes in your van for easy installation. Suitable for wrapping in headlining fabric. PRE-DRILLED HOLE FOR PANEL CLIPS ( NOT SUPPLIED ) Purchase here Panel clips

CUT FROM 5.5MM PLYWOOD Some of the panels are pre drilled for use with panel clips where possible others require screw fixing (3.5 x 15mm countersunk screw recommended). PANEL CLIPS ARE NOT INCLUDED Panels C7, C10, C16 are designed to have a batten behind them bonded to the metal skin to allow for windows.

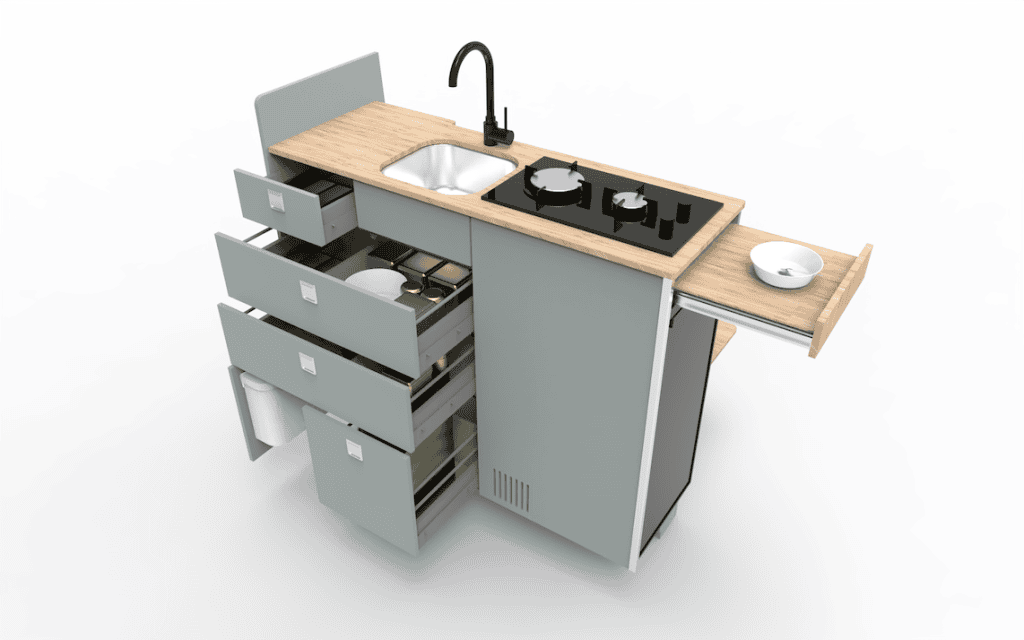

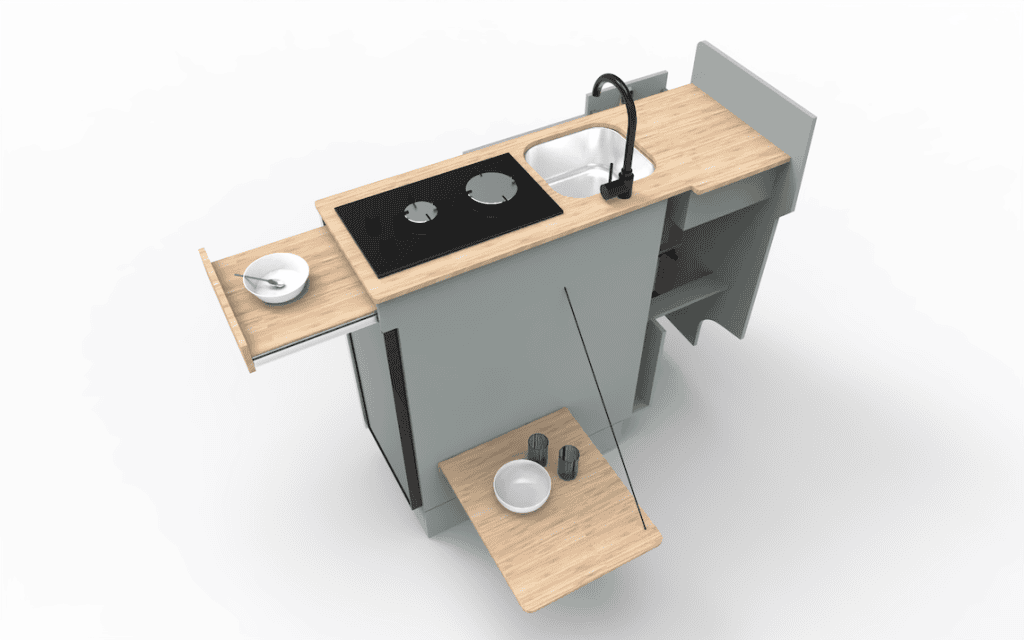

EVO V11 Side door kitchen pod for the large VW Crafter, Mercedes Sprinter & Man TGE - Accepts INDEL B CR86 Cruise FRIDGE 85L available here   Unit is:  426 wide x 1264 long x 986 mm high Does not fit 9722 or 9222 sink/hob Side step storage is only an option on the 4x4 crafter, the standard crafter has no space for this. Does not include fold down table this is an optional extra  U shape aluminum extrusion not available in black powder coat finish 4 soft close draws, 1 hinged door, shelf and space behind door for bin slide out extra woorktop space Hinged door with space for waste bin Evomatic XL catches The majority of the panels are pre edge banded Designed for the INDEL B CR86 Cruise 85 liter fridge ONLY  Integrated vent holes for the fridge Suits a wide variety of hobs & sinks, the recommended hob is Thetford Topline 922 Additional bin and bracket can be purchased here to go on the backside of the hinged door - will need spacers (**see pictures) Fridge is accessible from inside and outside the van with a hinged door that can open fully, and sits flush in the unit Universal model with worktop unscribed, no side step storage, unshaped back allowing it to fit into a wide variety of vehicles Flat pack design for you to assemble Can be cut for Left hand or Right hand drive vehicles Designed to work with our passenger side space pod (1 back panel will need cutting if not using a space pod) Universal model has no notch in the worktop, back panel is not shaped to pillar or step and end panel is squared to fit a wide variety of vans   **Images show under mount sink with bamboo top (small sink recommended) **Designed for our 18mm floor thickness, if you have a different thickness floor this will affect how the shaped panel sits against the C pillar and doorstep, in this case, we recommend the universal version   SaveSave SaveSave SaveSave SaveSave SaveSave SaveSave SaveSave

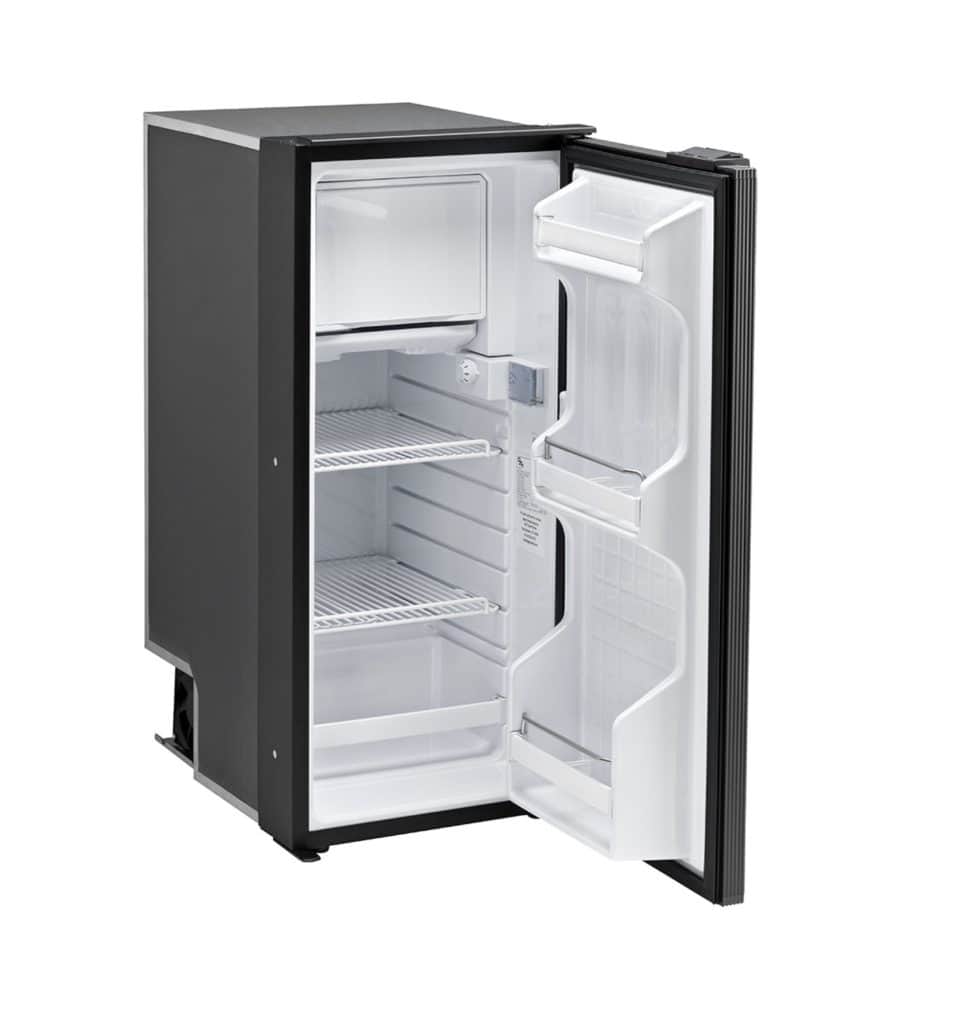

Designed for our V11 and V11.3 kitchen pods, this fridge is the ideal size for vans with a kitchen layout where the fridge is positioned at the end, near the side loading door. With an 85-litre capacity, its deep depth, narrow width, and lower height make it one of the best-sized fridges available on the market today. Voltage (V) DC 12, DC 24 Certifications CE, E-Mark, EMC Dimensions (HxWxD) (mm) 861x380x493 Power absorption (W) 50 Net weight (kg) 23 Consumption (kWh/24h) 0,525 Capacity (L) 85

Suitable for use in our Sprinter and Crafter kitchen pods . Designed for use in camper vans with no loose rings and bolted into the work top for security. Electric ignition High-quality materials and components Contemporary, home-like design Optimal use of space Superior cooking performance Features 2 burner Black glass contemporary design Matt nickel knobs Good sized 40mm matt nickel knobs; about the same size as you’d find on domestic appliances Suitable for 120-200mm pans, so there’s quite a lot of scope when it comes to choosing pots Fixes with invisible foam seal for a fully integrated appearance Product Specification Nickel knobs: 40mm Gas burners: 2 x semi rapid 1.5kW Ignition: 12v Total heat input: 3.0kW Weight: 5.0kg Worktop cut-out dimensions: 285mm (W) x 485mm (D) Overall dimensions: 95 (H) x 305 (W) x 500 mm (D)

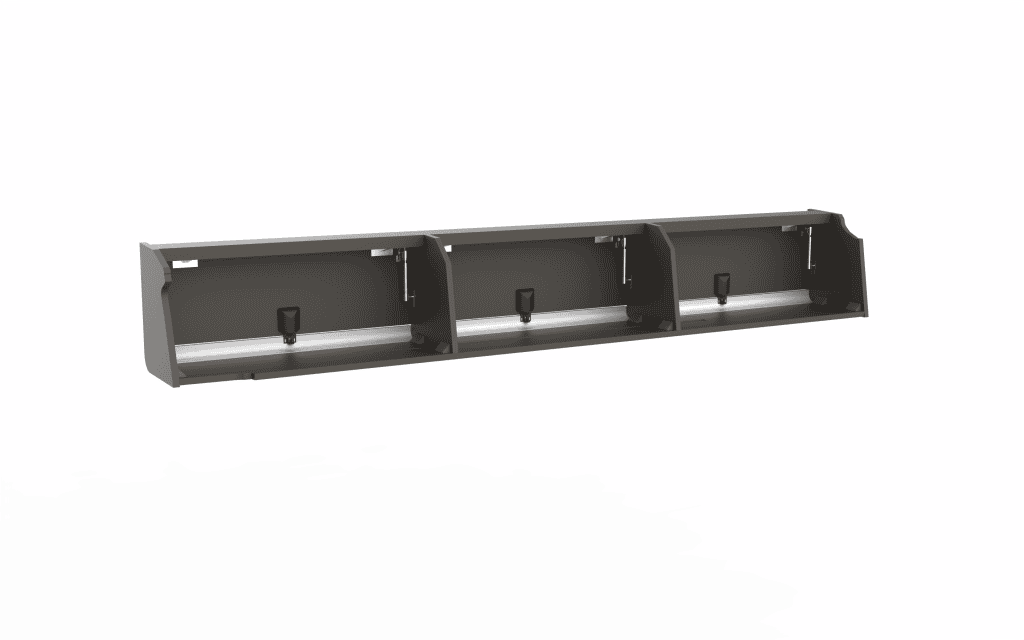

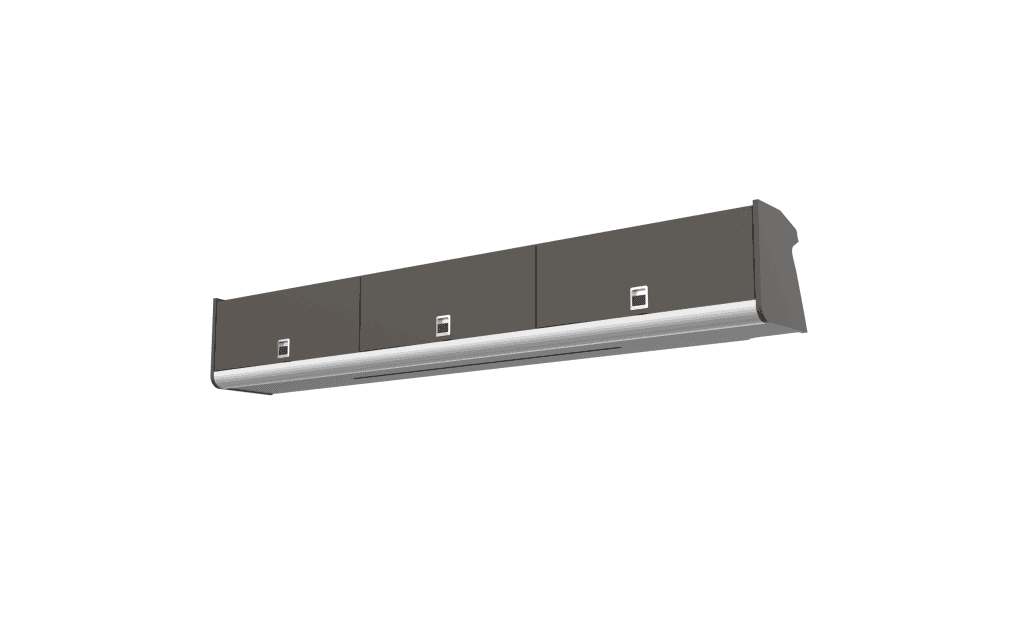

Locker C1 (Passenger Side Over Bed + Kitchen) - CITROEN RELAY MK3 L3H2 - This locker provides generous storage for bedding, clothes, and kitchen essentials, all while preserving valuable sleeping space.

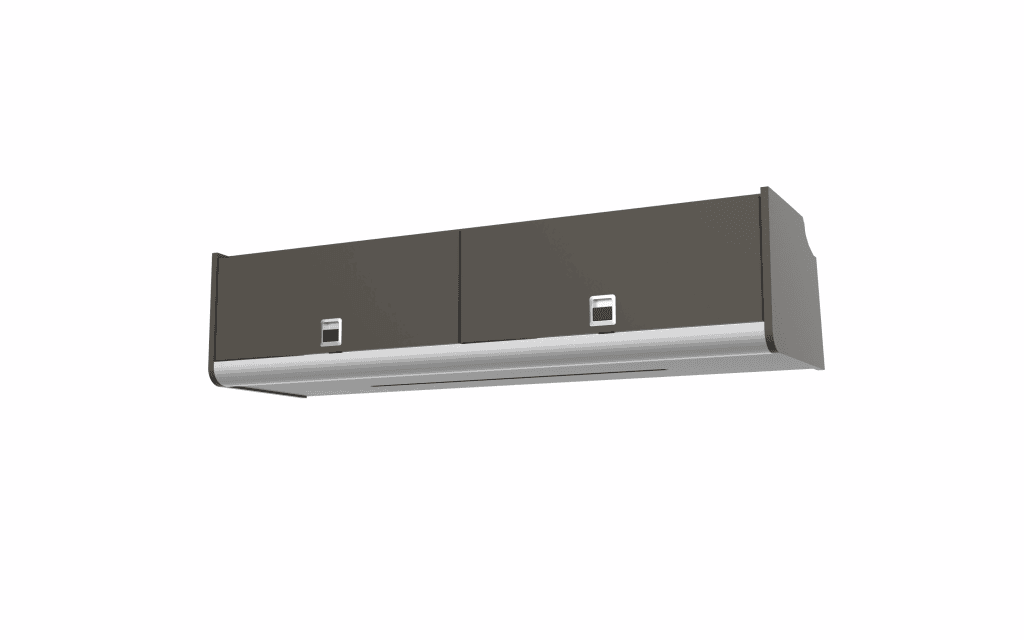

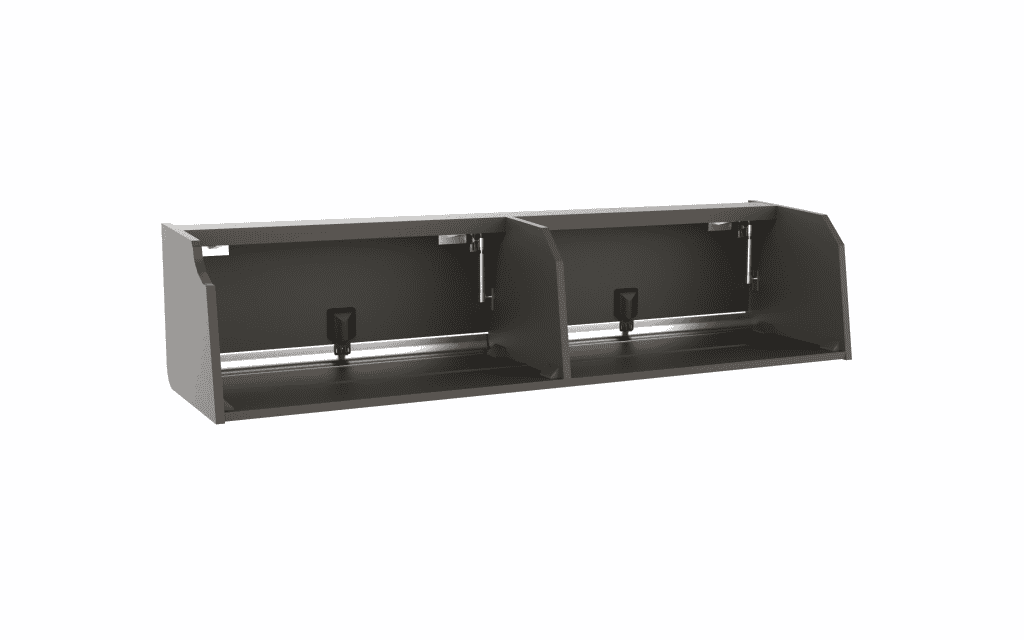

Locker for the CITROEN RELAY MK3 L3H2 design 11 van designed to sit over the bed, at the rear on the driver side. Optional LED (Touch ON / OFF, Dimmable) Grain direction may change.

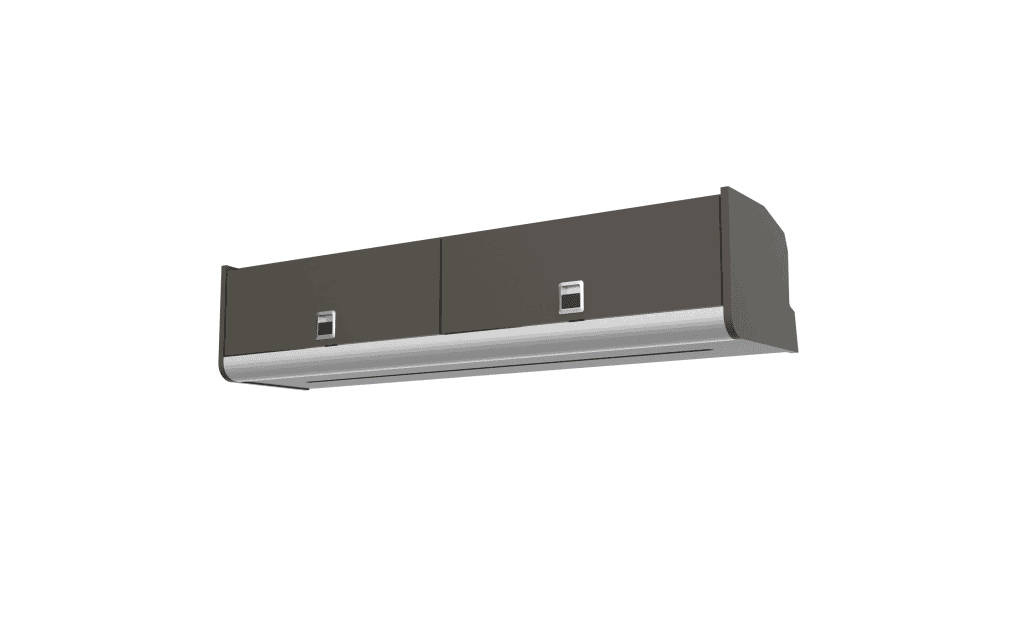

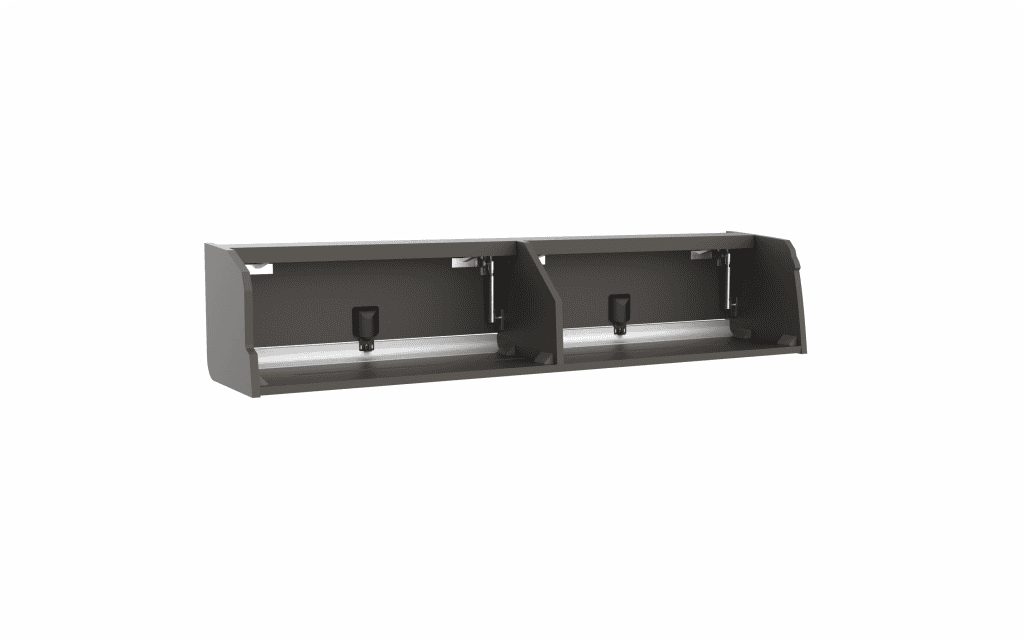

Locker for the CITROEN RELAY MK3 L3H2 design 11 van designed to sit over the dining area, at the front on the driver side. Optional LED (Touch ON / OFF, Dimmable) Grain direction may change.

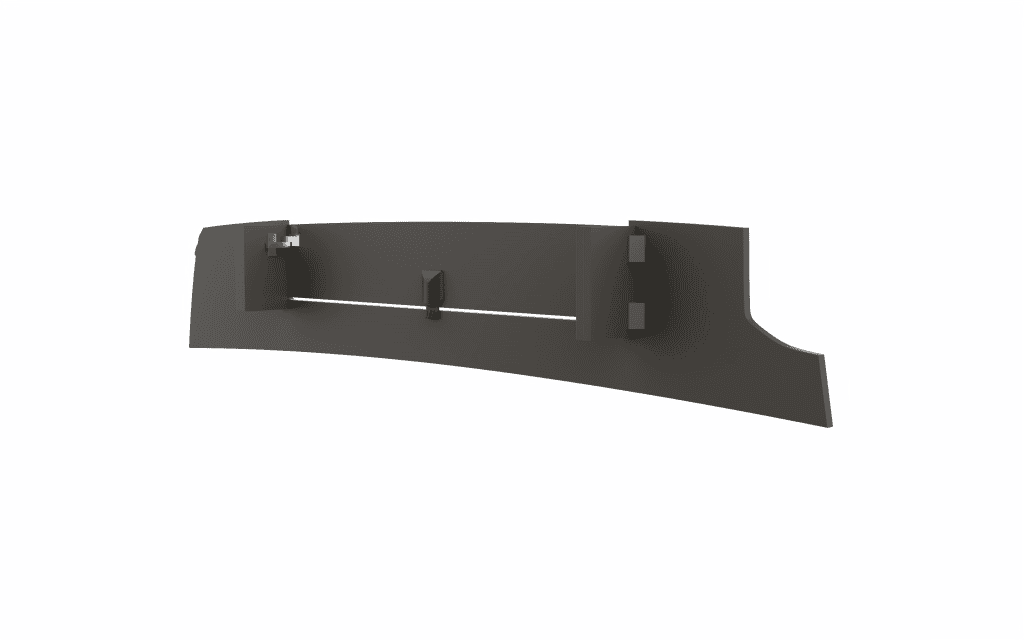

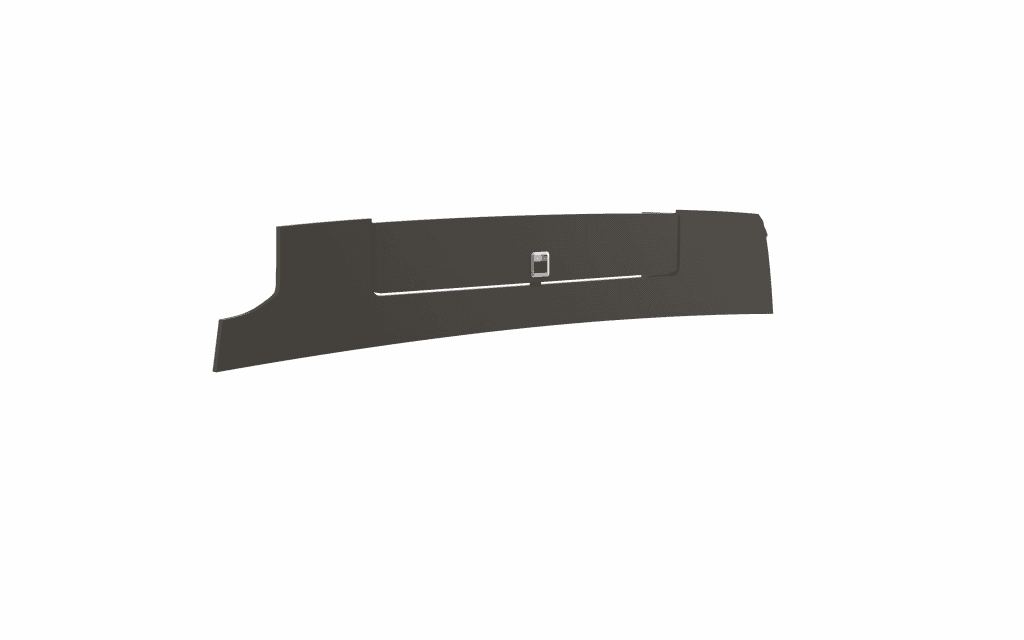

Over Cab Locker - CITROEN RELAY MK3 L3H2 Designed to seamlessly integrate with the existing parcel shelf, this panel keeps stored items secure while providing a clean, finished look that follows the van’s unique contours.

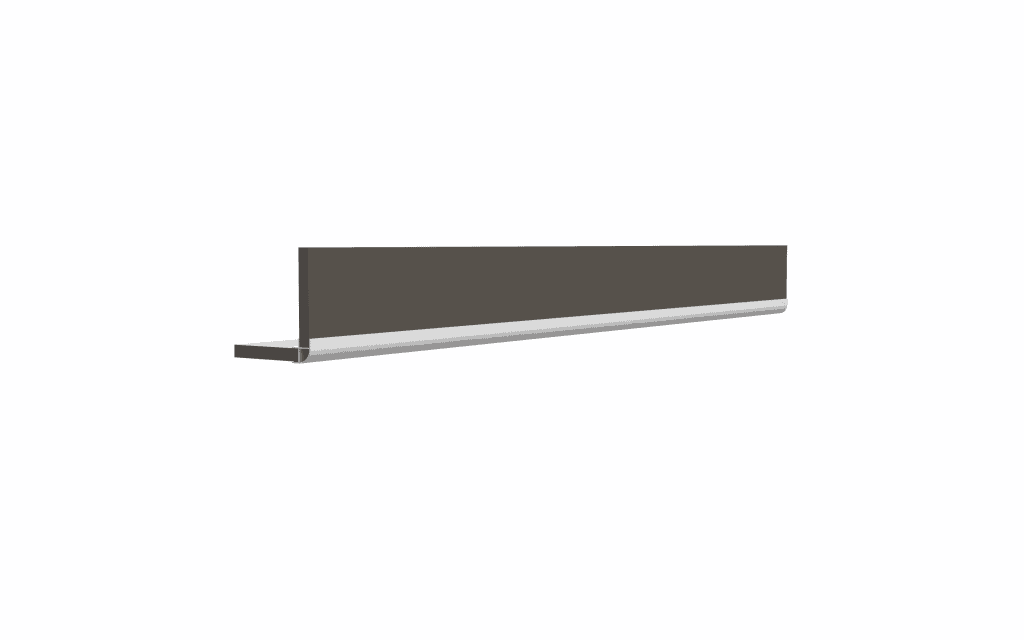

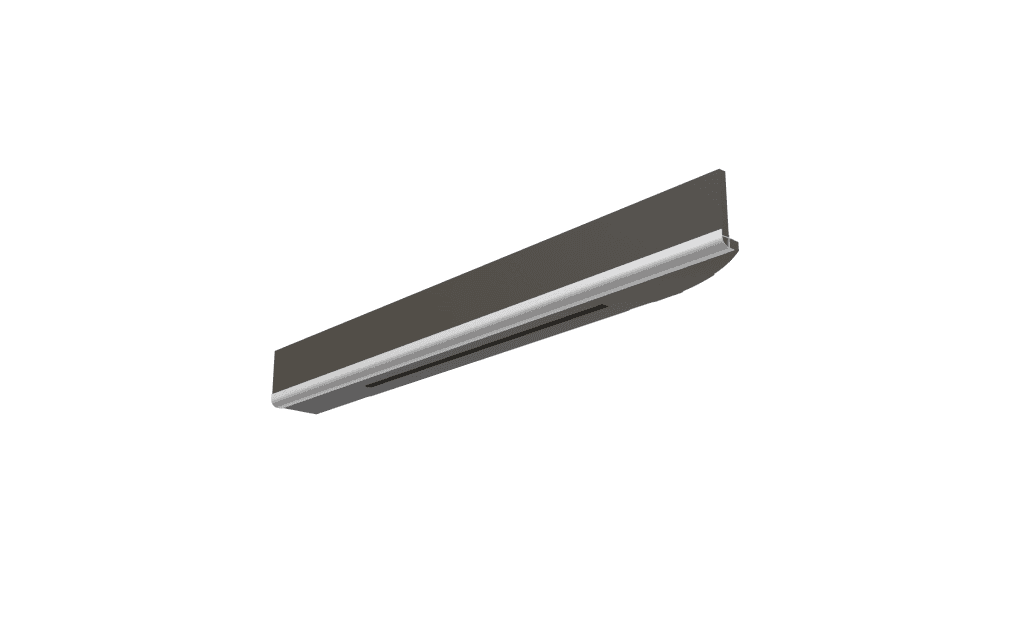

Designed to cover the space above the sliding side door cable and provide a space for control panels with touch sensitive dimmable LED light. Features: Touch sensitive dimmable LED strip Curved aluminium corner profile Designed to sit between our Over Cab Locker and Locker C3 Space for control panels and switches to be mounted on front face

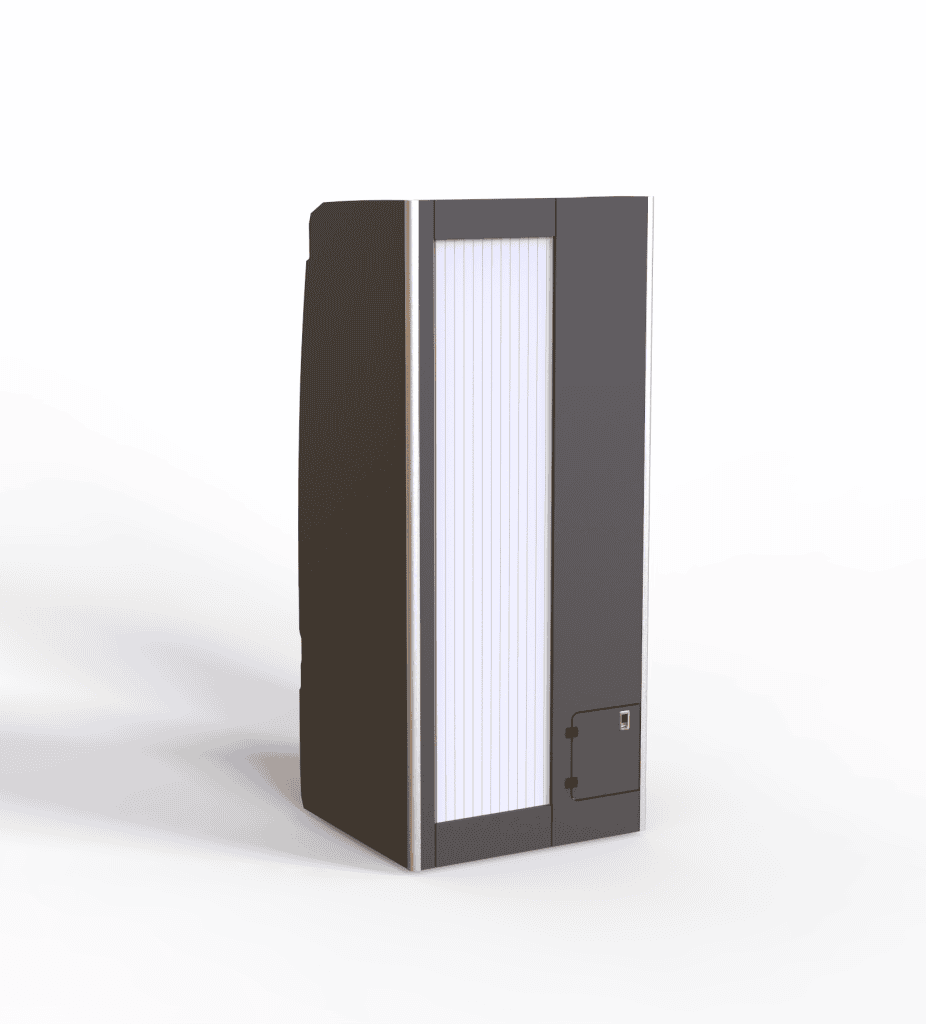

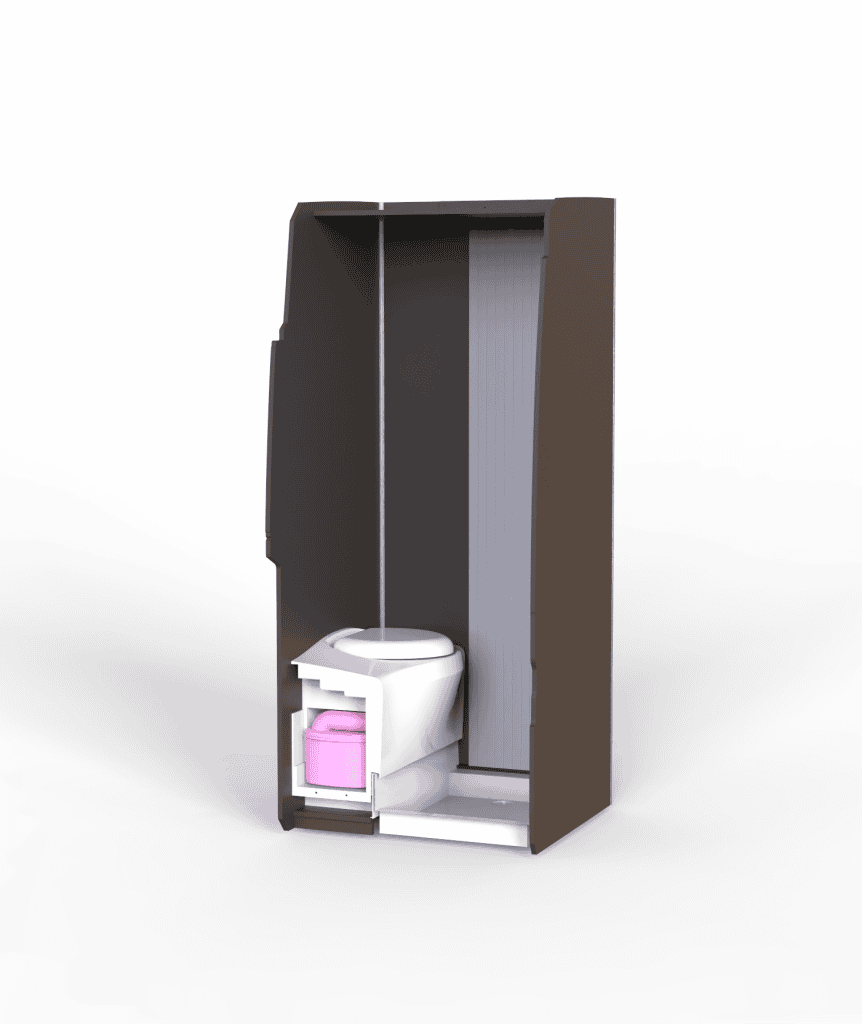

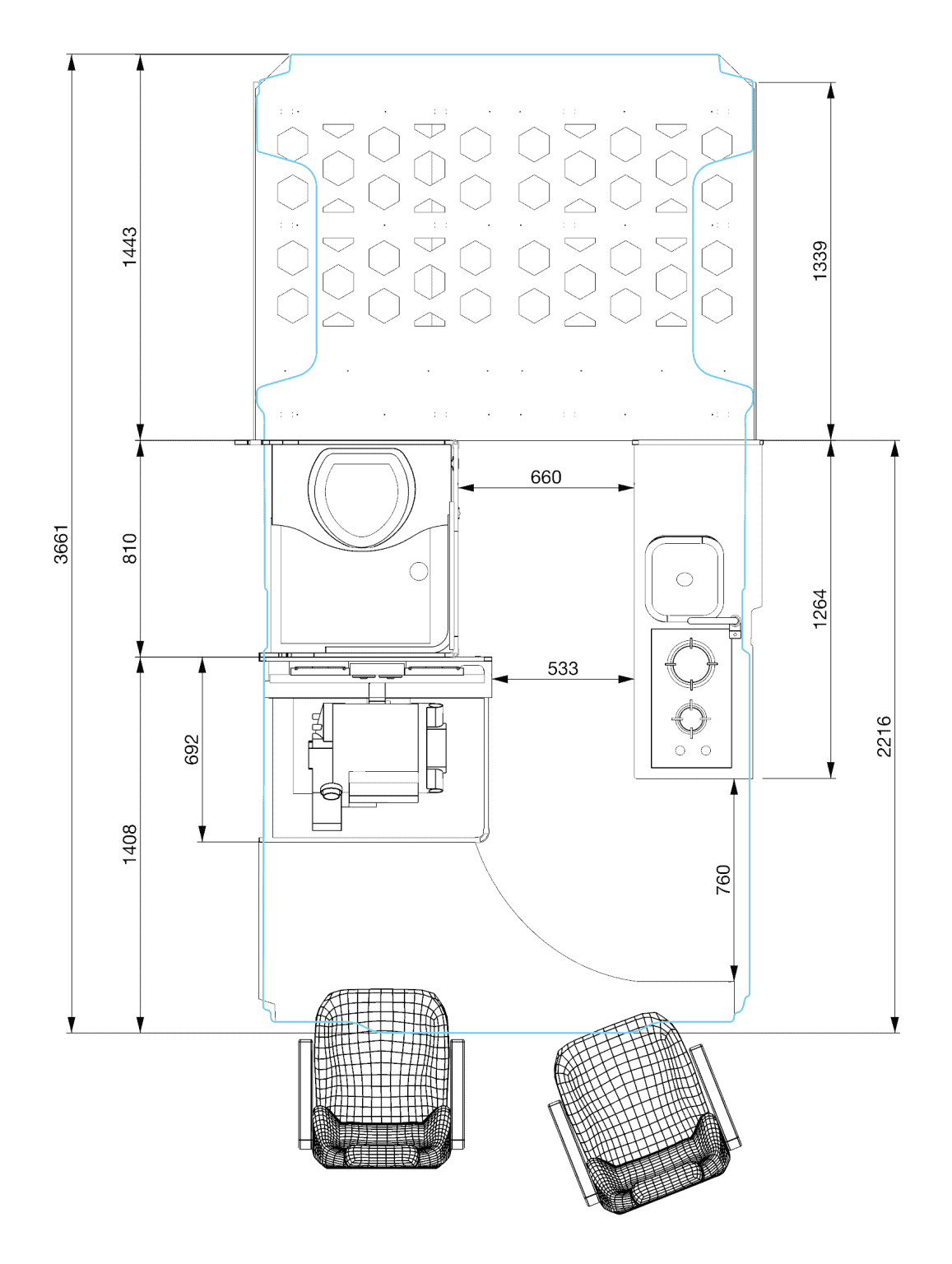

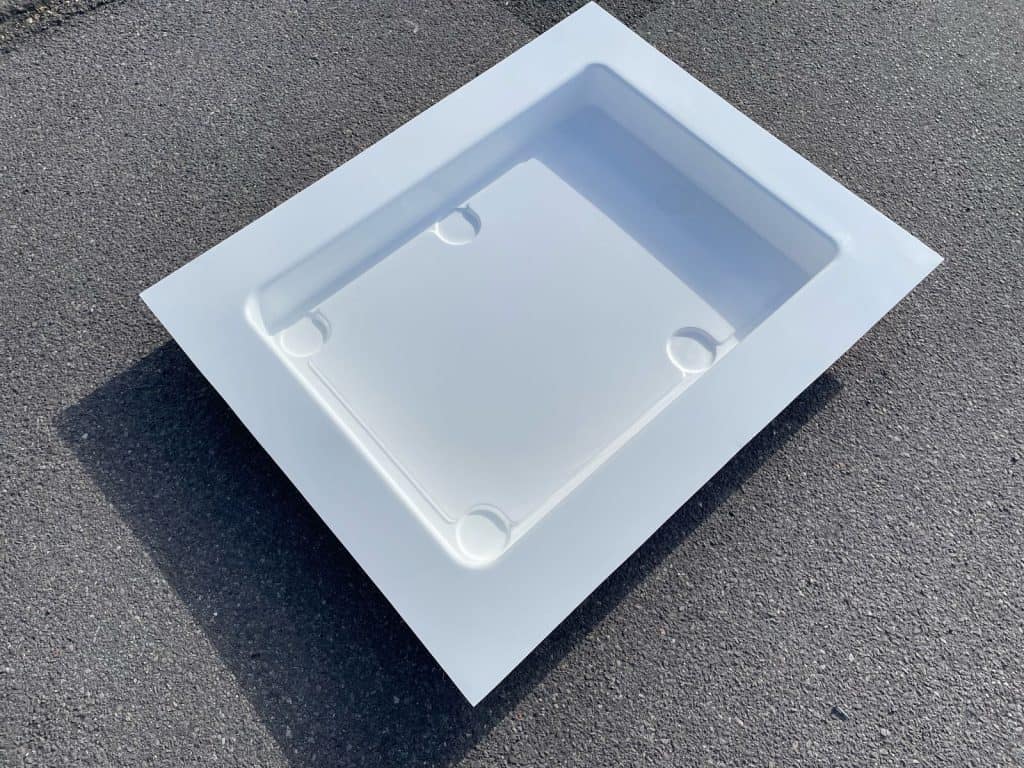

SHOWER C - EXTERNAL DIMENSIONS - 734mm deep x 810mm wide - height 1898mm Shower is designed for a specific location in our Design 11 layout based on using our 18mm Ultra light sandwich floor (check your floor to ceiling height before purchasing). Roof panel can be cut to allow roof light & motion sensitive light. Interior walls are water proof HPL available in gloss white as standard. The Shower Tray to work with a Thetford 403 series toilet is currently to be finalised. All panels will need silicone sealant at junctions (not supplied) Back interior curved wall panel is gloss white hygiene board which will need to be bonded to a curved 5.5mm ply panel (supplied) Our universal shower tray C can be used with a portable toilet or composting toilet for a simpler installation. Please note the door opening is 393mm so please check your portable toilet or composting toilet will fit through the opening. Includes: Laminated poplar ply with white gloss interior, exterior colour can be different finishes from the Stylam range Back wall panel 5.5mm ply and 2.5mm gloss white PVC Aluminium corner extrusions Roof panel can be left solid or with rectangular cut out Solid door or optional Tambour door Does not include SHOWER TRAY. This can be purchased separately PLEASE NOTE - THETFORD C400 SINK is too wide to fit above this toilet. We Recommend watching this excellent video if installing a tambour door here Due to the panel sizes we recommend collection or it can be sent on a pallet

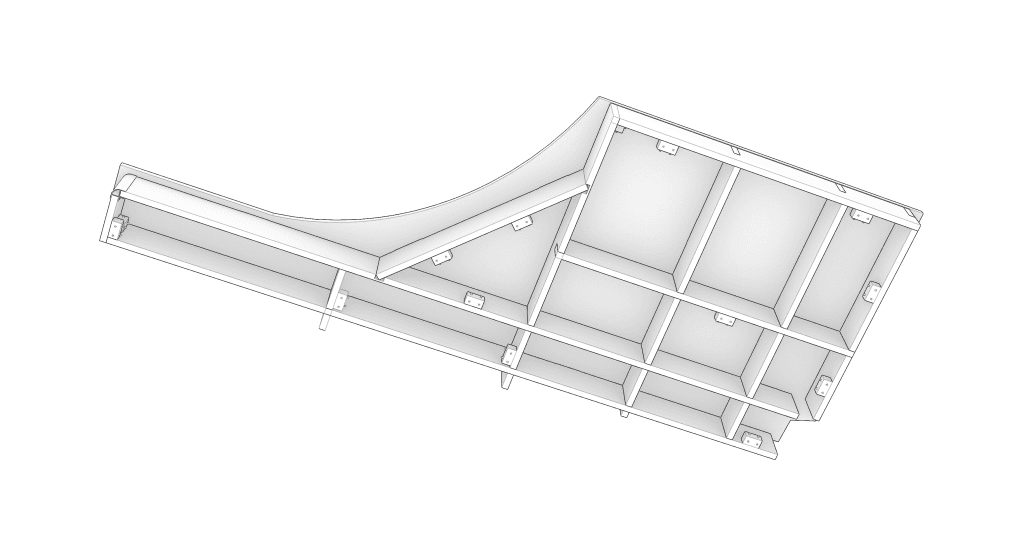

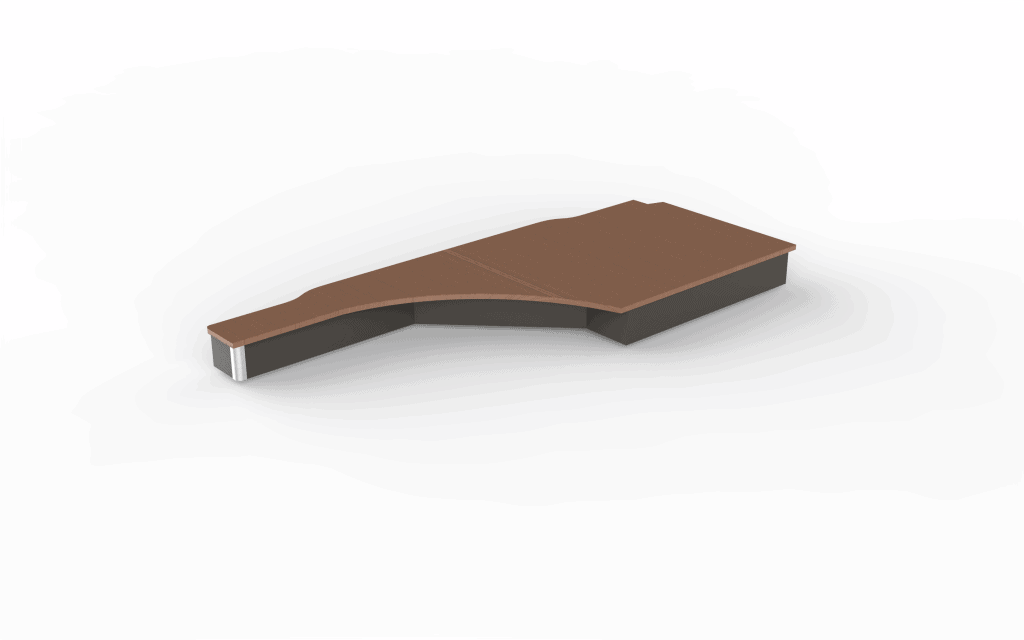

Plinth 115mm high for CITROEN RELAY MK3 L3H2 in design 11 layout. Comes with aluminium trim for curved from edge. Plinth top is cut in plain plywood allowing a vinyl floor to be bonded to the top. Includes aluminium trim to front edge.

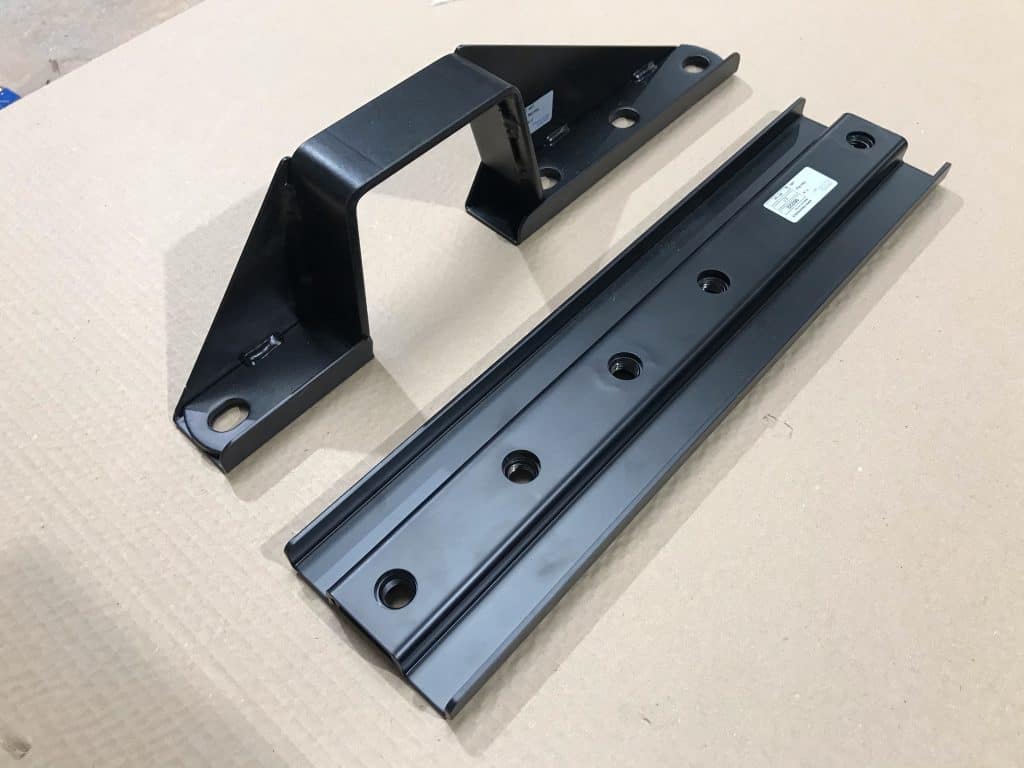

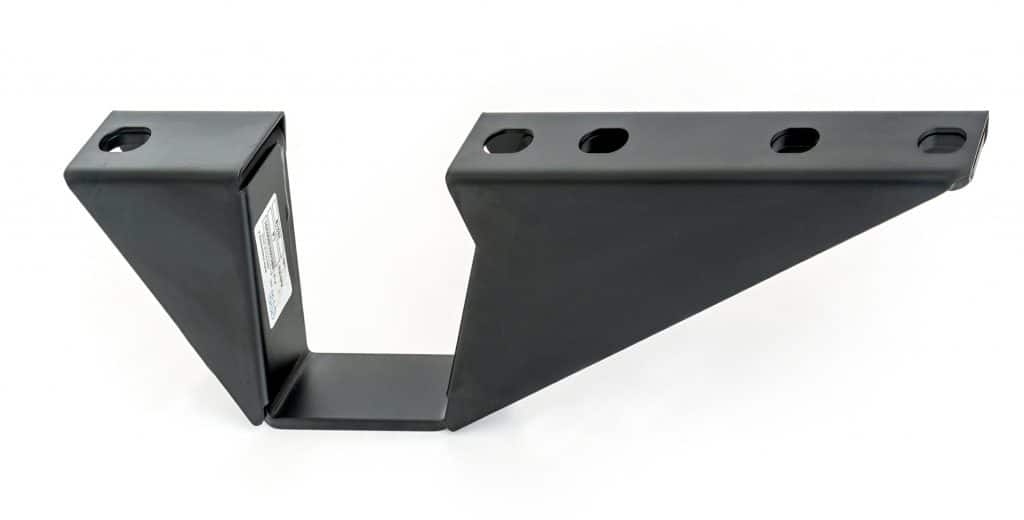

Double seat frame with seat belts designed to be fitted in the rear of the van with fitting kit which ties the seat frame to the chassis. To be used behind the drivers seat for RHD This seat model will work with the mercedes Sprinter and crafter van. It can also be used in the Fiat Ducato but you will need to purchase the 100mm offset bracket to fix the frame to the longitudinal chassis member. This model is also designed to accommodate the Truma Combi 4E heating and hot water system. Bare frame only with seat belts requires a base and upholstery. Homologated according to R14 for Fiat and Citroen vans. You can see this certificate here This is a great solution for those looking to add a rear double seat to your camper. Frame is suitable for a seat around 800mm wide. *Double head rest set not included. £180 extra in the drop down menu. PLEASE NOTE THE UNDER CHASSIS FITTING KIT IS DESIGNED TO FIT AROUND THE LONGITUDINAL CHASSIS MEMBER, PLEASE CHECK THE POSITION AGAINST WHERE YOU WANT TO POSITION THE SEAT. https://www.youtube.com/watch?v=WFe3uZsF5bw&t=430s

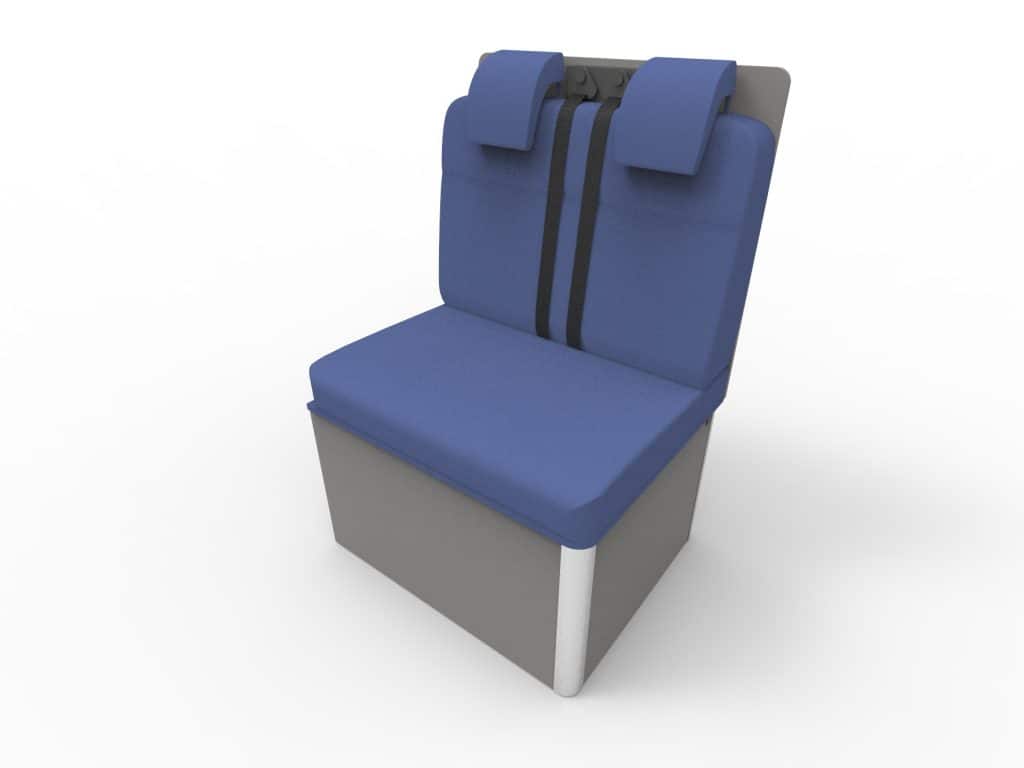

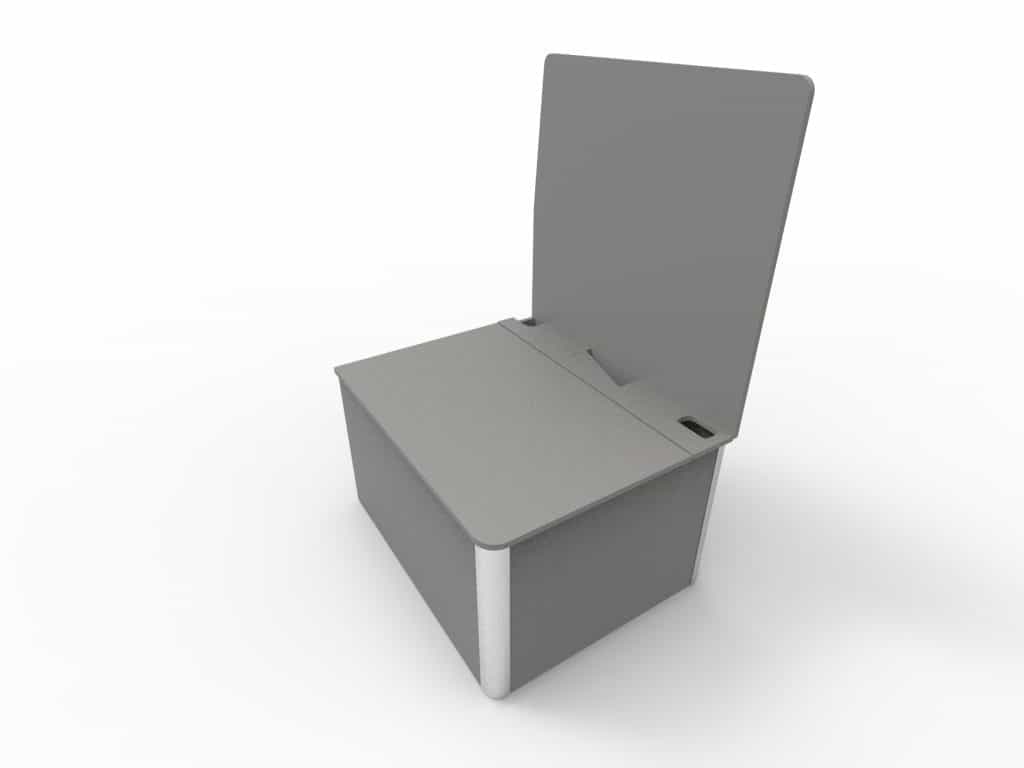

Designed to fit around our seat frame with a lift up hinged lid for easy access. Seat box only does not include metal seat frame or cushions, designed to used with a plinth around 100mm in height. Does not fit with seat frame ISOfix option Made from lightweight plywood.

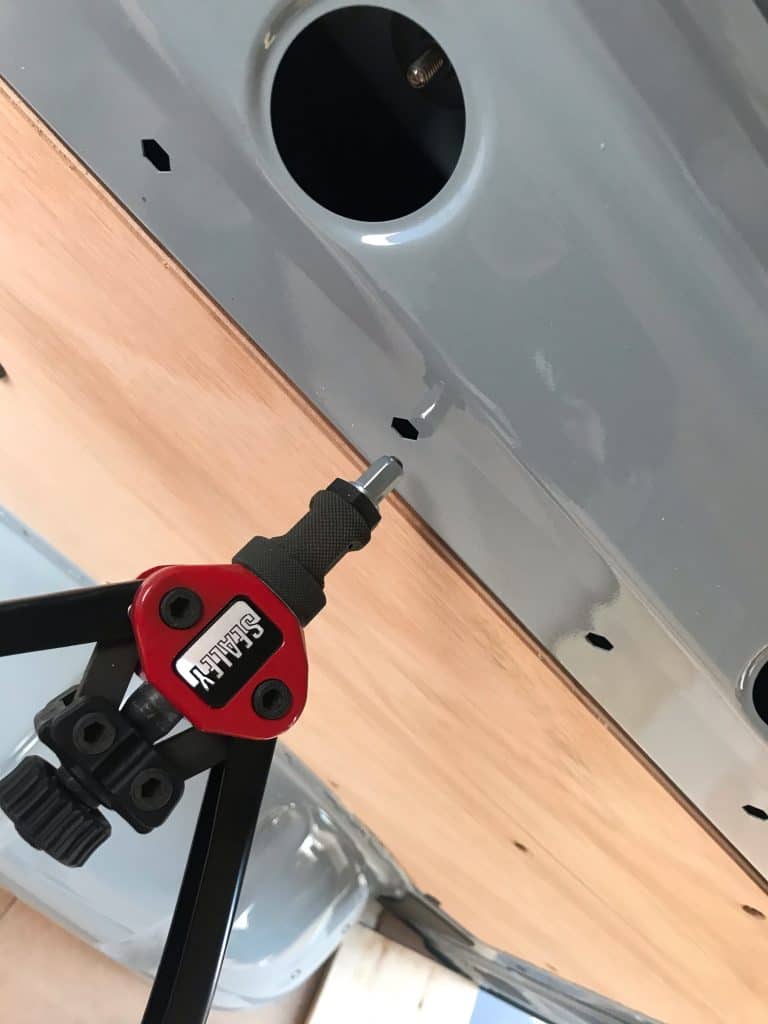

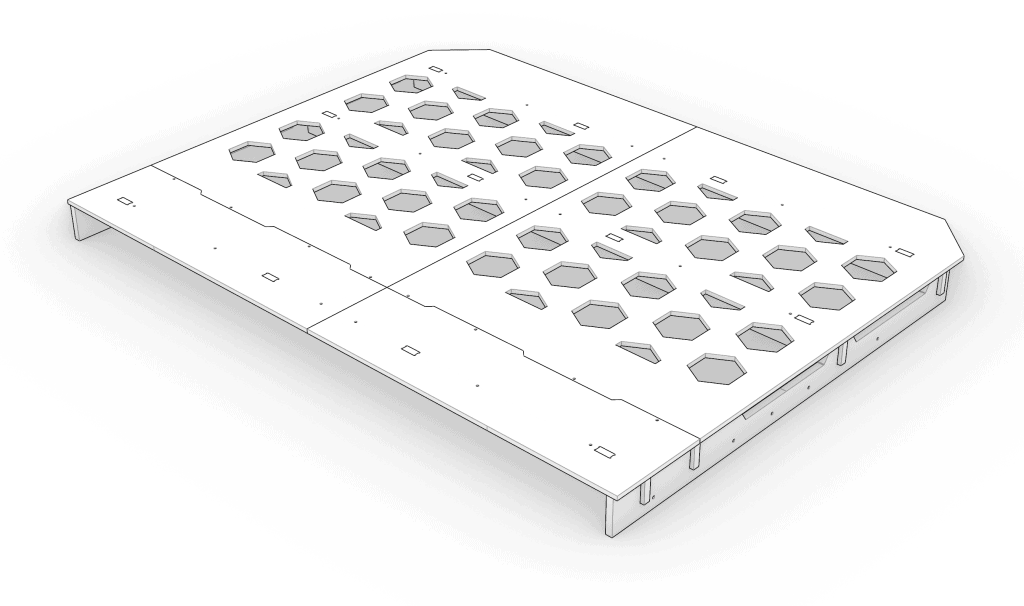

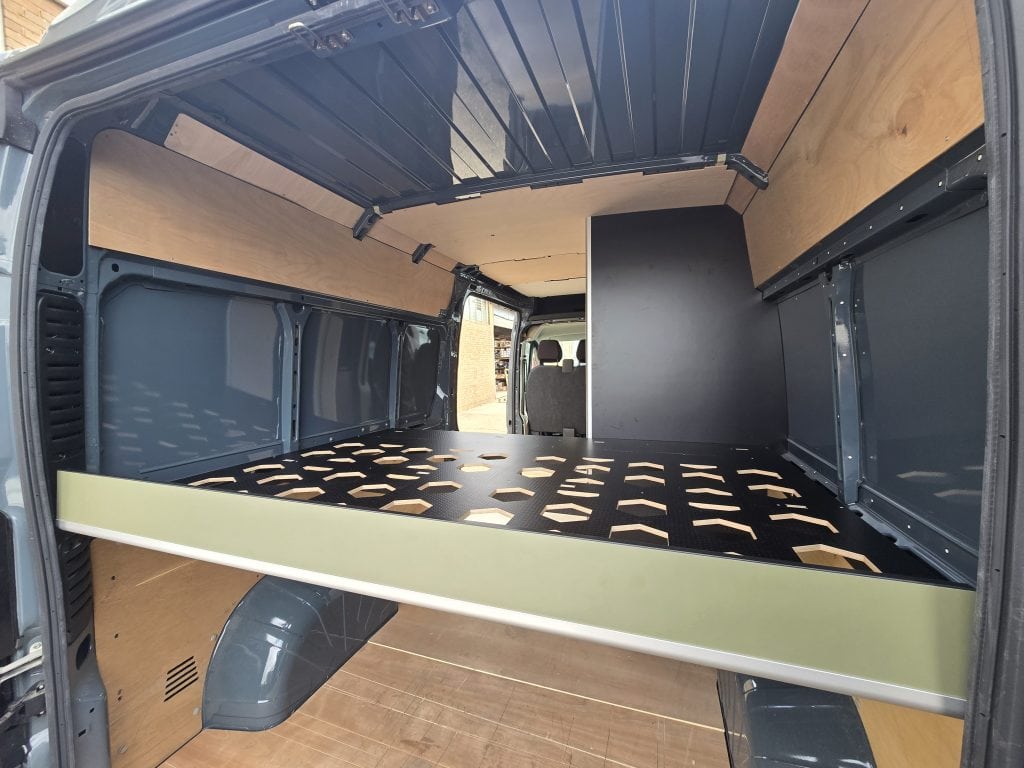

FLAT PACK REAR BED SYSTEM. THIS IS FOR THE CITROEN RELAY MK3 L3H2 VAN. BIRCH PLY WITH TOUGH BLACK RESIN FINISH FIXED WITH HEX HEAD NUT RIVITS (REQUIRES NUT RIVIT GUN) OR CAN OPTIONALLY BE SECURED USING LONG HEX HEAD SCREWS (supplied) FLATPACK QUICK INSTALL

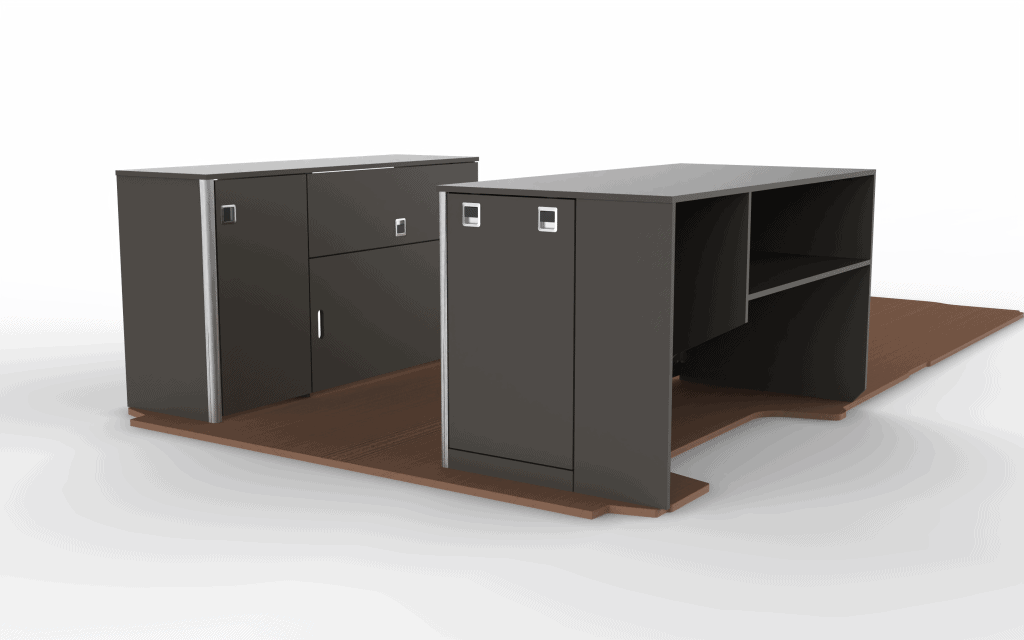

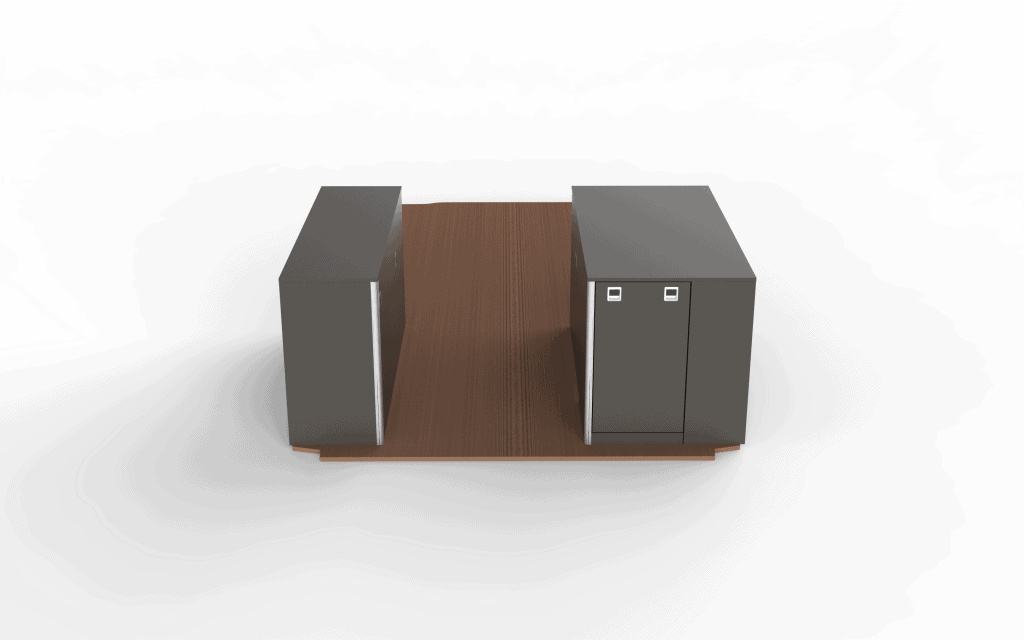

2 storage units designed to fit under our plywood bed platform for the Citroen Relay MK3 L3H2. Both units have a large swing door which allows easy access, with the driver side unit having a rear access gas bottle storage space.
