Plan view to help you with your conversion. Plan shows an EVO V11.3 kitchen pod. The double seat can be an existing front double from a van or our metal frame and seat box. The shower unit shown is our Shower C which is 810mm wide. The seat plinth can be omitted if you would prefer. This plan uses our floor. Exact dimensions may change slightly depending on options chosen and design updates. Please allow + or – 5mm.

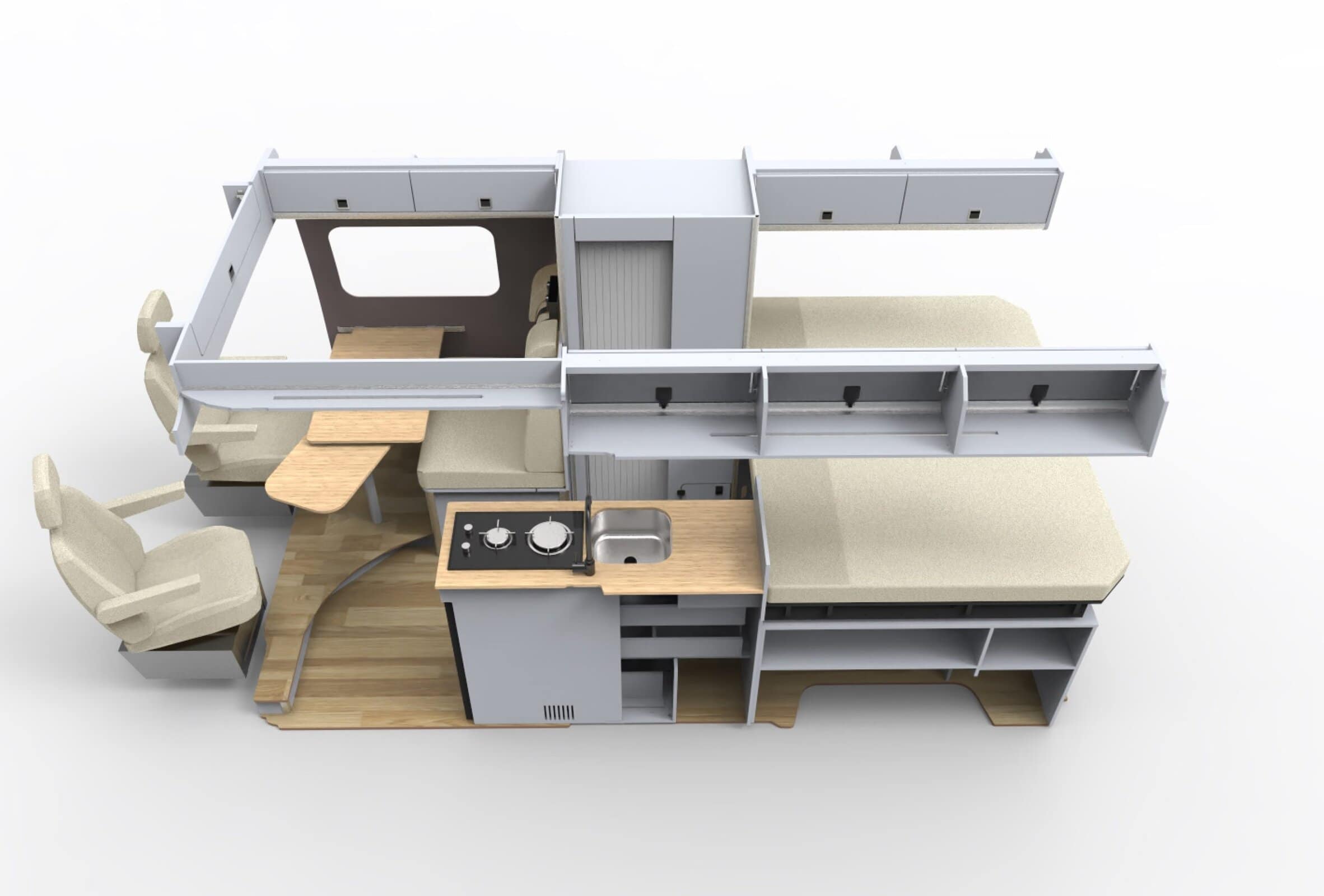

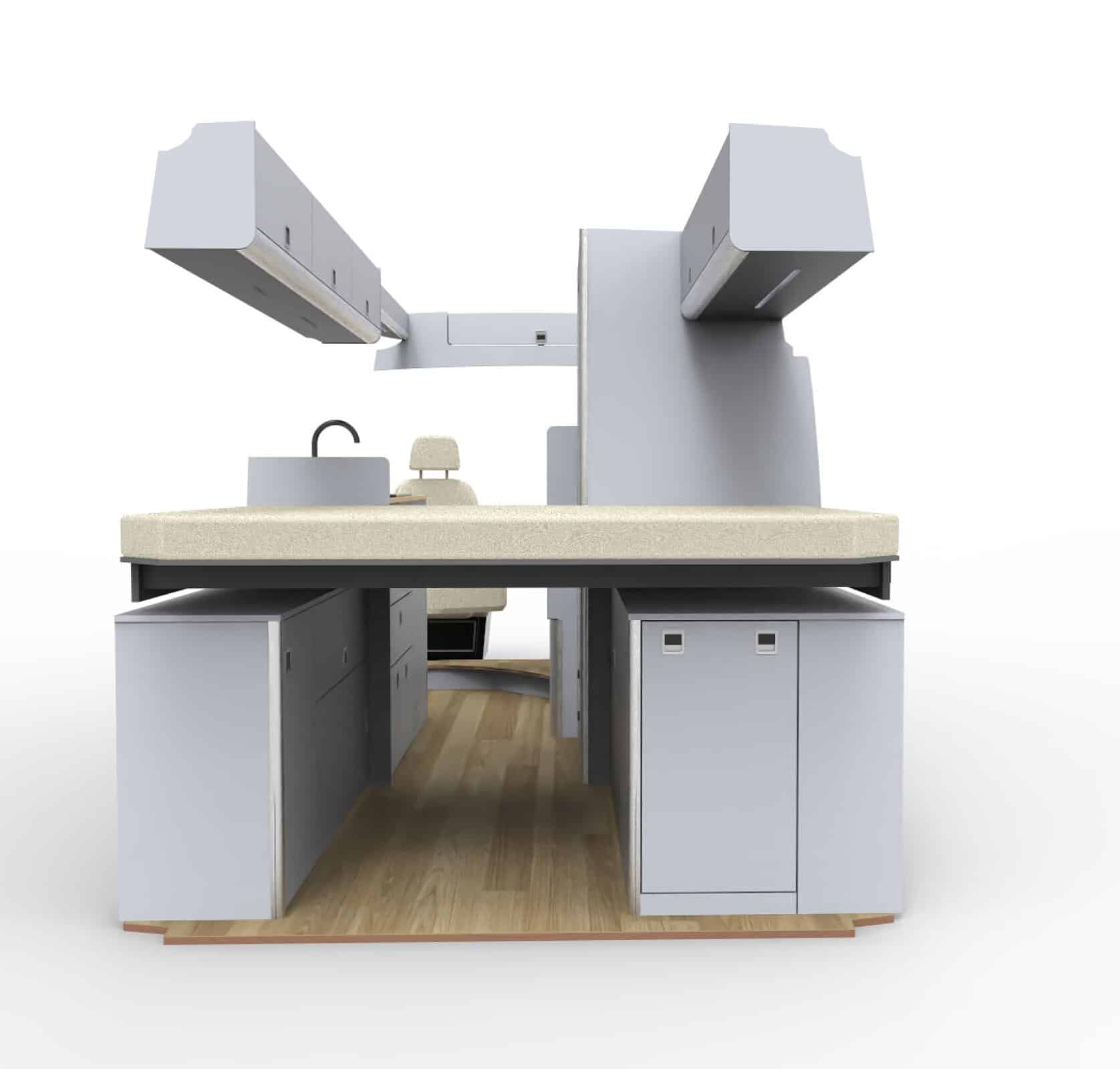

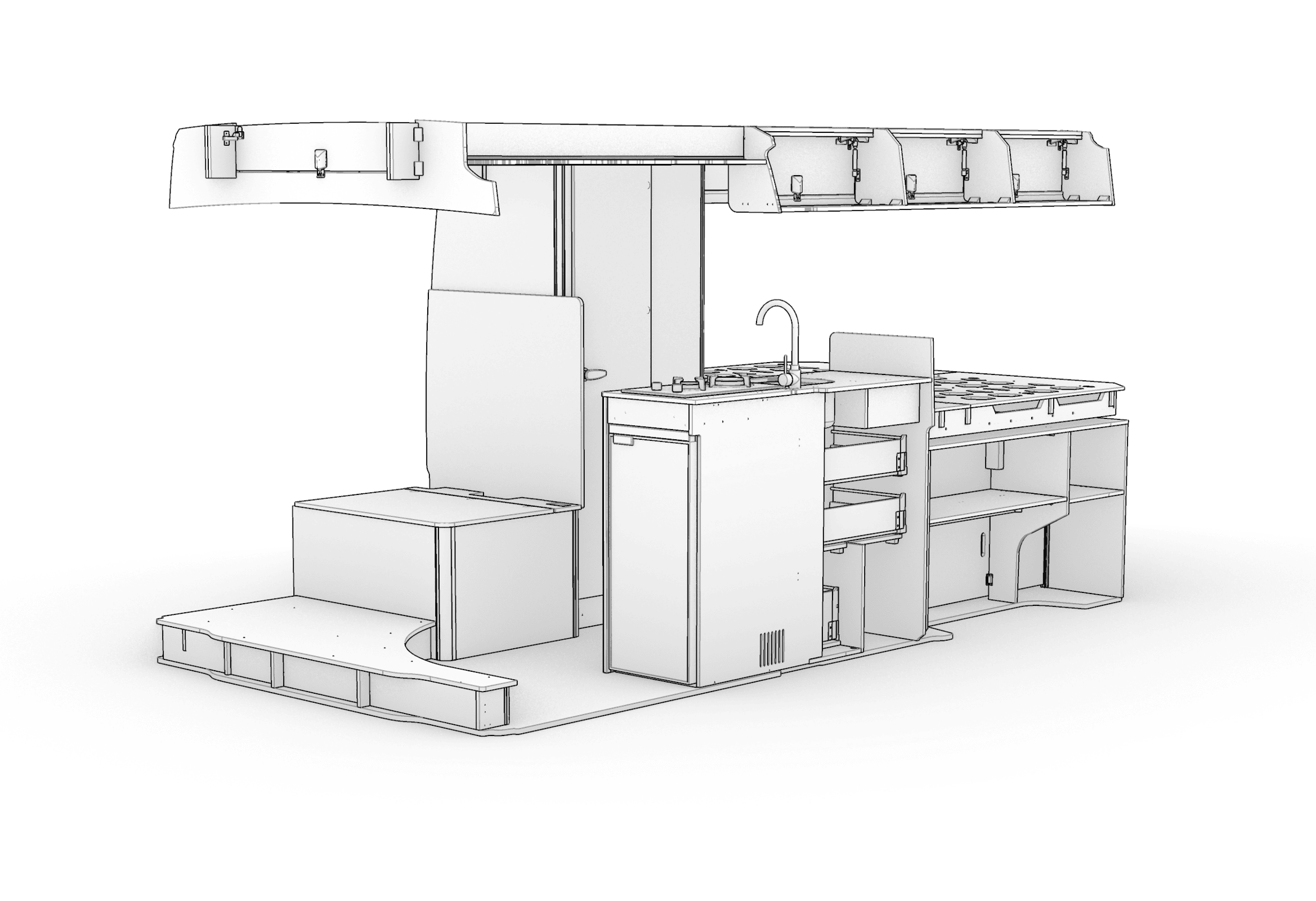

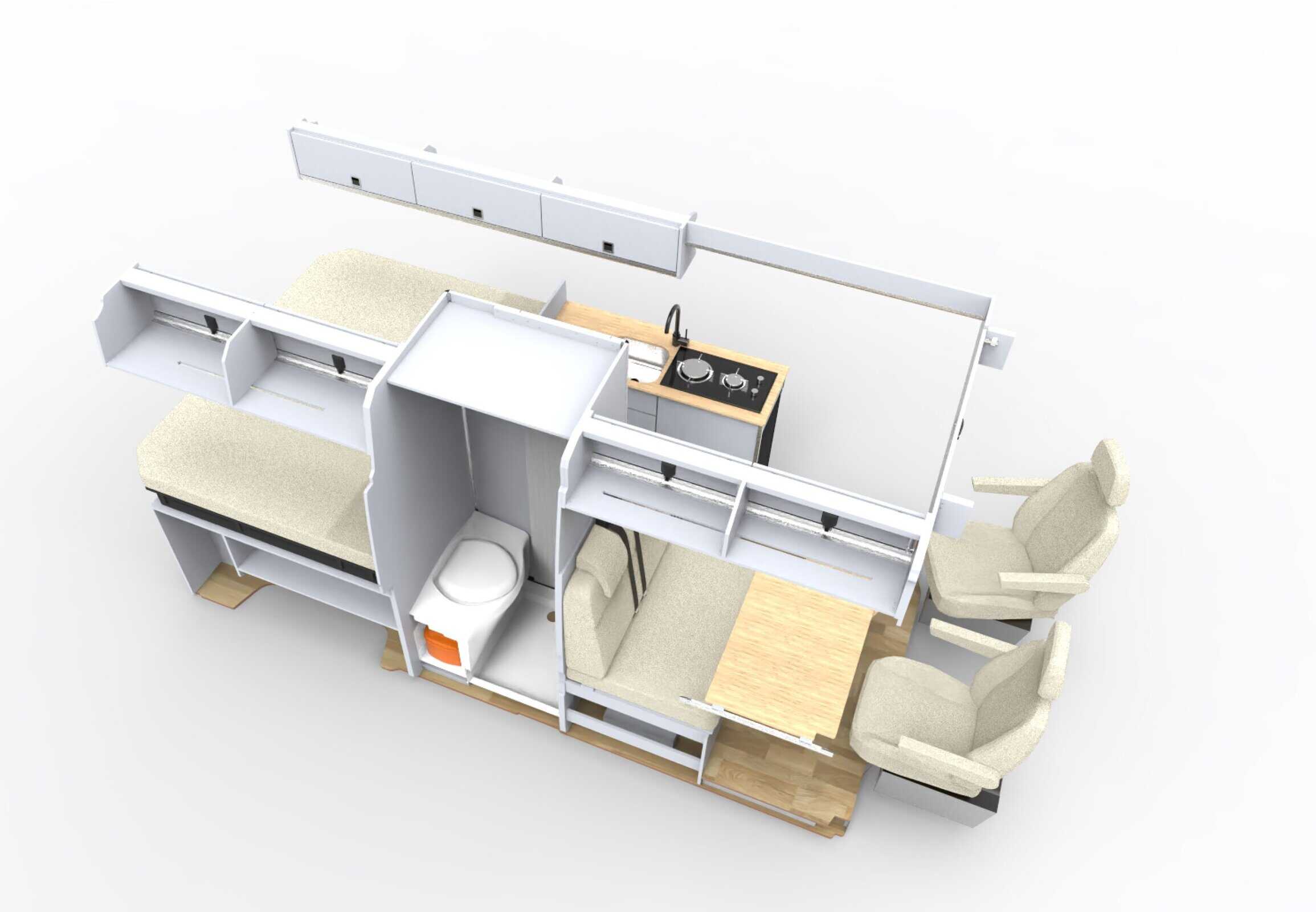

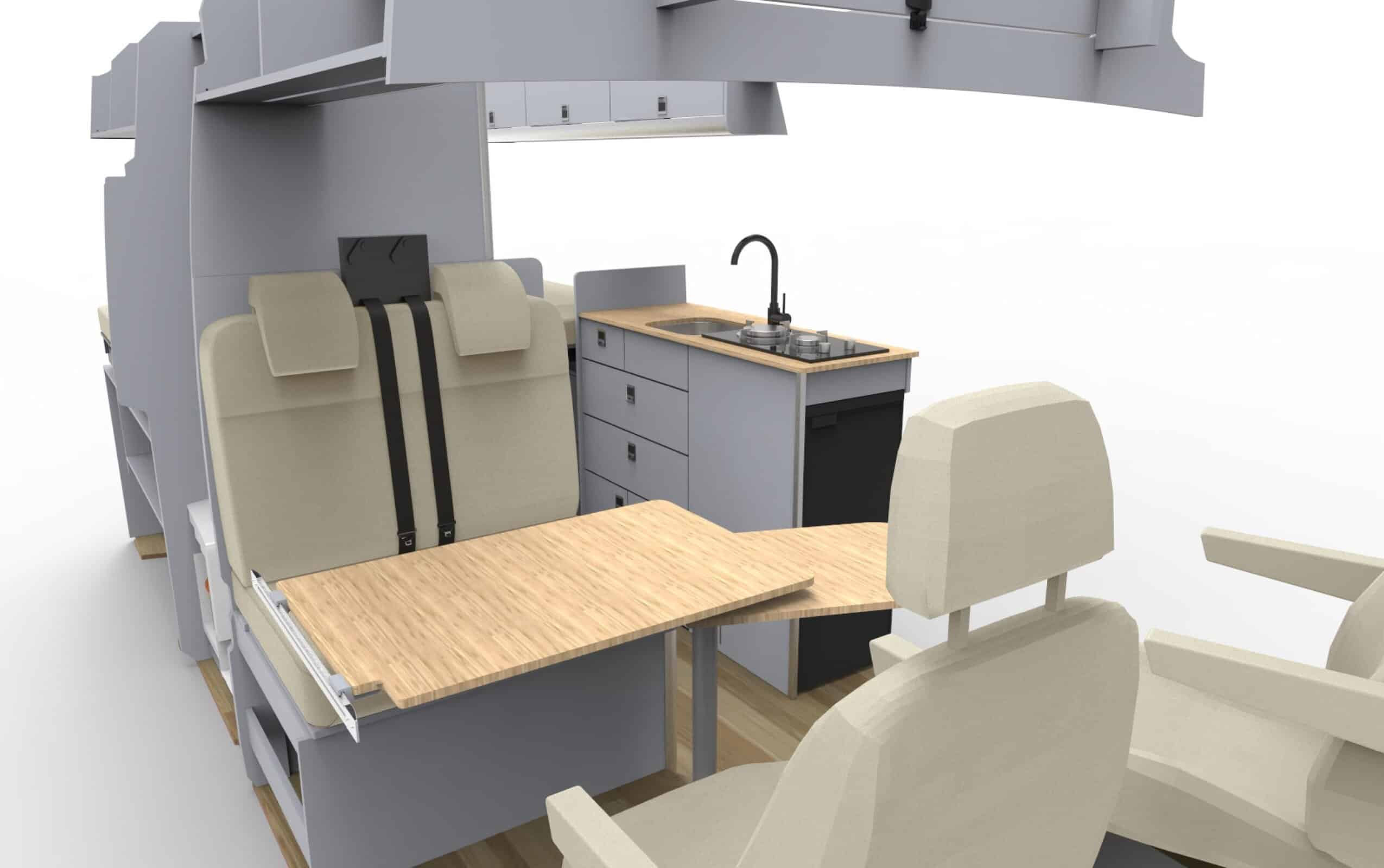

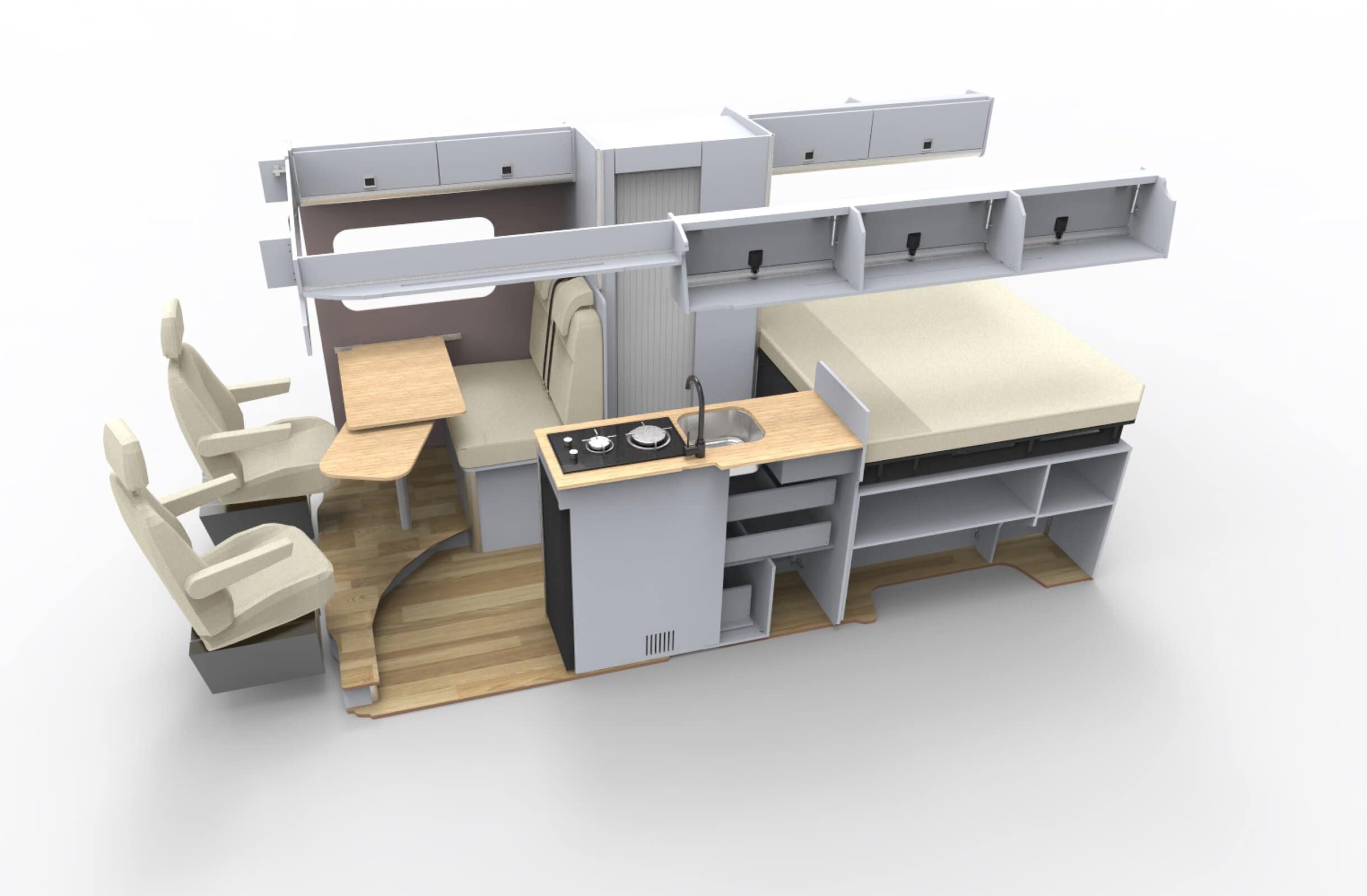

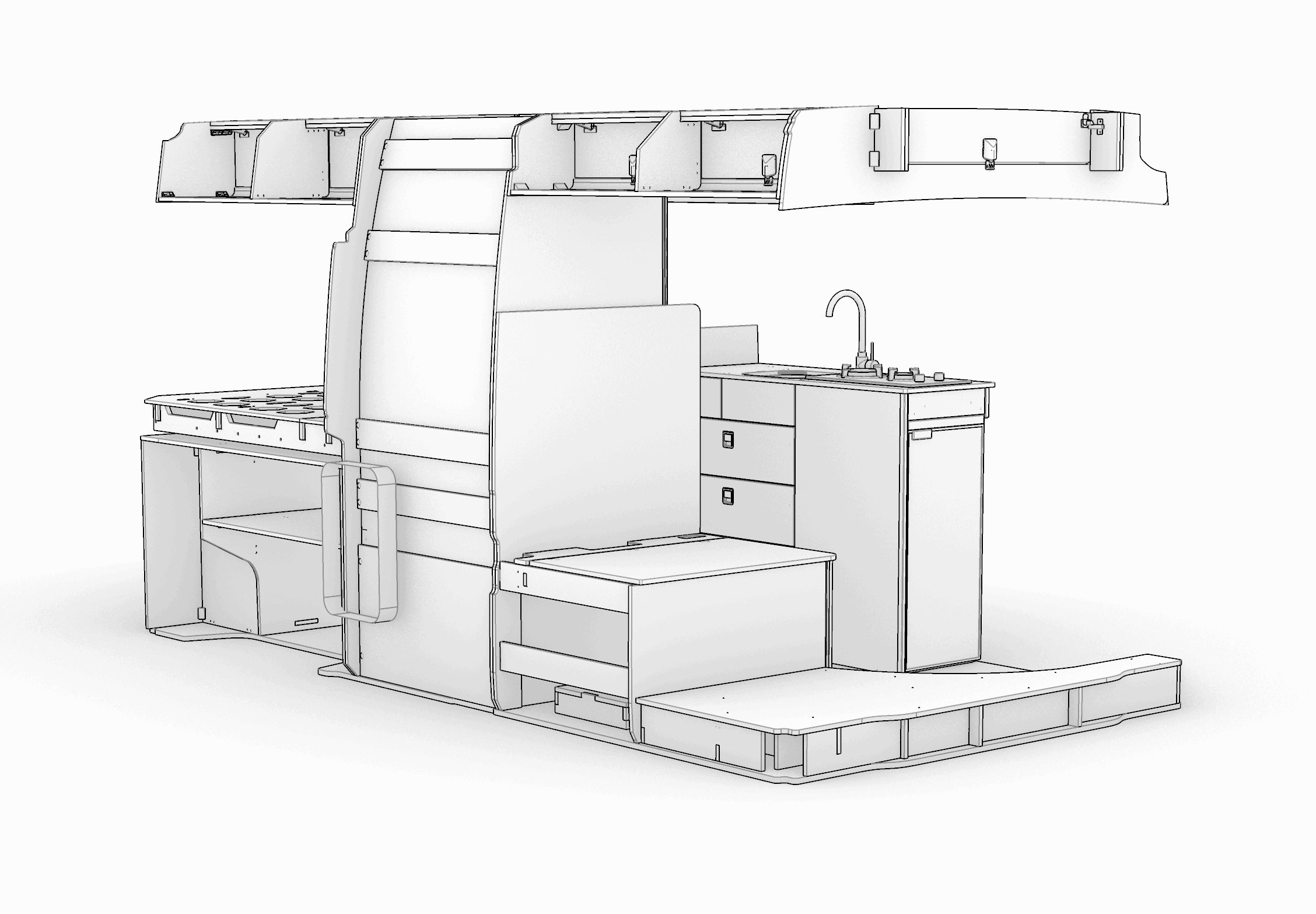

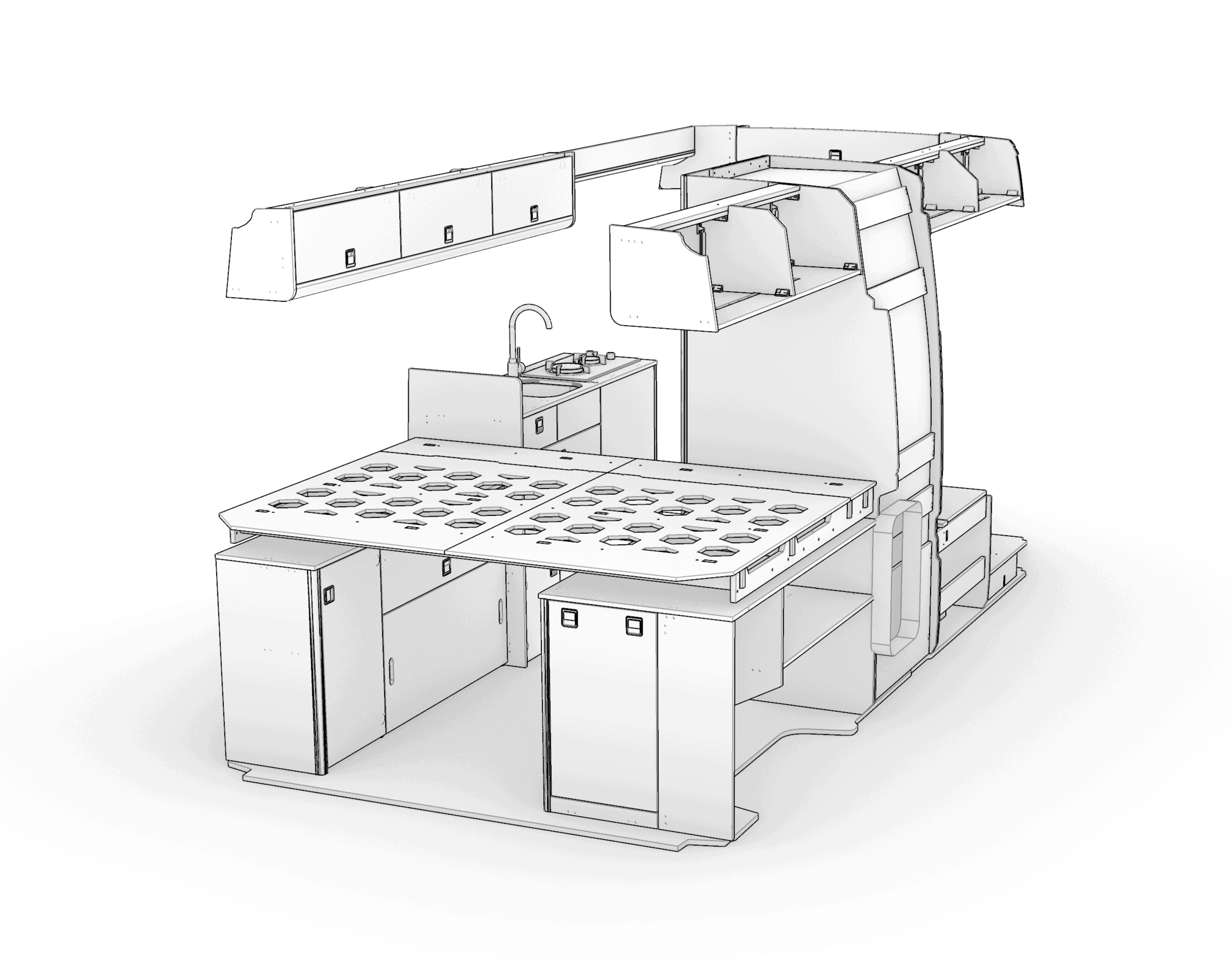

DESIGN 11 LAYOUT FOR THE CITROEN RELAY MK3 L3H2,  THERE ARE A NUMBER OF OPTIONS ON SOME OF THE PRODUCTS.

HIGH LEVEL LOCKERS

Locker C1 (Passenger Side Over Bed + Kitchen)

Locker C2 (Driver Side Rear)

Locker C3 (Driver Side Front)

Cable Cover

Over Cab Locker

KITCHEN POD

EVO V11.3 – Large Vans Side Door Kitchen Pod

REAR BED UNIT & PLATFORM

Rear Bed Platform

SHOWER

Shower Toilet Cubicle C

TABLE

iLSE Rotating Table Leg + Twin Worktops Tops + Mito Table Rail

SEAT AREA

Double Seat Frame Forward Facing

FLOOR PLINTH

Floor Plinth for Citroen Relay MK3 L3H2 coming soon

PANELLING ROOF & SIDES

Internal Panels

FLOOR

Light Weight Insulated Floor

OPTIONAL ITEMS & APPLIANCES

Thetford Topline 922 Hob Twin Burner 12V Ignition

Indel B Cruise CR86 Fridge

Large Sink

Small Sink

TRUMA Combi 4DE – Diesel & Electrical + INET X Control Panel + Second Gen
