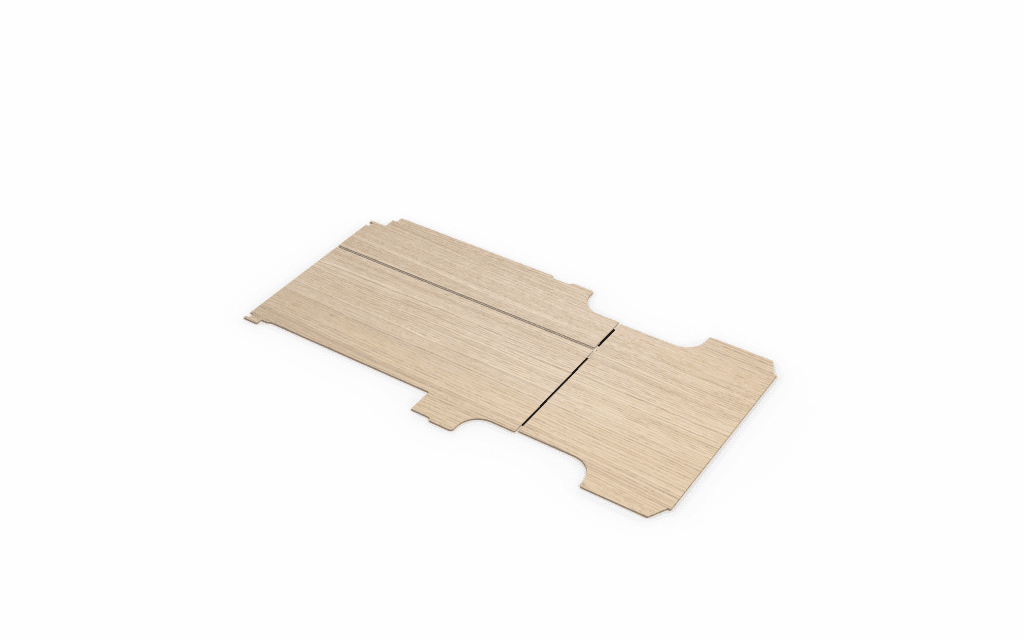

CUT FOR PALLET DELIVERY Only works with RWD rear wheel drive ( will not fit the FWD )  3 piece insulated floor 18mm. The floor is made from an Ultralight sandwich panel with an insulating XPS (extruded polystyrene) core combined with plywood that is made of 100% European poplar ply with lap joints. Pallet cut version is cut in 3 panels across the width of the van. Ensure the floor is well bonded ( we have used and can recommend SOUDAFLEX 40FC, other polyurethane adhesives are available ) and the joints are set level before covering with vinyl. Leave a weight over lap joints while the adhesive is setting. Fill and sand joints flat if required.Use commercial grade vinyl, eg. Altro flooring. Avoid domestic foam backed Lino as this will not last.

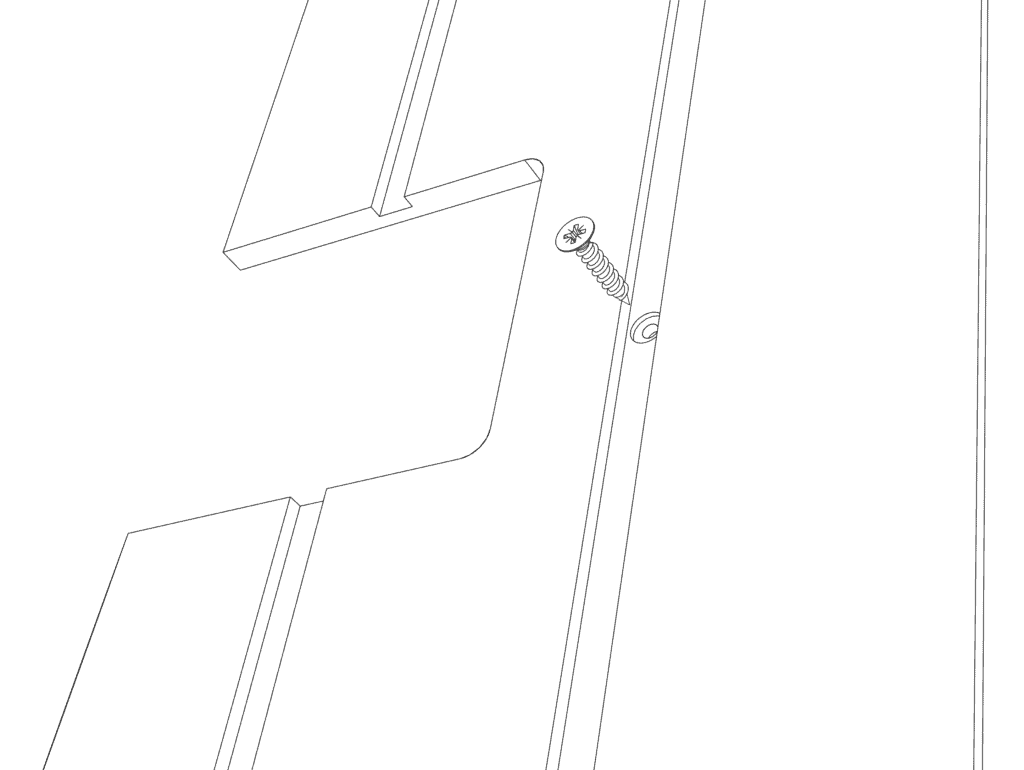

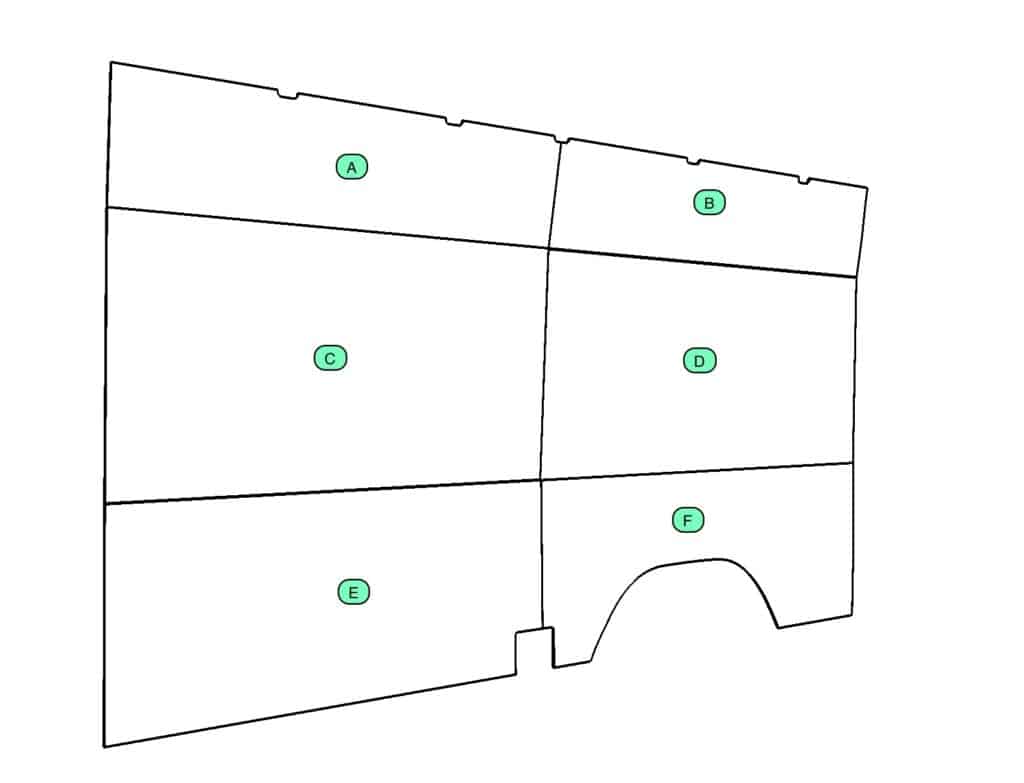

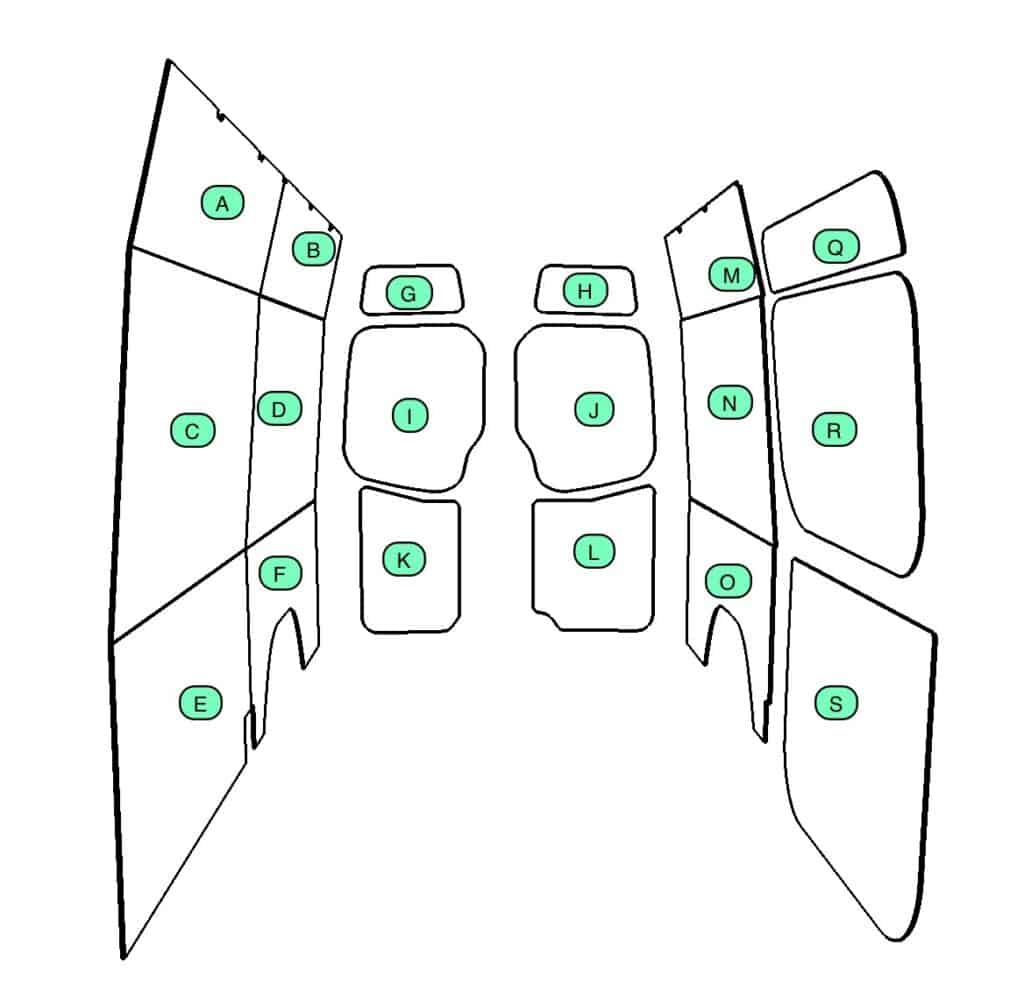

Mercedes Sprinter 2006 - 2017 or  Volkswagen Crafter ( 2006 - 2017 ) CUT FROM 5.5mm PLYWOOD Some of the panels are pre drilled for use with panel clips where possible others require screw fixing ( 3.5 x 17mm countersunk screw recommended ) PANEL CLIPS ARE NOT INCLUDED Panels I, J & R are designed to have a 15mm batten behind them bonded to the metal skin to allow for windows such as the seitz S4 . Panels O and F for new sprinter 2018+ FWD do not have any pre drilled holes. new sprinter 2018+ Rear door panels sold seperatly here

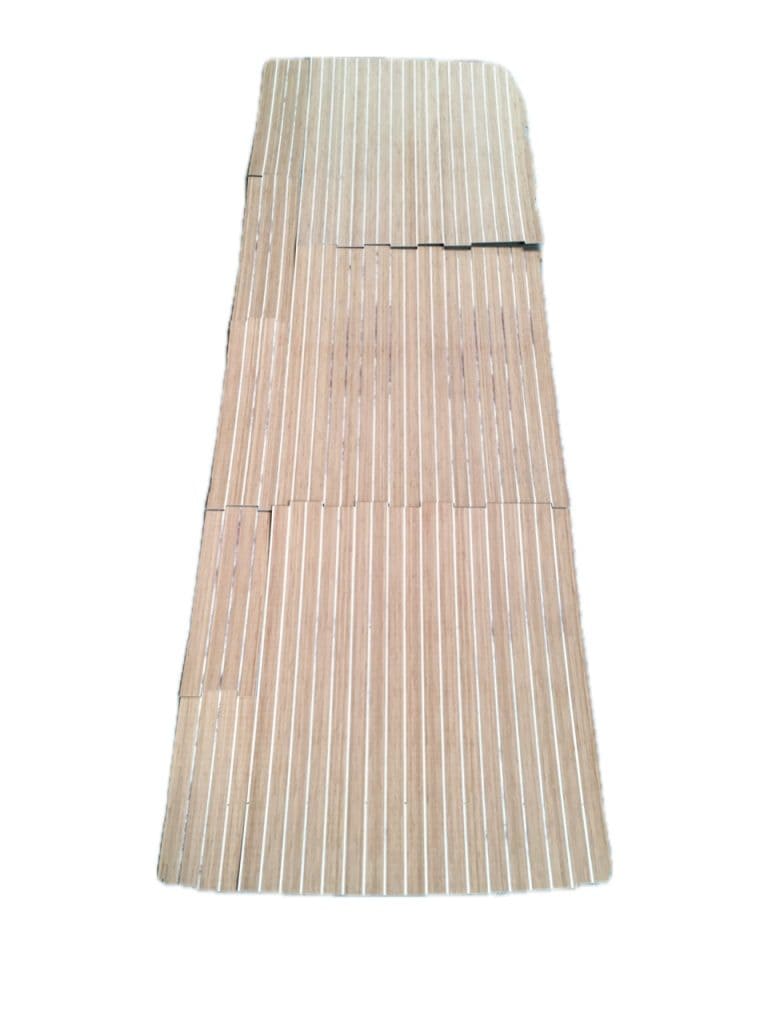

Plywood ROOF PANELS PRE DRILLED HOLE FOR PANEL CLIPS (NOT SUPPLIED) 2006 - 2017 If buying bamboo this will need varnishing on both sides of the board.

ONLY Suitable for skilled converts or skilled and competent DIYers. ( Two people required for installation )   Sprinter 2006 MWB + Designed to be glued together using PVA glue using a large hard flat surface ( 8 x 4 sheet of plywood ). Then installed in one piece. Steps to assemble. Glue the panels together using PVA adhesive and apply weight over night on a clean hard flat surface ( 8 x 4 sheet of plywood on the floor. ) Ensure the parts are together with no gaps. Use masking tape to hold the panels together on the birch side until the glue sets. Make sure the jointing strips are not going to interfere with the metal ribs of the van. Using the supplied black marker pens slowly drag the marker pens in one direction in the pre cut grooves. Scrubbing the pen back and forth results in the disintegration of the pen tip which makes a mess, it is better to dwell on an area that needs filling and drag the pens in one direction slowly. Take care not to rush this part and allow the ink to flow from the pens and move slowly. Once the pen dries up, swap pens and store them with the tips down, lids on to allow the ink to move towards the tip. This is a slow process and it will take about an hour to use the supplied black marker pens to get a good finish.  Apply a quick drying water based varnish with a mini foam roller on both sides, apply several coats to the bamboo side and very lightly sand between coats. Install the roof in one large piece, two people will be needed for this process to ensure the roof is not damaged. Use two plaster board props or timber cut to length to hold the roof in place. Carefully locate the roof centrally in the van. When the roof is held up with props it is easy to move the roof. Once the position is good drive in the supplied black screws directly into the metal ribs using firm pressure, do not over tighten.   Two people will be required to install this and use plaster board props or timber cut to your ceiling height to hold this in place temporally while until screws are installed. Supplied with Black 3.5 x 15mm screws and 8 black marker pens. Designed to be screwed directly in to the metal roof ribs. Firm pressure needed to start off the screws, be careful not to over tighten and strip the threads. This will need varnishing on both sides of the board. This is a natural product and needs to be stored in a dry, warm location until it can be varnished. These roof panels are not cut to go around the factory fitted pillar covers.

Gloss White

Gloss White with drivers side window

Gloss Black

Gloss Black with window driver's side

EVO V6 Side door kitchen pod for large the VW crafter & mercedes Sprinter This pod sits on the side loading door. Can be purchased without side door step storage which will allow it fit other van models. 4 soft close draws, 1 push to open slide out worktop extension, 1 hinged door and shelf, 1 side door step storage Evomatic XL catches The majority of the panels are pre edge banded Accepts ONLY THE Vitrifrigo 50i shallow depth fridge, worktop can be left solid Fits the topline 922 twin burner hob with our under mount sink. ( Can fit the 9222 left hand sink, will not fit the Wallace XC Duo or 9722 ) max depth 90mm Fridge accessible from outside the van Universal model with worktop unscribed, no side step storage, unshaped back allowing it to fit into a wide variety of vehicles Flat pack design for you to assemble Can be cut for Left hand or Right hand drive vehicles Designed to work with our passenger side space pod (1 back panel will need cutting if not using a space pod) Internal water bottle shelf will match worktop finish. Does not include a storage above counter as in image this available to buy as an add on to Locker F     SaveSave SaveSave SaveSave SaveSave SaveSave SaveSave SaveSave

EVO V8 Side door kitchen pod for large the VW Crafter, Mercedes Sprinter & Man TGE - Accepts MASSIVE THETFORD T2090 - 90 litre fridge. Available here 4 soft close draws, 1 hinged door, shelf and space behind door for bin Evomatic XL catches The majority of the panels are pre edge banded Designed for the THETFORD T2090  90 liter fridge ONLY ( Does not include the fridge. ) *TWIN OPENING fridge* Universal model kitchen (see description) to fit the new 90L TWIN OPENING Fridge ( 5mm wider )  as above but made 5mm wider to fit the new 90L alpicool TWIN OPENING Fridge. Please note the larger rubber feet will need to be removed replaced with smaller rubber feet or cut down. ( Does not include the fridge. ) Suits a wide variety of hobs & sinks, recommended hob is Thetford Topline 922 Fridge accessible from inside and outside the van with hinged door that can open fully Universal model with worktop unscribed, no side step storage, unshaped back allowing it to fit into a wide variety of vehicles Flat pack design for you to assemble Can be cut for Left hand or Right hand drive vehicles Designed to work with our passenger side space pod (1 back panel will need cutting if not using a space pod) Universal model has no notch in the worktop, back panel is not shaped to pillar or step and end panel is squared to fit a wide variety of vans Designed to work with our passenger side space pod (1 back panel will need cutting if not using a space pod) **Images show under mount sink with bamboo top (small sink recommended) **Designed for our 18mm floor thickness + 2mm vinyl , if you have a different thickness floor this will affect how the shaped panel sits against the C pillar and door step, in this case we recommend the universal version **Does not include a storage above counter as in image this available to buy as an add on to Locker N     SaveSave SaveSave SaveSave SaveSave SaveSave SaveSave SaveSave

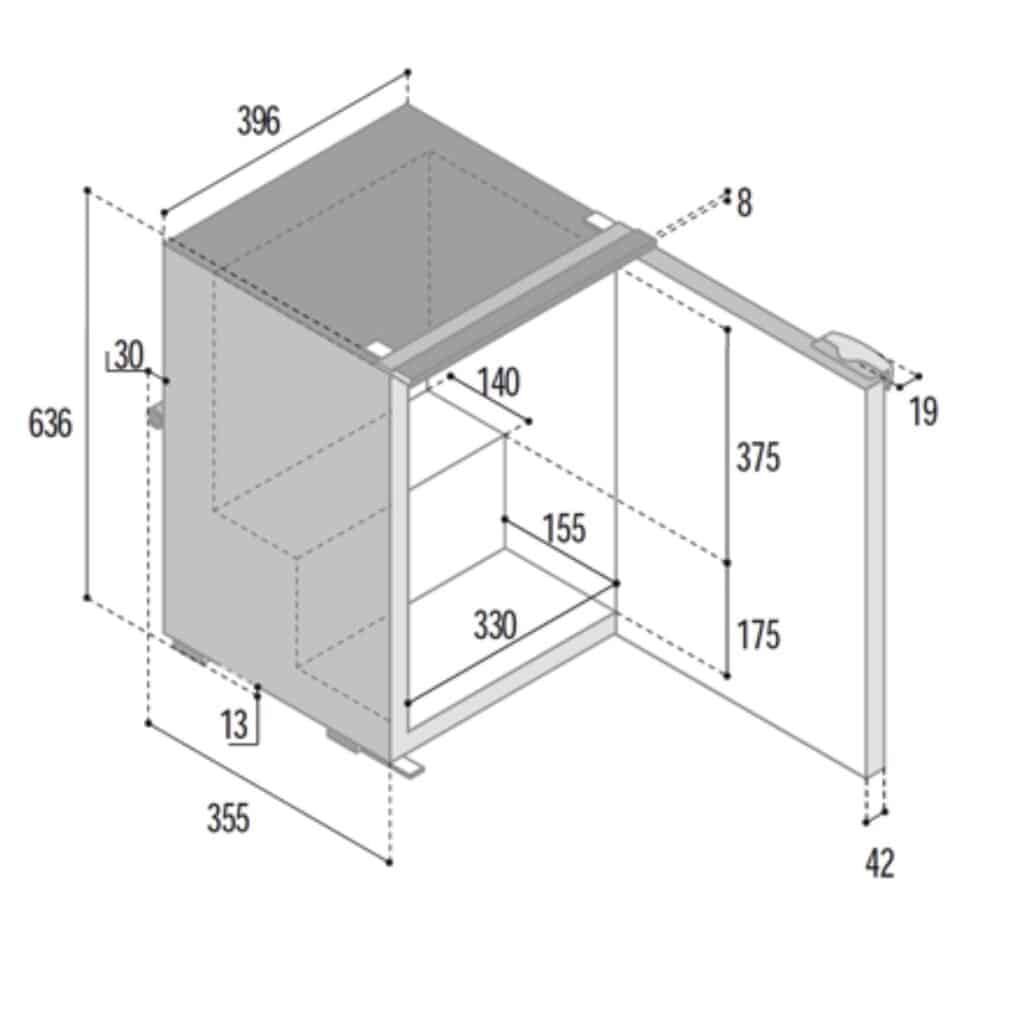

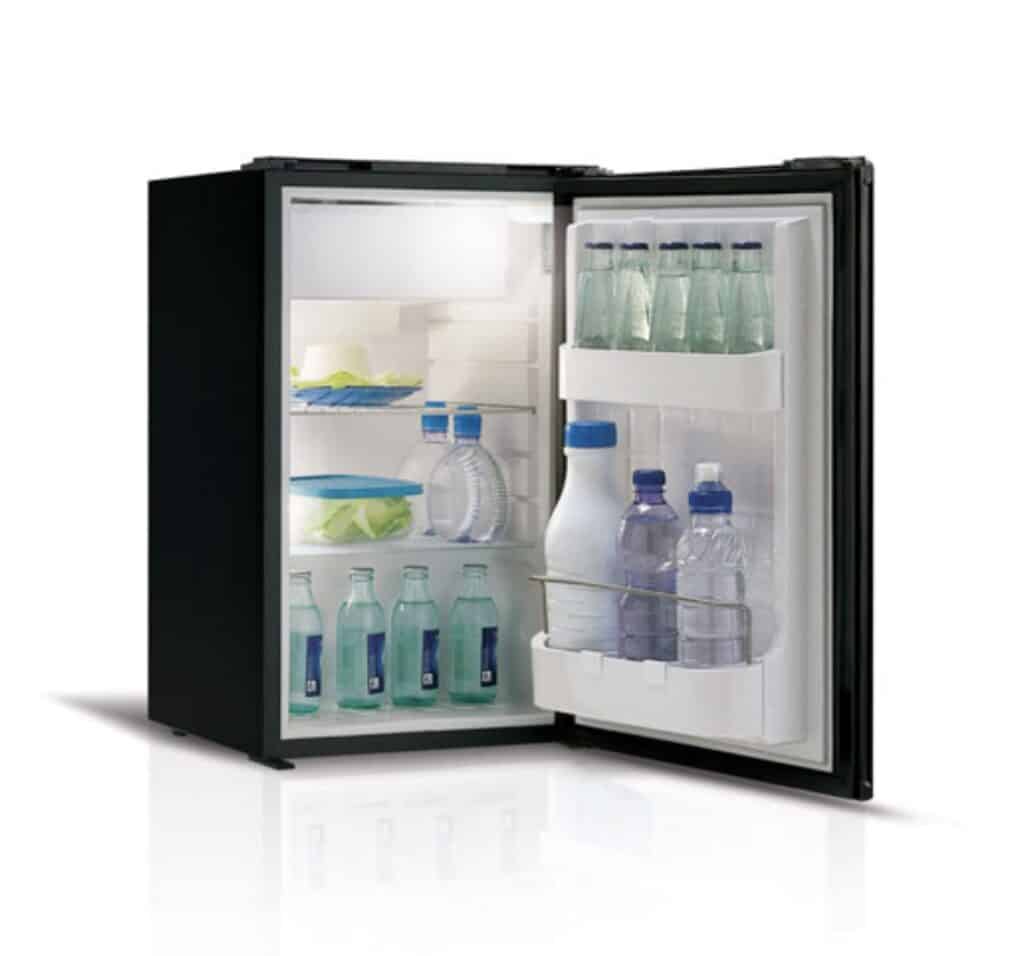

VITRIFRIGO FRIDGE C50i (internal cooling unit) Suitable for EVO V4 & V6 pods SPRINTER – CRAFTER 2011–2017 (Side door kitchen pod) Airlock door system for keeping the cold in Thermostat controlled Side blowing cooling fan optimised for our kits allowing better efficiency Easily interchangeable door panels supplied with a light grey door as standard .... more options coming soon  Super efficient 12 v system Italian designed as used in Super Yachts around the world   Total volume lt 50 Freezer volume lt 3,6 Net weight kg 17 Power supply12/24Vdc (also available with dual electronic box 12/24Vdc - 100-240Vac 50/60Hz) Nominal consumption 40W Overall width mm.396 Overall height mm.636 Overall depth mm.397

Suitable for use in our Sprinter and Crafter kitchen pods . Designed for use in camper vans with no loose rings and bolted into the work top for security. Electric ignition High-quality materials and components Contemporary, home-like design Optimal use of space Superior cooking performance Features 2 burner Black glass contemporary design Matt nickel knobs Good sized 40mm matt nickel knobs; about the same size as you’d find on domestic appliances Suitable for 120-200mm pans, so there’s quite a lot of scope when it comes to choosing pots Fixes with invisible foam seal for a fully integrated appearance Product Specification Nickel knobs: 40mm Gas burners: 2 x semi rapid 1.5kW Ignition: 12v Total heat input: 3.0kW Weight: 5.0kg Worktop cut-out dimensions: 285mm (W) x 485mm (D) Overall dimensions: 95 (H) x 305 (W) x 500 mm (D)

Latest control interface allows you to connect your phone to control your Truma D4E heater , second gen round flue. Electric version of Combi D4E with integrated electrical heating elements for diesel, electrical or mixed mode This is the perfect solution for sprinter / crafter sized vans Mwb or Lwb van , ideally can be install under the front seating area or under the bed area. The Truma Combi D4E complete kit includes: Truma Combi D4E diesel and electric heater unit Truma I-net X digital control panel John Guest water kit 6 metres control panel cable Truma Combi diesel exhaust kit Japan Solderless Terminal electrical ends Truma operation instructions Includes every you need for a new installation except : Ducting , vent outlets and an appropriate connection into you diesel tank ( fuel line is included )

Thetford T1090E 12v Compressor fridge (Replaces T2090) Works with our EVO V8 kitchen. Please note the decor panel option is not supplied as standard and is an option. Option decor panel 0.8mm HPL laminate fridge decor panel cut for thetford T2090 satin black. ( Will need backing in cardboard to make thicker. Cardboard backing not supplied. ) How to install - https://www.thetford.com/app/uploads/2025/05/IM_T1000E_EN_693096-0425-V03.pdf?utm_source=chatgpt.com No external vent required Unique shape allows for the curve on the wall of your van Ultra efficient power use Day & night mode makes it super efficient Low noise operation Freezer to minus 9 degrees Main dimensions (h x w x d)975 x 418 x 486 mm Partnumber – 692545 Recommended built-in depth – 506 mm Total volume incl. freezer – 84L Delivery is not included in the price. Does not include screws. ( Use 4 x 4x25mm Screws to install. ) Our current stock of fridges are all unboxed. If you are collecting the fridge will not be boxed. If the fridge is to be sent on a pallet, we will box it in a blank box.  https://www.youtube.com/watch?v=dhljzE1pRI0

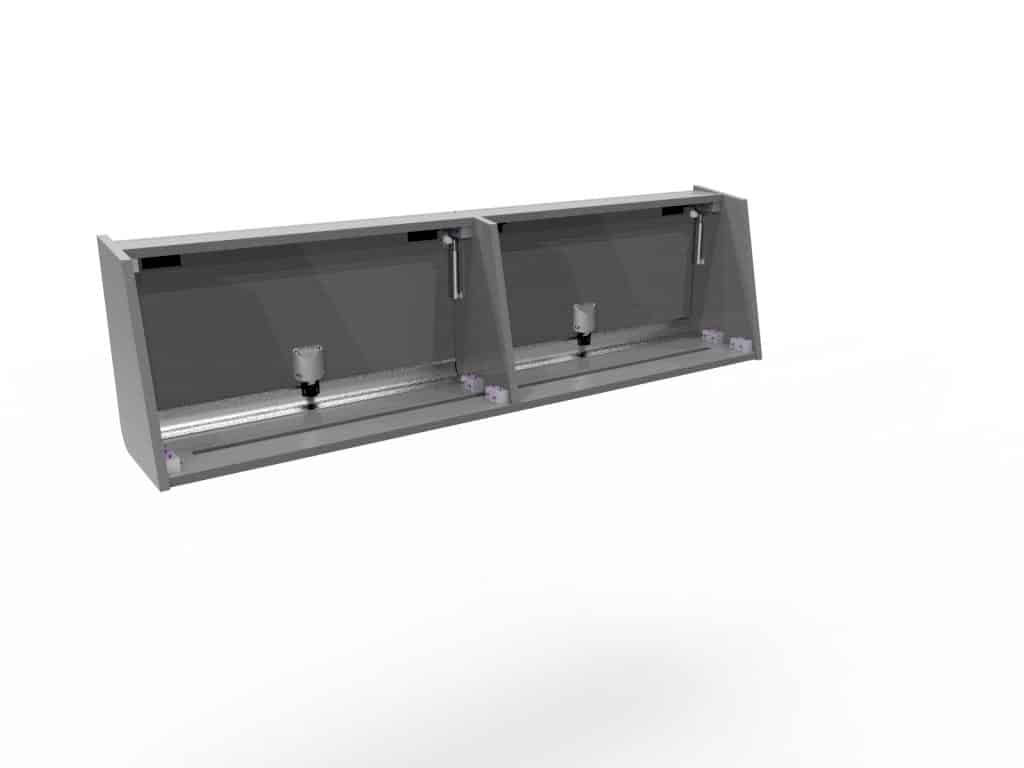

Over cab locker designed to fit perfectly in the heading lining contours of your Mercedes Sprinter or Crafter to 2017. Sprinter / Crafter 2006 - 2017 The locker will need fixing at serval points into the van structure around the perimeter of the locker and the centre of the locker via strap metal strap bonded to the skin of the van. Only a horizontal grain direction is possible due to sheet size. DESIGN CHANGED TO SINGLE DOOR VERSION ONLY, 2 DOOR VERSION DISCONTINUED Aluminium overhang will need filing down a few mm to fit curve of locker.

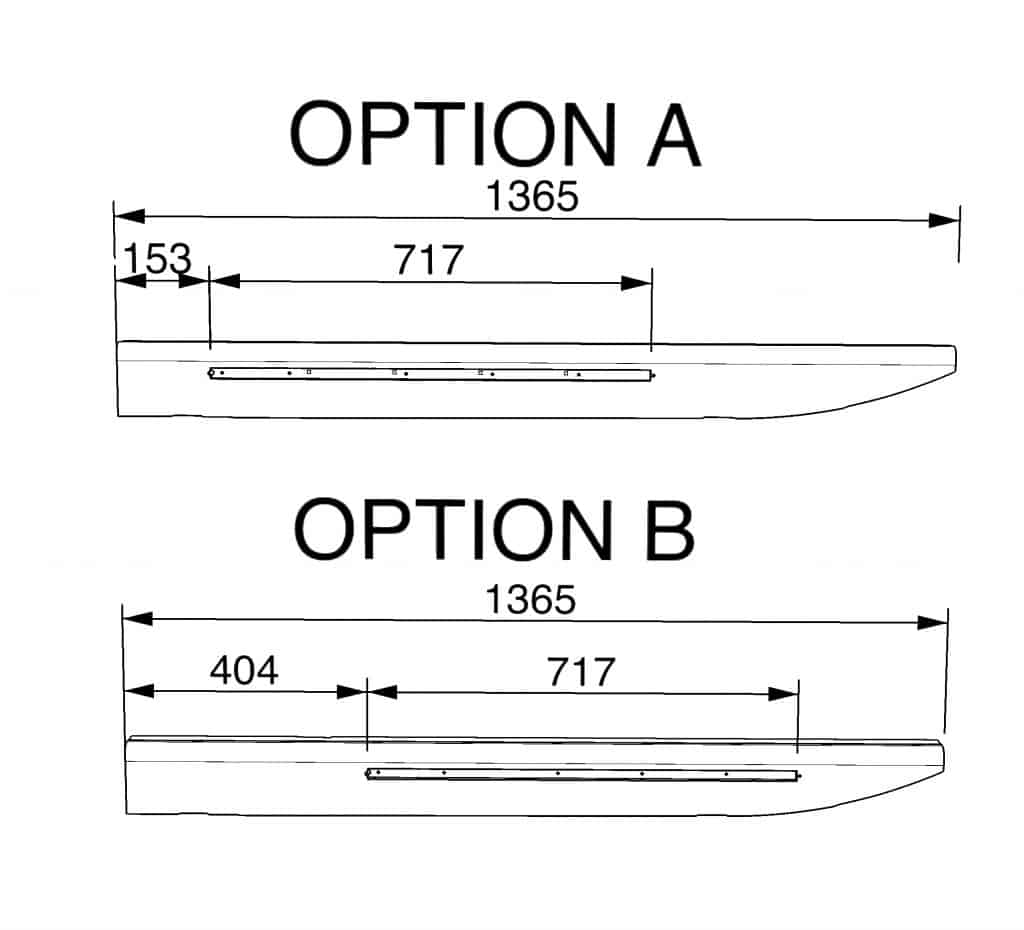

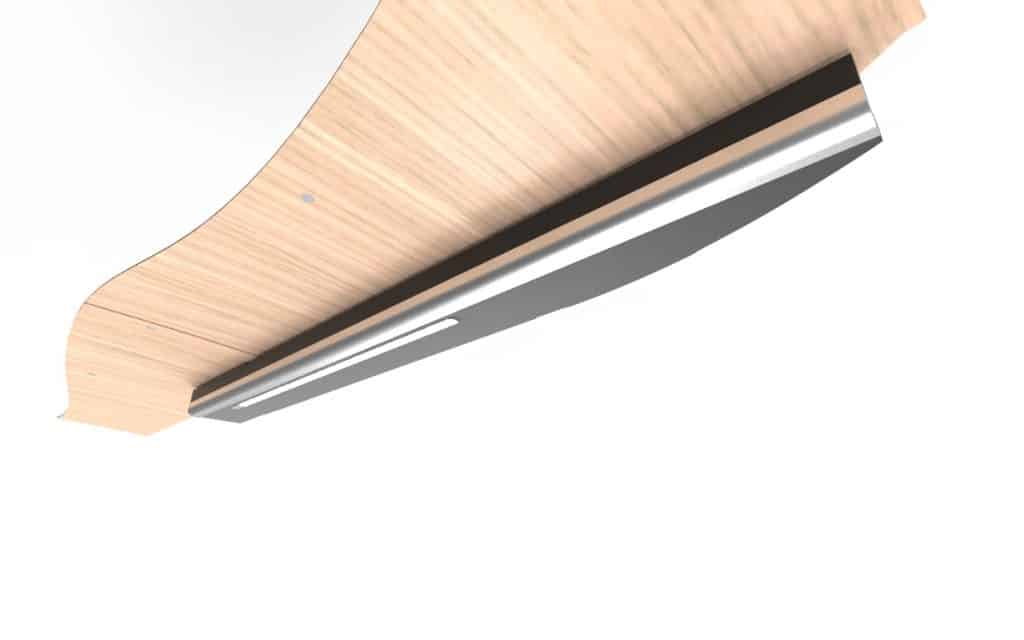

Designed for the vw crafter or Merc Sprinter 2006 til 2017 This cover has an in built light dimmable touch sensitive led light and is designed to hide the electrical cable bundle over the side loading door. Designed to be used in conjunction with our Locker F and Over cab locker. You have 2 options on the position of the led light. Option A is to illuminate over the kitchen worktop if you have Locker F Option B is to illuminate over the door opening is is more suitable if you have lockers which extend over the sliding door opening allowing you to cut the cable cover to length.

Grain direction may change.

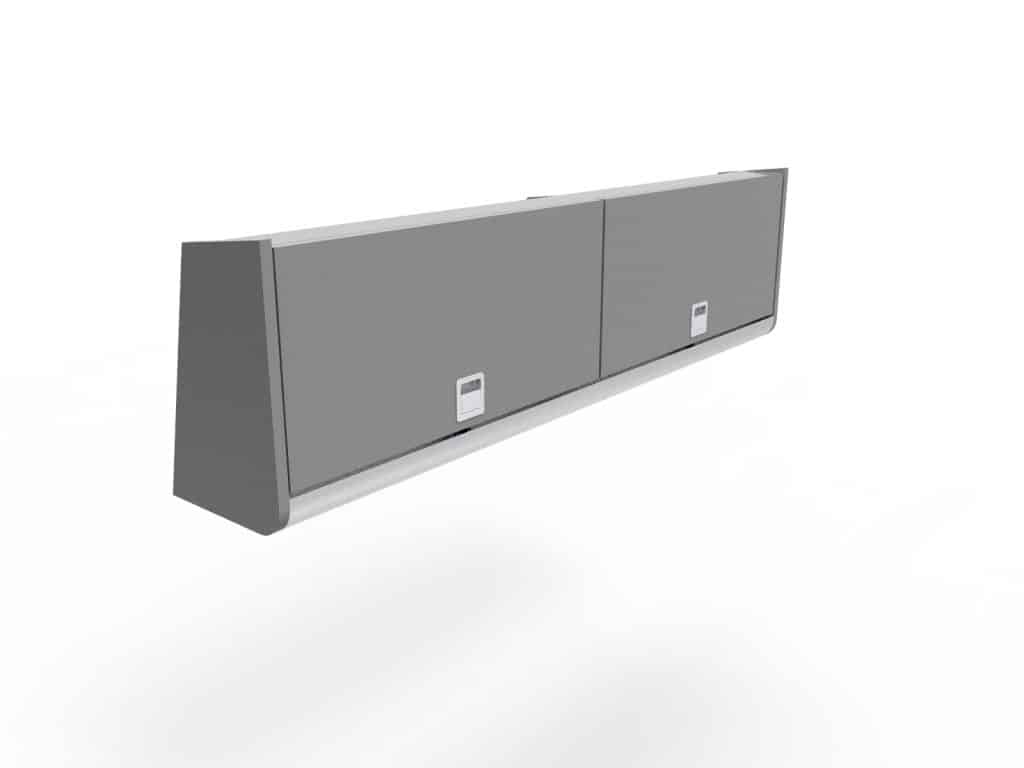

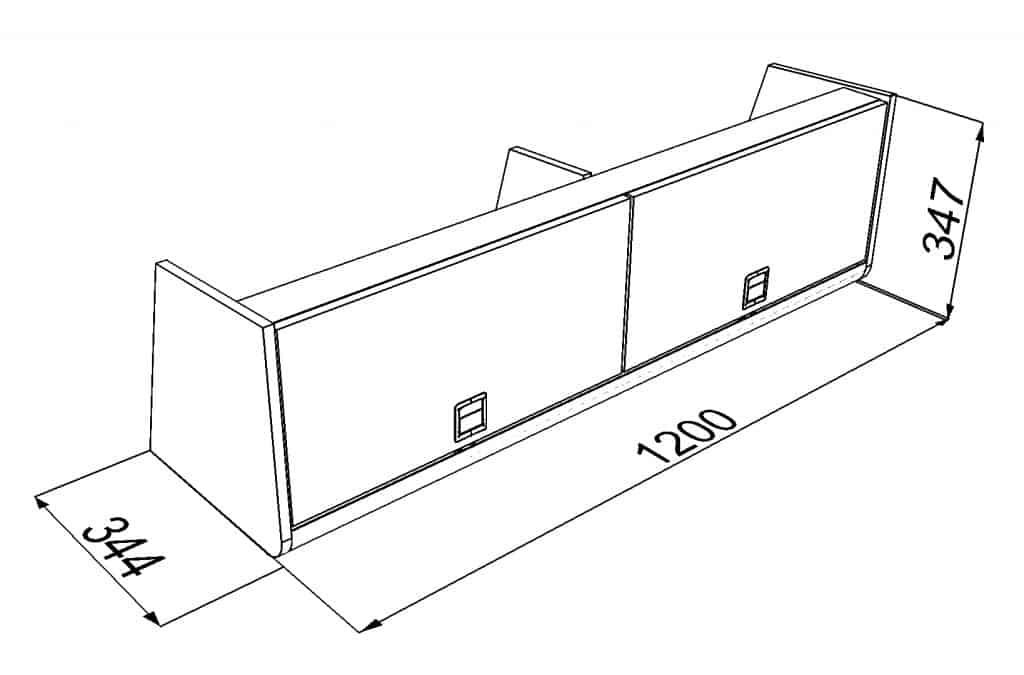

Works with our 600mm wide micro shower in a MWB Sprinter / Crafter 2006 - 2017 Locker with 2 hinged doors 1260mm long with optional led light strip. Doors have stays to hold the door up when opened coming soon

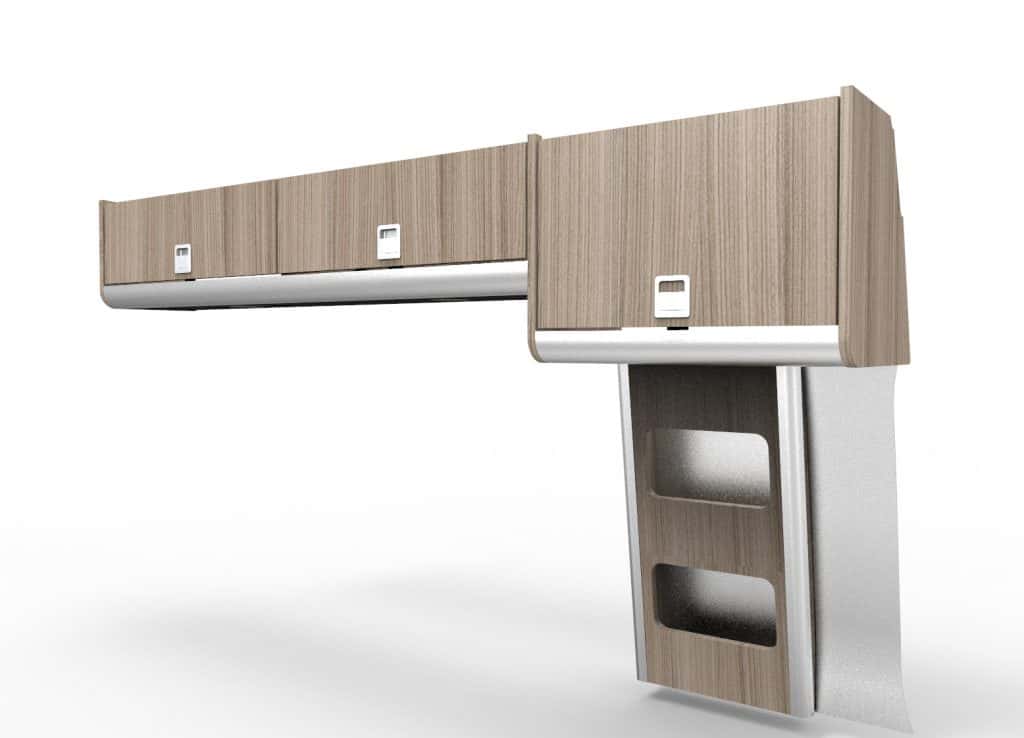

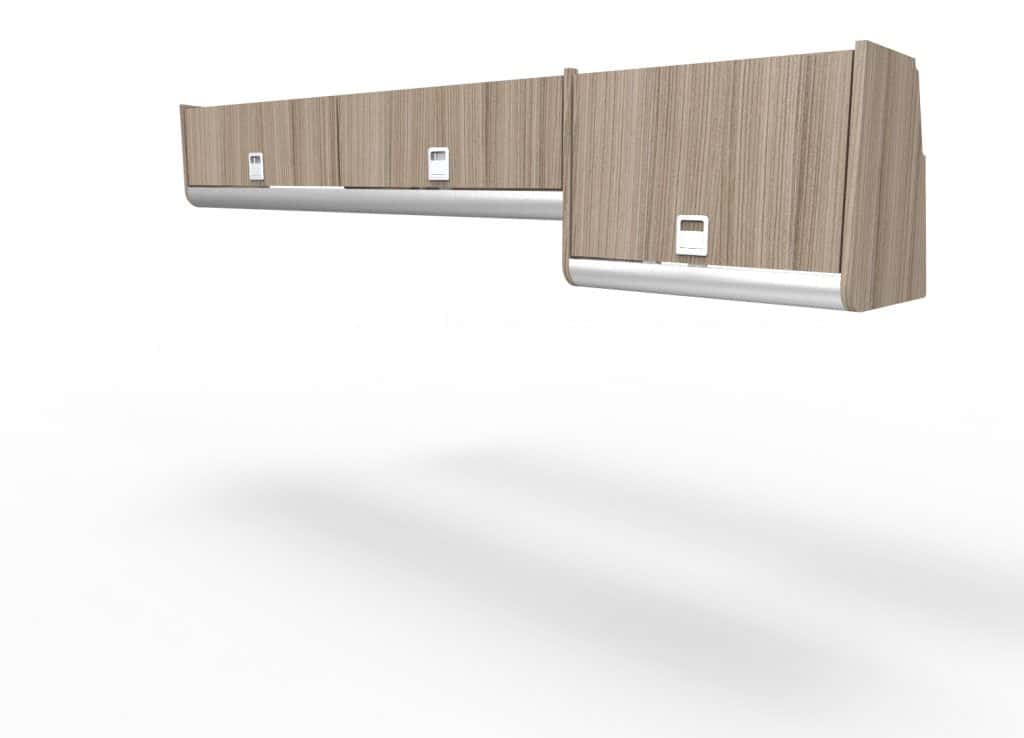

High level lockers to go over the bed and part way across the kitchen unit to the edge of the sliding door. An optional extra spice rack can be purchased to go below the lockers sitting on the worktop it's been specifically designed for the V6 kitchen pod and our space pods. If you purchase the spice rack without the V6 kitchen pod or space pods it will not fit without modification. Images shows locker with Spice Rack (please choose an option SPICE RACK ADD ON to have it)

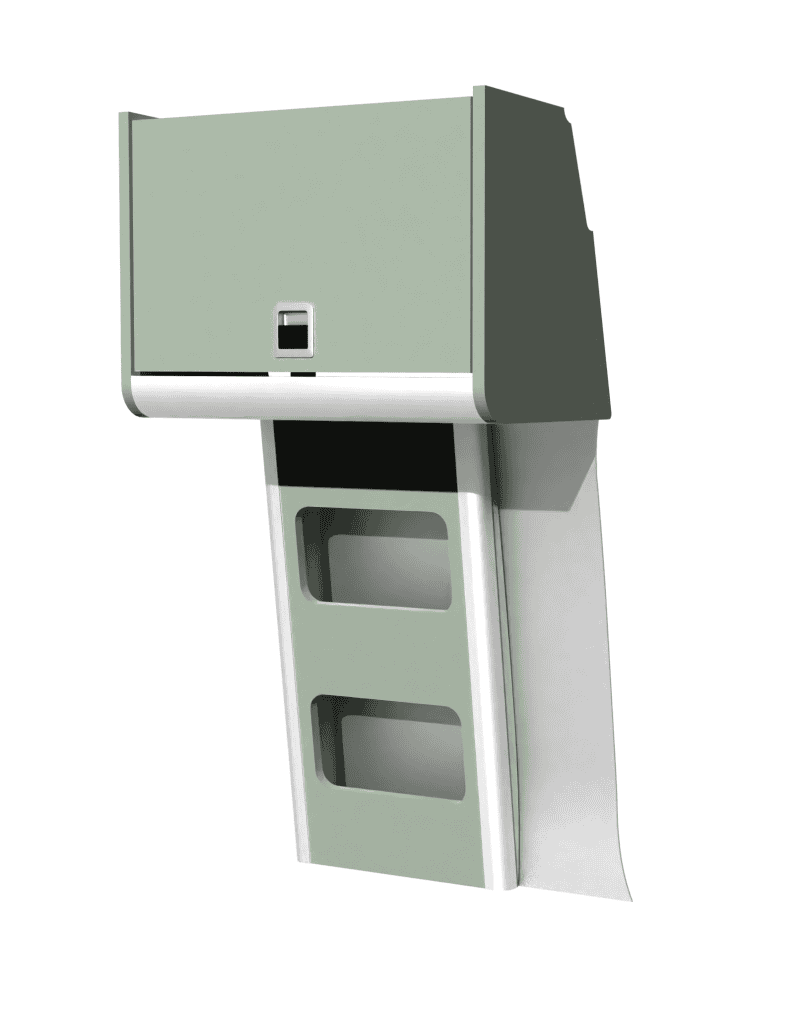

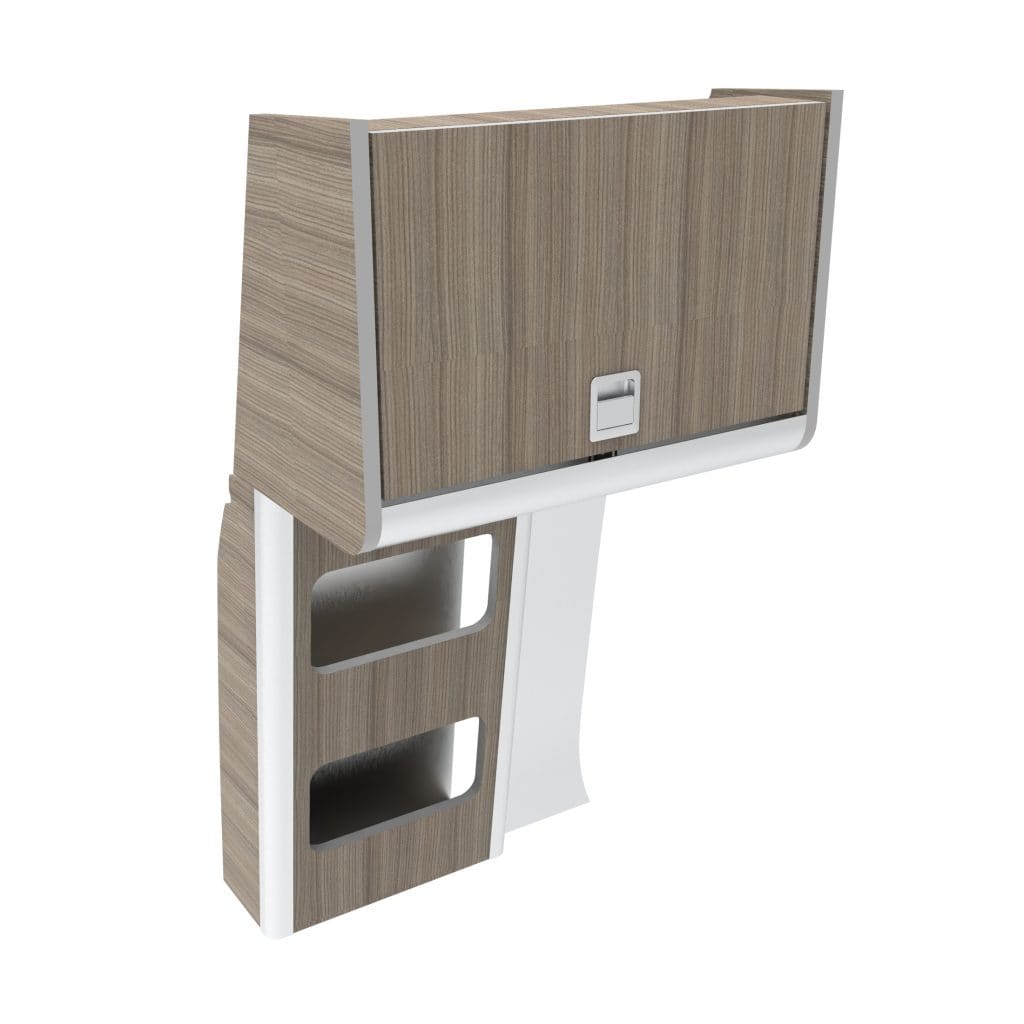

High level locker to go over the kitchen unit to the edge of the sliding door. An optional extra spice rack can be purchased to go below the locker sitting on the worktop. This has been specifically designed for the V6 and V8 kitchen pods and our space pods in the Sprinter 2006+ / Crafter 2006 - 2017 medium wheel base vans ONLY. If you purchase the spice rack without the V6 or V8 kitchen pod or space pods it will not fit without modification. Images show the locker with the spice rack (please choose a SPICE RACK ADD ON option to have it)

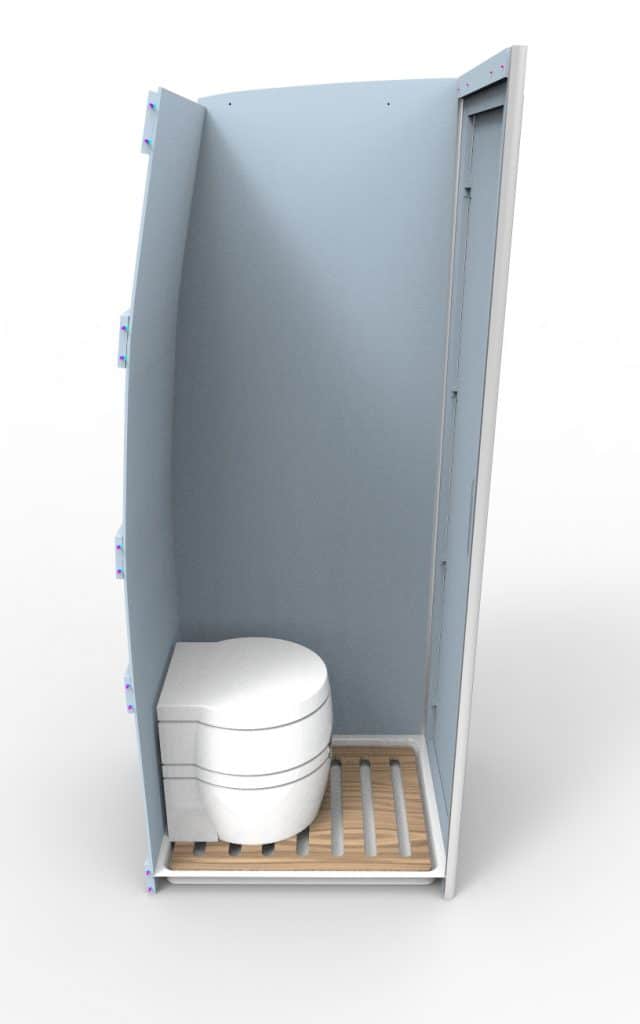

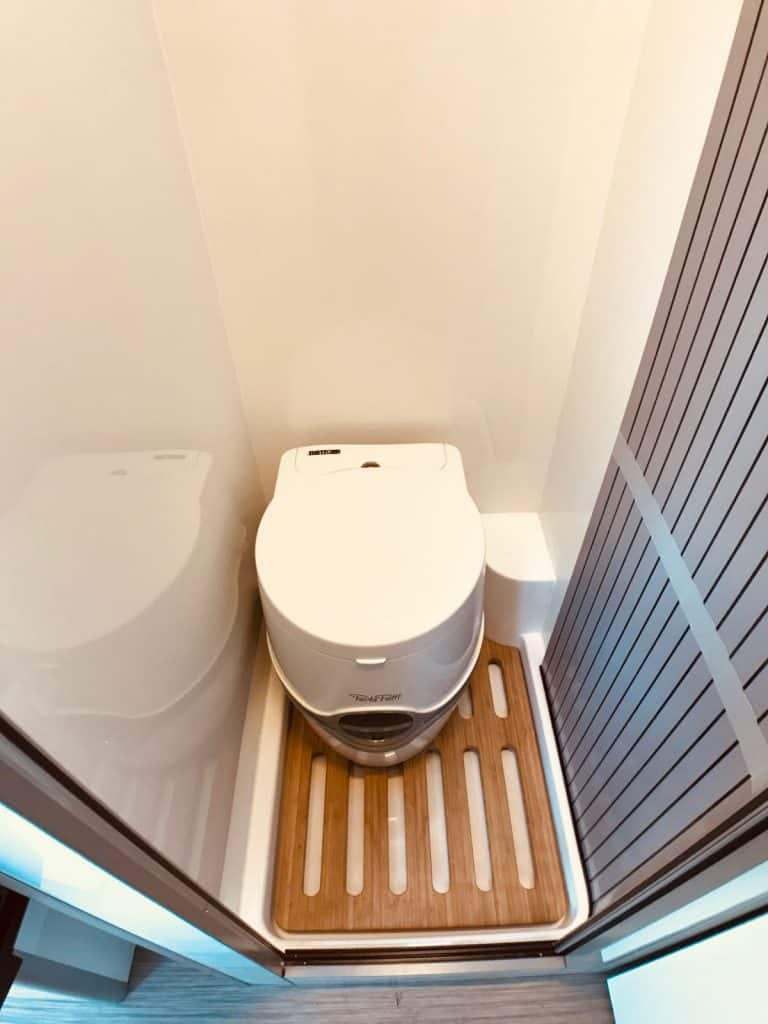

New micro shower toilet cubicle design to be as compact as possible. Particularly suitable for medium wheelbase vans where 600 x 790 size allows for a more spacious layout. The cubicle would ideally use a portaloo that can be removed from the space when you want to shower giving more space to wash. A Thetford portaloo will hold as much waste ( 17 L ) as a fixed cassette-style toilet but with the added flexibility of being able to remove it completely. The space can also be used as a storage space by adding removable shelves if you need more storage. ** not included portaloo, shower tray, bamboo shower tray base or tambour door which is an optional extra. Shower tray in photo is designed to fit over the rear wheel arch in the Mercedes Sprinter or VW Crafter pre 2017. Designed to work with 20mm total thickness floor and 5.5mm roof lining kit.

Rotating table leg + twin worktops tops + mito table rail main table is 830 x 536mm small table rotates and can be set at different positions allows 4 people to comfortably eat table leg splits lower height: 313mm (approx) upper height: 701mm (approx)   Note, if using a plinth the table rail mounting point will be about the windowsill level. A plywood board would be need to mount this onto the back wall to mount the rail too.

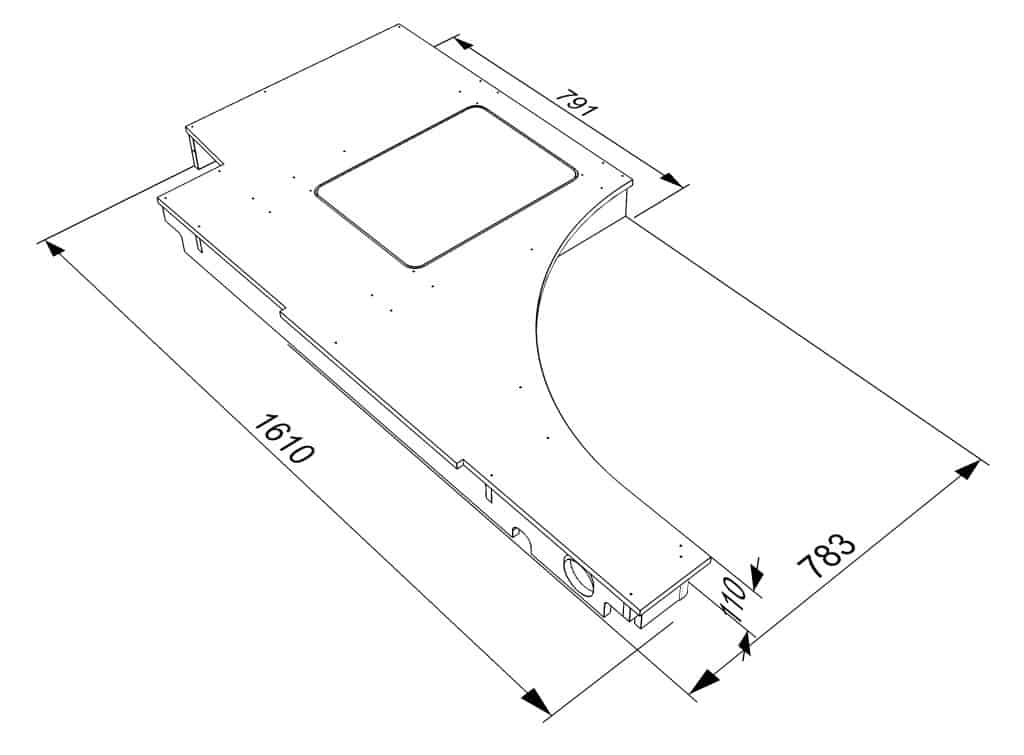

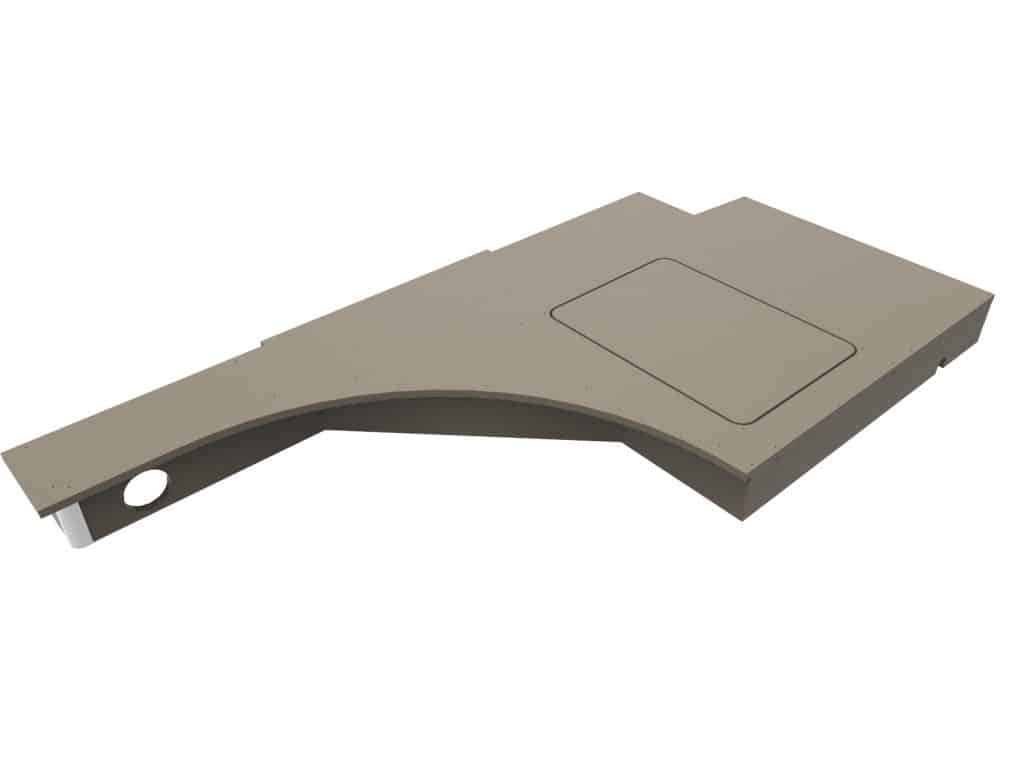

Seat plinth designed to be used with our seat box, raises the floor height 110mm. Has built in storage hatch. Plinth top is cut in plain plywood allowing a vinyl floor to be bonded to the top. Includes aluminium trim to front edge. Cut without heating vent holes as standard, cable can be run under the floor. *** Note, if you have the Sprinter Front Wheels drive the floor is lower and this will need trimming to fit over the cab site. The ducting will not fit inside the plinth. ***

Double seat frame with seat belts designed to be fitted in the rear of the van with fitting kit which ties the seat frame to the chassis. To be used behind the drivers seat for RHD This seat model will work with the mercedes Sprinter and crafter van. It can also be used in the Fiat Ducato but you will need to purchase the 100mm offset bracket to fix the frame to the longitudinal chassis member. This model is also designed to accommodate the Truma Combi 4E heating and hot water system. Bare frame only with seat belts requires a base and upholstery. Homologated according to R14 for Fiat and Citroen vans. You can see this certificate here This is a great solution for those looking to add a rear double seat to your camper. Frame is suitable for a seat around 800mm wide. *Double head rest set not included. £180 extra in the drop down menu. PLEASE NOTE THE UNDER CHASSIS FITTING KIT IS DESIGNED TO FIT AROUND THE LONGITUDINAL CHASSIS MEMBER, PLEASE CHECK THE POSITION AGAINST WHERE YOU WANT TO POSITION THE SEAT. https://www.youtube.com/watch?v=WFe3uZsF5bw&t=430s

Designed to fit around our seat frame with a lift up hinged lid for easy access. Seat box only does not include metal seat frame or cushions, designed to used with a plinth around 100mm in height. Does not fit with seat frame ISOfix option Made from lightweight plywood.

Designed to fit between the micro shower and the v6 kitchen pod ONLY ( other showers or pods will not work due to width differences ) the upper hinged door separates the under bed area from the main living space. The lower part has a step upto the bed and is robust enough to prevent object sliding against it causing damage. Suitable for TAMBOUR DOOR version of micro shower only.

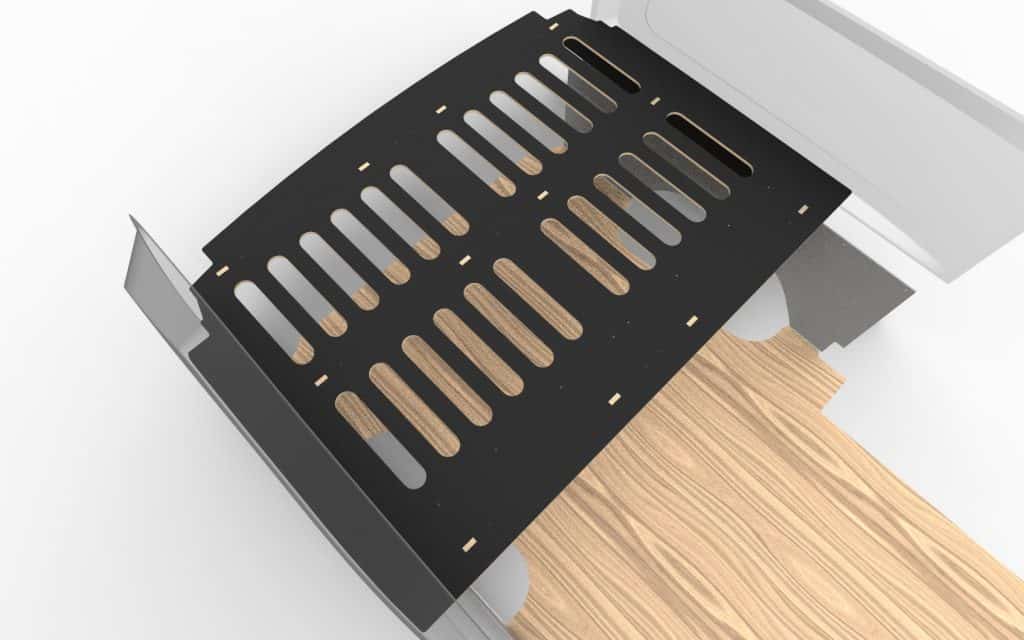

Sprinter Crafter Flat pack rear bed system designed fit with our rear Space pods or can be trimmed flush if you don't need the extra width. This is for the MEDIUM WHEEL BASE VAN.  Please note that if you are not using space pods, you will need to trim the sides of the platform. BIRCH PLY WITH TOUGH BLACK RESIN FINISH FIXED WITH 8 HEX HEAD SCREWS FLATPACK QUICK INSTALL

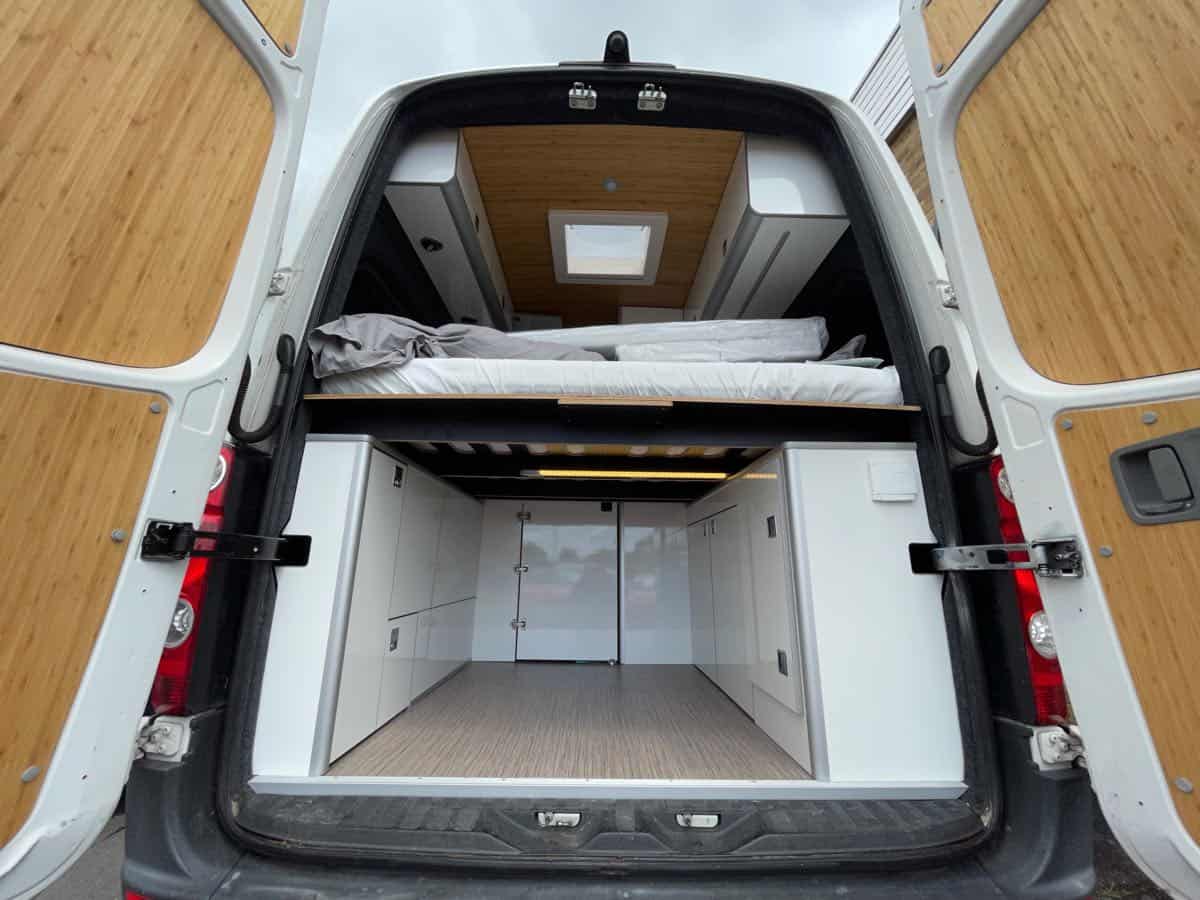

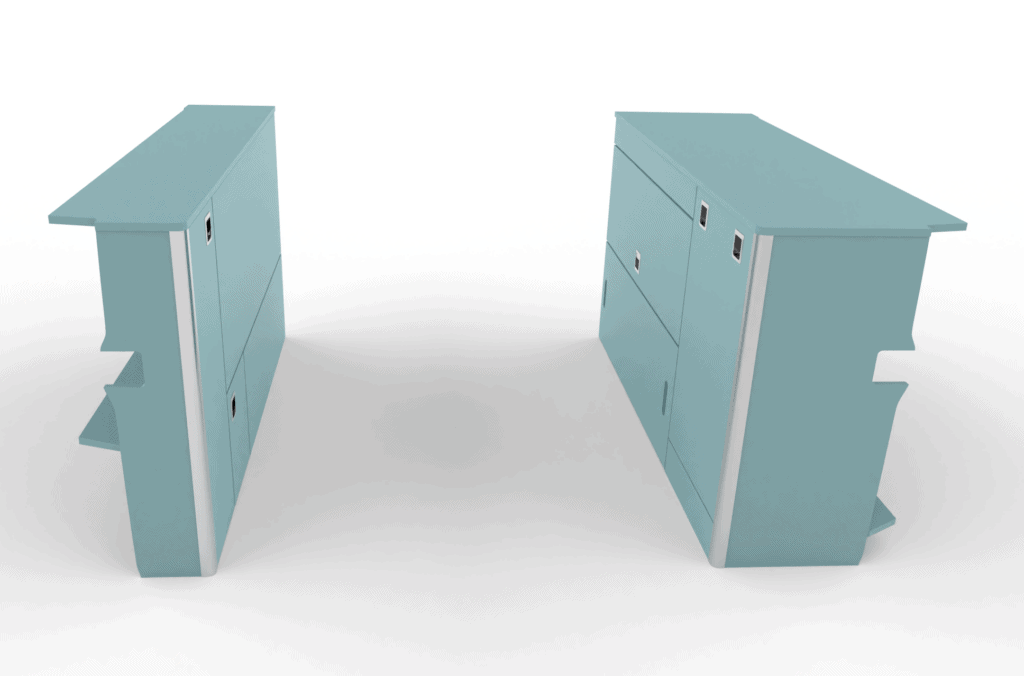

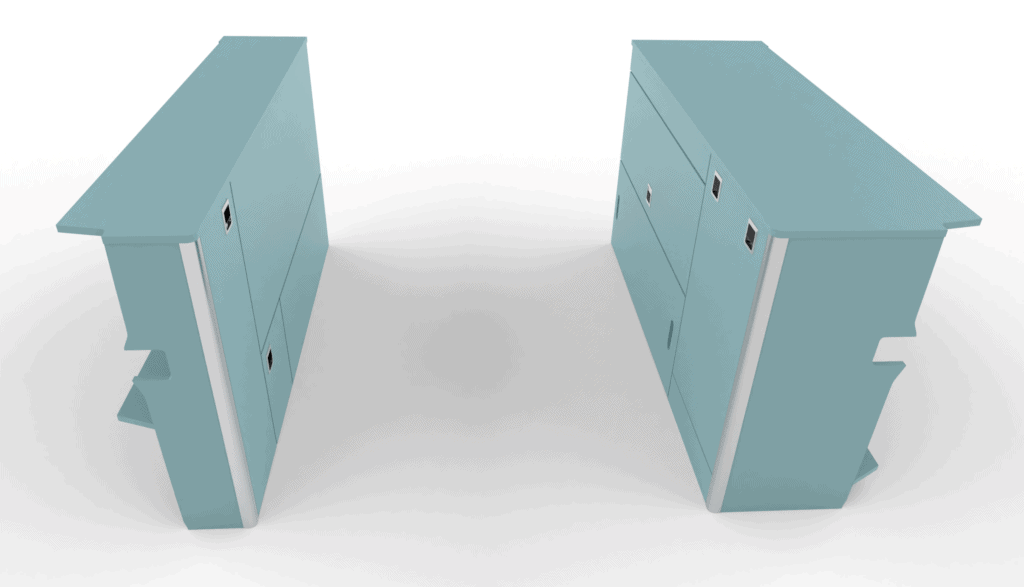

2 storage units designed to fit under our plywood bed platform for the Mercedes Sprinter or the VW Crafter Pre 2017 **NOT SUITABLE FOR FRONT WHEEL DRIVE SPRINTERS.** Please note if you have a new front wheel drive sprinter these units will not work. The slimmer unit is designed to house a water tank of around 80 L with space for a water pump and expansion vessel The deeper unit is designed to accommodate a 15kg gas bottle, 1 or 2 110ah leisure batteries and a Whale expanse water heater. Please note does not include bed platform , this available as a separate product. Design is subject to change / improvement  and images maybe slightly different. Recommended water tank size is 1100 x 200 x 400  ( Supplied by GFG Plastics )

EVO MultiSpace Bed Introducing our innovative folding bed system, specifically engineered for campervans to transform interior versatility and convenience. Featuring a uniquely designed hinge mechanism, this bed effortlessly spans wide spaces between cabinets, creating a sturdy and comfortable sleeping platform for two adults. The revolutionary hinge design locks securely when fully extended, ensuring exceptional stability and safety throughout the night. When not in use, the bed folds rapidly, freeing substantial interior space for storing larger items such as bicycles, adventure gear, or any equipment that exceeds the storage capacity of traditional fixed beds. Additionally, the bed's foam panels remain conveniently attached to the frame even when folded, enabling quick and easy deployment for instant relaxation and comfort. This cutting-edge system turns your campervan into a multifunctional vehicle, delivering unmatched practicality, versatility, and comfort on demand. The cabinets on either side of the van can accommodate 90 L fresh water & pump Leisure battery & electrical system Gas locker or general storage Center folding section is made from 12mm Birch ply black hex. Gas strut supported hinges to assist with folding the bed. Please note when folding and unfolding the bed do so in a controlled manner and do not allow drop the bed until it touches the other side. Narrow storage cupboard on passenger side with 2 doors and openings. Please note if using this with the trim rings the units will come scribed to fit.  Please take care when opening and closing the bed mechanism. The bed is supported with a gas piston to help take some of the weight but the user is needed to actively support the bed movement to avoid damaged. Once the bed has been opened and closed a few times. Keep fingers well away from the folding metal hinges during operation.
