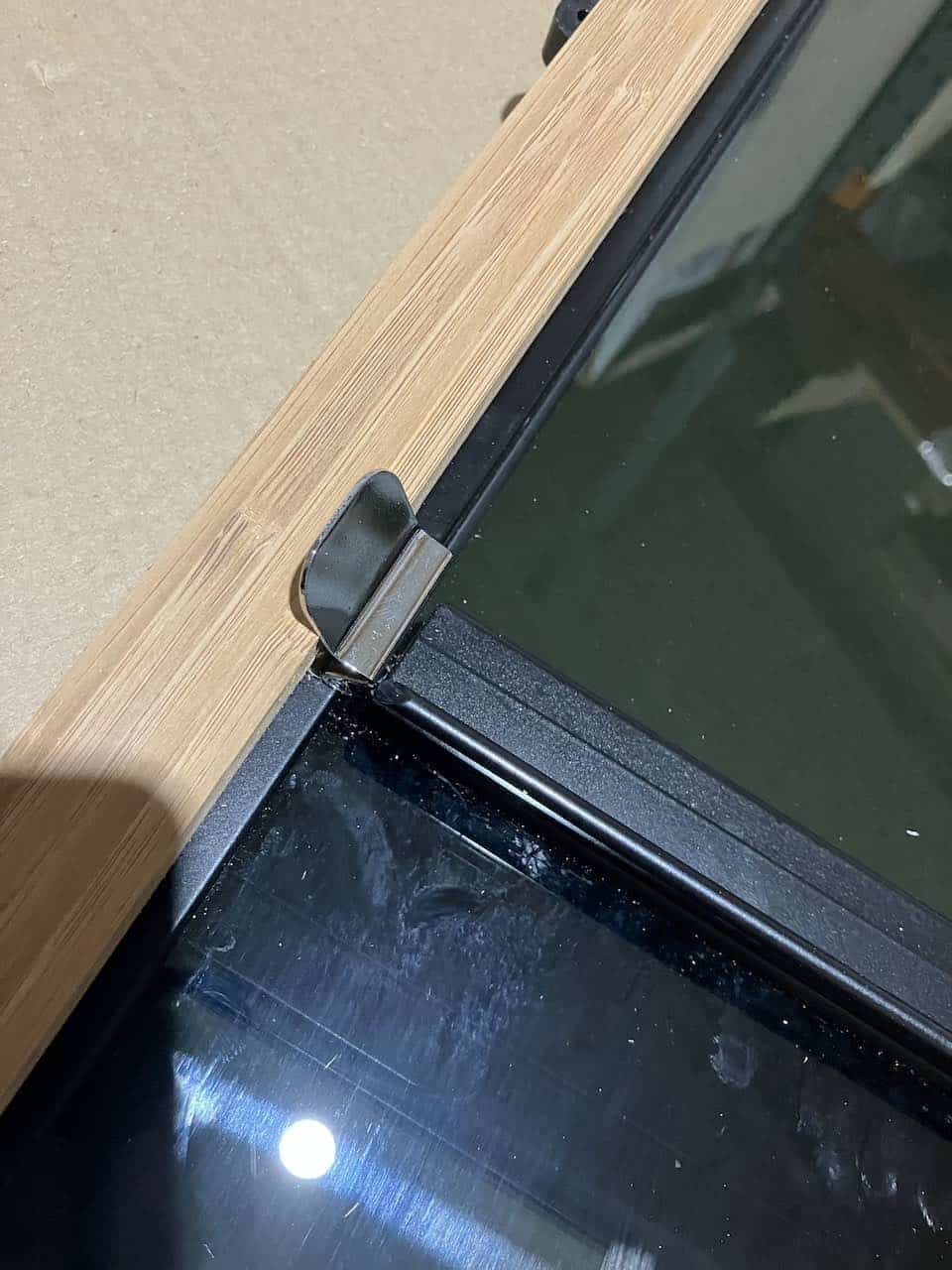

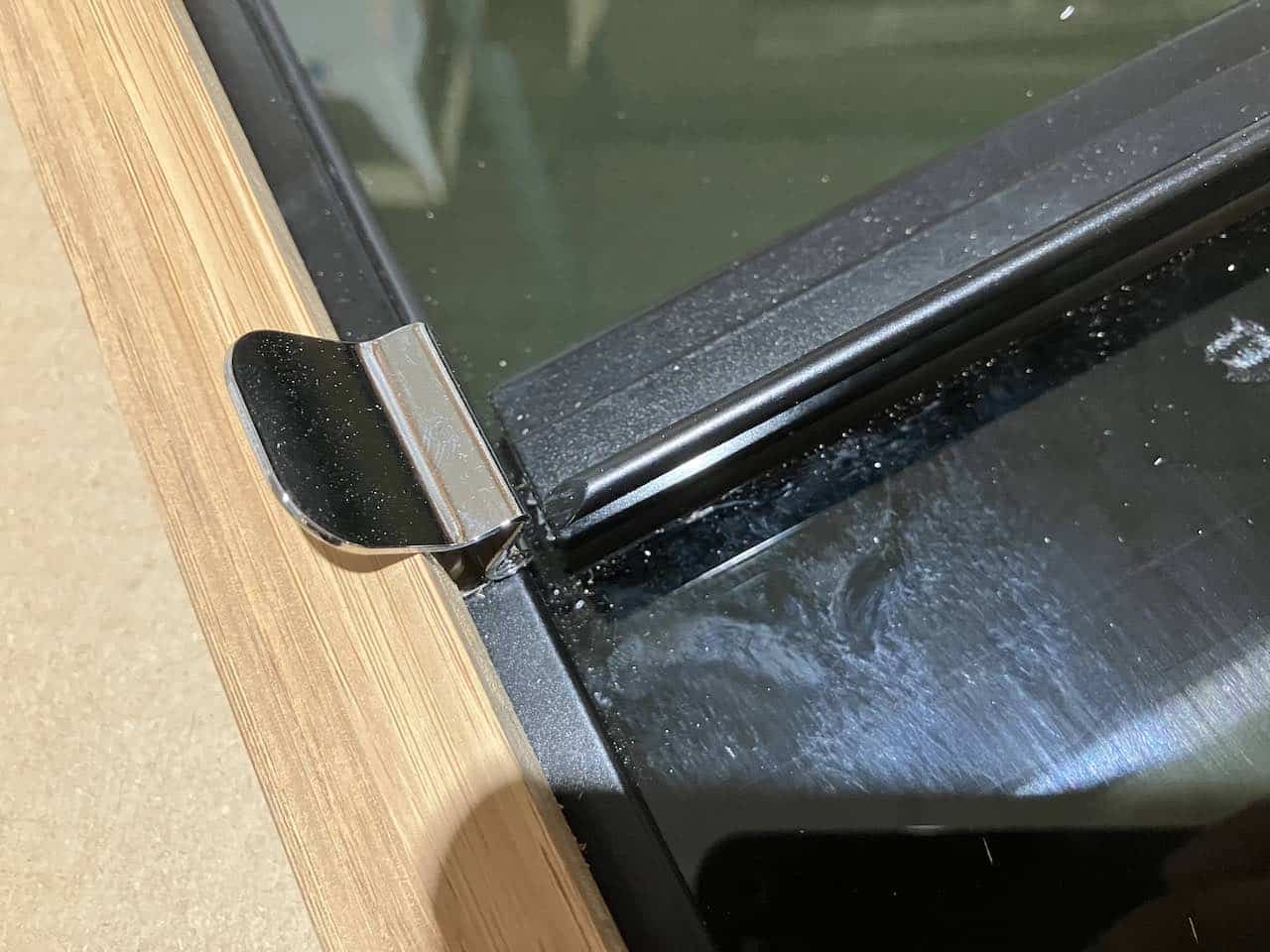

We have identified that on some windows, the catch and metal handle are positioned slightly differently. We have a batch of these old style bamboo frames manufactured to clear.

It is possible to use this style; however, the frame will need to be fitted approximately 5 mm lower than the window to allow sufficient clearance for the silver window catch to rotate.

We also have a new design in which the fixing position has been offset by 5 mm, providing the additional clearance required for the silver window catch to rotate without adjustment.

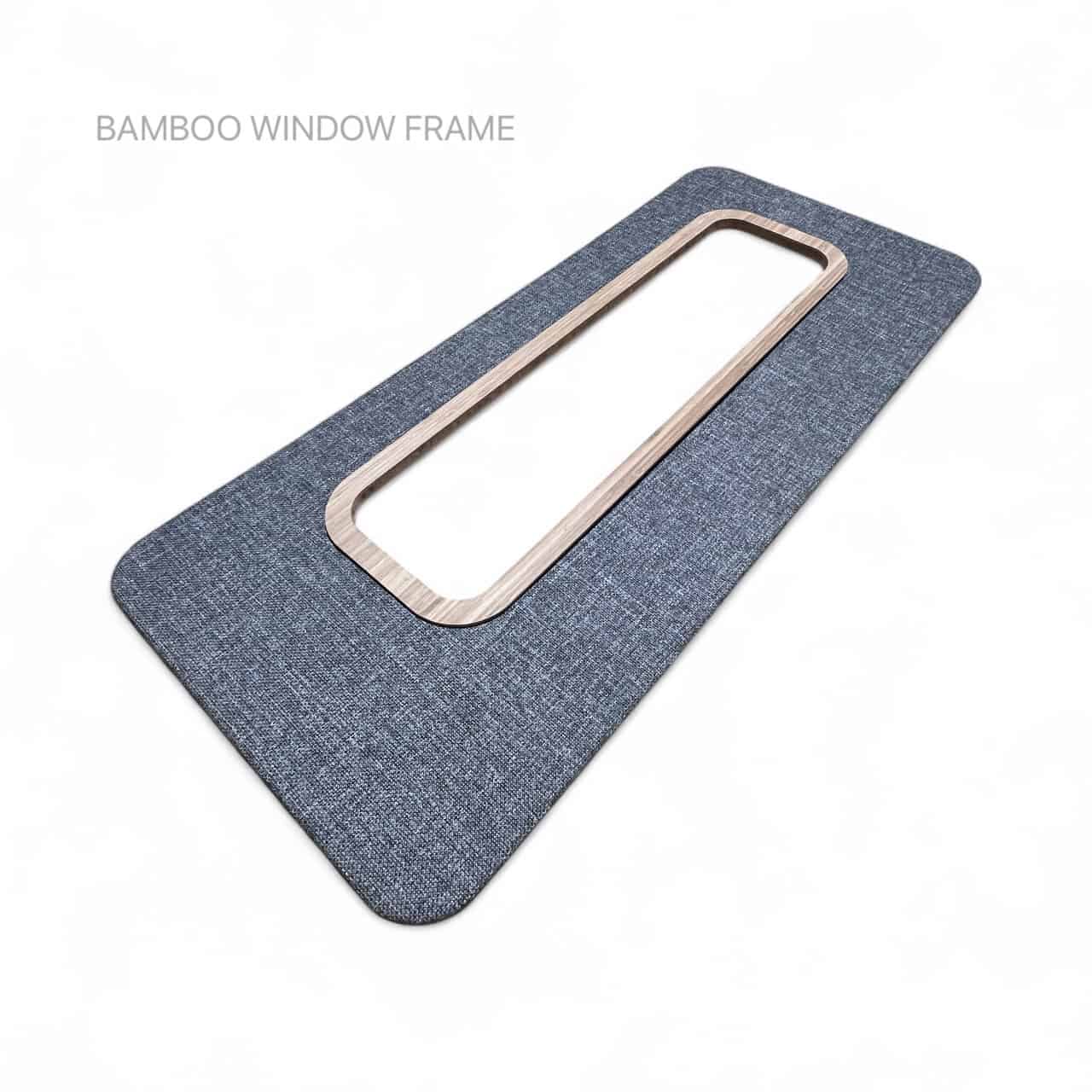

Designed to work with our space pod windows, these are a great way to achieve a Pro finish in your van.

Made from 16mm bamboo, these will need varnishing before fitting.

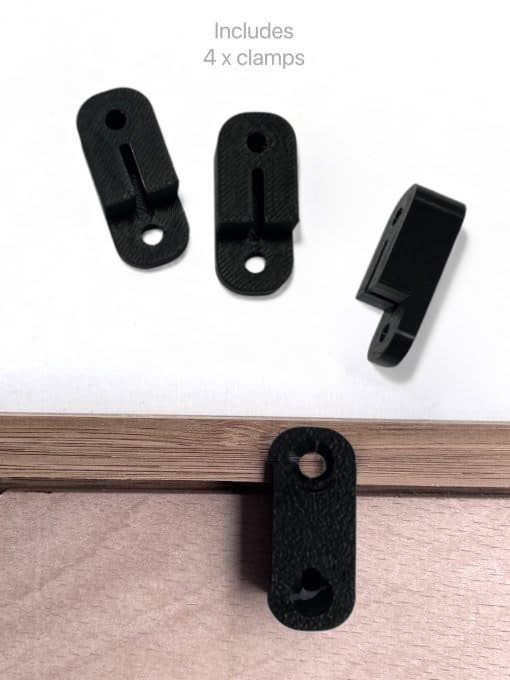

Comes with 4 clamp fixings

Recommended to be used with 5.5mm FEP panel between window and frame.

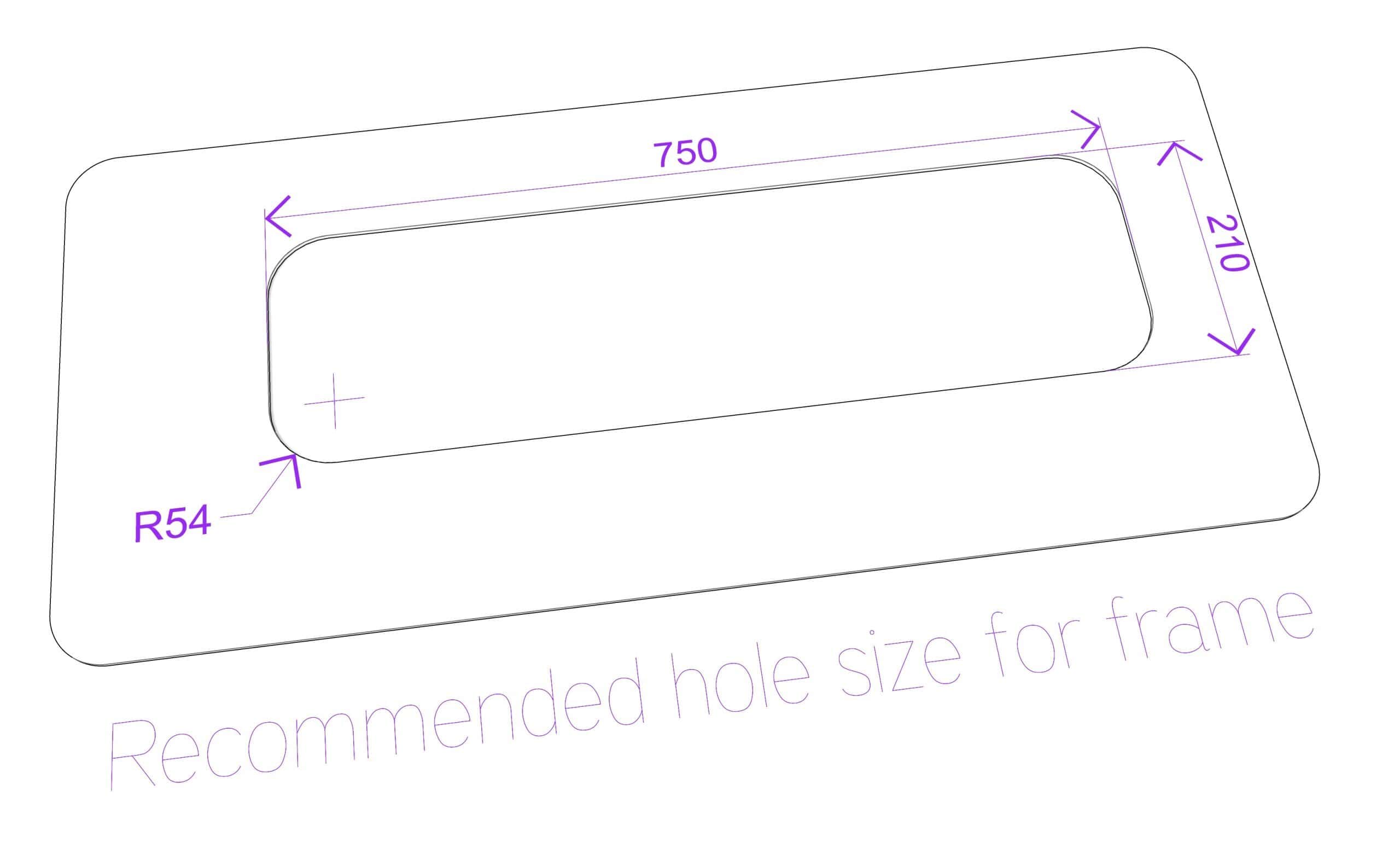

Recommended cutout size for frame 750 x 210mm with 54mm radii, which allows the frame to be positioned perfectly to your window position.

OTHER SIZES AVAILABLE ON REQUEST
