EVO 5.4 SWB T5 Curved

£1,199.00£1,299.00 inc vat

IMG_6155 IMG_6154New updated 2017 curved kit accepts Smev 9722 hob sink & includes soft close draw

VW T5 T6 short wheel base van flat pack interior, includes full side unit ,table system, over bed locker, front and back bed boards, all the wood work necessary to build a full camper van interior, works with low roof & elevating roof vans. See full specifications and finishes below. The curved kit,  a slightly more challenging construction than our other designs this this kit is suitable for people who are handy Diyer’s .

Does not include:

  • LED light shelf this an optional extra available for purchase.
  • Twin light recess this an optional extra available for purchase.
  • Brush metal window surround  this an optional extra available for purchase
Clear

Other finishes – laminate for unit sides

Please use these options if you have selected “other”

Other finishes – Work Top and table colour

Please use these options if you have selected “other”

Other bed boards

Please use this option if you have selected ‘Other bed boards’ in the bed type above. Please ignore brackets ( A ) etc..

Other Elevating Roofs

Please use this option if you have selected ‘Other Roof ‘ in the Roof Type drop down menu above. Please ignore brackets ( R40 =840 B ) etc…after roof type. ONLY SELECT A FULL WIDTH LOCKER FOR A SLIM KIT (eg. 1300) OR A KIT WITH A LOW BACK (eg. 2.3 5.3)

* EVOMATIC DOOR & DRAWER CATCHES UPGRADE

Optional upgrade from the standard round push button catches to the evoMatic rectangular flush catch.
Choose your finish below

Window Surround panel

3mm thick Aluminium composite window surround panel which can be drilled and cut to accept switches and control panels

Optional extras

Add products to compliment your furniture kit. Please note some kits come with some of the items below,

ORDER NOTES

Please add any additional information that you have discussed with us.

Optional Drawing Modification

Changes to drawings will incur additional costs depending on the time required. Any drawing modification and cost must be agreed before placing an order. Please note the modification will delay the lead time.

SKU: N/A Category: Tags: , , , , ,

EVO 5.4 Curved Kit for the swb T5

New updated 2017 curved kit

  • Side unit with soft close cutlery draw

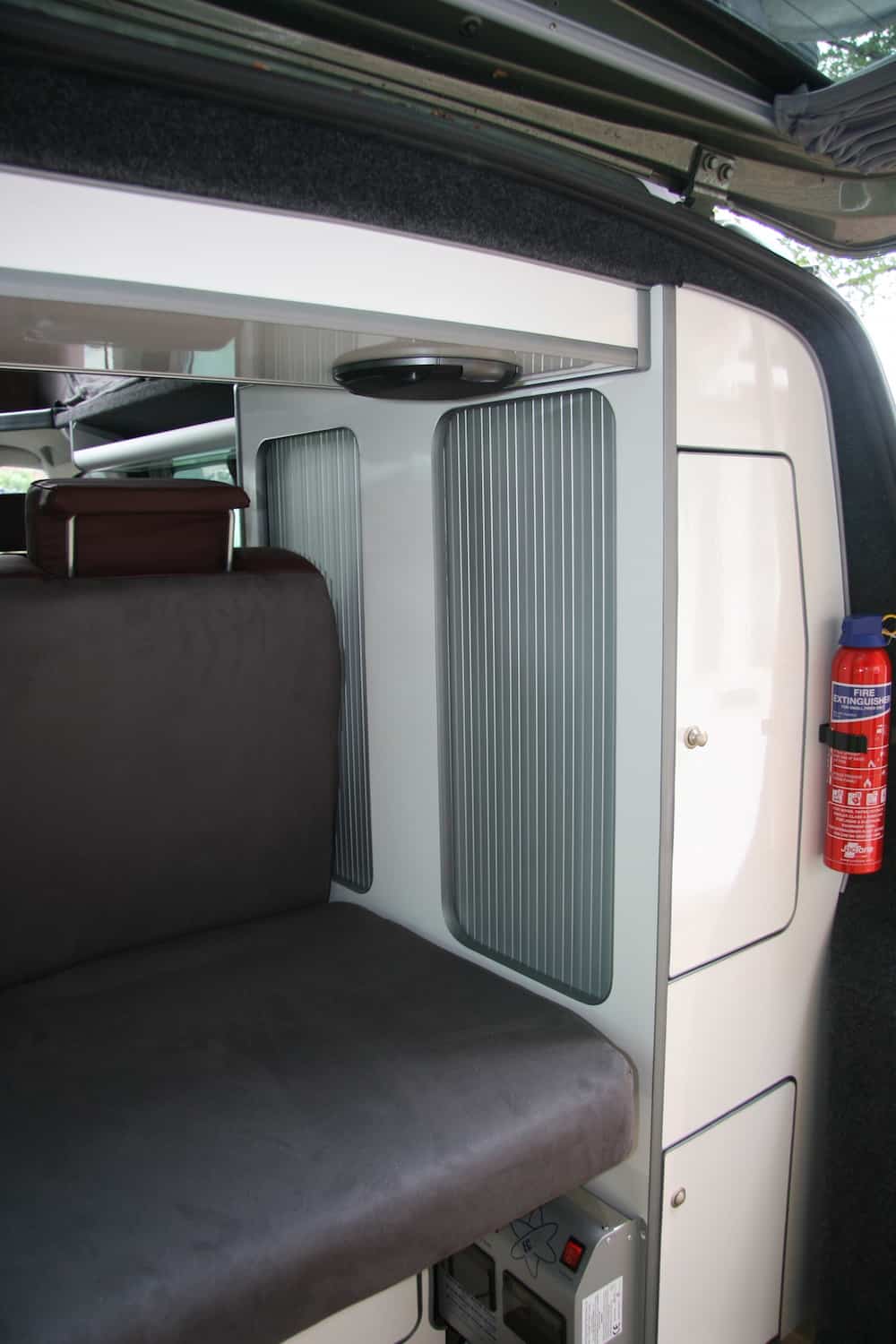

  • 4 x Sliding tambour door.
  • Over bed locker for low roof and elevating roof vans.
  • Front and rear bed panel with a door.

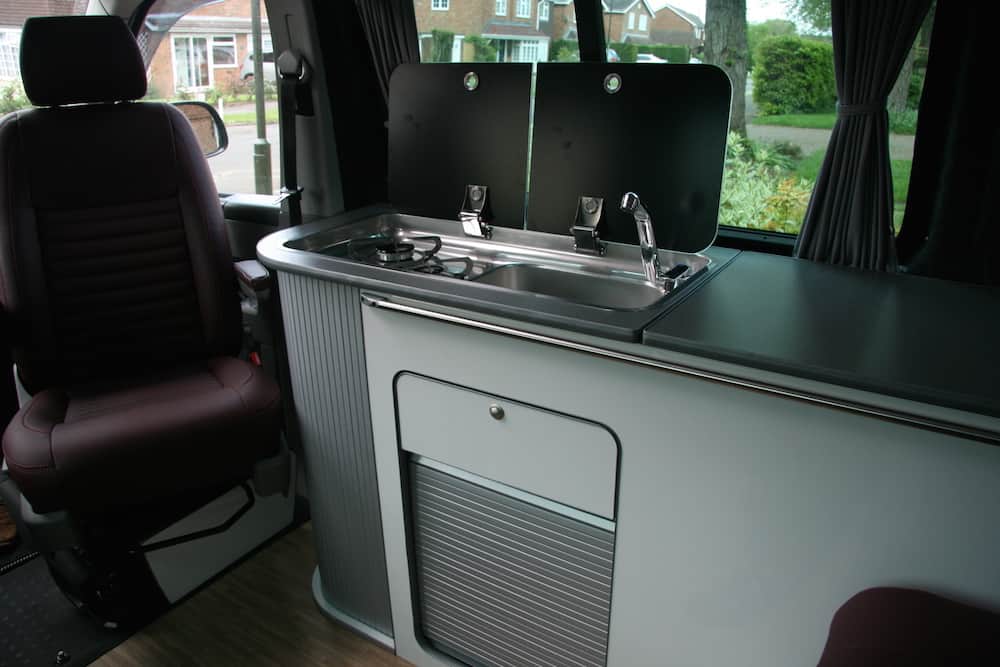

  • The worktop is cut for SMEV 9722 – 2 burner hob and sink ( better engineered than the old CAN FL1401 )
  • R904 gas bottle will fit under the hob at floor level or in the rear cupboard of the tall wardrobe, a gas drop out vent will need to be fitted.
  • Concealed self close hinges with flush fitting doors
  • Table with folding aluminium leg and  stainless steel sliding rail system
  • All connecting blocks, hinges, grey , black or silver edging, push catches and screws
  • Designed for the Webasto BL41 top loading fridge Super efficient ( 4 -5 days run time ) or can be used as storage space
  • Knock on edging for all exposed edges, the edges are pre slot cut for you to apply
  • Designed to be easy to construct with easy  mount hinges, slots for aligning the panels and pre drilled hole for the connector blocks
  • Available in a range of light weight ply finishes see below
  • Worktop and Table can be a different finish.
  • Edging: Silver , black or Dark Grey
  • Works with Scopema RIB seat 1120mm wide fixed or  sliding  seat, BEBB seat, Smart beds Evolution and various rock n roll beds 44” wide or less.
  • Works with both low roof and elevating roof conversions ( Reimo style , SCA, hilo please specify)
  • Allows front seats to swivel fully
  • Version for twin side loading door option available, see line drawings in the image gallery

Does not include the following options as standard:

  • Twin light recess ( twin cut outs in tall unit facing forward, not an option on kits ending in .3 or .5 )
  • LED light shelf
  • Brush metal window surround
Unit Finish

Carbon, DRIFTWOOD, Gloss Black, Gloss White, Hacienda Black, Hacienda White, Oak Morland, Puntinella, Titanium, Walnut – Natural Dijon ( OUT OF STOCK UNTIL JULY ), Zebrano Dark, Zebrano Sand, -, *Other Finishes

Edge Trim

BLACK, DARK GREY, SILVER

Worktop & Table

Carbon, Driftwood, Gloss Black, Gloss White, Hacienda Black, Hacienda White, Oak Morland, Puntinella, Gunmetal Titanium, Walnut – Natural Dijon ( OUT OF STOCK UNTIL JULY ), Zebrano Dark, Zebrano Sand, *Other Finishes

Bed Type

Other bed boards – please use “Other bed boards” menu below, Standard rock n roll ( A )

Roof Type

Low roof standard ( A ), Other Roof- please use “Other Elevating Roofs” menu below
